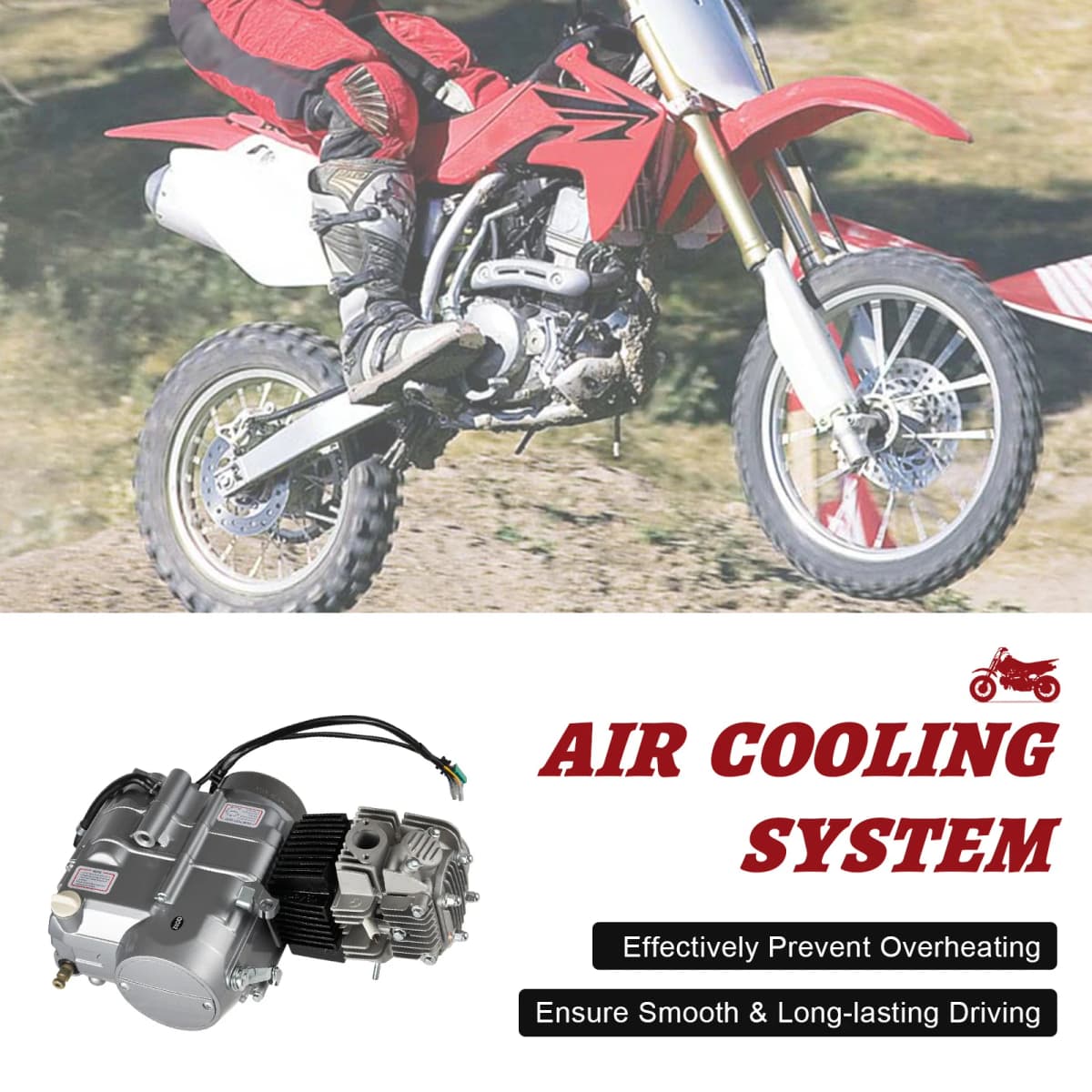

125cc 4-Stroke Engine with CDI Ignition 4-Speed Pit Dirt Bike Engine Kit for Honda CRF50 CRF70 XR50 Dirt Bikes and ATVs

125cc 4-Stroke Engine with CDI Ignition 4-Speed Pit Dirt Bike Engine Kit for Honda CRF50 CRF70 XR50 Dirt Bikes and ATVs

125cc 4-Stroke Engine with CDI Ignition 4-Speed Pit Dirt Bike Engine Kit for Honda CRF50 CRF70 XR50 Dirt Bikes and ATVs

Application

It fits for CRF50 / CRF70 / XR50 / XR70 / Z50 / Z50R / CT70 Mini Trail / Z50 / Minitrail monkey / XL70 ST70 / QA50 / QR50 / CL70 / SL70 / 70 Pass / ST 90K2 / ST 90K1 / CS 90 / SL 90 / ZB 50.

Specifications

Color: Black, Silver

Assembly Required: Yes

Engine Type: 4-Stroke, Single Cylinder

Cooling System: Air Cooling

Engine Displacement: 125cc

Transmission: 4-speed, Manual Clutch 1-N-2-3-4

Clutch: Wet Multi-disc Clutch

Lubricant: SAE 15W/40-SE, Four-stroke Gasoline Engine Oil

Compression Ratio: 9.0:1

Bore*Stroke: 52.4*55.5 mm/2.06*2.18in

Maximum Power: 6.5KW/7500 rpm ± 375 rpm

Rated Power: 5.6KW/7500 rpm ± 375 rpm

Max. Torque: 8.0 Nm/5000 rpm ± 250 rpm

Idle Speed: 1500 rpm ± 100 rpm

Min. Fuel Consumption: ≤367g/kw.h

Ignition System: CDI

Starting Mode: Kick Starter

Spark Plug: A7TC

Carburetor Type: PZ22

Primary Reduction Ratio: 3.722

Lubricant Capacity: 900ml/30.43oz

Item Weight: 19.1kg/42.1lbs

Product Size: 44*29*22cm/17.32*11.4*8.66in

Gross Weight: 21.5kg/47.4lbs

Package Size: 48*37*35cm/19*14.6*14in

Package Included

1* CRF50 125CC Engine
1* Kick Starter Lever
1* Gear Shift Lever
1* Carburetor
1* Intake Manifold
1* CDI
1* Sprocket Cover
3* Intake Gaskets
Some Screws for Assembly
