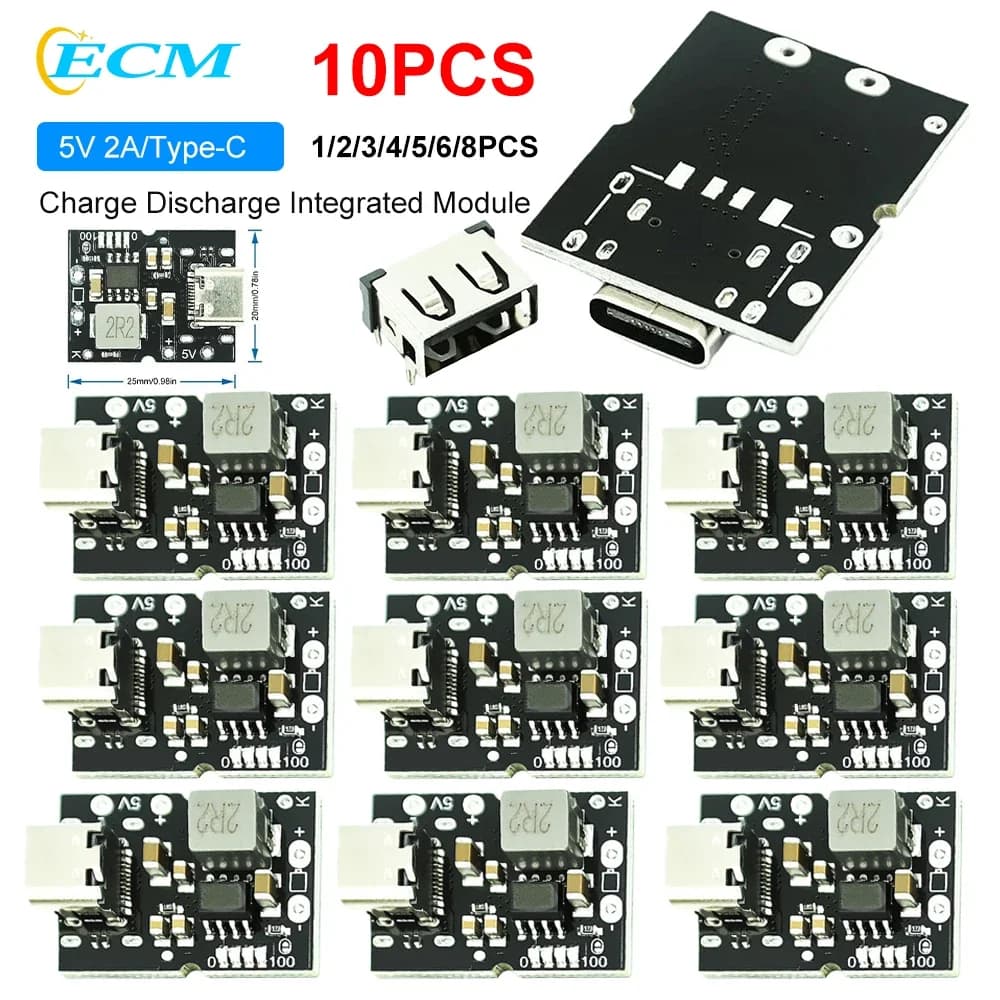

1-10pcs 5V 2A Charge Discharge Integrated Module Type-C Input Battery Charging Module Support 4.2V Li-Battery Charge Protection

(Not Welded/Welded/Welded/Welded/Not Welded/Not Welded/Not Welded/Welded/Not Welded/Welded/Not Welded/Welded/Not Welded/Welded/Welded/Not Welded)--Charge Discharge Integrated Module
5V 2A Charge Discharge Integrated Module Type-C Input Lithium-Ion Battery Charge Module Support 4.2V Lithium Battery High-precision Charge Protection
Feature:
1. Integrated Charging and Discharging: Designed for easy battery management and power control, this charge discharge integrated module  integrates both battery charging and power supply discharging functions.
2. High Power Output,5V Voltage Output: charging discharging module supports a maximum current output of 2A, fulfilling the power supply needs of most low-power devices such as microcontrollers and sensors.Stable  Provides a fixed 5V stable output voltage, suitable for various electronic devices that require 5V power supply.
3. Multiple Protection,Charging Indicator Light: battery charging module built-in multiple protection mechanisms including overcharging, overdischarging, and short circuit protection ensure the safety and stability of the battery and connected devices.Equipped with a charging status indicator light, providing a visual display of the battery charging progress and operational status.
4. Wide Input Voltage Range: Lithium-ion battery charge module supports a wide input voltage range typically from 7V to 5V, accommodating various battery or power supply situations.
5. Portable,Easy Operation: The charging boost power board is small in size, making it easy to integrate into various embedded projects, saving space and costs.Simple to use, just connect the correct input and output power interfaces and adjust relevant parameters as needed.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Input voltage range: 5-5.5V
Charging cut-off voltage: (4.2V/4.35V)±0.5%
Charging current: 2.4A±5%
Boost output voltage: 5V~5.15V (with wire loss compensation)
Boost output voltage ripple: 100MV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5V2A output)
Battery terminal quiescent current: <30UA
Product size: 25.00x20.00x3.00mm
Product size: 0.98x0.79x0.12inch


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
