【EU Stock】CNC 3.5KW Water Cooled Cooling ER20 Spindle Motor CNC Router Kit Waterproof Metal Stone Engraving Grind Motor +VFD

Good News:

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

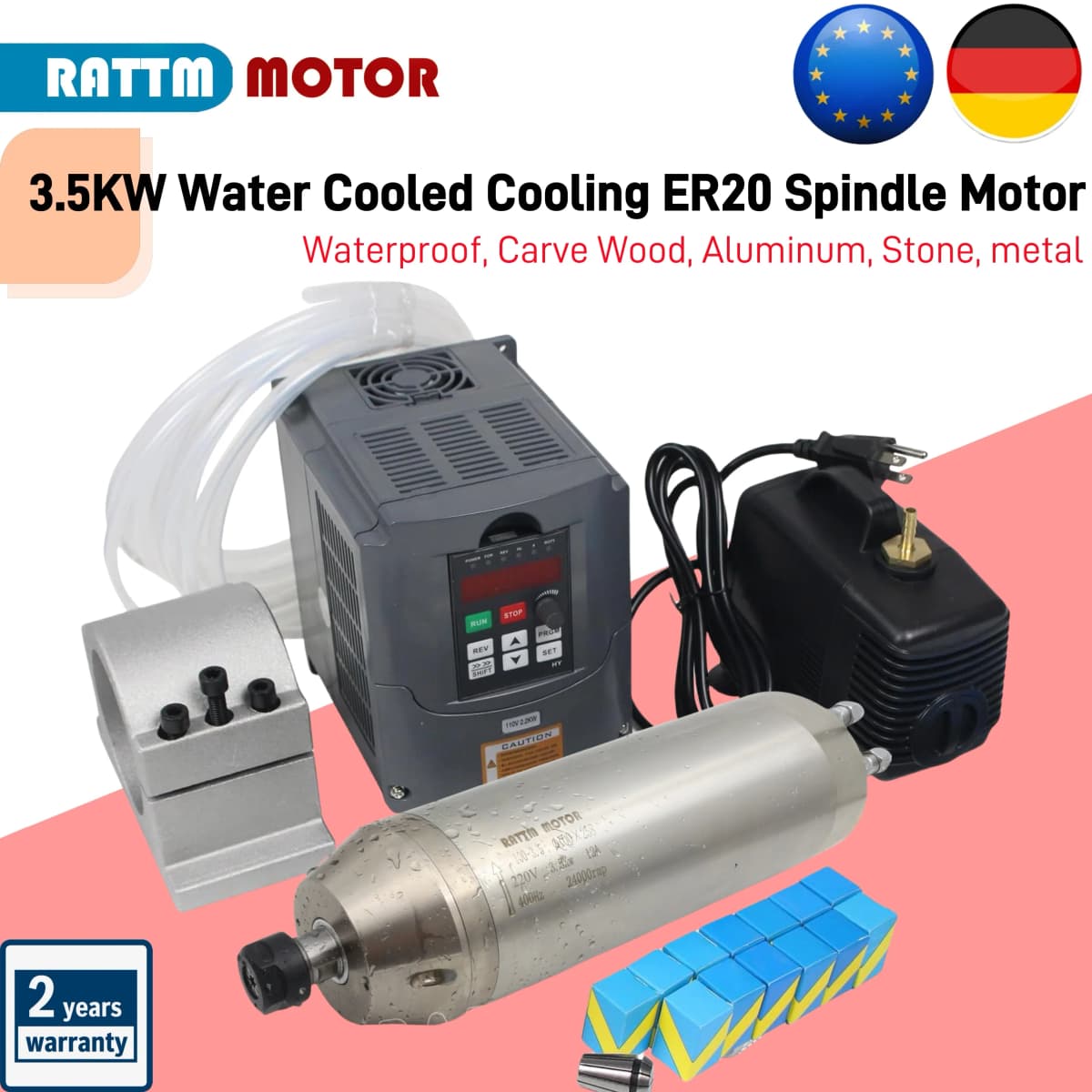

Package including：

220V type:

1 x 3.5KW ER20 220V Waterproof Carved metal Water-cooled spindle motor

1 x 4KW 220V HY Inverter VFD(Optional)

1 x 100mm cast aluminum clamp(Optional)

1 x 80W water pump(Optional)

1 x 6M Water pipe(Optional)

1 Set ER20 Collets(Optional)

380V type:

1 x 3.5KW ER20 380V Waterproof Carved metal Water-cooled spindle motor

1 x 4KW 380V HY Inverter VFD(Optional)

1 x 100mm cast aluminum clamp(Optional)

1 x 80W water pump(Optional)

1 x 6M Water pipe(Optional)

1 Set ER20 Collets (Optional)

The English manual for the VFD will be send via email.pls leave ur e-mail ID after purchase, thanks.

Specification:

Features:

1) Waterproof

2) Long life

3) Long length and high torque

4) Can engrave metal,Mold processing

5) 4 Bearings(2x7005+2x7004)

6) High precision

Specification:

Material: Stainless Steel

Size: Φ 100x258mm(long length and high torque)

Power: 3.5Kw

Voltage: 380VAC

Current: 12A

Frequency: 0-400Hz

Speed: 10-24000rpm

Cooling: Water-cooling

Precision tapered bore: 0.01mm

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size:ER20

Bearings: 4 bearings(C7005x2 + C7004x2),P4 class

Net Weight: 10.95kg

Power supply interface: Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 is blank to avoid connection wrong to burnt the spindle.

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

100mm cast aluminium bracket

Diameter: 100mm

Material: Cast aluminium

Features:

Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

Inner wall is very smooth,  outer walls is sandblasted, relatively fine uniform,  but not very smooth,.

Cast aluminium fixture is much heavier than aluminium profile fixture.

Product Description:

Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.

Usage:

Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error

Inverter Type: 380v 9A

Input Voltage: 380V(+/-15%)

Input Frequency: 48-63 Hz

Output Voltage: 380VAC

Output Frequency: 0-400 Hz

Input Phase: 3 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

Inverter Type: 220v 17A

Input Voltage: 220V(+/-15%)

Input Frequency: 48-63 Hz

Output Voltage: 220VAC

Output Frequency: 0-400 Hz

Input Phase: 1 or 3 phase

Output Phase: 3 phase

Warranty: 1 year from the date you purchased

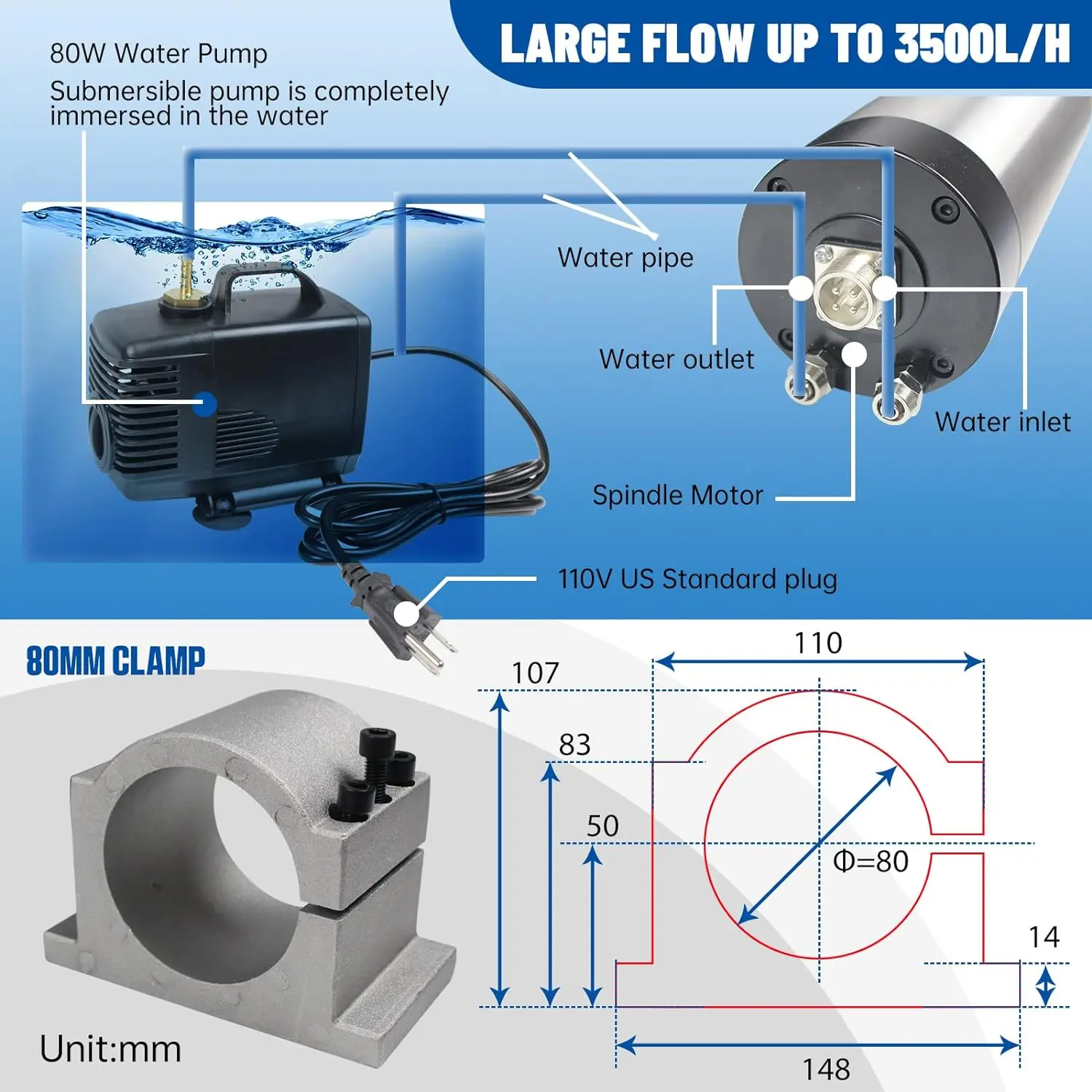

4. 80W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

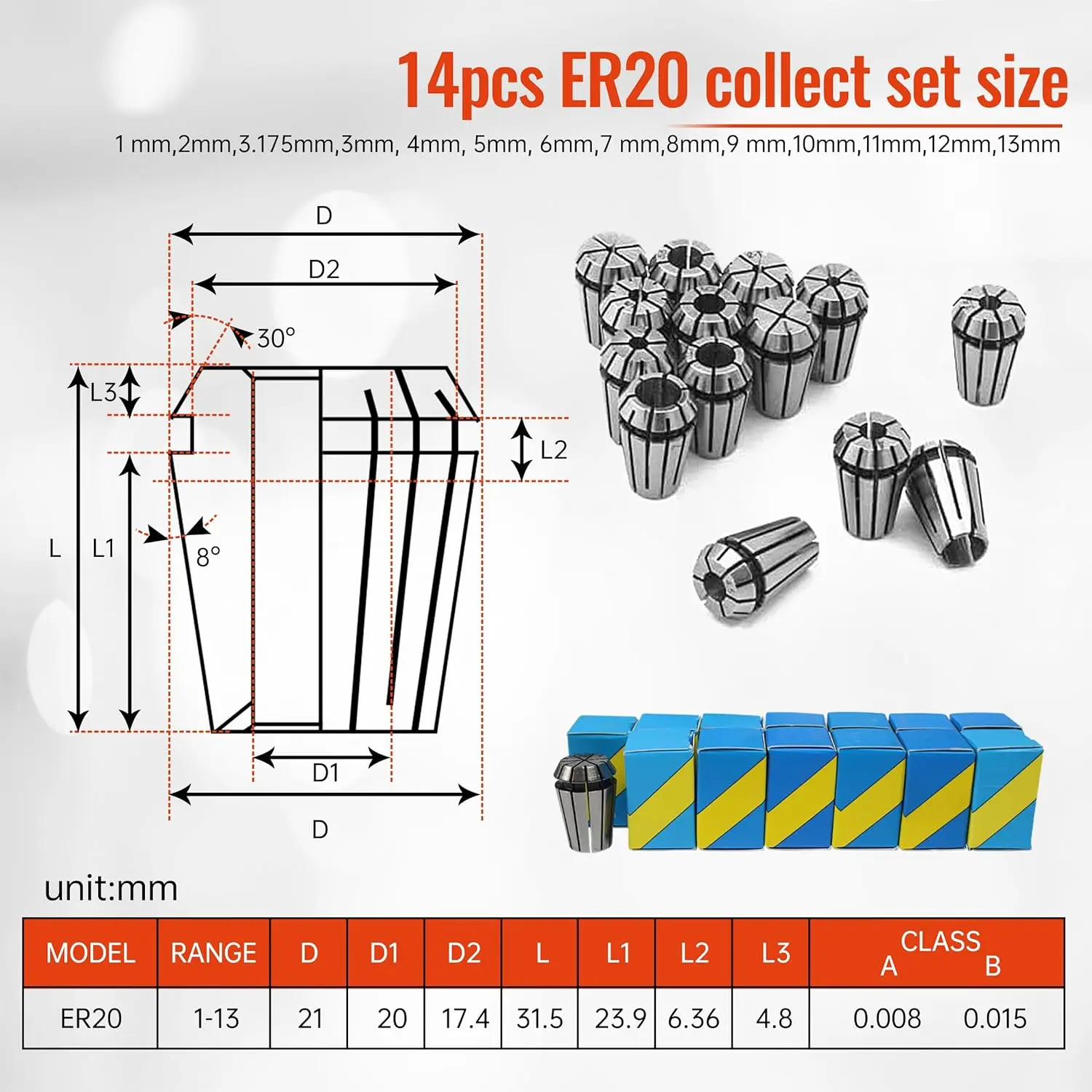

5.1 Set (1-13mm)14Pcs ER20 Collets
