9 in 1 Chuck, Woodworking Tools, Cylindrical Laser Engraving NEJE R6 High Precision A-Axis Rotary Roller

NEJE R6 rotary chuck and ring rotary attachment provide precise and flexible rotary engraving. Its 1:5 scaling ratio can handle cylindrical objects up to 200 mm in diameter and achieve clear engraving. It features one-handed operation, 90° rotation and cross-brand compatibility, which improves efficiency while taking into account durability.

Features:

1. 1:5 precision scaling ratio supports materials with a diameter of up to 200 mm, ensuring clearer engraving quality for cylindrical objects such as cups.

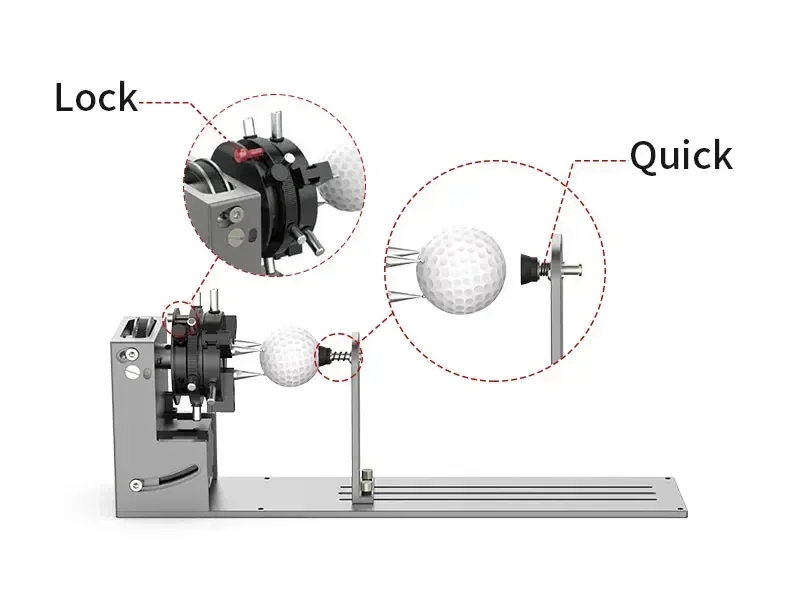

2. Single-hand operation design eliminates the need for a wrench to operate the chuck.

3. A 90° rotatable angle accommodates a wider range of objects for engraving.

4. The wear-resistant and long-lasting surface design features a main structure made of stainless steel and steel, combined with precision craftsmanship.

5. Direct compatibility as the A-axis with NEJE series devices for coordinated operation, with stepper motor interfaces compatible with other brands and models.

Specifications:

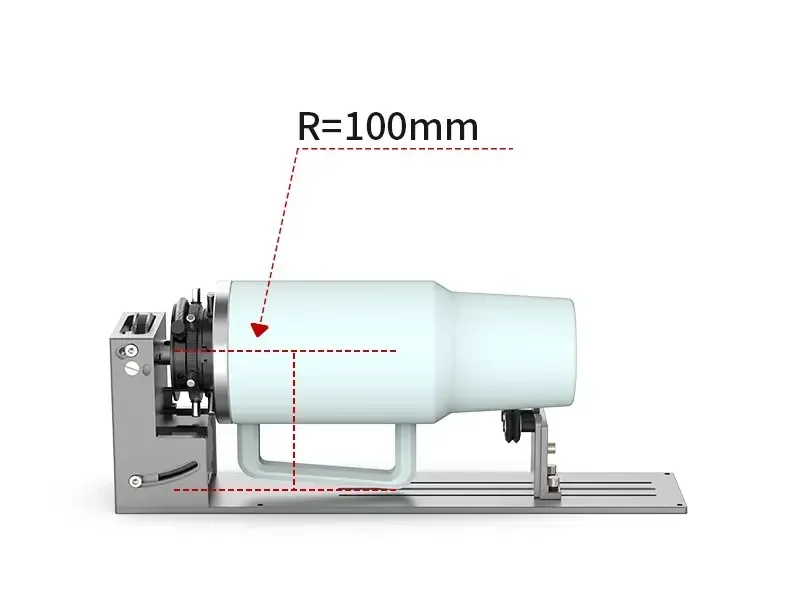

1.Maximum clamping radius: R = 100 mm

2.Gear ratio: 1:5

3.Product size: Length (L) / Width (W) / Height (H) = 395 mm / 84 mm / 136 mm

4.Weight: 2600g

5.Packaging size: 445 mm × 190 mm × 134 mm

6.Material: Frame structure (anodized aluminum), spindle + lever (stainless steel), chuck (blackened wear-resistant precision CNC steel), chuck (aluminum alloy + non-slip and scratch-resistant silicone ring)

7.Drive motor: 42 mm stepper motor, thickness 34 mm

8.Packaging contents:

Main unit × 1

chuck (3 models) × 3,

1.5 m shielded cable× 1

1.5 m 4pin motor cable× 1

Replacement silicone ring × 1

Hexagonal wrench and matching screws × 1

Spare spring × 1

Compatibility

Compatible with all existing NEJE devices (including NEJE Max 4 series, NEJE 5 series, NEJE Max 5C, etc.); can also be used with the 1.5m 4-pin motor cable included in the package for compatibility with other devices

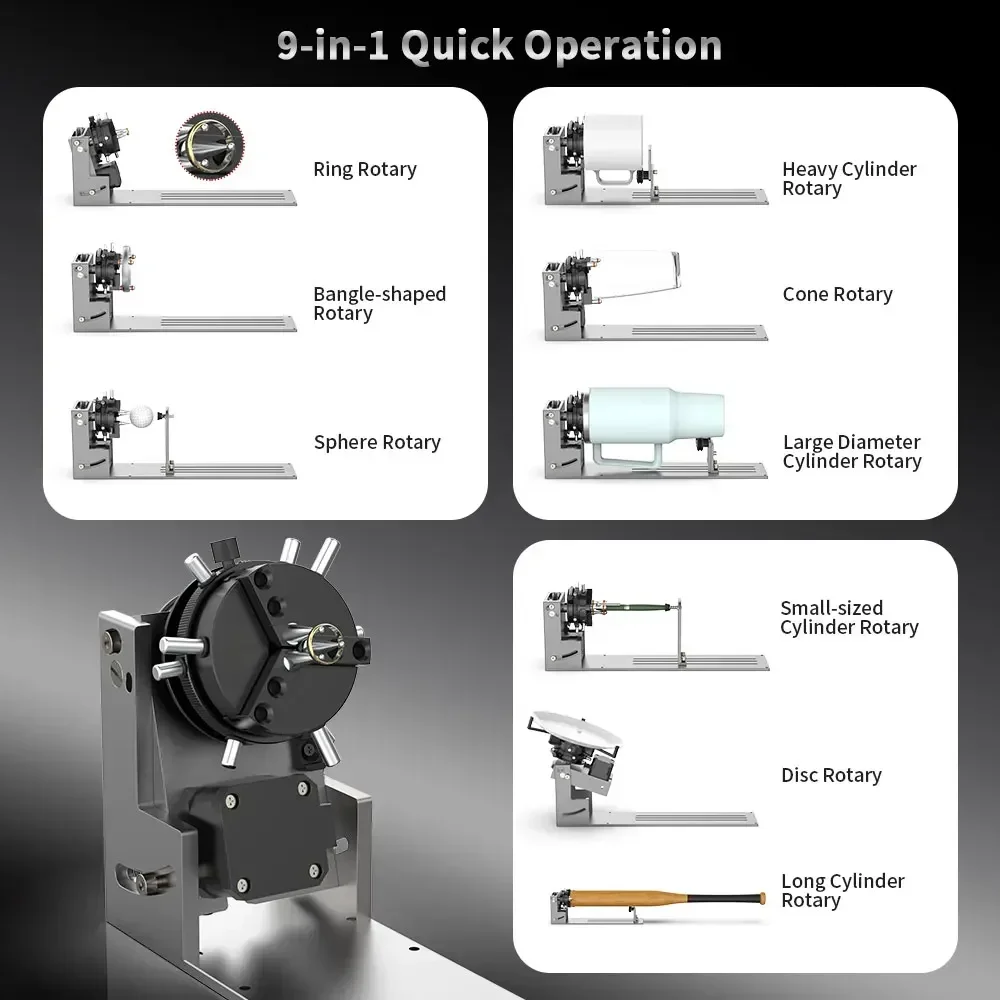

9-in-1 Rotary Attachment

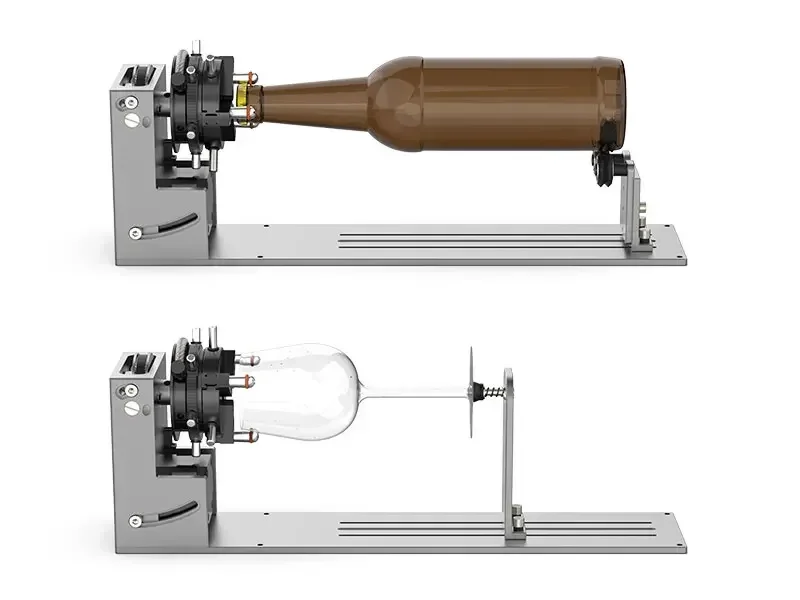

It can hold rings, bracelets, bats, Frisbees, cups, balls, golf clubs and more.
