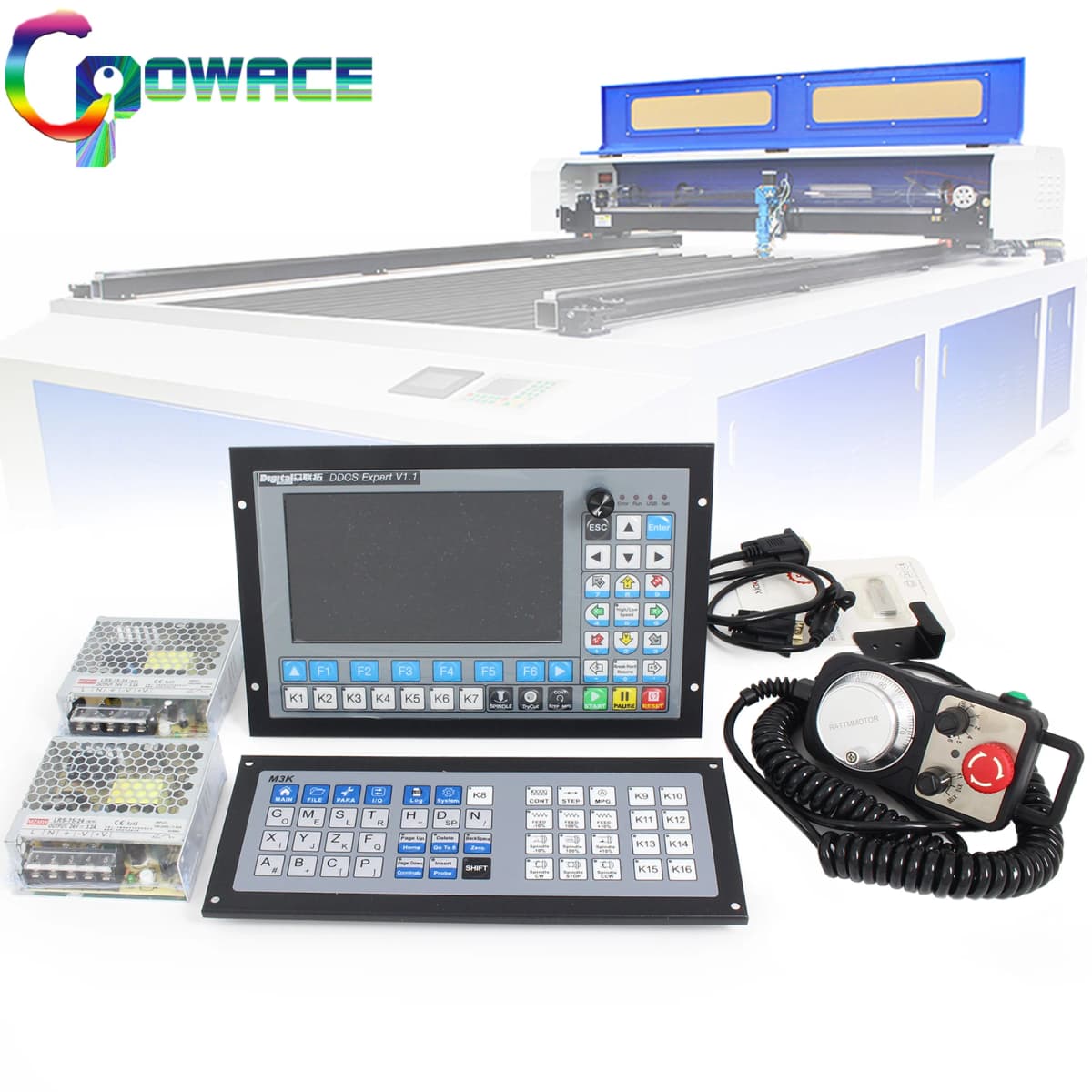

【EU Warehouse】 4 / 5 Axis CNC Controller PLC Offline DDCS Expert + Keyboard + MPG Handwheel + Emergency Stop

Package including:

4 Axis DDCS Expert kit":

1 x 4 Axis CNC Offline Controller DDCS-EXPERT

1 x 4GB USB Flash drive

1 x M3K extended keyboard

1x matching cable

1 x USB extension cable

1x 4GB USB flash drive

1 x network cable

2 x 75W 24V DC power supply

1 x 4 Axis Pendant Handwheel MPG with E-Stop with plug

English User manual

5 Axis DDCS Expert kit":

1 x 5 Axis CNC Offline Controller DDCS-EXPERT

1 x 4GB USB Flash drive

1 x M3K extended keyboard

1x matching cable

1 x USB extension cable

1x 4GB USB flash drive

1 x network cable

2 x 75W 24V DC power supply

1 x 6 Axis Pendant Handwheel MPG with E-Stop with plug

English User manual

Ⅰ、 [Product] Model: DDCS EXPERT; output frequency 1M Hz per axis; 7-inch color display; resolution 1024*600 and 40-inch.

7-inch full-color display; resolution: 1024*600 and 40

Operation Key

So_265E【Product Introduction】DDCS Expert CNC system adopts ARM+FPGA design framework.

ARM+FPGA design framework. ARM controls the human-machine interface and code analysis, and FPGA provides operation control.

ARM controls the human-machine interface and code analysis, while FPGA provides the operation control.

The FPGA provides the underlying algorithms and creates the control pulses. This ensures control reliability and ease of operation.

The internal operating system is based on Linux.

Ⅱ、 [Compatible with G-code] Compatible with standard G-code, supports popular CAD/CAM software such as ArtBuilder, CAD/CAM, etc.

CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft SurfMill, Aspire, Fusion 360, etc.,

Aspire, Fusion 360, etc;

Ⅲ、【Power Supply】The power supply of the controller is 24VDC, and the minimum current is 0.5A

Ⅳ、【Application】DDCS Expert can be used for many styles and types of CNC machine tools.

CNC Machine Tools. Lathes, CNC Routers, Pick&Place and Milling Machines,

Lathes and Cutting Machines are just a few examples.

DDCS-Expert Brief technical feature:

Introduction

The

DDCS Expert is a motion controller for open or close stepper and

servo systems with 7/10.2 full color display screen. The highest output

pulse per axis is 1MHz. The users can self-define the functional keys.

This controller supports multiple spindle mode, support straight Tool

Magazine, gantry type Magazine, disk type magazine. The Operation system

interface even though very comprehensive, can be learned in very short

time.

The

DDCS Expert numerical control system adopts the ARM+FPGA design

framework. ARM controls the human-computer interface and code analysis

and the FPGA provides the underlying algorithms and creates the control

pulse. This guarantees reliable control and easy operation.

The internal operating system is Linux based.

The

DDCS Expert can be used for many styles and types of CNC machines.

Lathes, Routers, Pick&Place and Mills, lathe and cutters are just a

few examples. The DDCS Expert operates as a Stand Alone system without

the need of a computer. This guarantees high precision, accuracy and

reliability.

Feature:

1) Max. 5 Axis; 1M Hz output frequency for each axis; 2-4 Axis linear interpolation, any 2 axis circular interpolation;

2) 7 inch full color display screen; resolution ratio: 1024*600, 40 operation keys;

3) 24 photoelectric isolated digital inputs, 21 photoelectric isolated digital outputs;

4) Analog spindle control 0-10V spindle control, also support PWM Output;

5) Magazine type: Supports multiple spindle mode, support straight Tool Magazine, gantry type Magazine, disk type magazine;

6) Probe Mode: Supprt Floating Probe and Fixed Probe;

7) Backlash compensation methods: direction gap compensation, radius gap compensation, length compensation;

8) Interpolation Algorithm: S type, circular hard algorithem, circular soft algorithm;

9) Language: Chinese, English;

10) Software Alarms: Program Error, operation Error, overtravel Error, Driver Error and so on;

11) Network: Support file share and online machining the remote files by Ethernet;

12) Spindle control mode support Multi-speed (3 lines 8 kinds speed), 0-10V Analog output, and servo spindle output;

13) Compatible with standard G-code, support

popular CAD/CAM software, such as ArtCam, MasterCam, ProE, JDSoft

SurfMill, Aspire, Fusion 360 and so on;

14) The control system can preview the

processing path before machining, and it makes the system more steady,

working smoothy and precise;

15) Support high speed machining in continuous

Polyline segment, system can choose a most efficient algorithm

automatically from different kinds Polyline segment algorithm;

16) Support un-limited size file for machining;

17) Support Pause Breakpoint resume, “Power Cut” recovery, Start from the specific line;

18) Support time-lock function;

19) Support 4 kinds operation rights: visitor, operator, admin,super admin;

20) Support function of “Try cutting” (handwheel guiding) and “Single-stage processing mode” and so on;

21) Support the fuction of Back to orignal point

21) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;

Description:

1.The CNC 4 Axis or 6 Axis handheld controller MPG Pendant with x1, x10, x100

selectable, You are bidding one complete unit of the MPG pendant with

Emergency stop for 4 axis or 6 Axis CNC machine, it equipped with our popular machined MPG unit with 4 axis or 6 Axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.

2. All Wiring isolated from MPG unit and provide a easy to install wiring

diagram, it suit both commercial machine as a replacement jog control

unit or other computer based controller. Which add great control

flexibility to the system.

Specification:

1. x1, x10, x100 switch

2. X,Y,Z,4th axis selector switch orX,Y,Z,A,B, C switch6th axis selector switch

3. LED indicator

4. With Emergency stop

5. High quality professional chassis

6. 6ft extendable high quality shielded cable cord

7. Magnetic base holder can place anywhere on the machine steel surface

8. Required 5V+, 150mA, power for MPG

9. Phase output is A ,/A and B,/B;

10. TTL output, drive capability +-20mA;

11. Support CNC system:Taiwan Pou Yuen M600 M500 M520i T300 series,

Higerman, HANUC,GSK,opened NC, KND,Siemens, the NUM, Spain FAGOR (NEW,

8055I) and so on.

12.Wiring:User can wire this unit to the CNC system with easy.

Description:

1) CNC system and position control of various mechanical devices, mainly for

CNC machine tools and various mechanical zero correction and signal

division.

2) 100 times per revolution slightly

cracking point,100 pulses per revolution output, holding the handle of the panel and all-metal high-grade design.

3) Metal code disc, high precision, good texture

4) Easy installation, shaped thin, ultra-light.

5) DC 5V power system

6) Voltage, single-ended, differential in three output options provide 100PPR pulse output options.

7) Driver output type, anti-interference ability, long-distance transmission.

8) Oil, water, dust-proof design (grade IP65) spiral stretch 20 million guaranteed.

Features:

1) Novelty, easy to move, interference, load capacity.

2) Full plastic shell, insulation, high strength, anti-oil seal design.

3) With × 1, × 10, × 100 third gear ratio, enabling 4-12 axis magnification switch

4) With the control switch, emergency stop switch optional, easy to operate

5) For CNC machine tools, printing machinery, numerical control equipment

Specification:
