Ebike Motor Kit 48V 1000W Brushless Gearless Electric Bike Conversion Motor for 20'' Bike Frame

Ebike Motor Kit 48V 1000W Brushless Motor Electric Bike Conversion Motor for 20'' Bike Frame

Application

This product is suitable for a 20'' bike frame, DIY electric bikes, electric folding bikes, and so on.

Specification

Material: Aluminum Alloy

Color: Black

Power: 1000W

Voltage: 48V

Motor Type: BrushlessGearless Motor

Assembly Required: Yes

Brake Type: Disc Brake

Winding: 9*6T

Waterproof Grade: IP52

Motor Rotation Speed: 480rpm

Maximum Load: 100kg/220.46lbs

Climbing Angle: 10°-15°

Cable Size: 2.5mm²

Maximum Torque: 40N.m

Maximum Efficiency: ≥88%

Front Drive Opening: 135mm/5.31in

Rear Drive Opening: 170mm/6.69in

Maximum Speed: About 35-40km/h / 21.75-24.85 mile/h

Wheelbase: 10*14mm/0.39*0.55in

Magnet Height: 27mm/1.06in

Tire Diameter: 50.8cm/20in

Package Size: 51*51*28cm/20.08*20.08*11.02in

Gross Weight: 10.9kg/24.03lbs

Key Features

Premium Material: The product is mainly made of aluminum alloy, which is rustproof, impact-resistant, and wear-resistant, and can maintain excellent performance for a long time, with an IP52 waterproof rating, so you can ride elegantly even on rainy days.

High Efficiency: The 1000W brushlessgearless motor with a rotation speed of up to 480rpm can provide you a maximum riding speed of about 21.75-24.85 mph, and is suitable for commuting and short-distance riding of ordinary bicycles.

Precise Speed Control: With a built-in Hall sensor and a controller for precise speed control, your ride will be easier and more enjoyable.

Excellent Performance: With a torque of up to 40N.m and the ability to climb slopes from 10° to 15°, the kit allows your bike to adapt to more terrains in your daily life, giving you more freedom in your travels.

Outstanding Weight Capacity: High-class material and well-crafted wheel hold up to 220.46 lbs without worrying about warping or collapsing.

User Friendly: The PAS allows you to ride your e-bike without throttle response. You can also operate the e-bike with your feet to avoid uncomfortable wrist positions.

Safe and Reliable: Its controller is equipped with overheat protection and overcurrent protection, greatly improving the safety and extending the service life of the product.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Description

This 1000-watt high-power e-bike conversion kit is designed for those looking for speed and passion. Equipped with a 20-inch motor wheel, it can easily conquer various road conditions. The ultra-clear display shows real-time power, speed, and mileage. Whether you are commuting to the city or exploring the outdoors, you can enjoy the fun of riding as you like.

Package Included

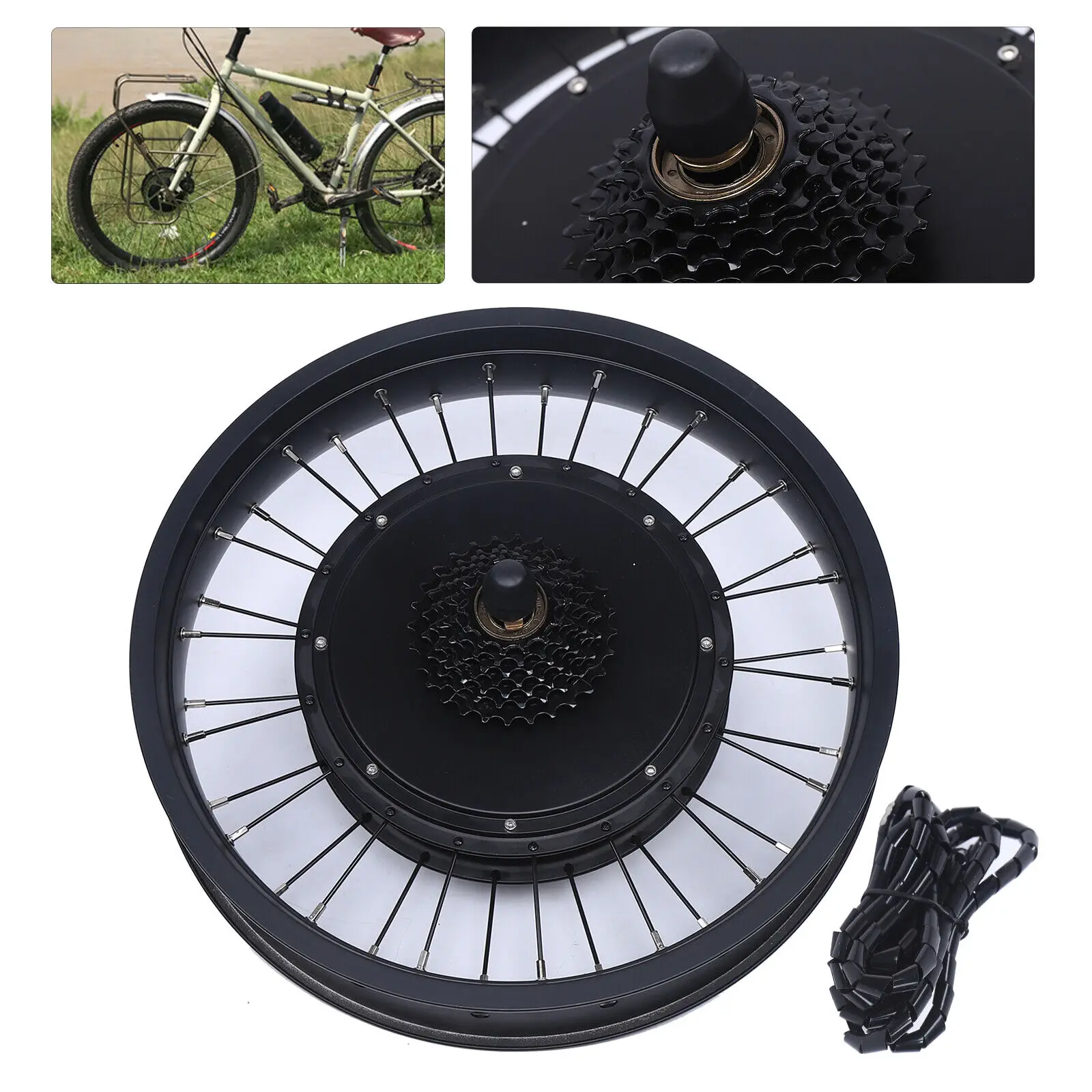

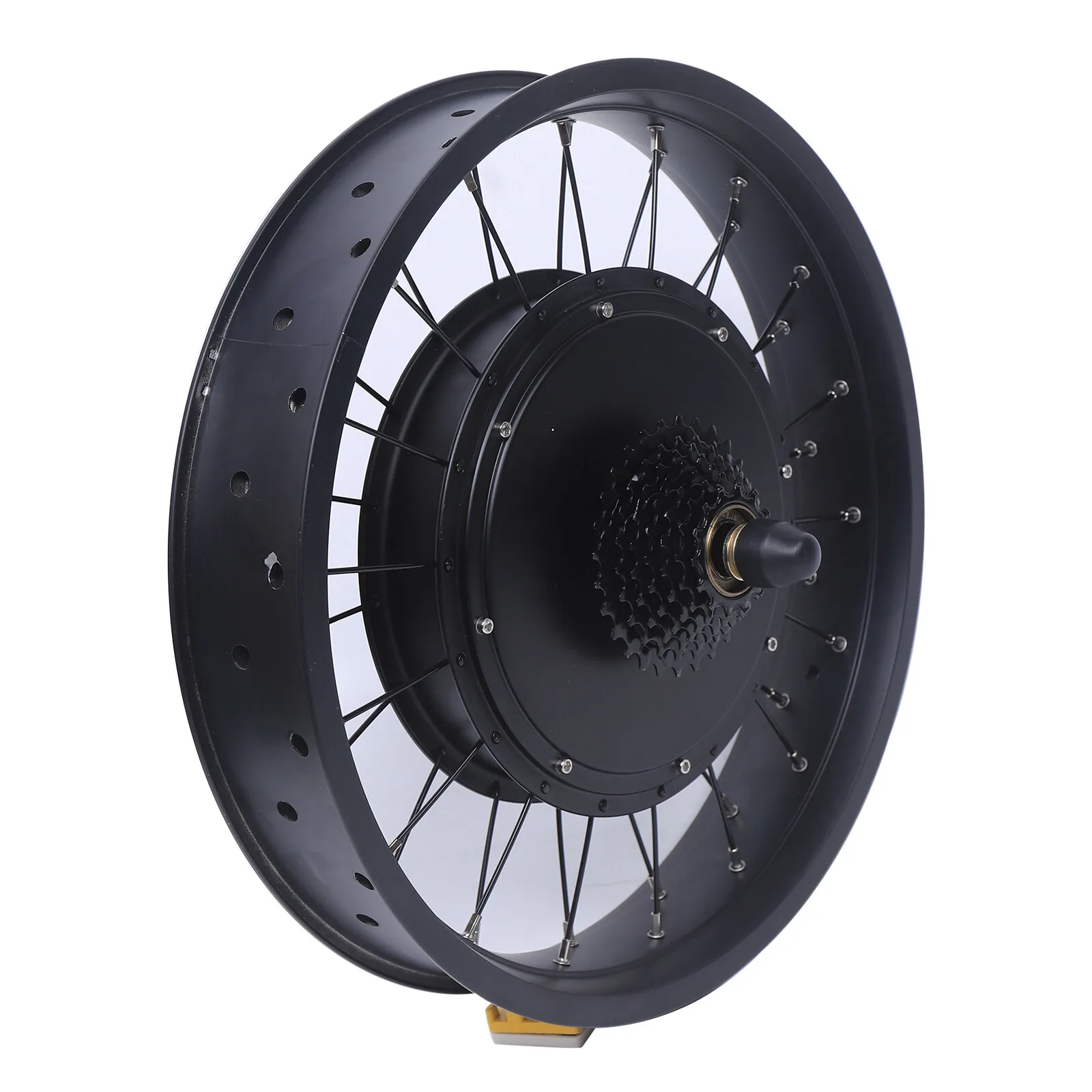

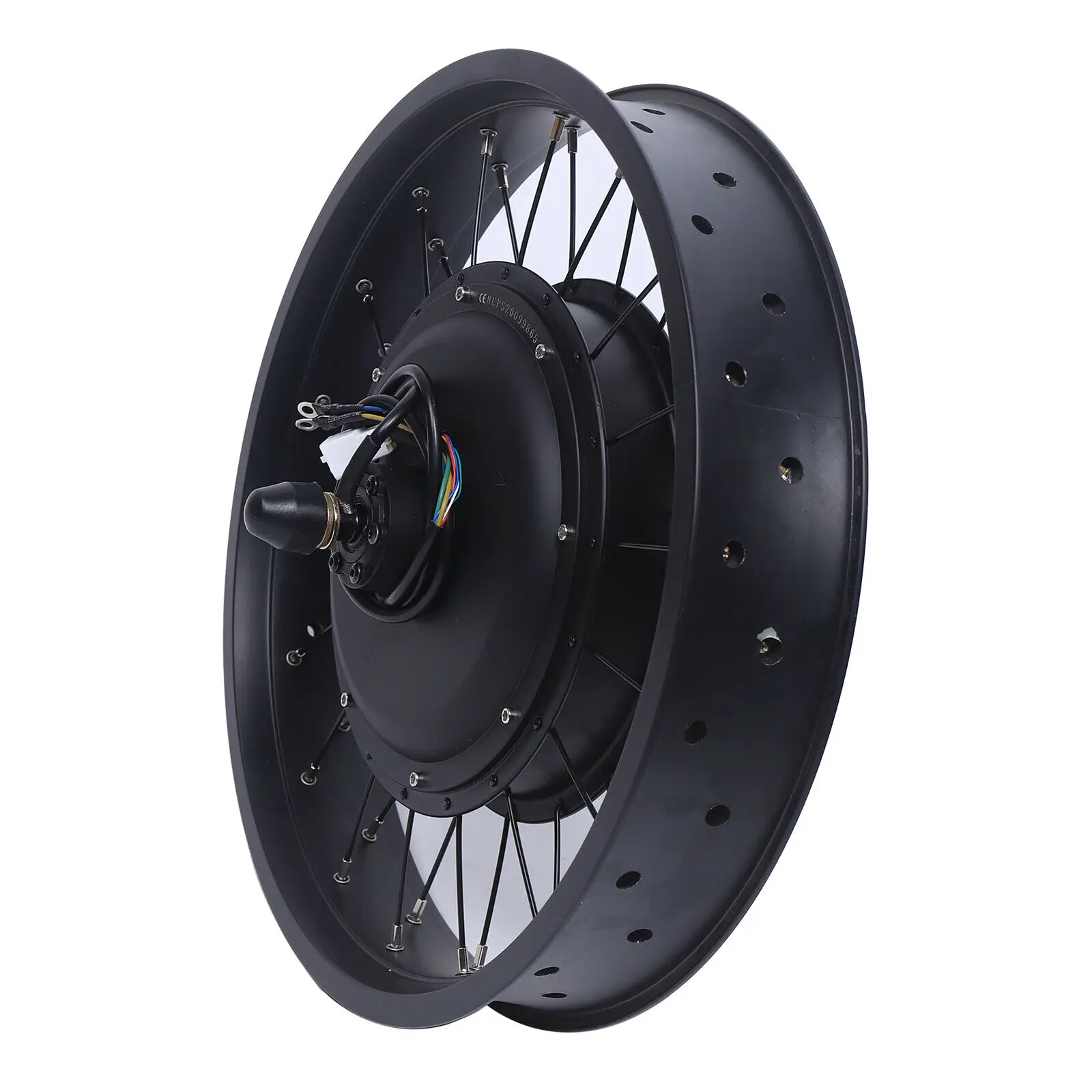

1* Motor Wheel

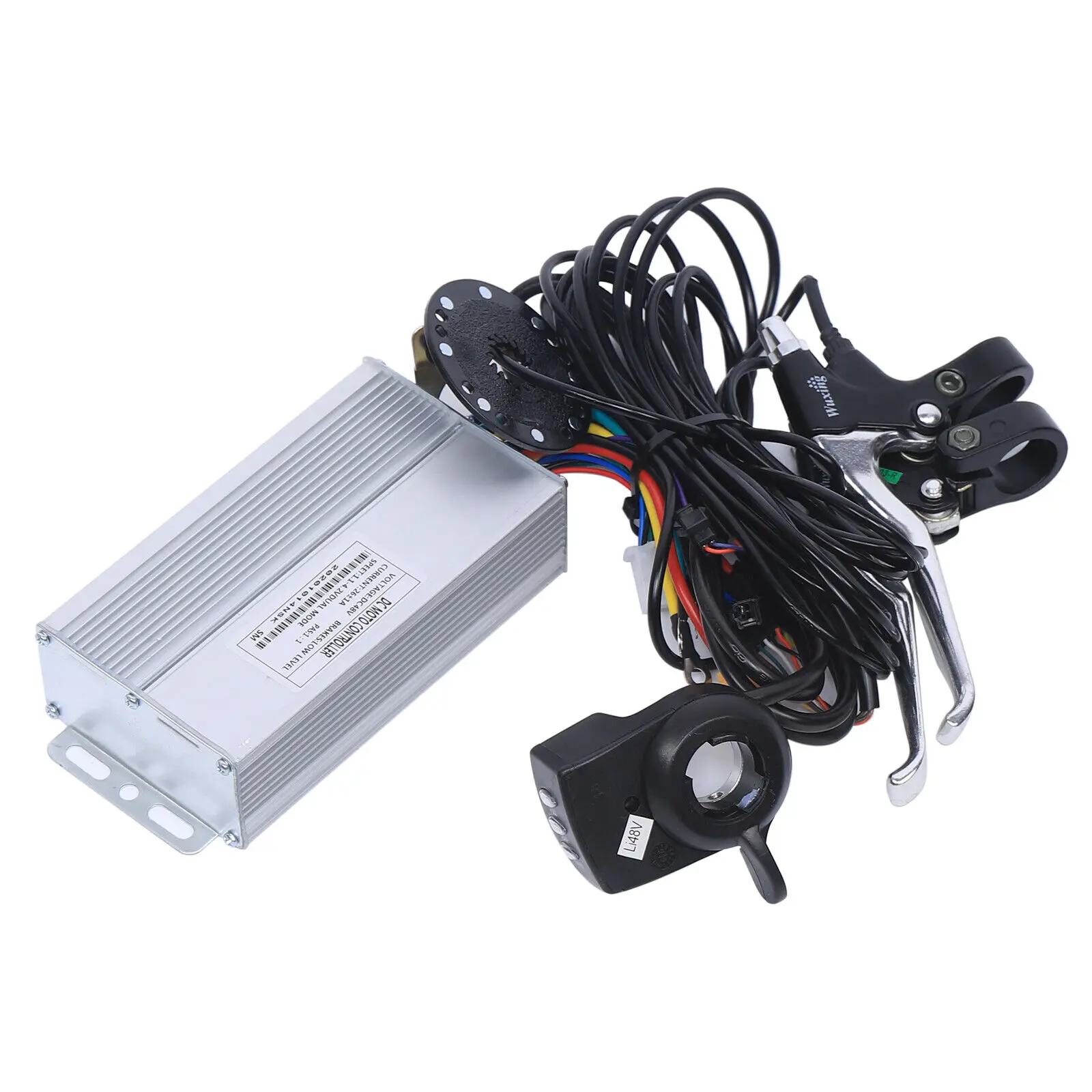

1* Controller

1 Set* Brake Handles

1 Pair* Protective Handlebar Covers

1* English Manual

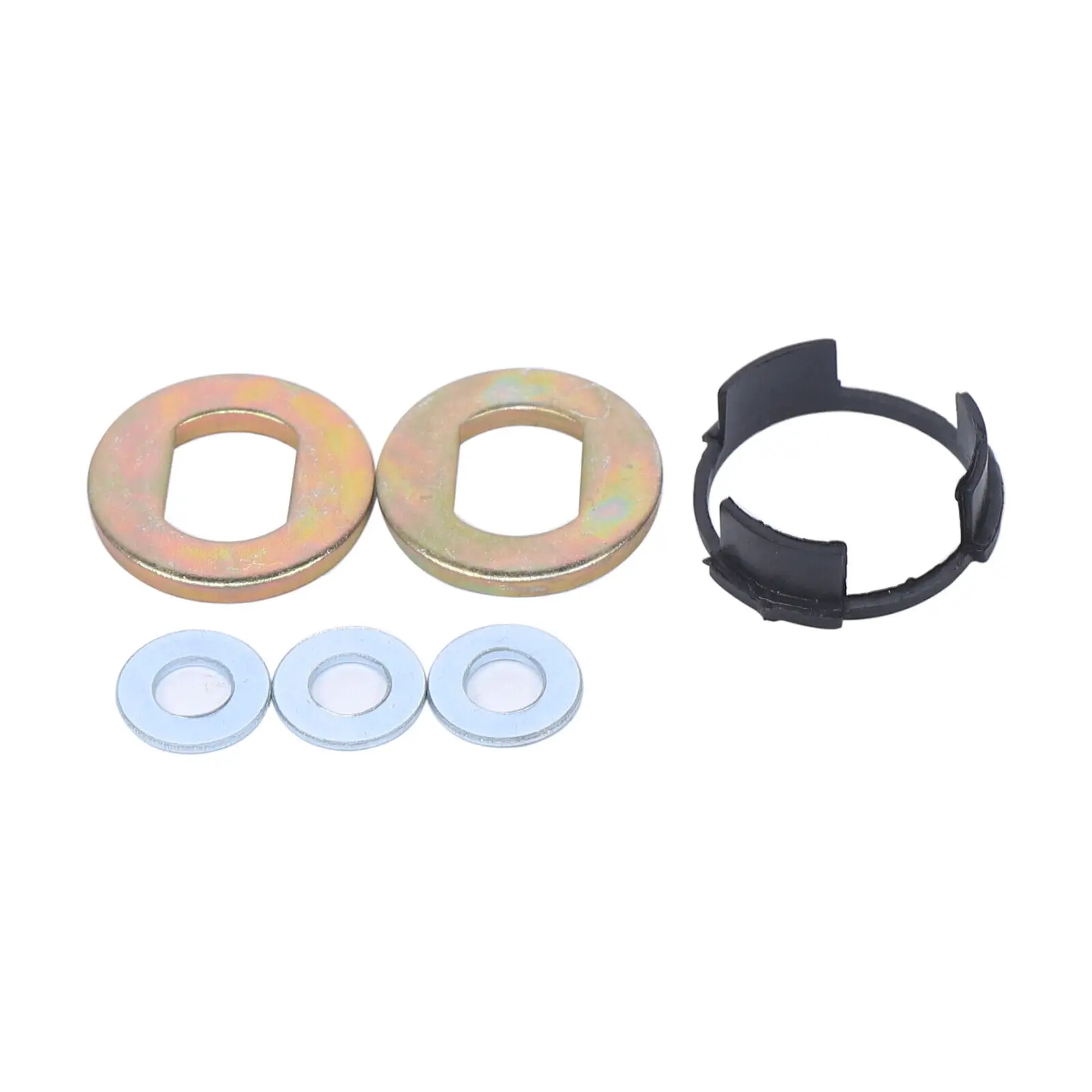

All Accessories for Use

Details

Protective Handlebar Covers: They can be mounted on the bike handlebars to give you a more comfortable grip.

Intelligent Display:It can display speed, mileage, 5-speed classification, power assist, maximum speed, average speed, total mileage, battery level display, etc.

Notes

1. Please check the style and size before purchasing.

2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

3. Please note that riding speed is related to factors such as road conditions, battery conditions, load capacity, wind speed, etc. The data we provide is for reference only.

4. Please note that batteries are not included in this product, so please prepare your own.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
