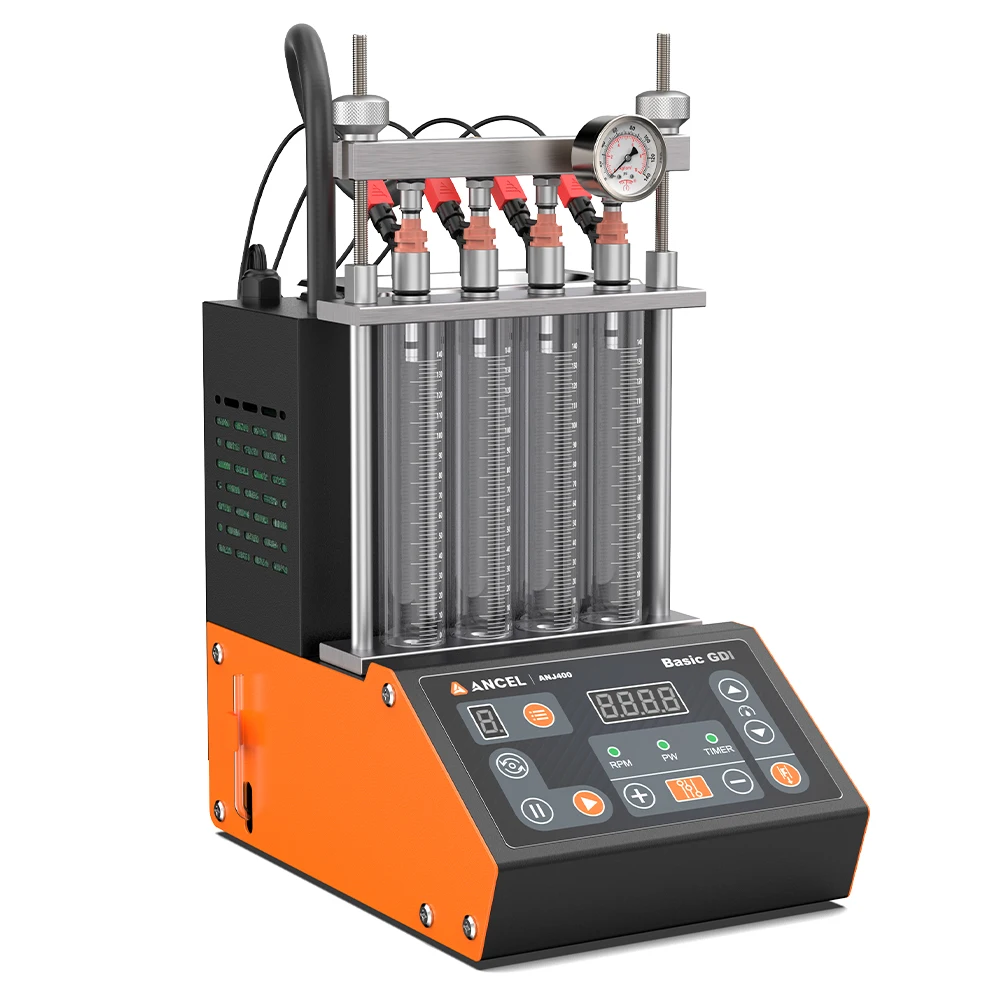

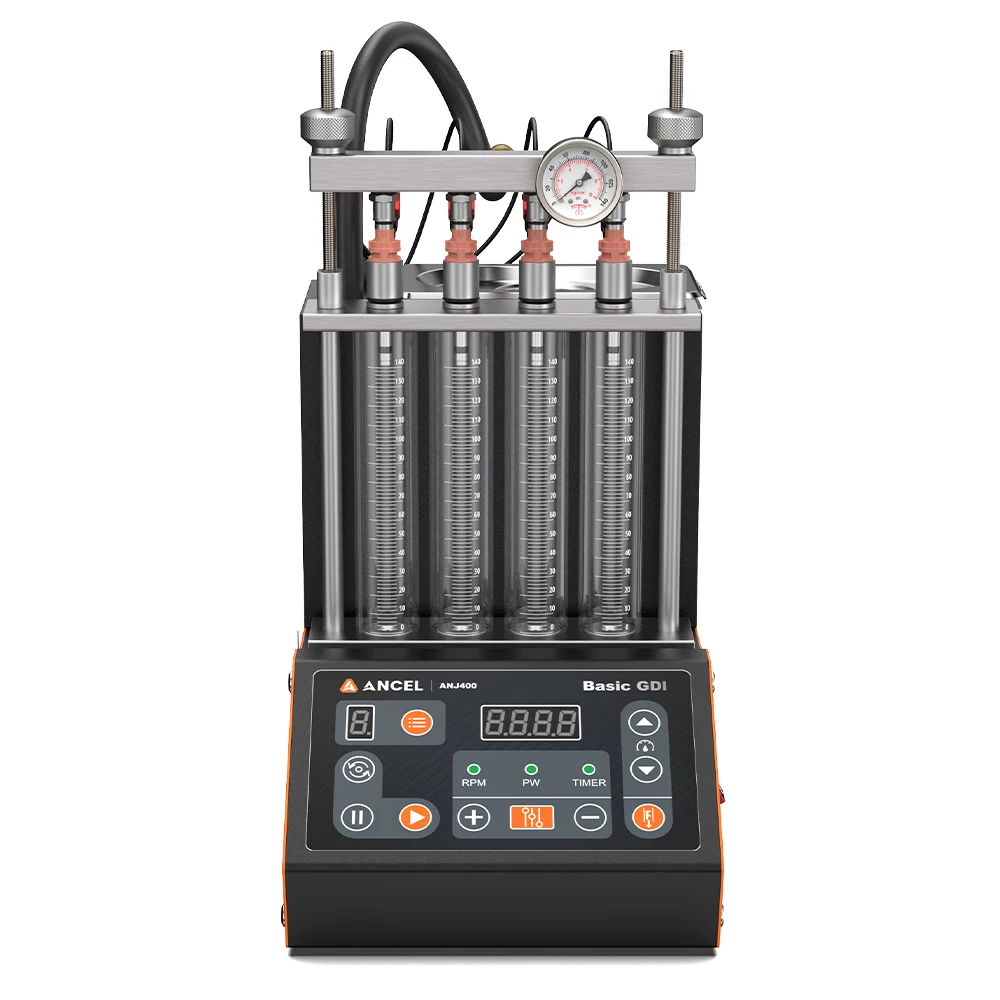

ANCEL ANJ400 GDI Auto Car Ultrasonic Fuel Injector Cleaner Tester Leak Test Machine 4-Cylinders EFI FEI Cleaner Test Cleaner

Ancel ANJ400 GDI Fuel Injector Cleaner 4-Cylinders EFI FEI Cleaner Test Cleaner Ultrasonic Resistance Test Cleaning Gasoline

Ancel ANJ400 GDI Fuel Injector 4-cylinder Cleaner and Tester can clean and test standard injectors, EFI, FEI injectors, as well as GDI injectors such as for Mercedes Benz, BMW, Audi, Porsche, Ford, and other direct injection engines. It comes with multi voltages available for GDI injectors, which enables to adapt for different types of injector testing. The machine is the necessary and preferred equipment for the automotive serving and maintenance, research, and teaching training departments.Support for more cars and motorcycles. Can only be used to clean Gasoline fuel injectors. The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.

Main functions

1. Ultrasonic cleaning: To clean injectors to remove carbon deposition completely

2. Resistance test: To test the resistance of the fuel injector

3. Uniformity/spray test: To test the uniformity of injection quantity of each injector and monitor the spray status of each injector

with the help of the backlight

4. Leak test: To test the sealing and dribbling conditions of injectors under system pressure

5. Injection flow test: to check the injection quantity of the injector in 15 seconds of constant injection

6. Working modes test: To test injectors in different working conditions

7. In-Vehicle Cleaning: Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform in-vehicle cleaning and maintenance for various vehicle models

8. Low-resistance injector test function: Through the dedicated motherboard, support long and full low-resistance fuel injector test, such as 1 ohm

9. Multiple item settings: Set different device parameters, including ringer sound level, screen brightness and backlight brightness

10. Version information: To check the current device software version information

ANJ400 GDI Fuel Injector Cleaner & Tester Machine Feature

1. GDI, EFI, FEI Injector Cleaning&Test: Ancel ANJ400 can clean and test not only standard injectors but also GDI injectors, such as for Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.

2. Ultrasonic Cleaning: when Ultrasonic Cleaning power up to 100w, its ultrasonic cleaning capacity is significantly enhanced.

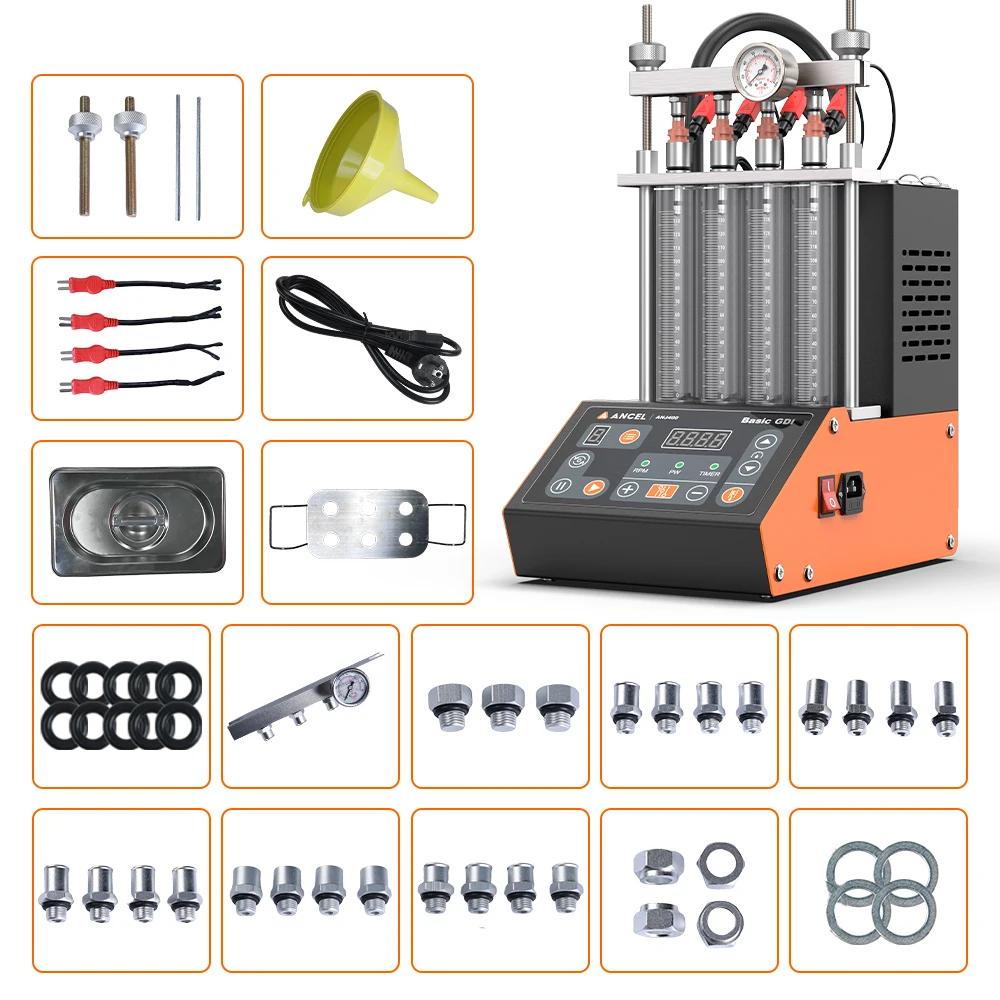

3. Various Parts equipped: It is equipped with a variety of injector accessories for different needs.

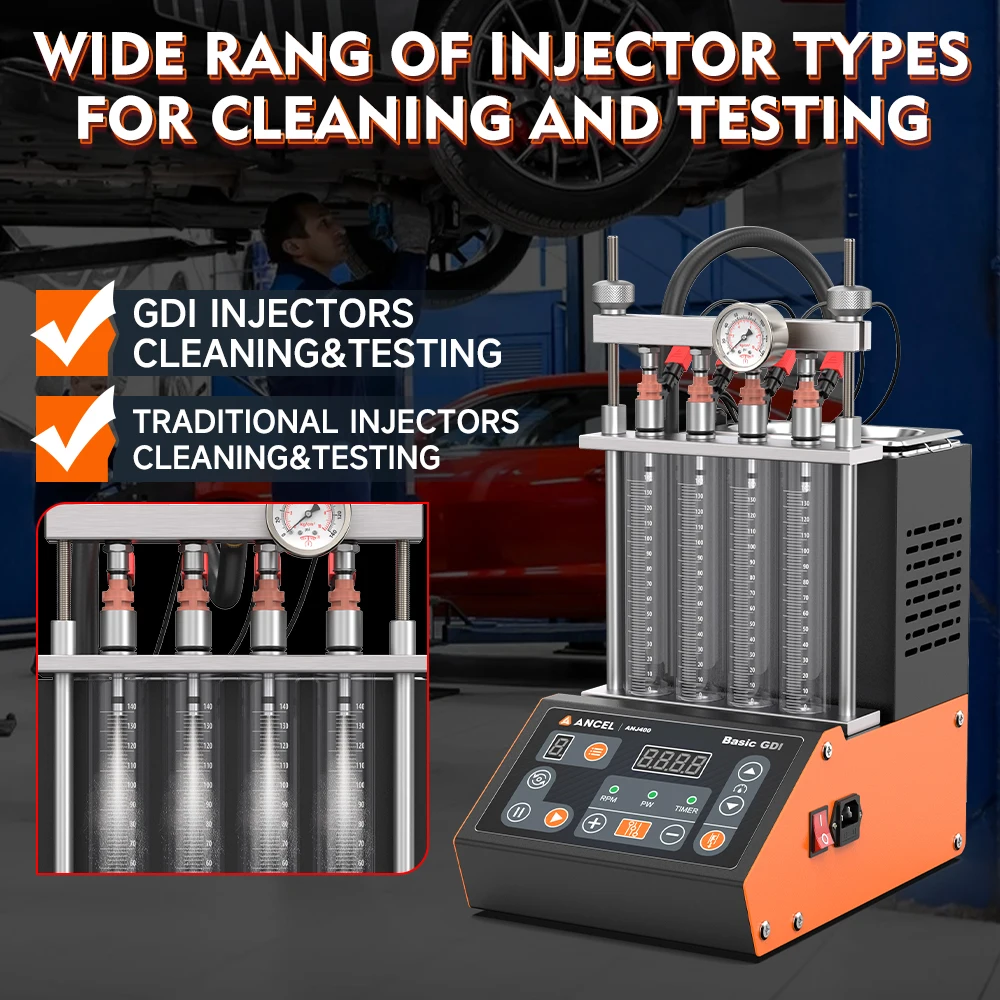

GDI Fuel Injector Cleaner & Tester

It can clean and test not only standard injectors but also GDI injectors, such as for Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.

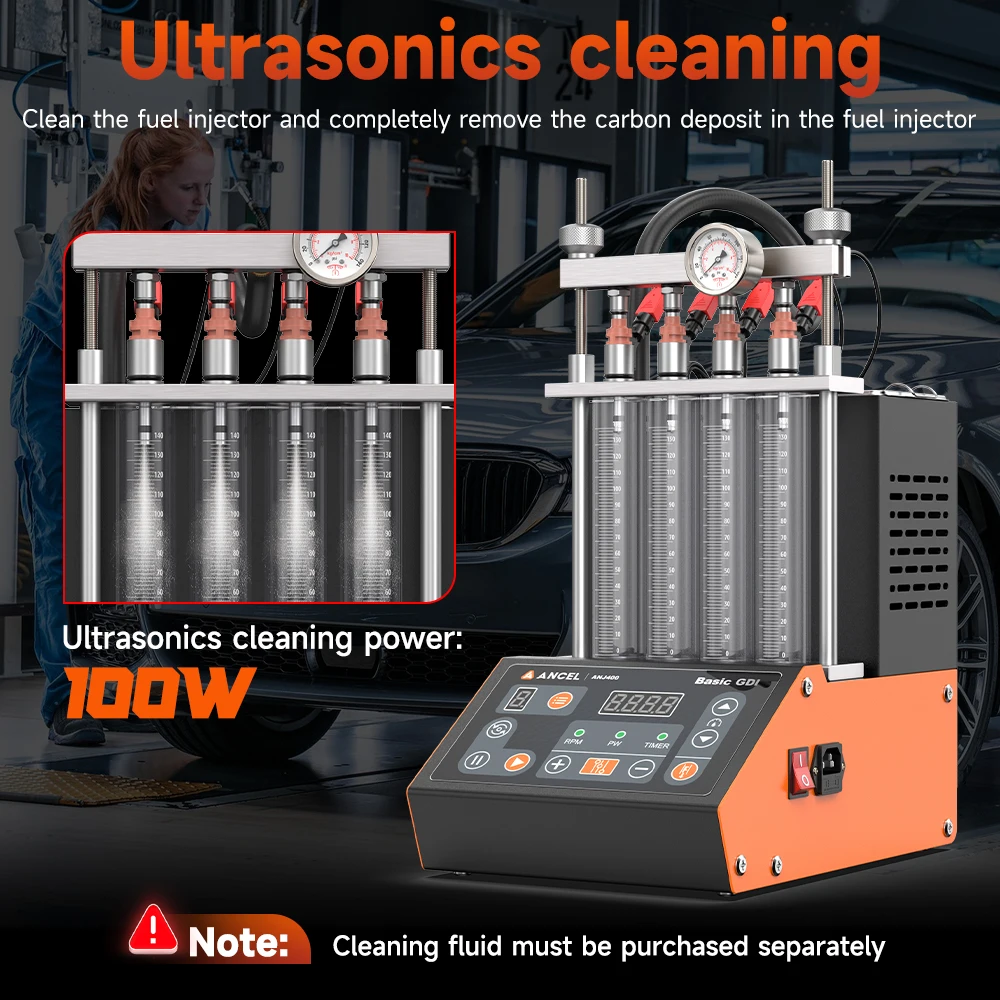

Ultrasonic Cleaning Function

It works by sending an ultrasonic vibration signal to the injector through the pulse signal cable, which causes a strong vibration of the carbon inside and thus enables more thorough cleaning.

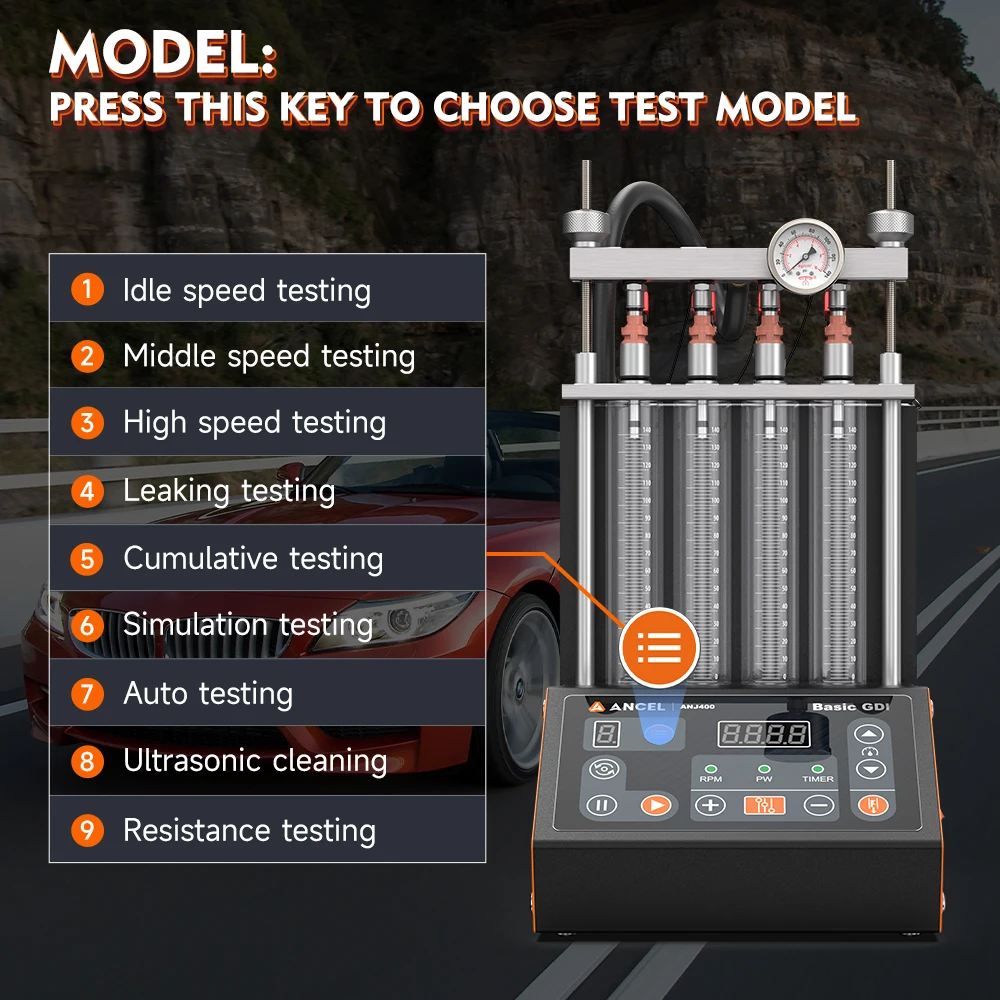

It is an expert in injector solutions, featuring 11 injector-specific functions

01. Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.

02. Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.

03. Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.

04. High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.

05. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.

06. Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.

07. Leakage test: Test the sealing condition of the fuel injector.

08. Idle dpeed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.

09. Medium speed sprayability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.

10. High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.

11. Main unit information: used to store the product number and date of manufacture of the product.

How to choose cleaning fluid?

Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not good enough.

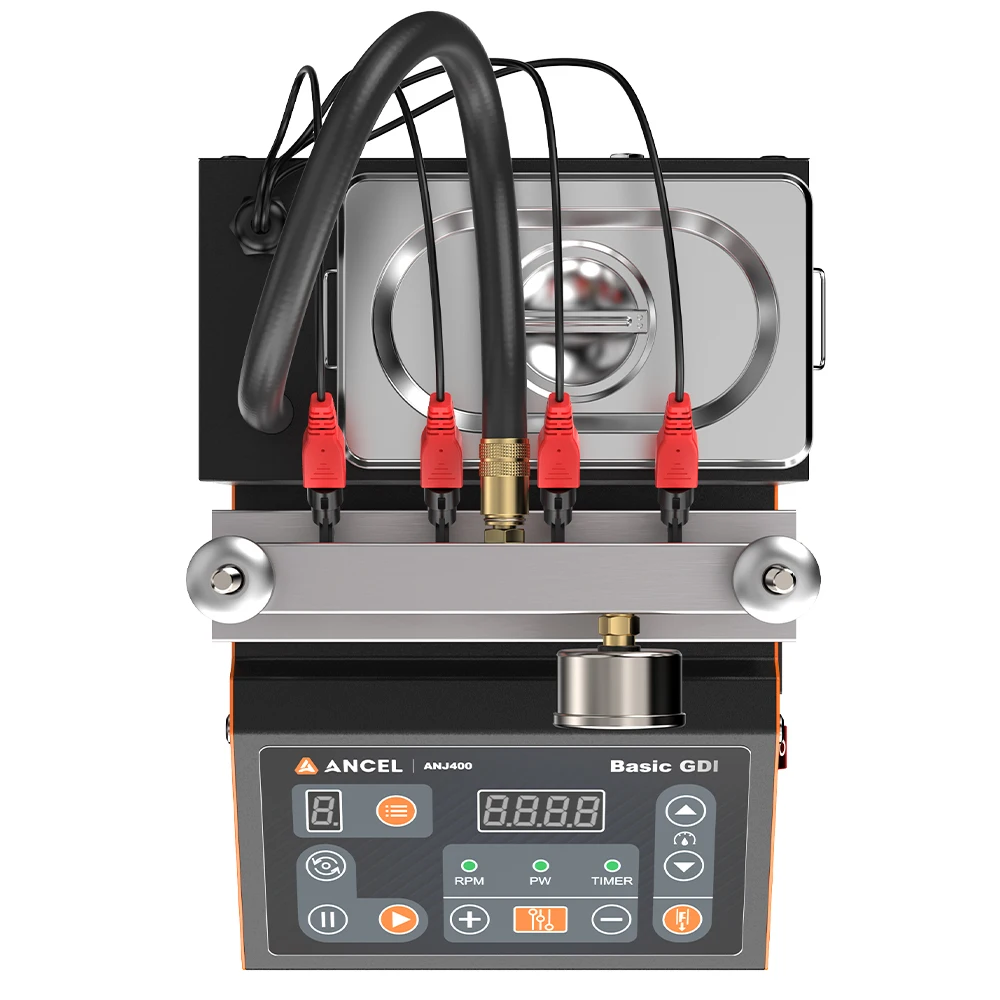

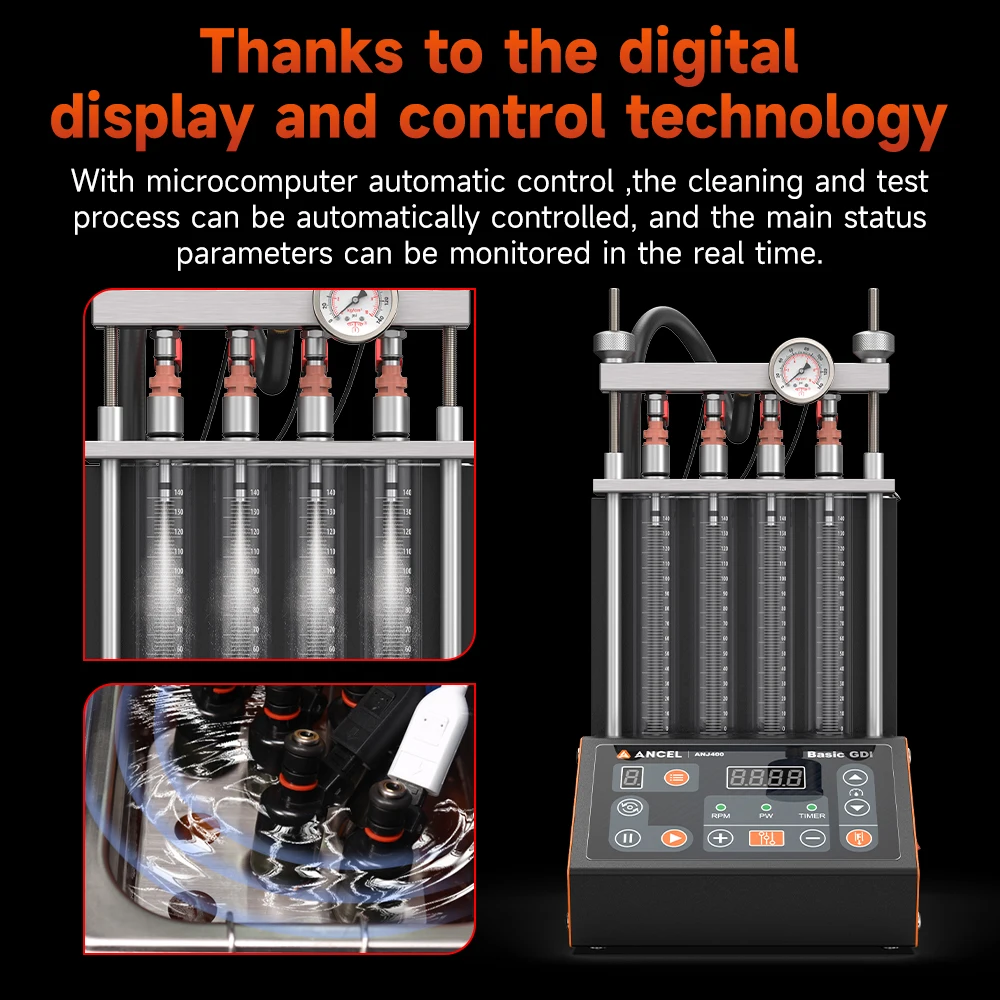

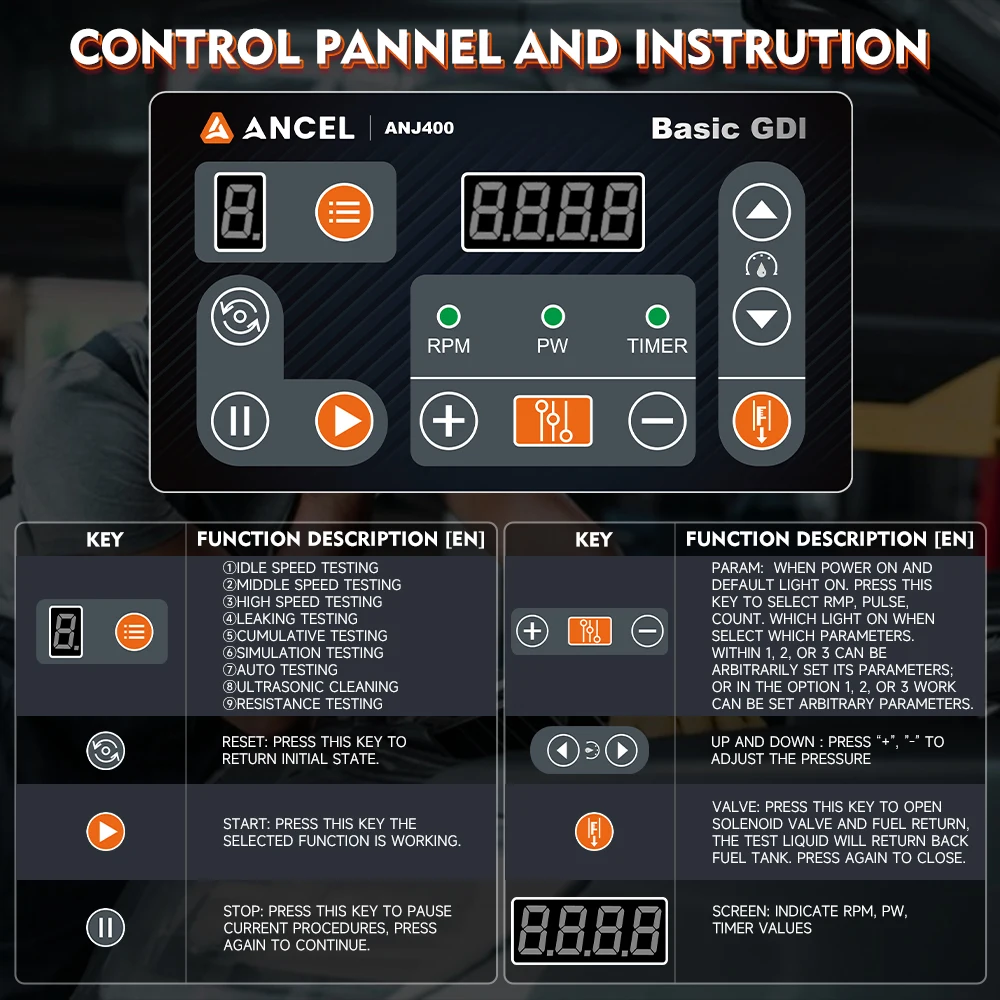

Smart Control Panel

Specifitions

Power supply: AC110V±10% or 220V±10%

Input power: 230W

Ultrasonic cleaner power: 100W

Frequency: 50-60HZ±10%

Resistance test accuracy: 0.1Ω

Simulated RPM range:100 ~9900rpm, step: 10rpm

Relative humidity: <85%

Ambient temperature: -10℃～＋40℃

External magnetic field strength: <400A/m

No open flames within 2m

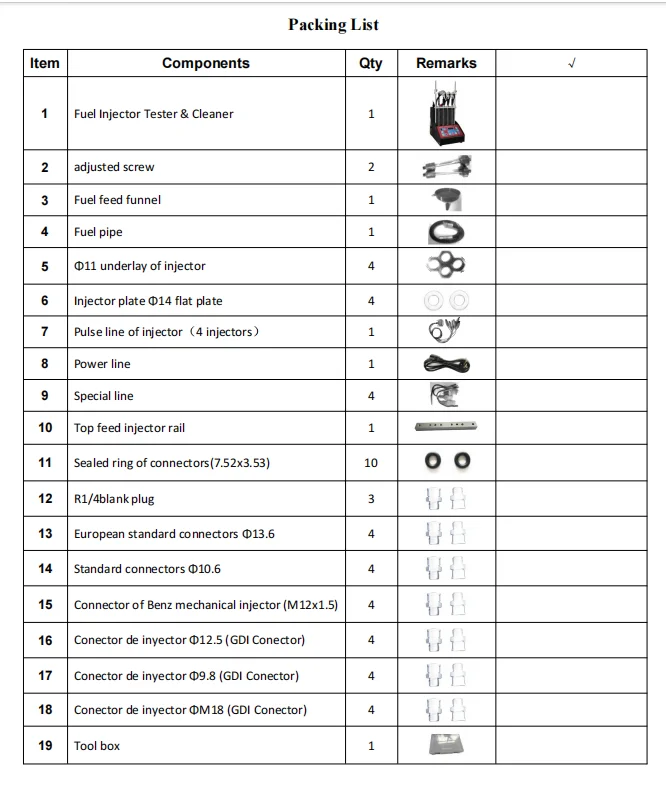

 Packing List
