GDZ-80F-1.5 1.5KW ER16 220V CNC Air Cooled Cooling Spindle Motor Woodworking Router Engraving Milling

Package include:

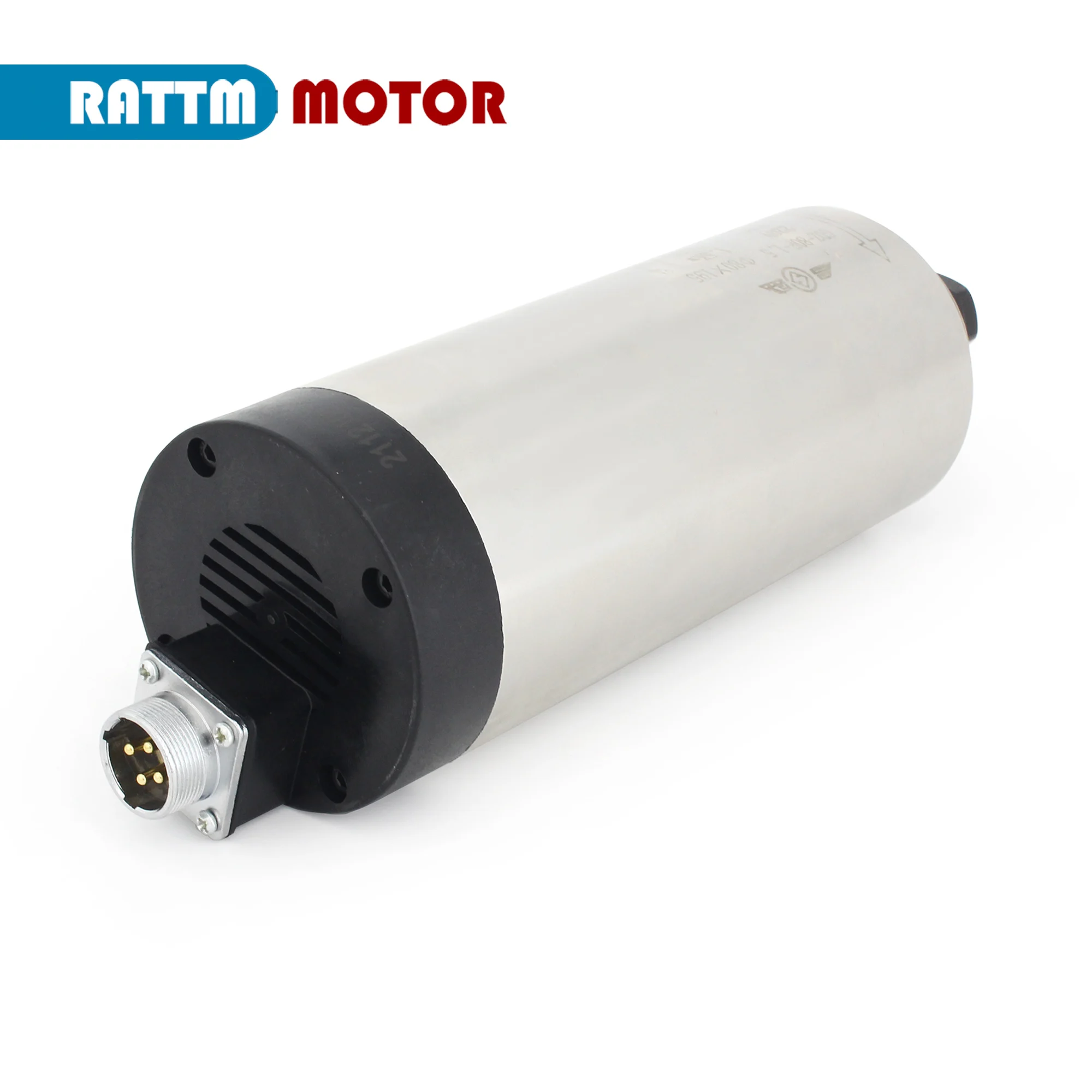

1 x 1.5KW ER16 air cooled spindle motor

1 x 2.2KW HY inverter VFD

1 x 80mm clamp

ProductFeature:

1) PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2) Easy PLC function can realize 16 legs of speed and inverter control function;

3) RS485 communication port, adopting standard international MODBUS main circuit control;

4) With extremely strong anti-jamming capability

5) Low output ratting torque0.5HZ-150%, low speed running ability;

6) Carrier adjustable by 16KHZ, completely soundless working environment;

7) Broad voltage working area, normal running in 304V-456V;

8) Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9) Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10) With perfect error protection and short circuit starting protection capability;

Tech parameters:

1) Input Voltage: 220V(+/-15%)

2) Output Voltage: 0-220VAC

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 or 3 phase

6) Output Phase: 3 phase

7) Current: 10A

8) Power: 2.2Kw

9) Warranty: 1 year from the date you purchased

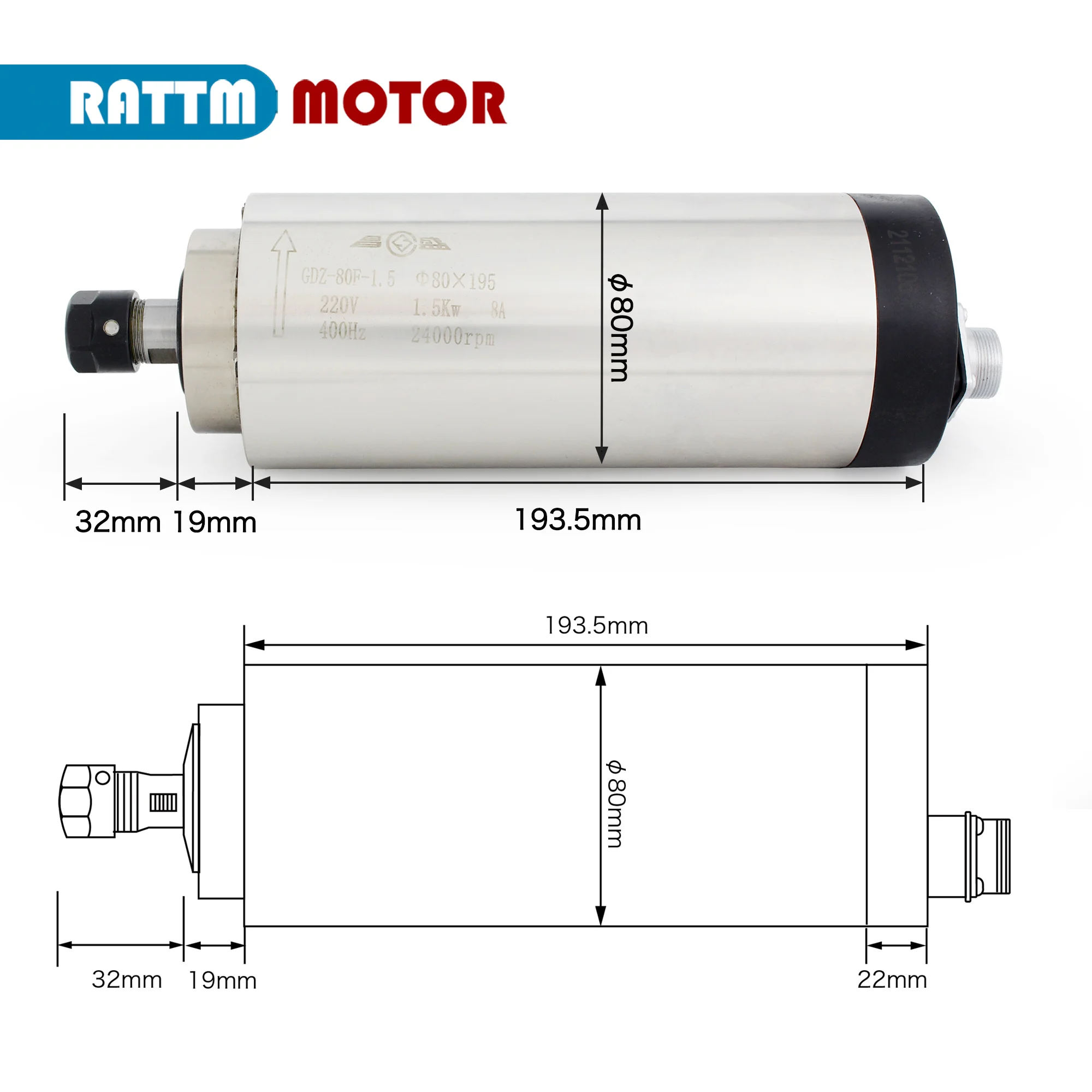

Specification
