24 Ways Full Coilover Spring Kit For BMW E46 3Series 320i 325i 328i 330i

Application

For BMW 3 (E46) 4-door sedan 330i; 325i; 328i; 318d; 320d; 320i,325i ;330d (02/1998-04/2005)

For BMW 3 2-door Convertible (E46) 330ci; 325ci;323ci; 320cd,330cd (04/2000-12/2007)

For BMW 3 2-door Coupe (E46) 320ci; 325ci; 330ci;320cd; 330cd; (02/1999-12/2006)

For BMW 3 Touring 5-door wagon/estate (E46) 316i; 325i; 328i; 330i; 323i; 325i; 318d; 320d; 330d; (10/1999-05/2005)

note: not for Xi/xd 4 wheel drive

Specification

Top mounts: front pillow ball top mounts with camber plate

rear pillow ball top mount

Damping: 24 levels rebound damping adjustable

Spring rate: front 8kg/mm

Spring rate: rear 7kg/mm

Adjustable height: Yes lowering 1'' to 3''

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: red body with white spring

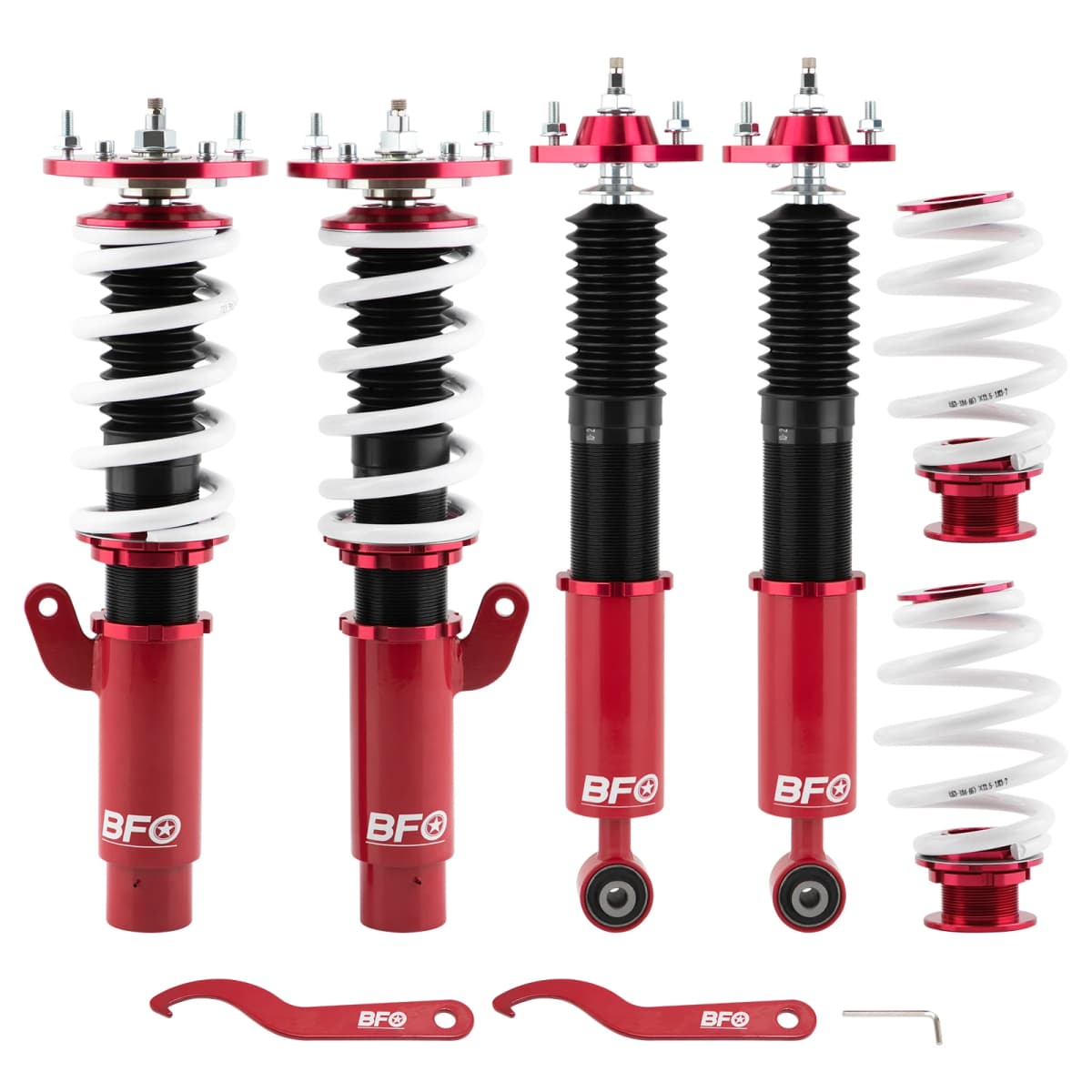

Package included

coilovers for 2 front and 2 rear

a pair wrench

Dimension

weight: 26300g

size: 63*51*21 cm

Feature

1. Lowered height adjustment from 1''-3'' which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

3. Twin-Tube structure allows sufficient stroke within the shock absorber

4. Separate height adjustment does not affect damper stroke

5. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.

6. Height Adjustment tools included

7. Camber plate top mounts help to eliminate the need for a separate camber kit
