Closed Loop Stepper Motor Kit Servo Motor,Hybrid Driver Controller CNC Kit 24-60V DC for CNC Router Engraving Milling Machine

Specification

Material: Aluminium
Color: Blue, Black
Process: Oxidation
Style: Modern
Shape: Rectangle

Driver
Driver Model: HBS57
Voltage: DC 24V-60V
Maximum Peak Current: 5A
Subdivision: 200-51200ppr
Pulse Response Frequency: 200 kHz
Cooling Method: Natural Cooling
Insulation Resistance: 500 MΩ
Signal Input: Pulse+Direction, Dual Pulse (Differential)
Logic Input Current: 1-16mA
Working Temperature: 0~50℃/32~122℉
Humidity: 40-90% RH
Vibration: 10-55Hz/0.15mm/0.01in
Storage Temperature: -20~65 ℃/-4~42.8℉

Motor
Motor Model: 57HBS36
Step Angle:1.8° ±5%
Phase: 2 Phase
Rated Current: 4.0A
Resistance: 0.86Ω±10%/Phase(At 20℃/68℉）
Inductance: 3.6mH±20%/Phase(at 1k Hz, 1Vrms)
Hold Torque: 3.6N.m
Insulation: B
Rotor Inertia:800 g.cm²

Motor Line Length: 3m/9.84ft
Encoder Line Length: 3m/9.84ft
D-axis Length: 21mm/0.82in

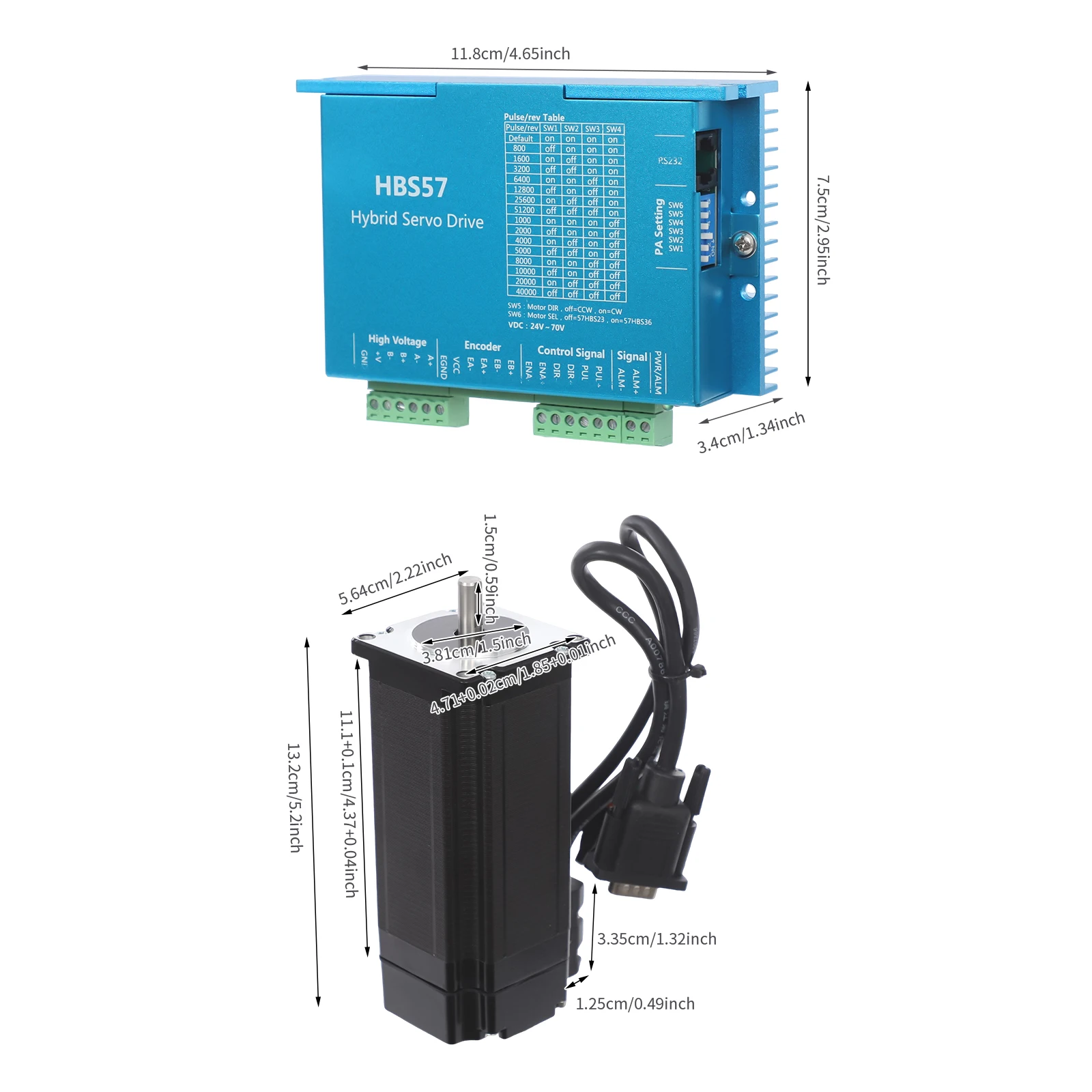

Driver Size: 118*75*34mm/4.65*2.95*1.34in
Motor Main Body Size: 132*56.4*56.4mm/5.2*2.22*2.22in
Package Size: 26.5*20.5*13cm/10.43*8.07*5.12in
Gross Weight: 2.6kg/5.73 lbs
Net Weight: 2.47kg/5.45 lbs

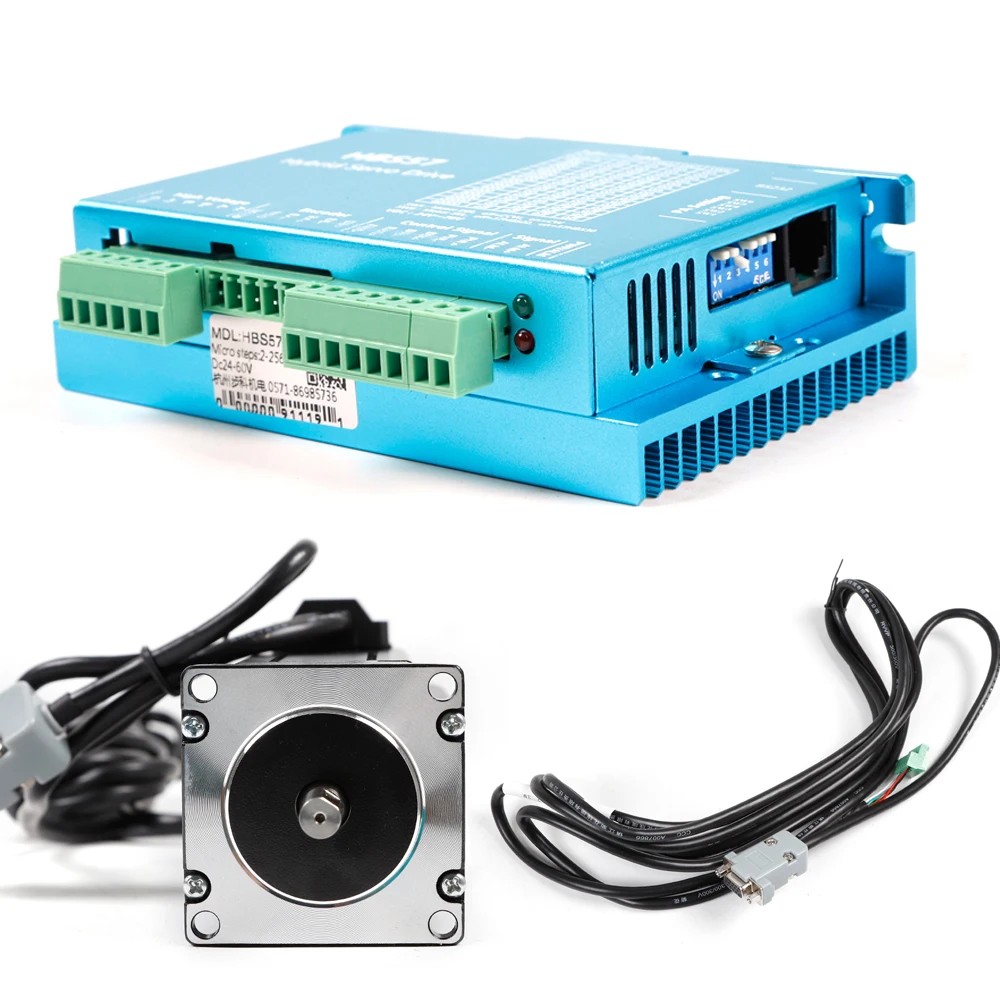

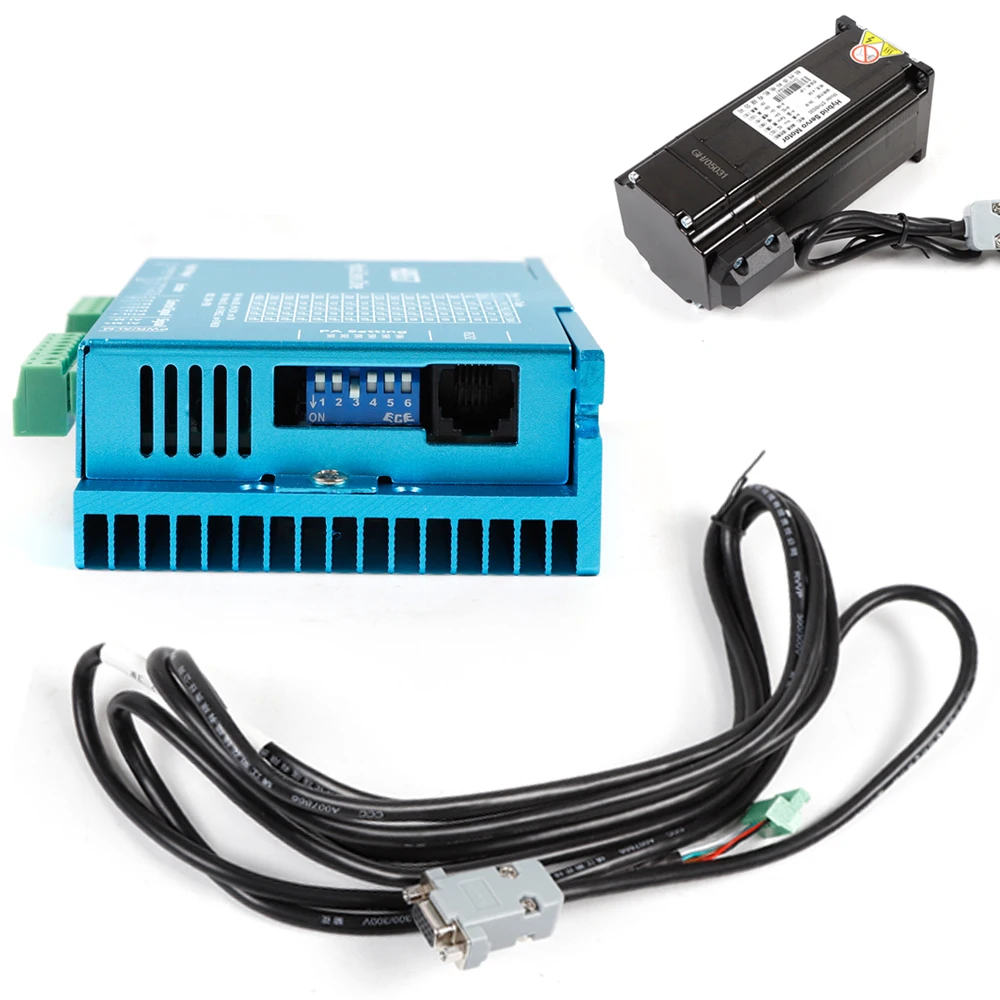

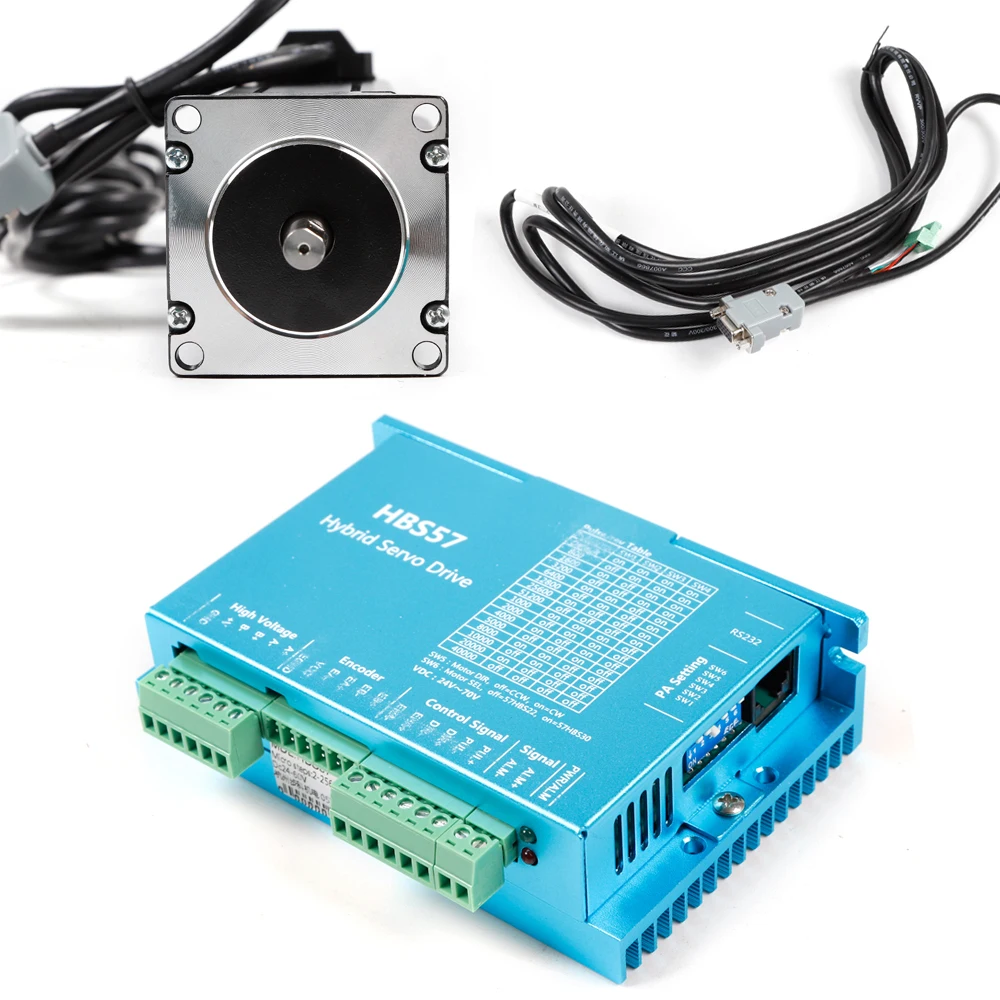

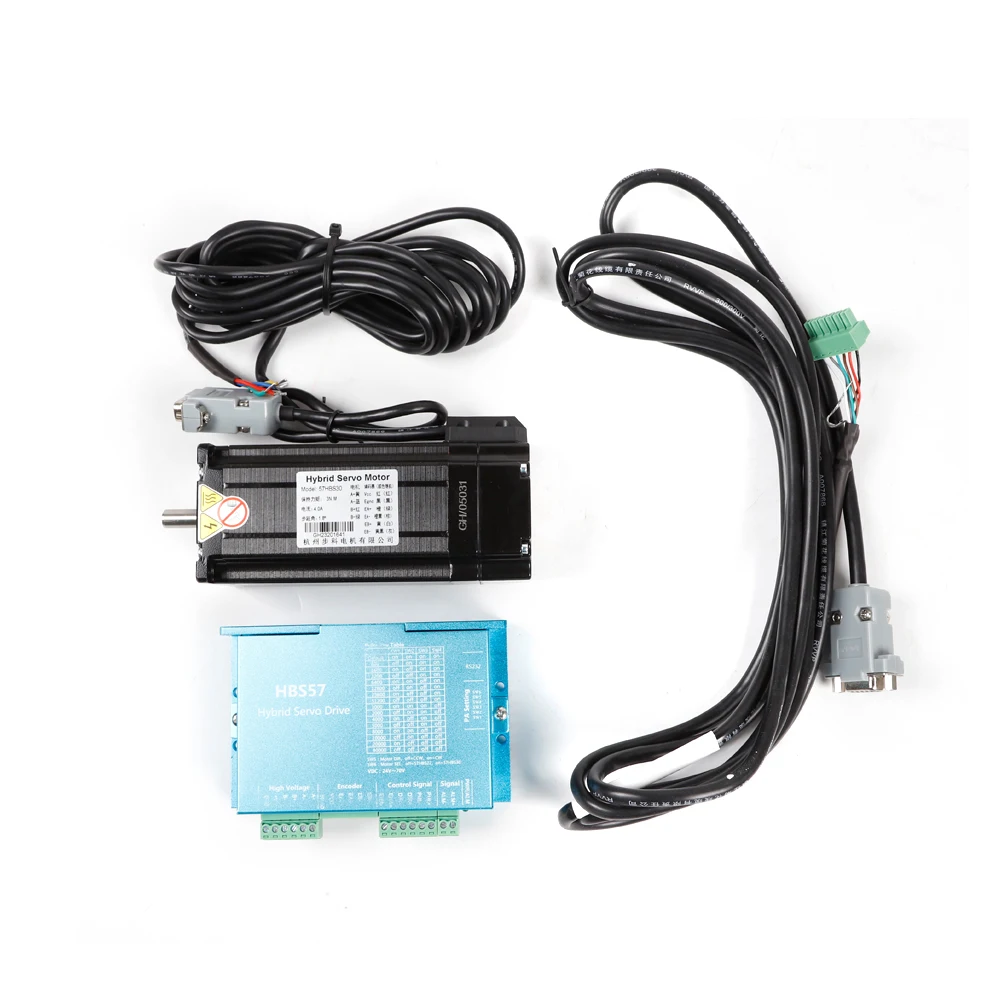

Package Included
1* Driver
1* Motor
1* Motor Line
1* Encoder Line

Description

Our stepper motor kit has a high torque output of 3.6Nm, which can provide a powerful driving force in various application scenarios. Its feature of easy-to-program ensures efficient and stable operating performance, making it suitable for industrial automation equipment that requires precise control and high load capacity. The combination of compact design and excellent performance makes it an ideal choice in various industrial fields.


Key Features
Premium Material: It is made of excellent aluminium material, with an oxidation process, which is wear-resistant, rust-resistant, and not easy to deform, ensuring a long service life.

Excellent Performance: This product adopts the latest dedicated motor control DSP chip and vector closed-loop control technology, overcoming the problem of step loss in open-loop stepper motors. At the same time, it significantly improves the high-speed performance of the motor, reduces motor heating and vibration, increases machine processing speed and accuracy, and reduces machine energy consumption.

High Reliability: When the motor is continuously overloaded, the driver will promptly output an alarm signal, and its reliability is the same as that of an AC servo mechanism. At the same time, the drive also has protection functions such as overvoltage, overcurrent, tracking error, and out-of-tolerance, allowing you to use it with confidence.

Powerful Function: The driver can achieve vector closed-loop control, ensuring high torque output of the motor and improving work efficiency. The serial communication function, and the adjustable design of current and subdivision, signal edge, and alarm output logic function further enhance the programmability of this product, allowing you to easily adjust according to actual working conditions, simplify processes, and save costs.

Compact Design: The motor and driver are compact in size and lightweight, which do not take up too much workspace, making your operation and use more convenient.

Easy to Clean: It has a smooth surface and a simple structure, so you only need to wipe the dust with a dry towel regularly.

Ideal Gift: It is an ideal gift for friends who need to work with closed-loop stepper motors and drivers, bringing convenience to their work.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details
LED Indicator Light: When this product is running normally, the indicator light displays green. When the product malfunctions, the indicator light is red, enabling you to promptly monitor work status and take appropriate measures.

Long Motor & Encoder Lines: Their length is 9.84ft, which can provide you with more usage positions and more convenient use.

Application
It is suitable for electronic devices such as dispensing machines, woodworking machines, welding machines, screw machines, surface mount machines, packaging machines, engraving machines, etc.
