『EU Free Ship』Nema23 Servo Stepper Motor 2N.m Closed Loop Integrated Digital Hybrid 200KHZ 6A DC24V-48V Closed Loop Driver

Good News:

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

Package include:

1 / 2 / 3 xJSS57P2N 2.2Nm  Integrated Closed-loop Stepper Motor （DC24~48V, recommended DC36V  1000 line）

1. Product description

1-1, Overview

JSS57 is a new motor-driven integrated hybrid servo drive system with

communication function. Using a new generation of 32-bit DSP control

technology and closed-loop control technology, it can prevent

out-of-step and ensure the accuracy of the product;High-speed torque

attenuation is much lower than traditional open-loop drive, which can

greatly improve the high-speed performance and torque of stepper motor.

Load-based current control technology can effectively reduce motor

temperature rise and extend motor life. Built-in position and alarm

output Signal, convenient for monitoring and control of the host

computer;The position error alarm function ensures the safe operation of

the processing equipment. It is an ideal upgrade for traditional

open-loop stepper drives and can replace some traditional AC servo

systems at a price of only 50% of the AC servo system.

1-2,Characteristics

1.) Adopt advanced 32-bit motor control dedicated DSP chip and vector closed-loop control technology;；

2.)The default work is in closed loop mode, no loss of step, and it also supports working in open loop mode.；

3.)Increase the output torque and running speed of the motor;

4.)The current level is intelligently adjusted according to the load, reducing

the temperature rise of the motor, locking the current, and adjusting

the closed-loop peak current.；

5.)Adapt to various mechanical load conditions (including low-rigidity loads

such as pulleys and pulleys) without adjusting the gain parameters;；

6.)The position command smoothing filter can be set, the motor runs smoother,

the vibration is lighter, and the acceleration and deceleration dynamic

performance is improved.；

7.)Zero-speed static capability without vibration after positioning；

8.)Support single and double pulse input, pulse response frequency up to 200KHZ；

9.)Support 15 fixed subdivisions, and support software to set any subdivision (200~65535)；

10.)Support modbus RTU protocol on RS232, position and speed control controlled by communication；

11.)Support monitoring of motor operating conditions, including speed, position deviation, bus voltage, operating current, etc.

12.)Voltage range: DC+24V~48V；

13.)With overcurrent, overvoltage, positional tolerance and other protection；

1-3. Typical application

Suitable for all kinds of small and medium-sized automation equipment and

instruments, such as industrial robots, textile machinery, special

industrial sewing machines, wire stripping machines, marking machines,

cutting machines, laser phototypesetting, plotters, CNC machine tools,

engraving machines, automatic assembly equipment, etc. Excellent

application in devices where users expect low noise and high speed。

2. Electrical, mechanical and environmental indicators

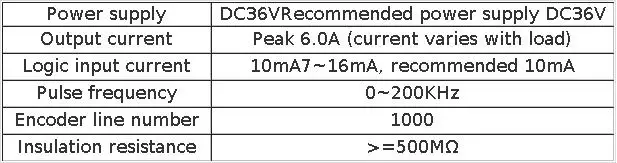

2-1 Electrical index

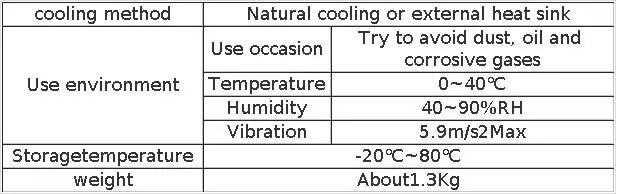

2-2 Use environment and parameters

2-3 Mechanical installation size

3. Typical wiring diagram

4. Drive interface and wiring introduction ( Interface definition )

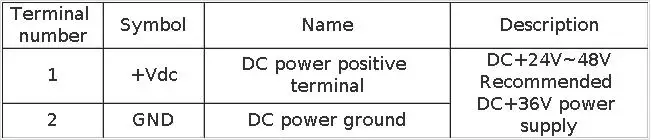

4-1.  Power input port

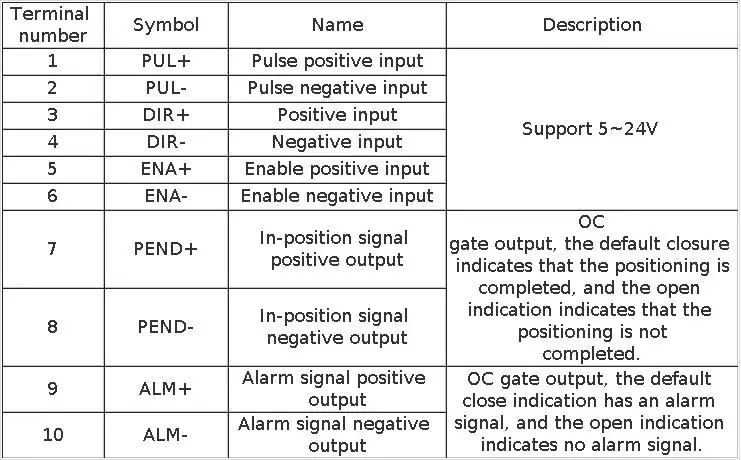

4-2.  Control signal port

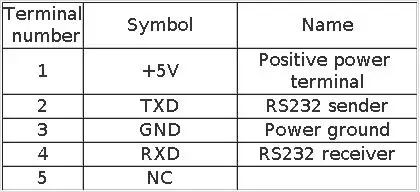

4-3.  RS232 communication port

4-4.  Status indication

PWR：Power Indicator. The green indicator lights when power is applied.

ALM：Fault

indicator. Red light flashes 1 time within 3 seconds: Overcurrent or

phase-to-phase short-circuit fault; red light flashes continuously 2

times in 3 seconds: Overvoltage fault; red light flashes continuously in

7 seconds 7 times: position error tolerance alarm.

5. DIP switch setting

JSS57 uses a six-digit dial switch to set the filter time, motor rotation direction and subdivision accuracy.

SW1, filter time setting. The default on=3ms, off=25ms, the larger the filtering time, the smoother the motor runs and the lower the noise.

Moreover, in the on state, the filtering time can be flexibly set by the upper computer software setting.

SW2, motor rotation direction setting. On=CW,off=CCW.

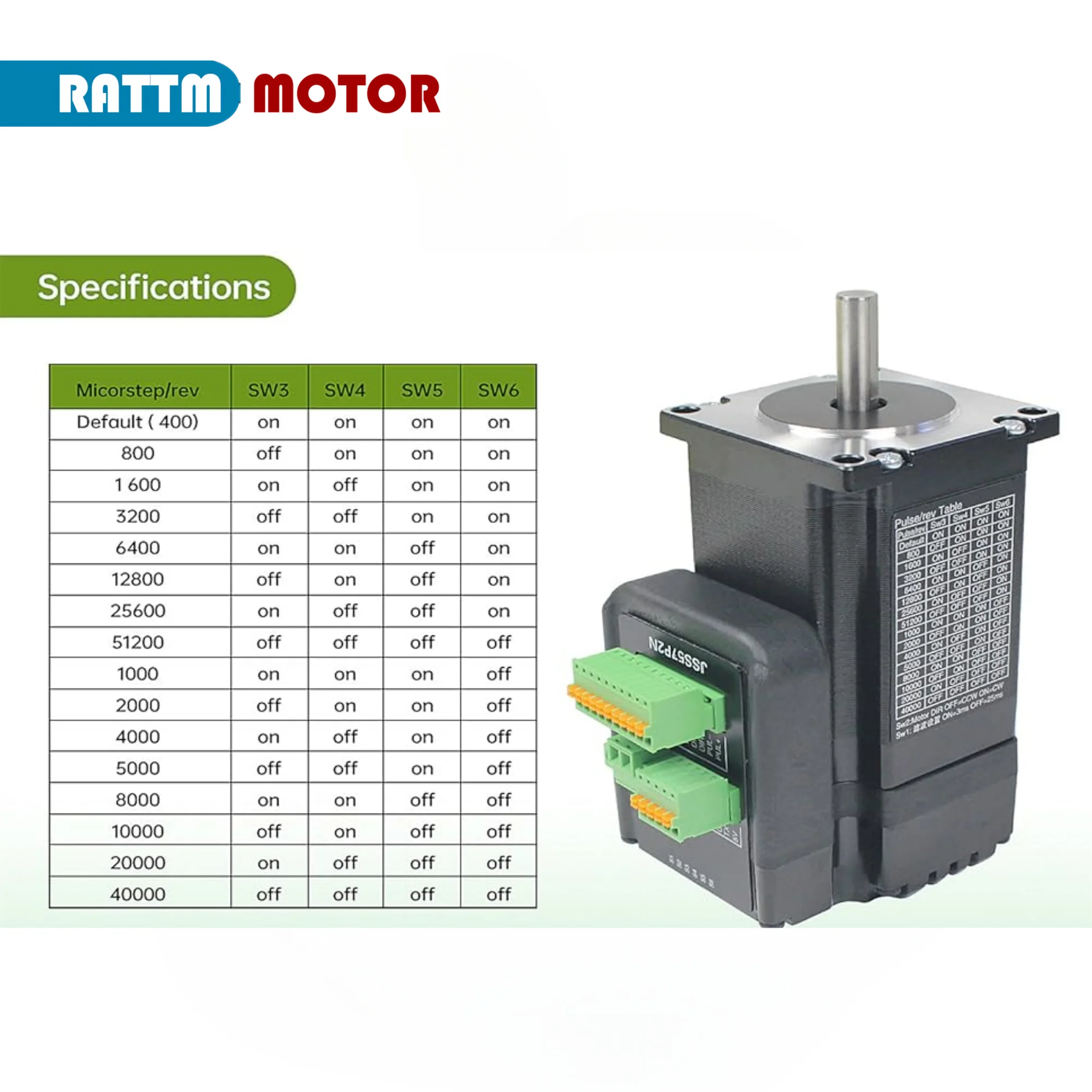

SW3、SW4、SW5、SW6：Subdivisionsetting

The default file segmentation defaults to 400, which can be modified by the host computer software.
