【DE Shipping】 CNC 3018 pro laser engraver 3-axis grbl-controlled woodworking milling machine with optional laser head

Product sellpoints

【GRBL Software】Our parcel include 4G USB flash drive,pls download the installation instructions,user manual and GRBL software from the USB flash drive.

【Upgrade Version 3018 Pro with Offline Controller】Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers;you can operate this machine without connect the computer but offline controller.

【2-in-1 Router and Laser Engraving】 The controller Board supports 2 Engraving methods, it can install the spindle for Router engraving or connect 3-Pin Laser Module for laser Engraving. laser module Power is optional when you order.

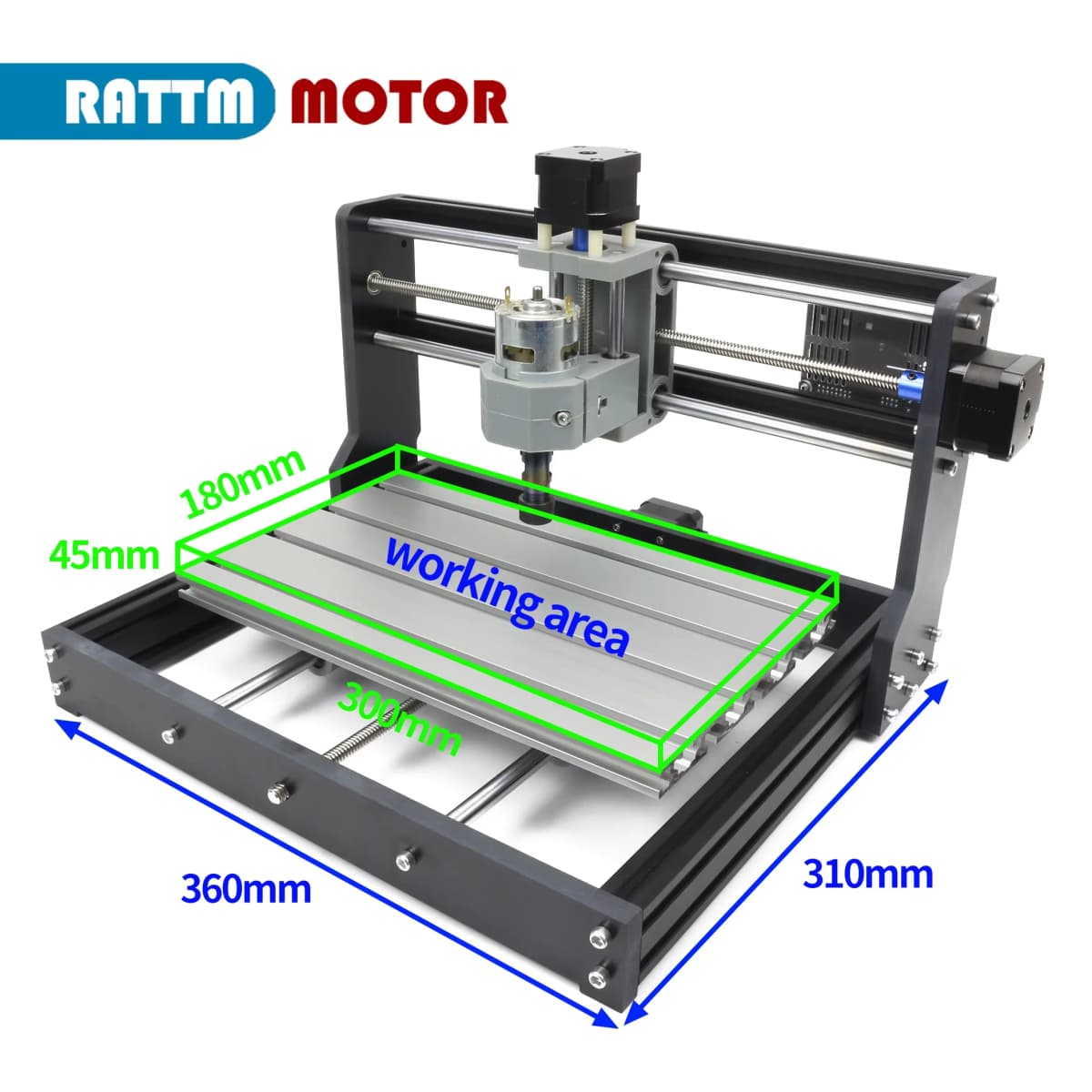

【Main Feature】 Working area:300x180x45 mm (11.8 x 7.1 x 1.8");Frame size: 420x350x270mm (16.53x13.78x10.63");Type: USB Port Desktop cnc router ; Spindle: 775 spindle motor 100W (12-36V) 24V:10000rpm ; Stepper Motor: Nema17 stepper motor 1.33A,42x42x34mm.

【Upgraded GRBL1.1f Control Board】Added the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,and come with the fan port to force heat dissipation.

Package include:

1 set CNC 3018 PRO 3-axis Laser engraving machine  (without laser)

 1 x GRBL Controller

 1 x Spindle motor ER11

 10 x 20° 0.1mm drill bits

 4 x plates clamps

 1 Set of tool

 1 x power supply  110V/220VAC

 1 x 4G USB flash drive

Please download the installation instructions,user manual and GRBL software from the USB flash drive.

Notice:

We have offline controller and laser,if you need,pls contact us,we can send from China.

Ps:because ER11 shank accuracy is very high, so the hole is small,therefore. need to be heated before installing the shank to be fitted.

Feature:

Maximum travel : 30x18x4.5cm(11.8 x 7.1 x 1.8")

Frame size :        42x35x27cm(16.53x13.78x10.63")

Type:                   USB Port Desktop cnc router

Spindle :              775 spindle motor 100W (12-36V) 24V: 10000rpm

Stepper Motor:    Nema17 stepper motor 1.33A,42x42x34mm,torque 0.3N.m,43oz-in.

Power supply:   24V 5.6A (input voltage 110-240V)

Control system:  GBRL control,USB interface

Software :          Upgraded GRBL1.1 Control Board

Supporting files: G-code (.nc/.txt/.tape/.gcode...)

Spindle Chuck:   10pcs tip 0.1mm 20 degree φ3.175mm

Material:             PA6 Nylon + Aluminum profile

Processing accuracy:  About 0.2mm

Processing thickness: 4.5cm (1.8”)

System requirements:  Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be). Linux; Can't support Apple product

Advantages of 3018 Pro:

1. Updated control board firmware GRBL1.1, added the outer casing,emergency stop button port,tool setting (probe) port,X/Y/Z axis limit port and add the power button switch,supports installation functions such as emergency stop,limit switches etc. It supports offline engraving, offline tool setting.and come with the fan port to force heat dissipation,with enhanced spindle drive,can support maximum 20000rpm spindle,and also can support 0.5W-20W module.

2. Laser imported directly into the photo engraving,No need for program, No need for design,Simple and convenient.

775 Spindle

Spindle parameters: 775 spindle motor (12-36V) 24V:10000r/min

Mounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.

Motor shaft diameter: 15mm;

Motor diameter: 42mm

Drill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )

Control software: GBRL control(candle)

Supporting files: G-code (.nc/.txt/.tape/.gcode...)

Processing accuracy: About 0.2mm

Machinable material: Wood、 plastic、 PCB、 PVC、 carbon fiber、 acrylic、 density board etc

Power: DC 24V 5.6A power adapter (input voltage 110-240VAC)

Compared with the old version

1.Add the function of X/Y/Z axis limit switches,optimized the XYZ limit port and the port connected to the device,making wiring and operation easier.After installing the limit switch, when the XYZ axis moves beyond the travel of the engraving machine, the limit switch will trigger the machine to automatically stop the movement.

2.Add the function of emergency stop button,this function can be used when an emergency stop is required at work, making our work safer and more efficient.

3.Add the power button switch and move the power switch button from the bottom to the side,simple operation,more safety in the process of using the machine

GRBL Controller Board(upgrade)

Connection: USB (USB-CH340)

Software: GRBL controller, Universal Gcode Sender

Input voltage: 12-24VDC

Master chip: atmel 328P (arduino nano)

Spindle drive chip: MOSFET (recommendation 24V, current : within 10A)

Spindle PWM speed: Support

Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)

Power Interface: 5.5-2.5mm DC interface

System requirements:  Windows XP SP3,Win 7,Win 8,Win 10 (32/64 can be). Linux; Can't support Apple product

2.8Inch Offline Touchscreen Controller

Applications

· CNC 3018 PRO Mini CNC machine small size, is very easy to install,with stable structure, USB interface, GRBL control systems, great cnc router machine for beginers;

· Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other metal materials, but can not carve hard metal, jade or other very hard texture of the items.

· If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber.
