18V 200W Solar Panel Battery Charger Lightweight Photovoltaic Monocrystalline Module House Car RV Yacht Lights Pump Power Supply

18V 200W Solar Panel Battery Charger Lightweight PET Photovoltaic Monocrystalline Solar Cell Module Applications House Patio Car Caravan Yacht Light Water Pump Power Supply

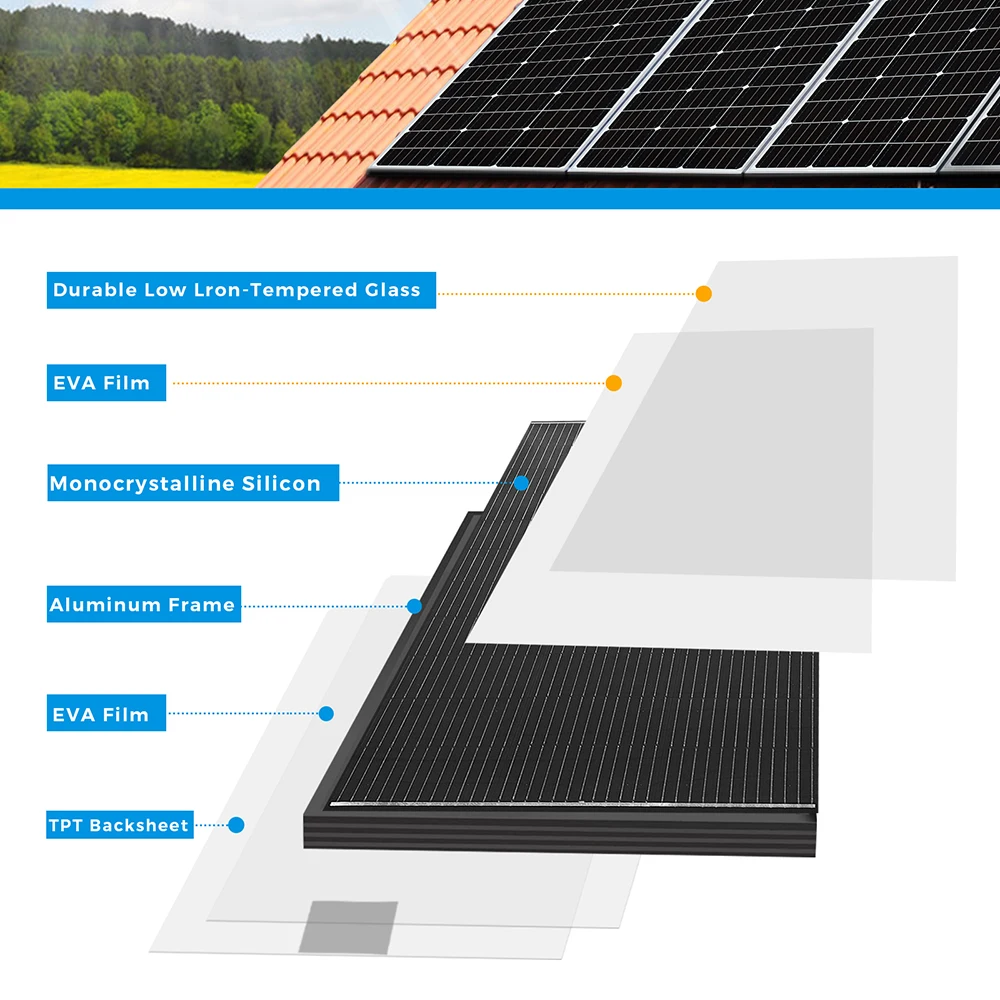

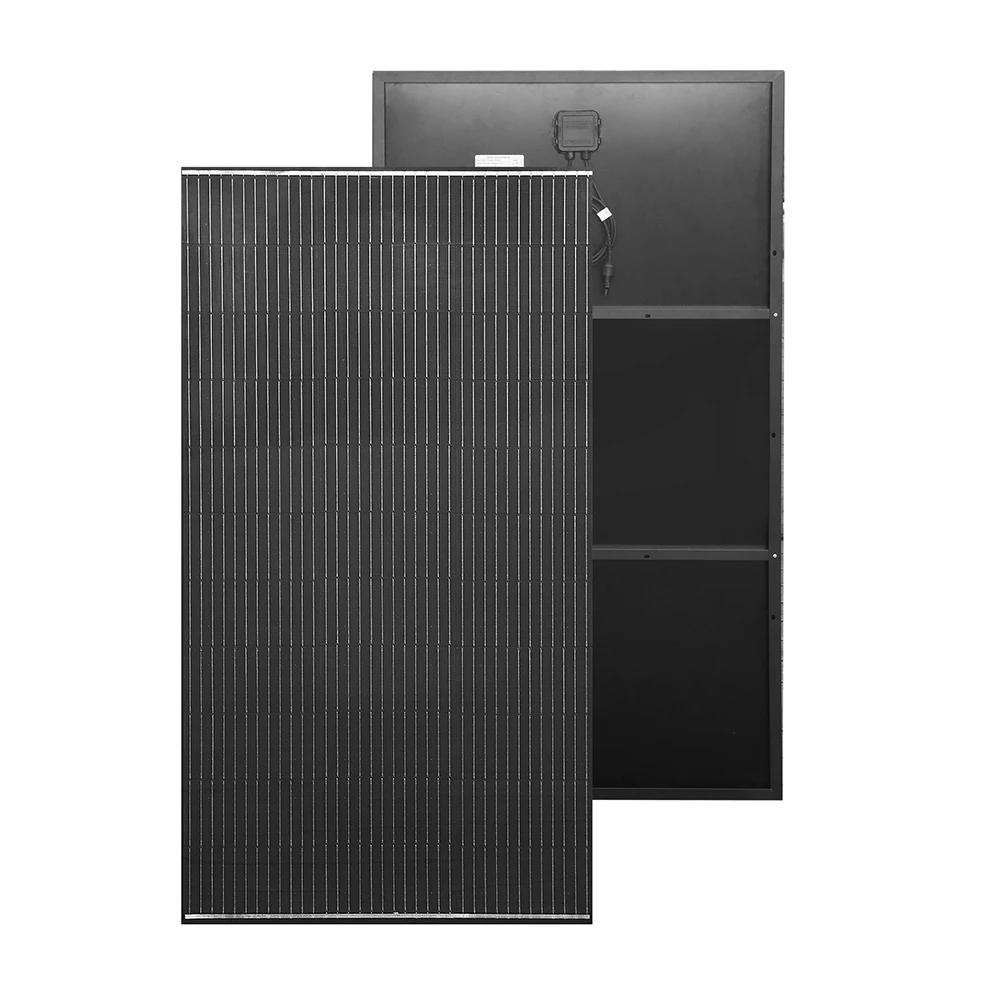

This is PET lightweight solar panel module with frame. The product is lightweight and has an aluminium frame on the back of the solar panel to protect the solar panel.


The corners of this solar panel are equipped with black corner guards, which are used to protect the solar panels.
If the corner protector is damaged, you can contact us to get a replacement corner protector for free.
But it does not affect the work of solar panels. We do not accept compensation. Please understand.
Please avoid lifting heavy objects.

Specification:

Maximum power (Pmax) 200W

Maximum system voltage 700V DC

Open circuit voltage (cov) 21.78 V

Short circuit current (Isc) 11.55 A

Vmp 18.15V

Maximum power current(Imp) 11A

Temperature range -40℃～+80℃

Cell Monocrystalline silicon cell

Number of cells 33 pieces

Cell efficiency 24%.

Weight 3.9kg

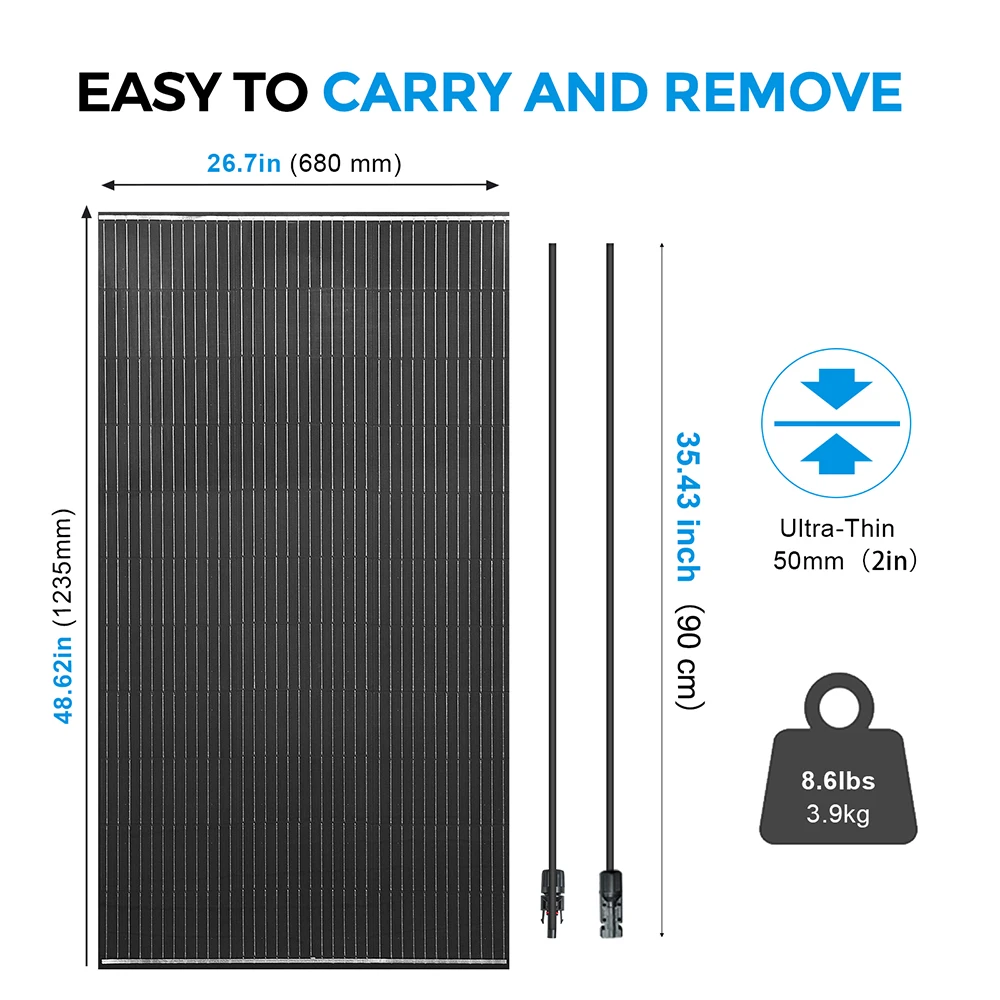

Size 1235*680*25mm

Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

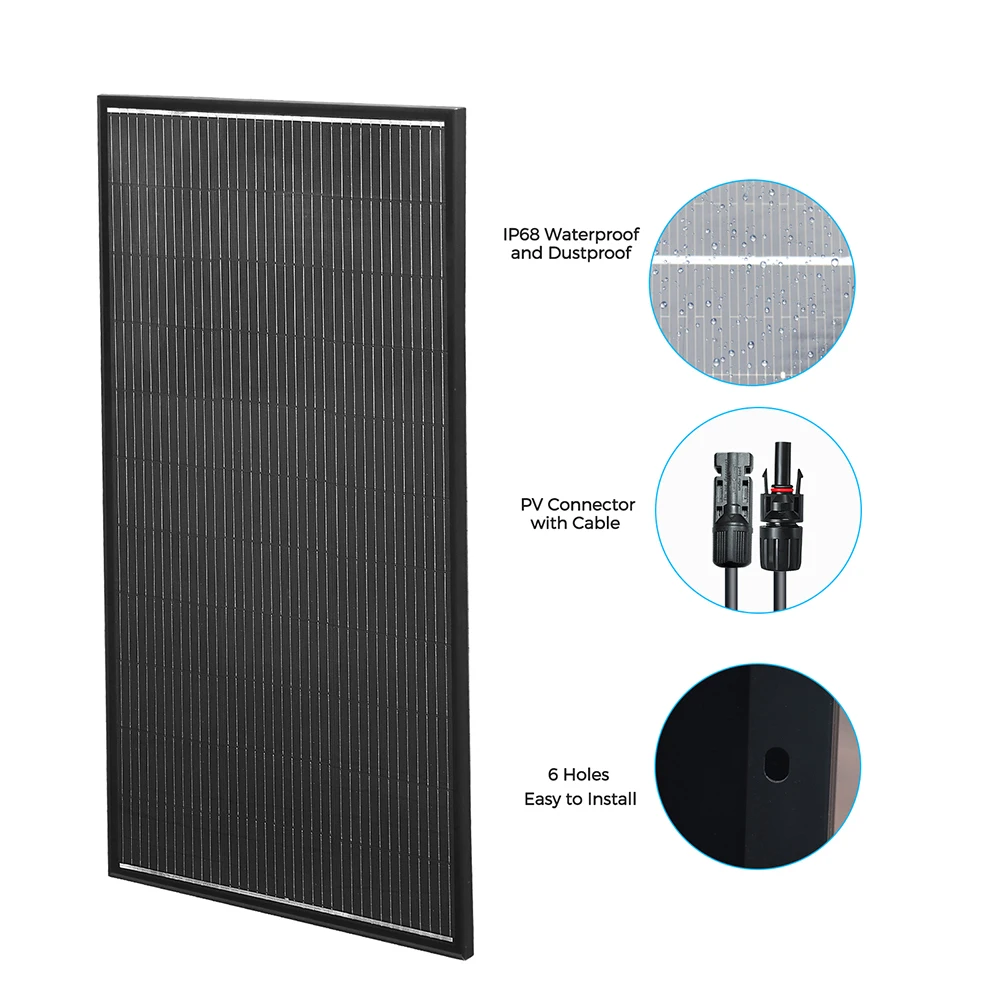

Output port 0.9 m long MC 4 connector wire

USE NOTE

Solar system kit wiring method and precautions

1. The solar system kit connection is divided into parallel connections or serial connections. The controller must first connect the battery and then connect the solar panels.

2. When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3. The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4. When the cable is connected to each component, the connection should be stable and there should be no looseness.

5. The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6. When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultan

TRANSPORTATION

We can provide free shipping for most of the products, for the EU and North America. However, some remote zip codes may require additional remote fees (especially remote islands). After the order is shipped, you will receive a shipping notification email with a tracking number and other information. You can check the status of the package through various official websites such as UPS, FedEx, DHL, USPS, Canada Post, DPD, etc. You can also query through our website, the query path is "support" --- "order tracking". Enter the tracking number to query.

The solar panel charges regular 12V lead-acid, lithium-ion and lithium iron phosphate batteries. The solar panel needs to be configured with a controller to connect to the battery.

Solar panels charge portable 12V batteries. Solar panels can be connected directly to the battery.

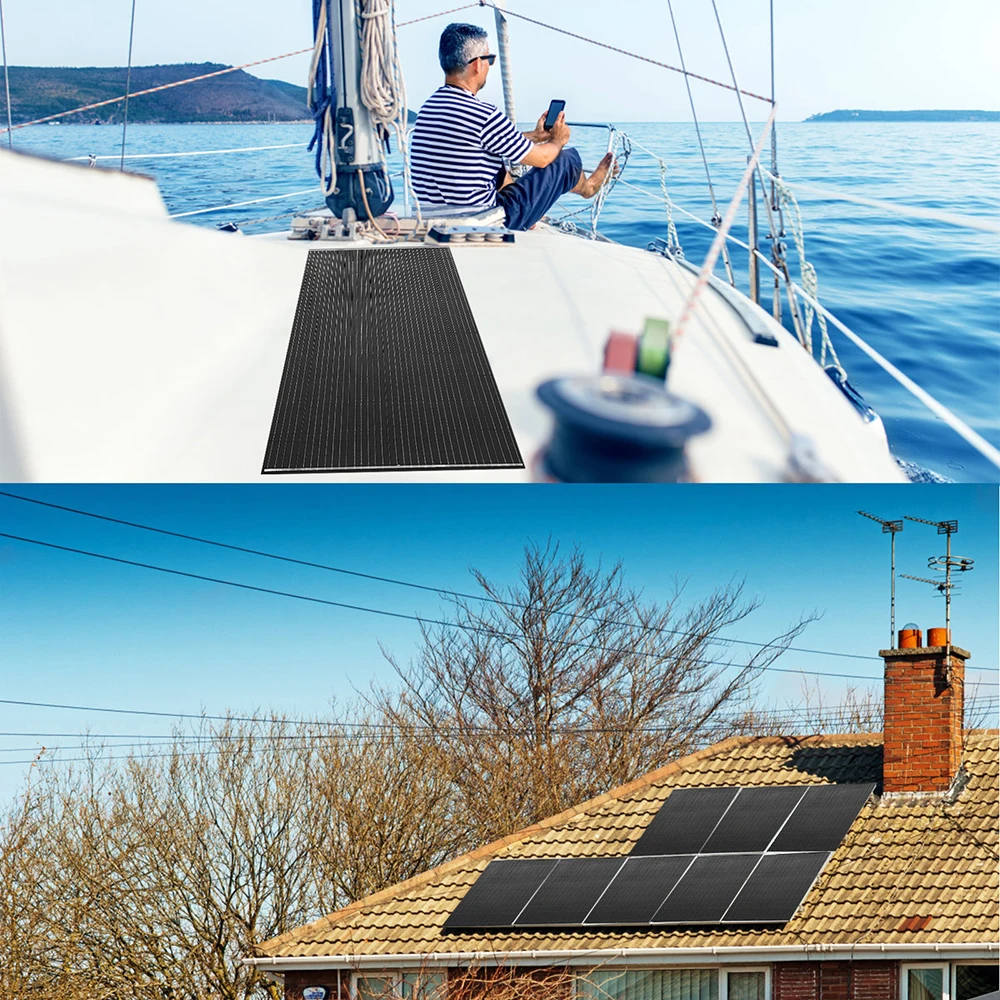

Solar panels can be used outdoors to charge batteries, or to power street lights, monitors, etc.

Solar panels can be used for grid-tied solar panel systems

Solar panels can be connected to a DC water pump for power
