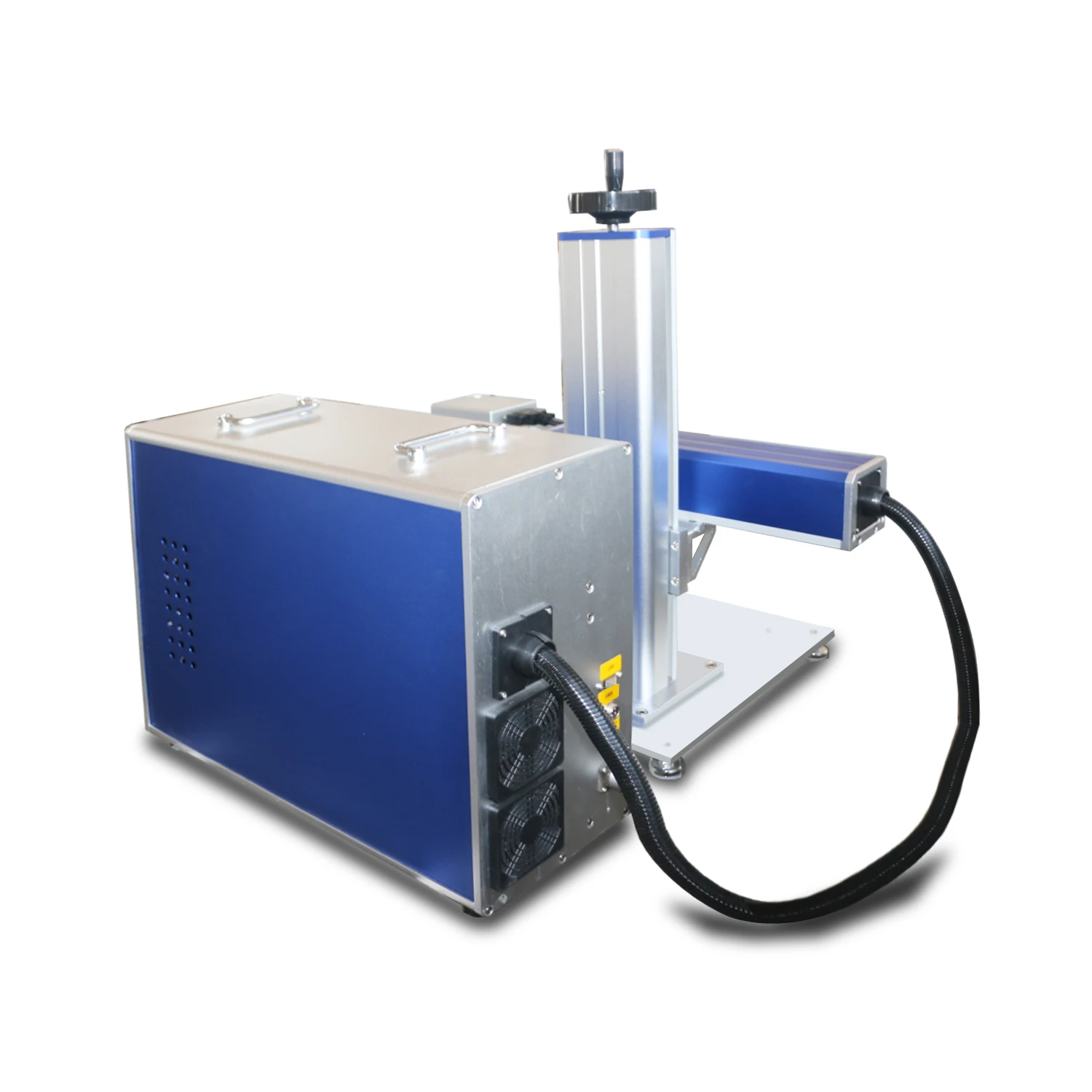

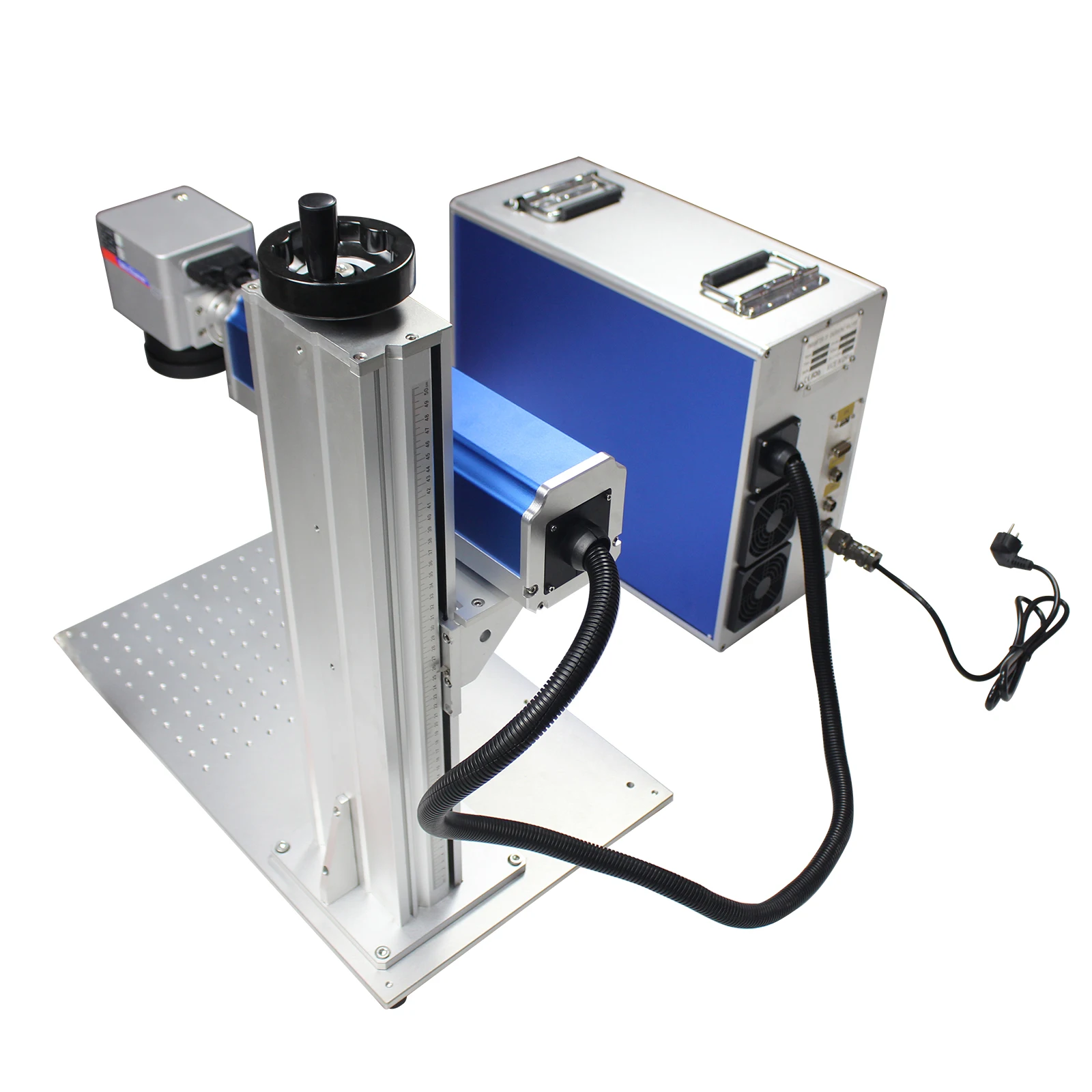

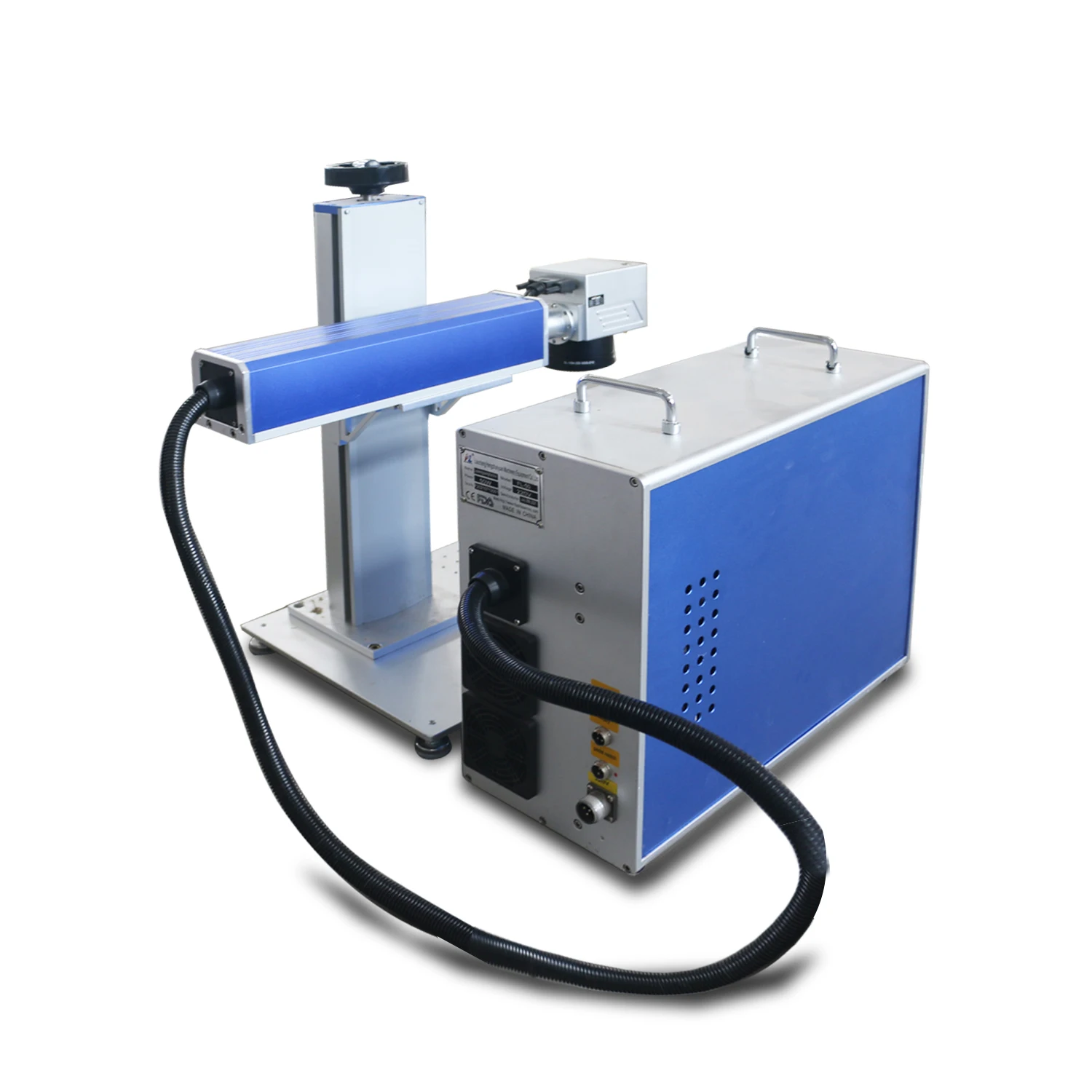

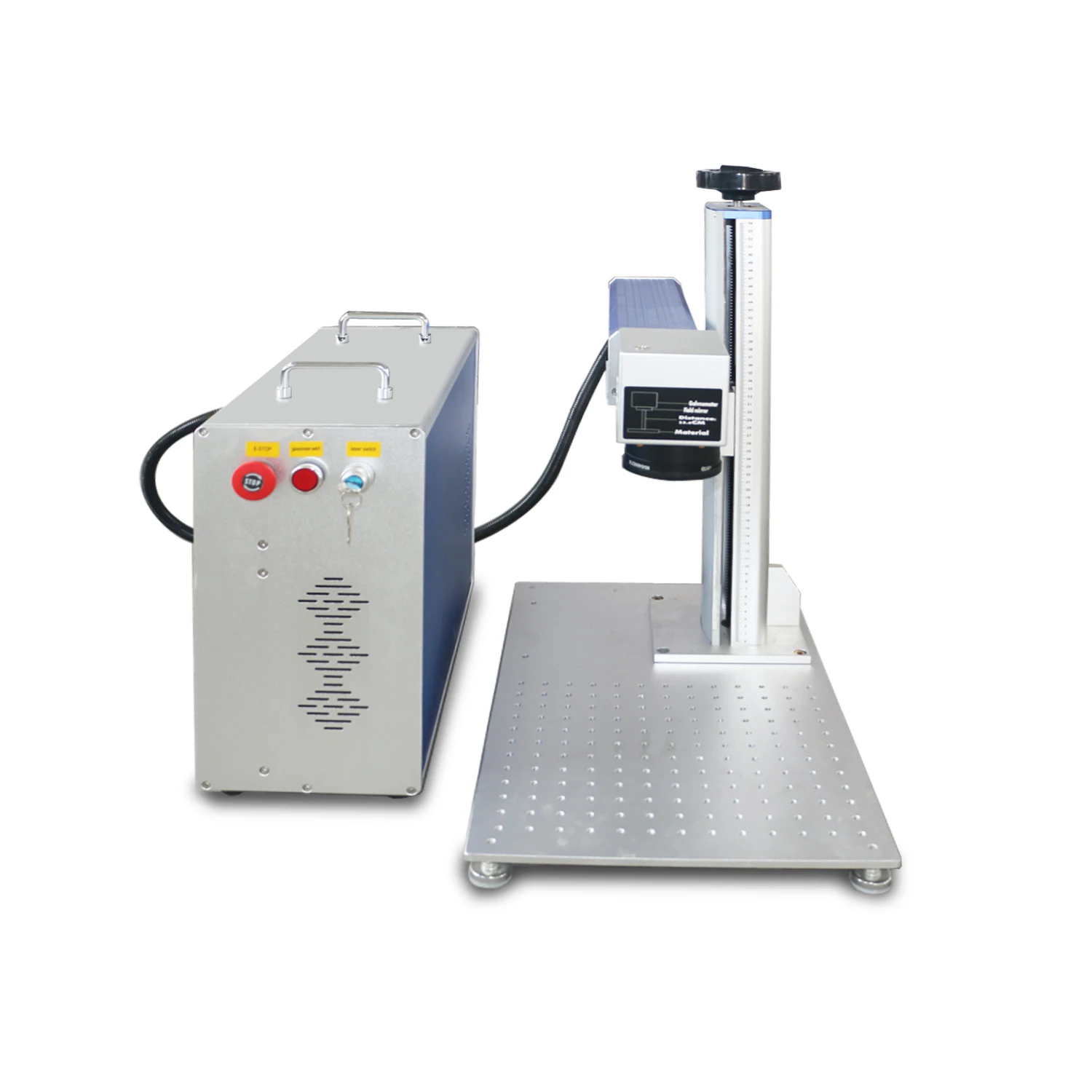

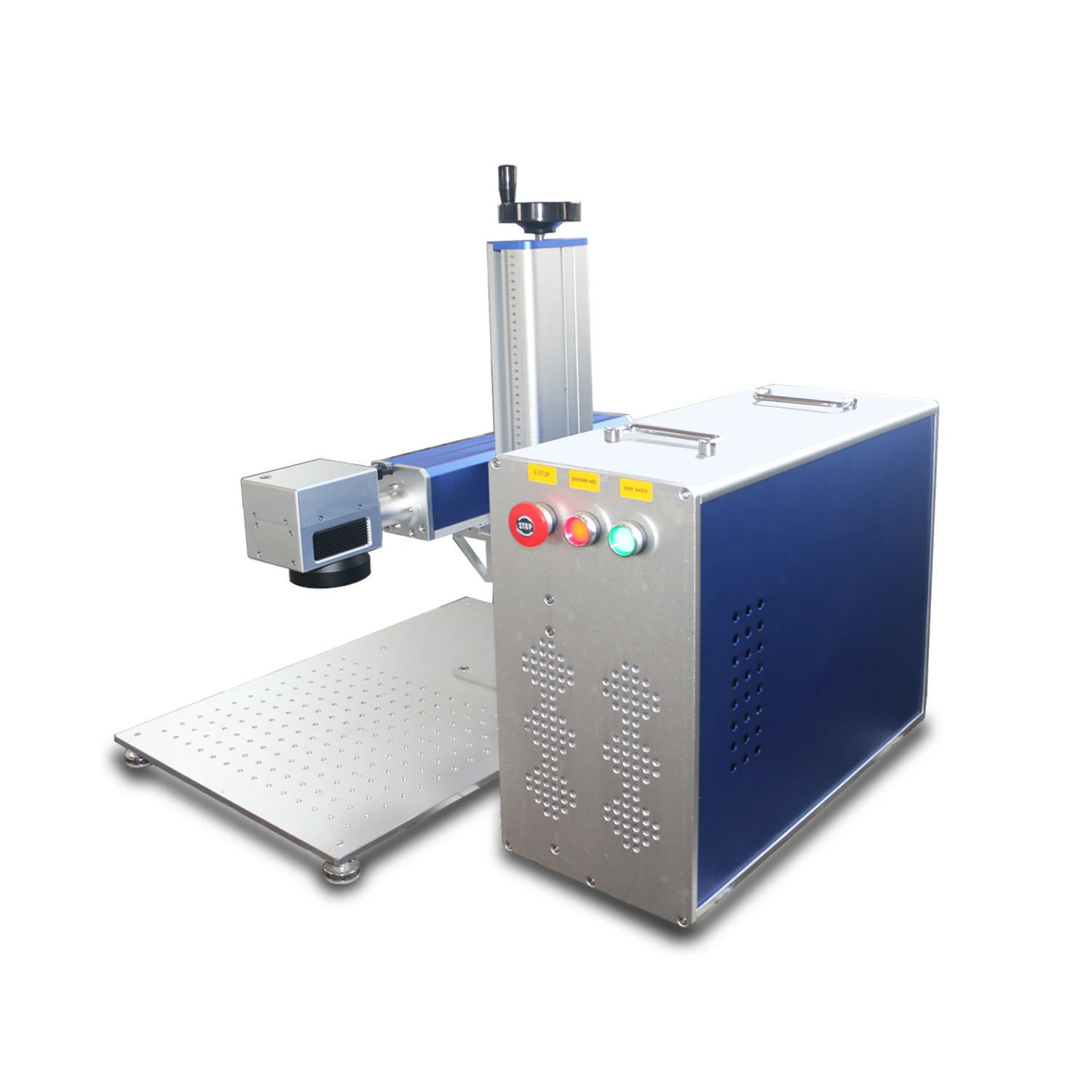

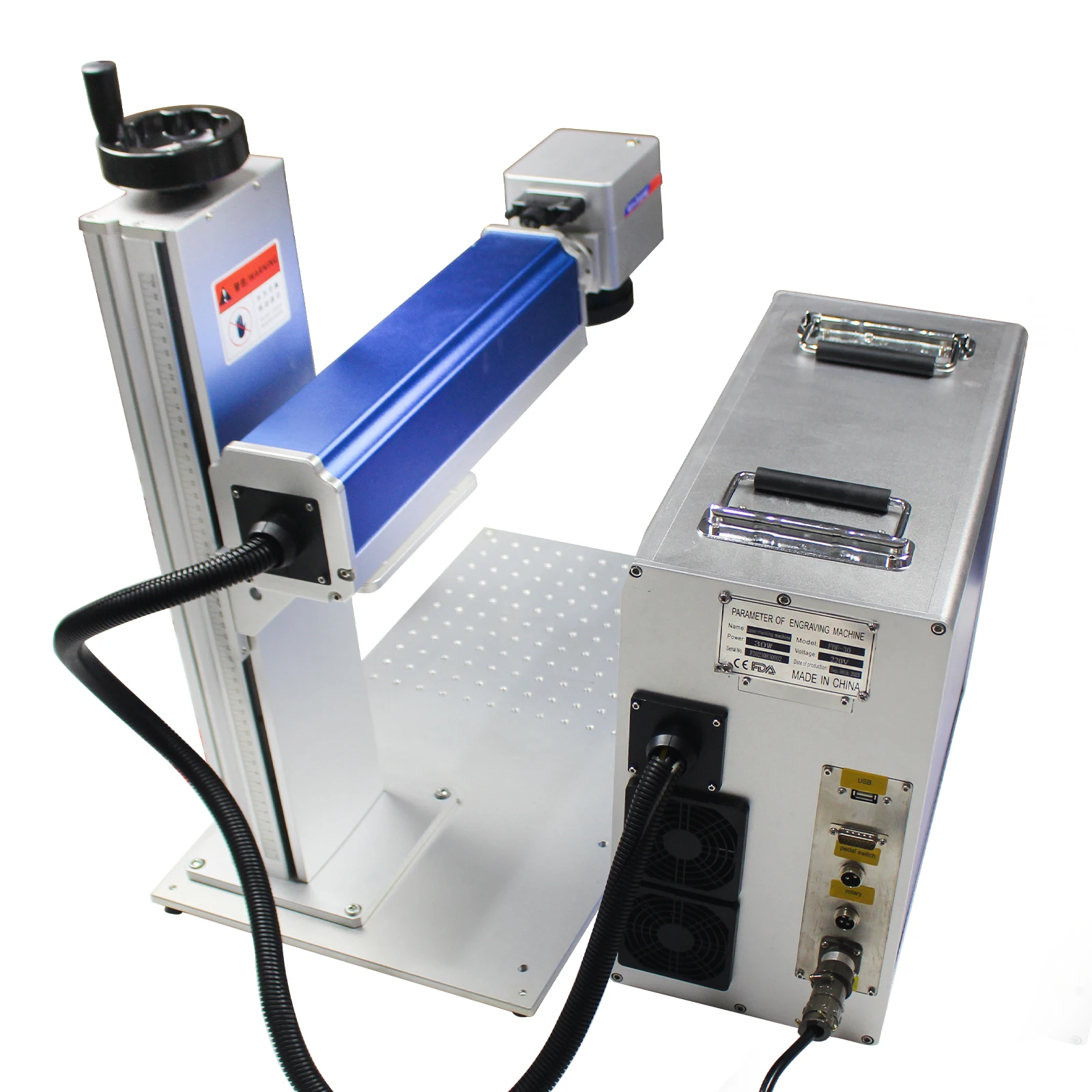

Raycus JPT MOPA M7 Fiber Laser Marking Engraving Machine 30W 50W 60W For Ring Jewelry Steel Metal With Rotary Axis

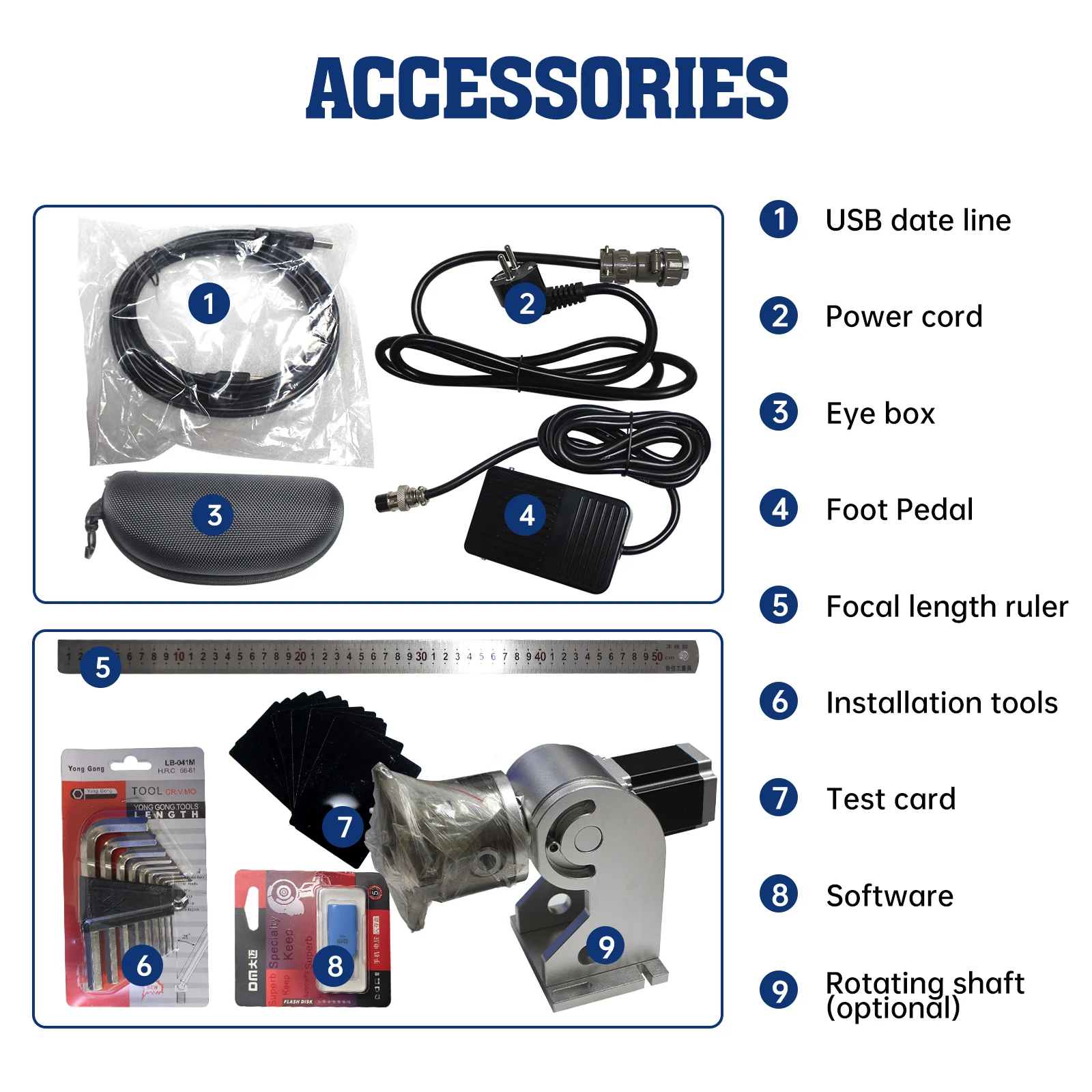

Package include:

1 Set Fiber Laser Marking Machine

1 Pcs U Disk (USB)

1 Pcs Data Line

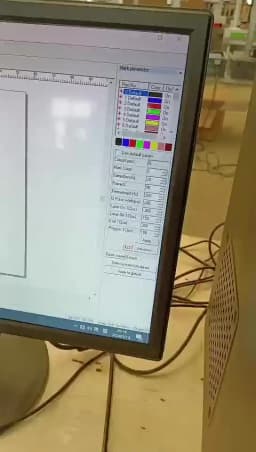

1 Software Ezcad2

1 Set Foot Switch

1 Set Assembly Tools

4 pcs Fixed Sheet Metal

1 Set Power Cable

10 Pcs Metal Card

1 x D80 / ring / D300 rotary axis is based on ur choose.

Pls note:

30W Raycus kit: lens is 1 pc of 150*150mm lens + 1pc of 70*70mm lens (normal lens)

50W Raycus kit: lens is 1 pc of 150*150mm lens (normal lens)

50W JPT LP kit: lens is 1 pc of 150*150mm lens (normal lens)

60W JPT MOPA kit : lens is 1 pc of 200*200mm lens (quartz field lens) + 1pc of 70*70mm lens (normal lens)

Product description:

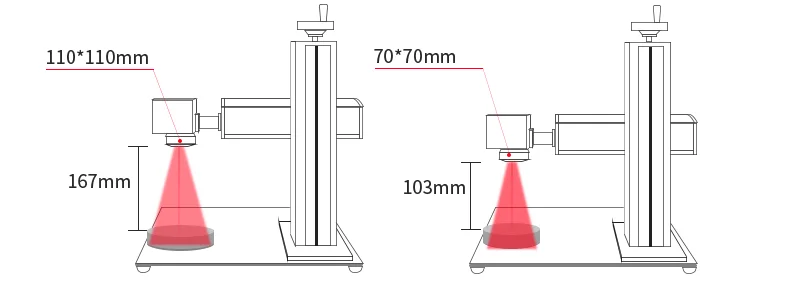

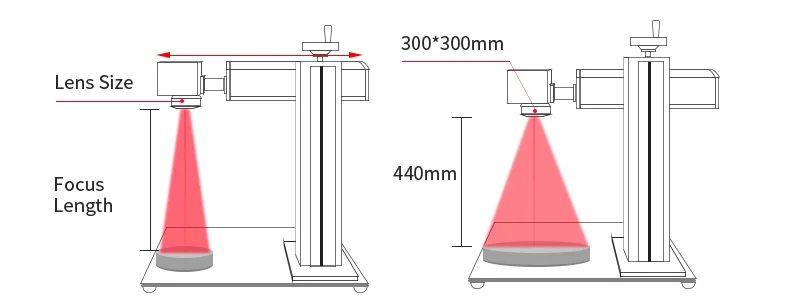

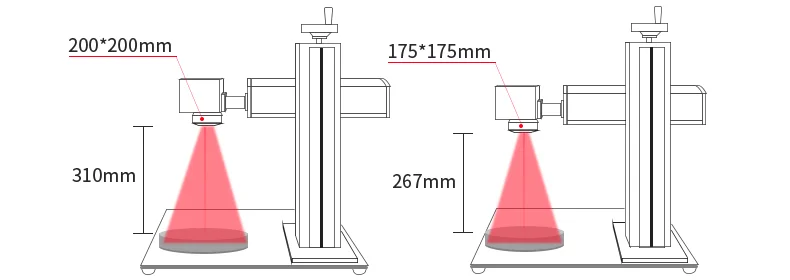

How to choose lens

With Same Lens , The Higher Power , The Deeper Engrave .

With Same Power, The Smaller Lens, The Deeper Engrave ，

Bigger Lens Engrave Bigger Area ，

Smaller Lens Engrave Deeper Depth,

if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,

30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm

50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully

build the platform professional fiber laser marking machine shop,

please customers to patronize, do not just look at the price. To look at

the quality of the machine, use high-quality machine parts to give

customers the best price and quality service! Provide S/N coding for our

machines, machine lifetime service,

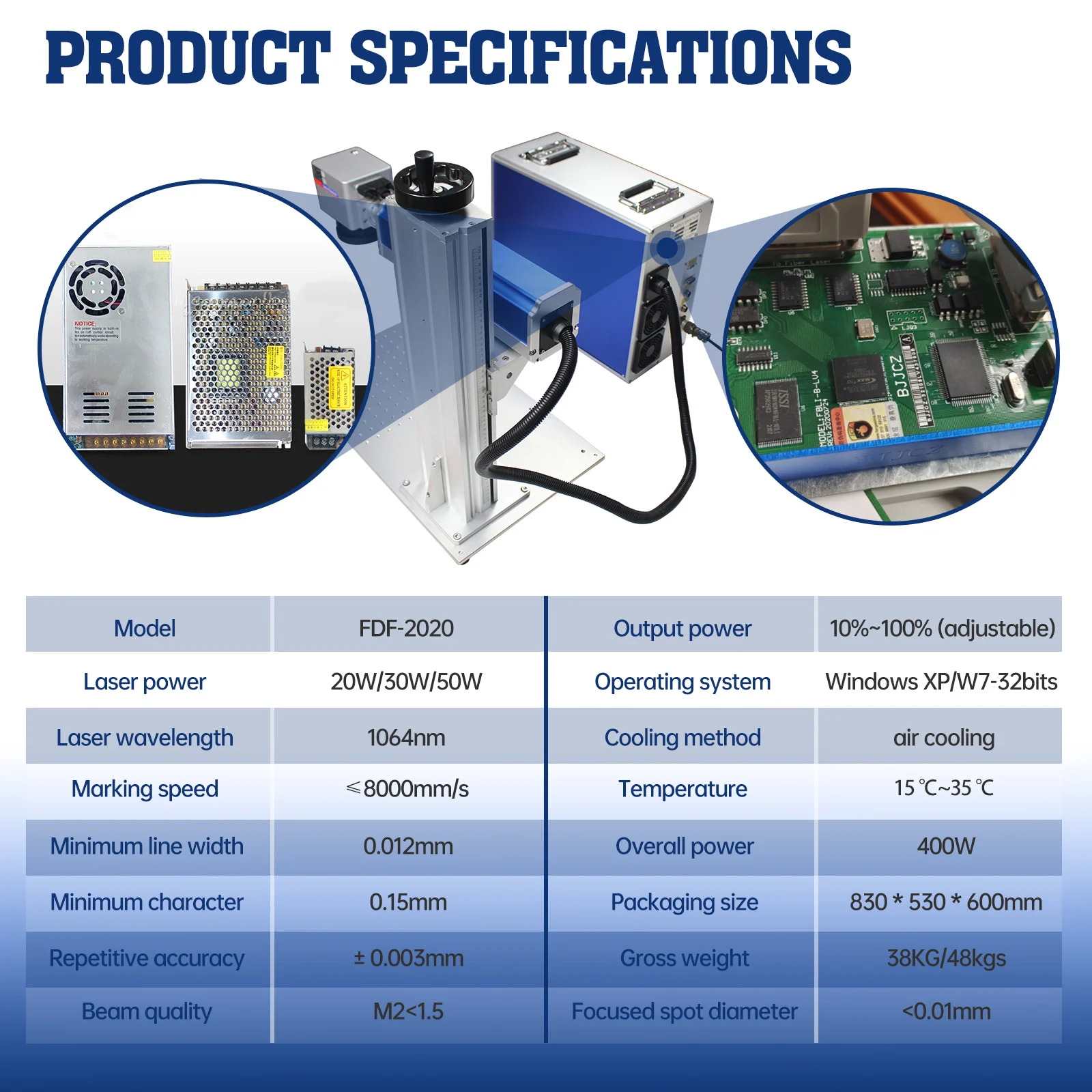

2: Machine configuration:

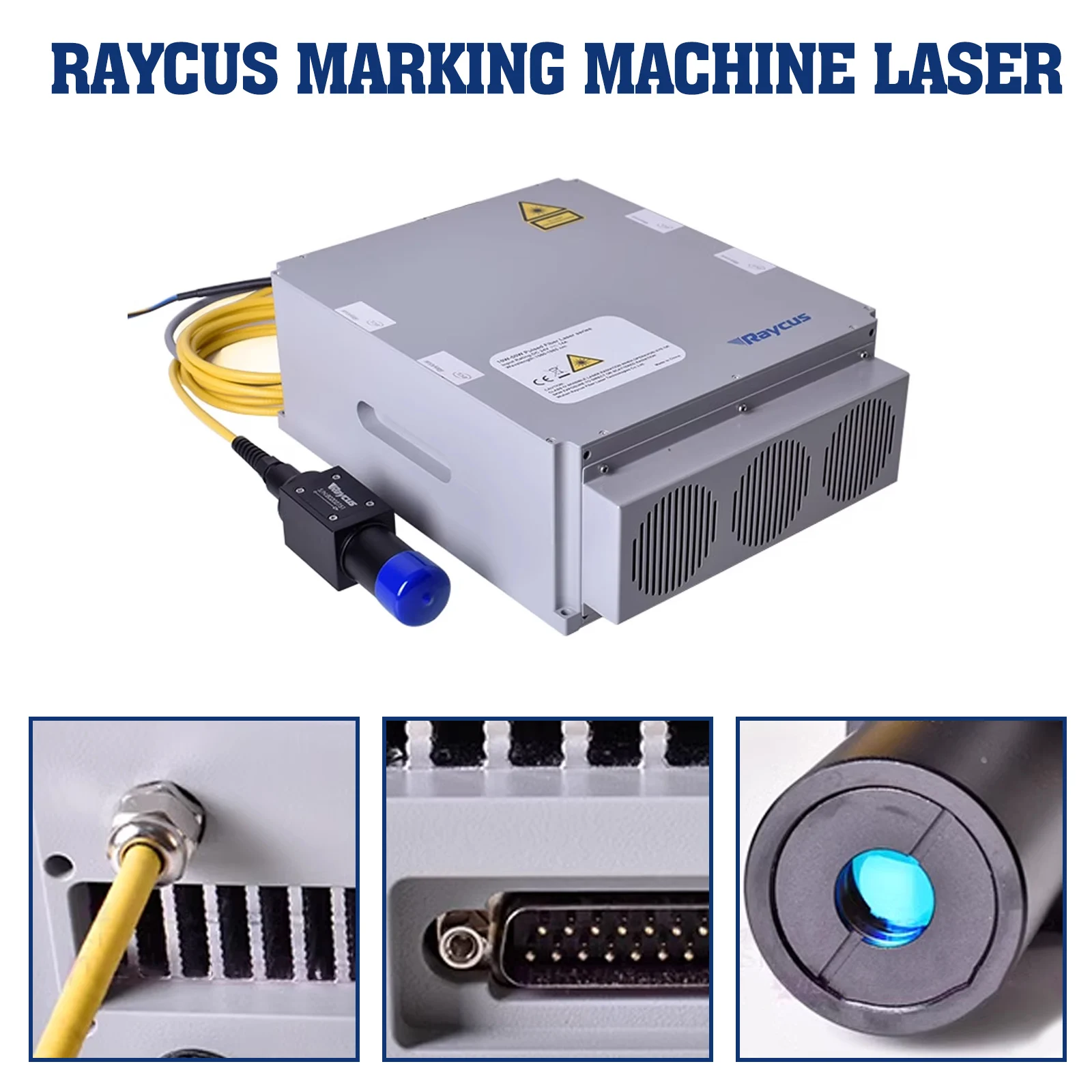

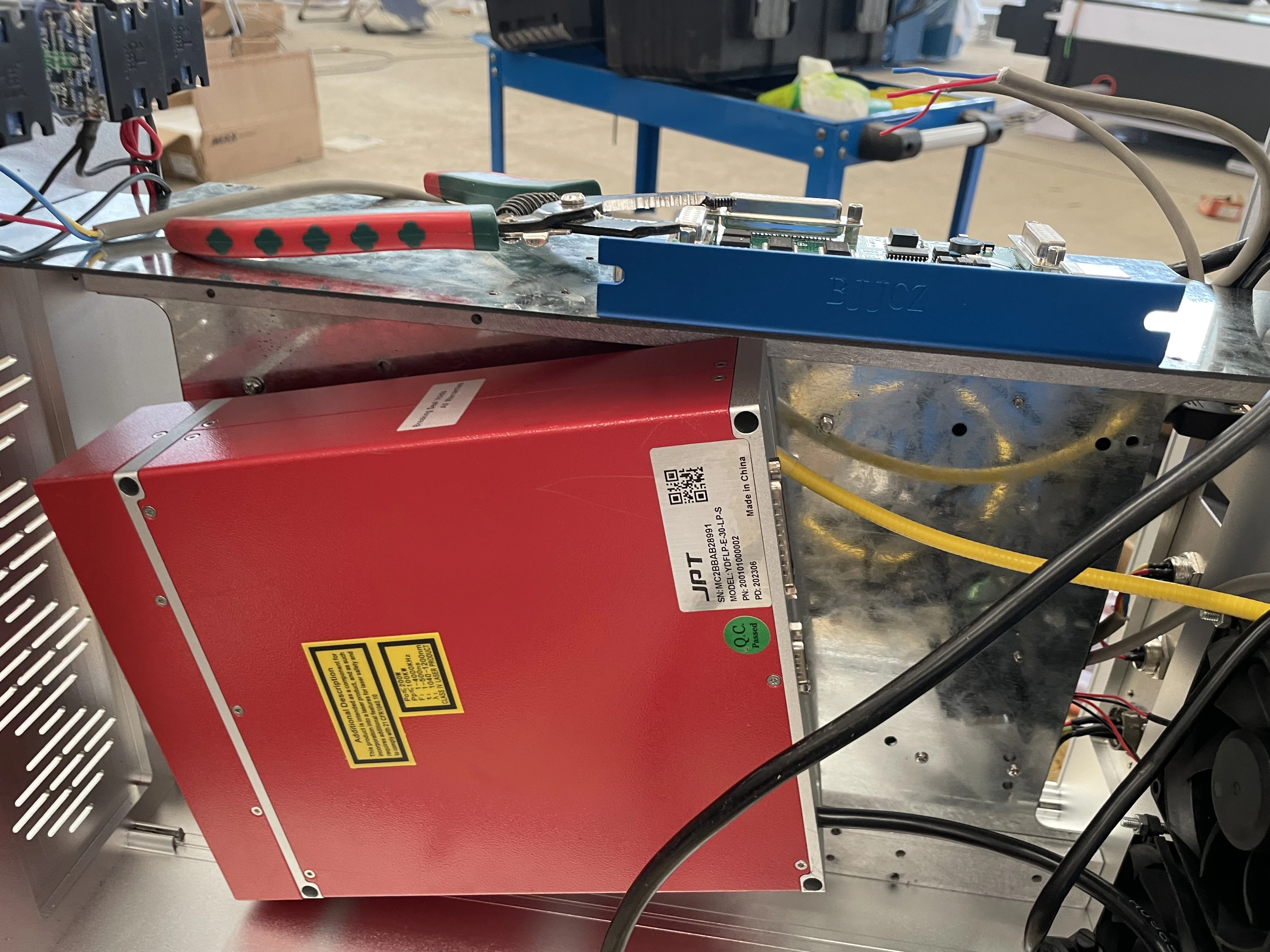

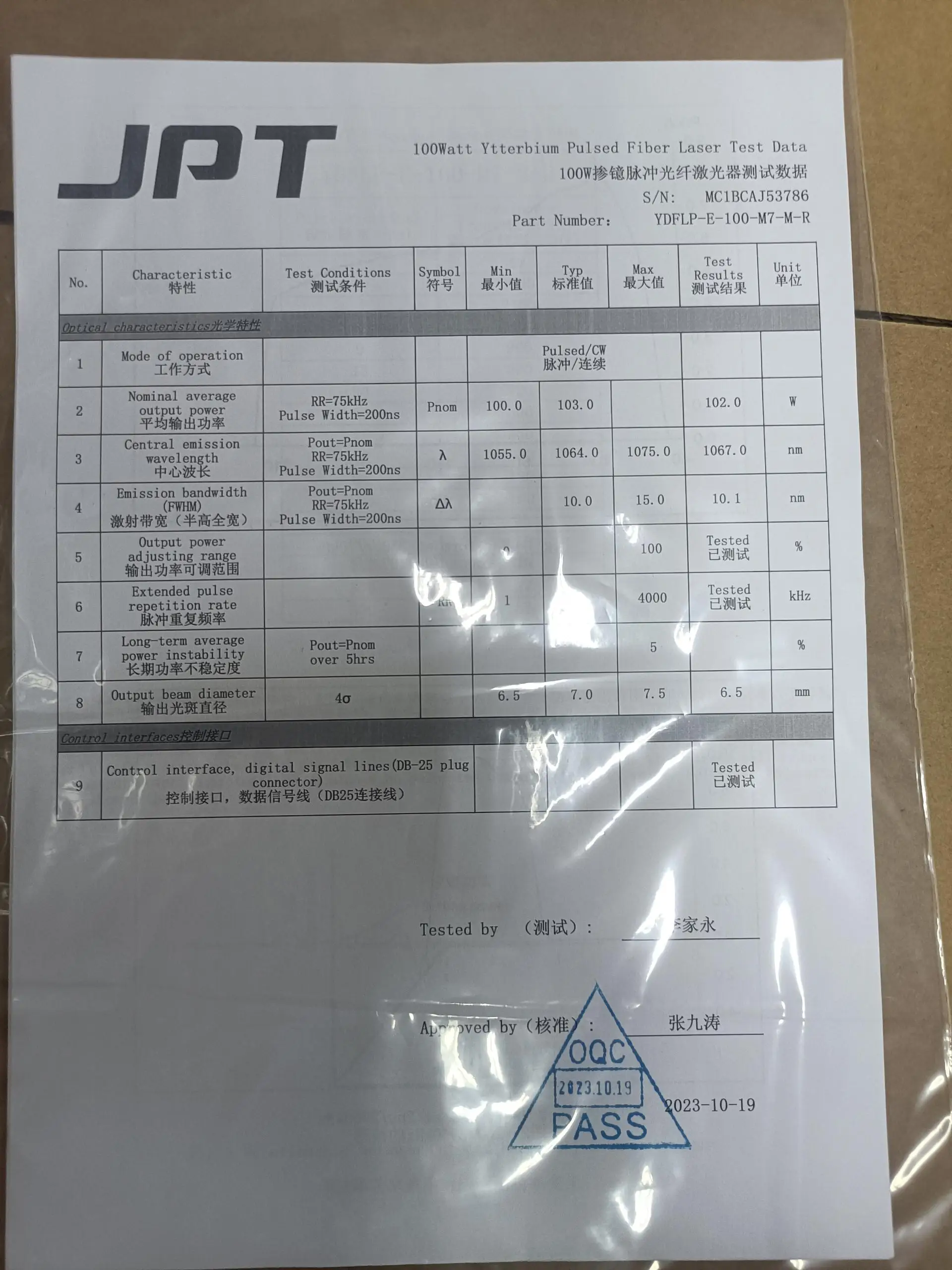

A;Fiber Laser brand: Raycus/MAX/JPT

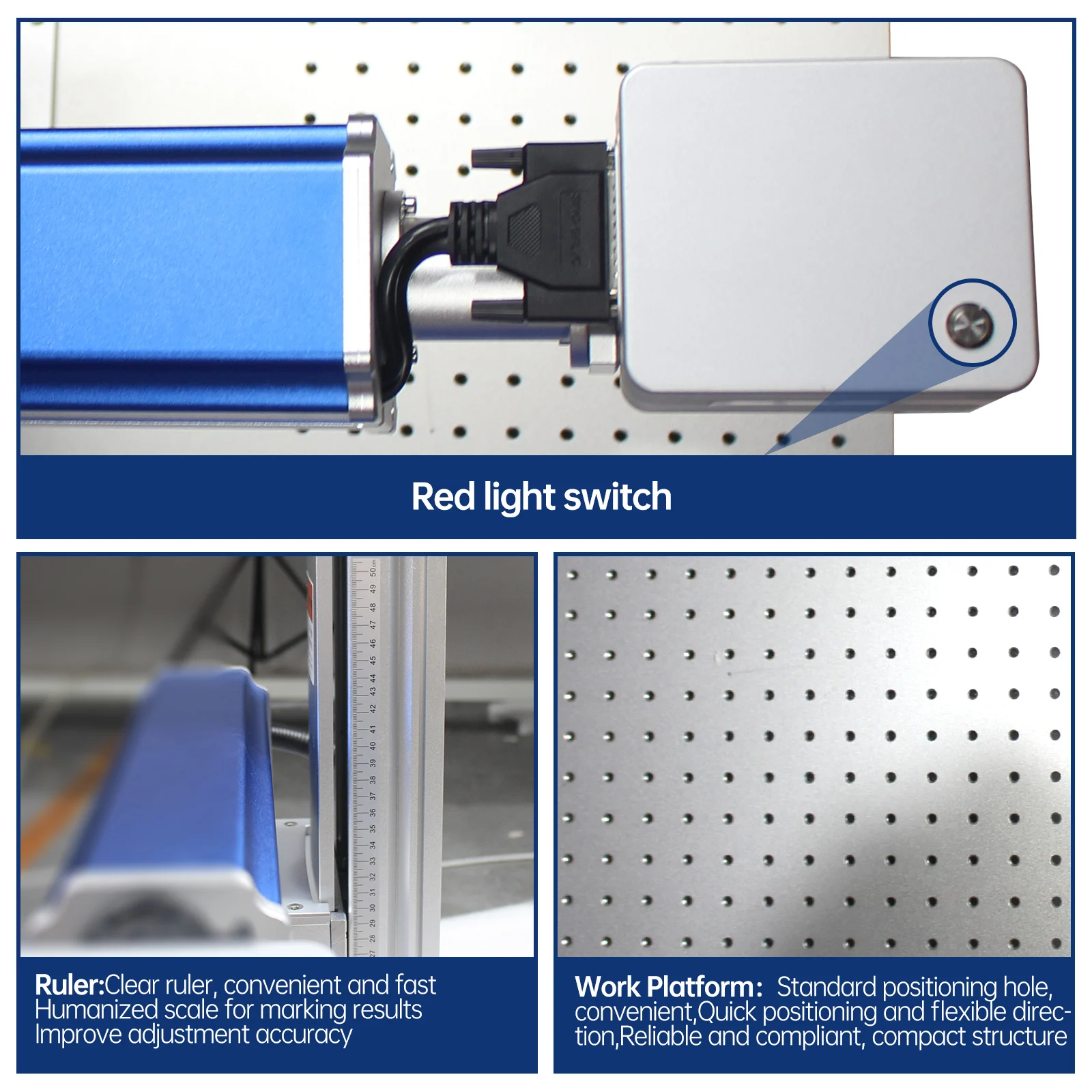

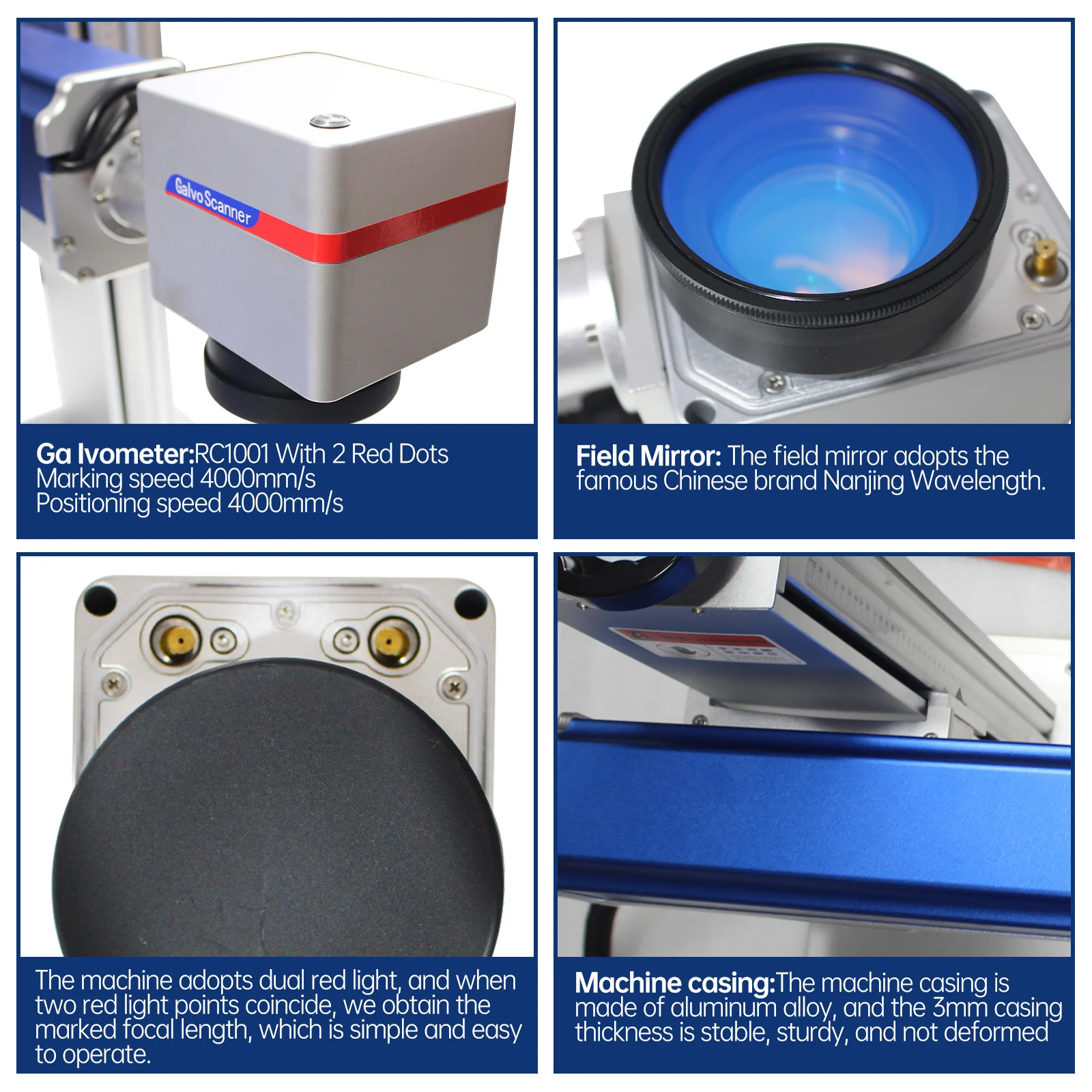

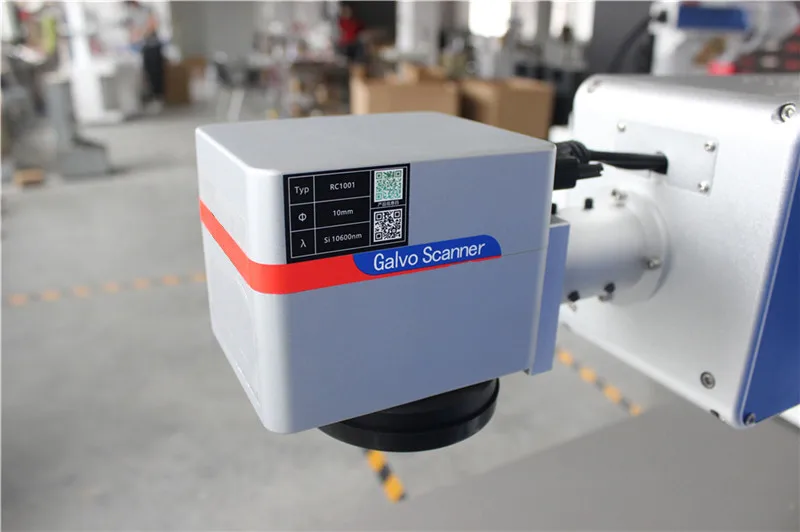

B; SINO-GALVO RC1001 galvanometer with Red dotsassistant focusing align.

C; Taiwan Meanwell (MW) power supply,

D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

E:Rotary axis (Optional)

3:

In addition to these main accessories, we can gain an in-depth

understanding of the machine configuration of the accessories and

technical debugging of the main quality of the machine. It only provides

you with a machine that runs stably and has a low failure rate. Machine

accessories are related to the long life of the machine. In the short

term, it is impossible to compare the stability and failure rate of the

machine.
