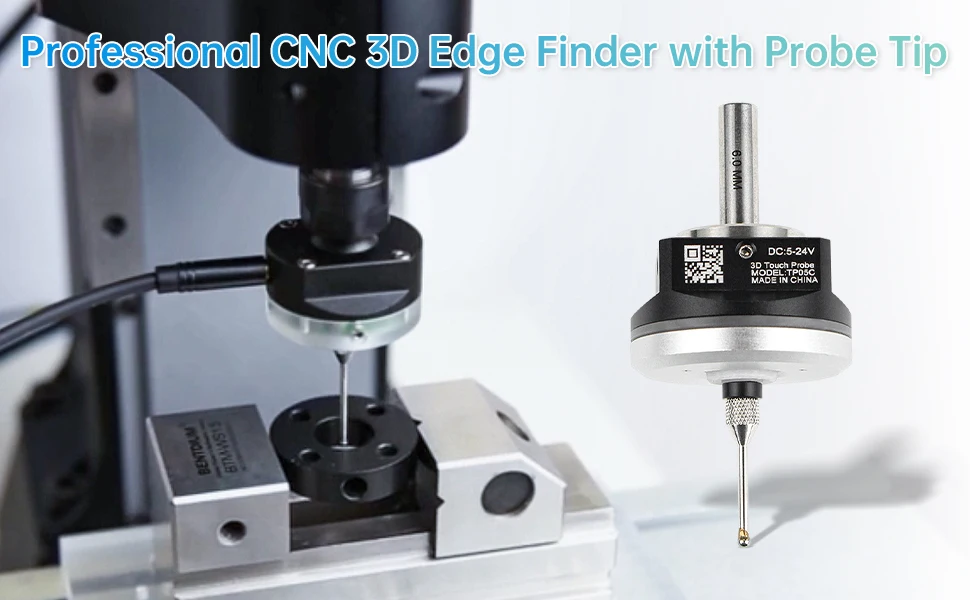

【EU Stock】3D Touch Probe Edge Finder to Find Desktop Center,V5 NPN NO CNC 3D Edge Finder with Tip,Waterproof Anti-roll CNC Probe

Good News:

We have warehouse in Germany, Czech Republic, United Kingdom, we can ship to EU countries via DHL/UPS, which is very fast delivery.

The free ship to the following Europe countries area:

Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

Package include:

1 x 3D touch probe full kit

or

1 x Stylus holder

or

1 x Styli is

Pls check carefully when you order, as the parts or full kit is optional.

Package Include:

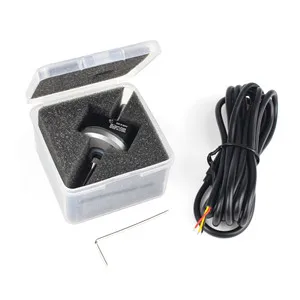

1x 3D touch probe

1x Stainless steel probe tip

1x cable

1x Storage box for storing probe

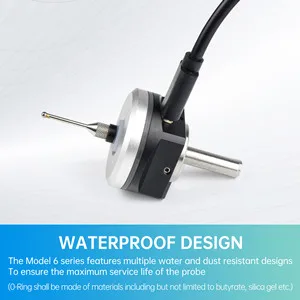

The feature of waterproof and dustproof greatly extends the service life of the probe.

Our product comes with a storage box. The shockproof cotton in this storage box protects the probe well, and also avoids collisions and scratches during transportation.

The probe tip is machined from stainless steel up and down, and the ball head is made of tungsten steel ball, which has the advantage of wear resistance.The concentricity is fine-tuned to within 0.05 before delivery. Please measure and adjust it by yourself after receiving the goods. Be sure to use ER11 spring chucks of AAA or above, otherwise the concentricity of the probe tip will be affected.

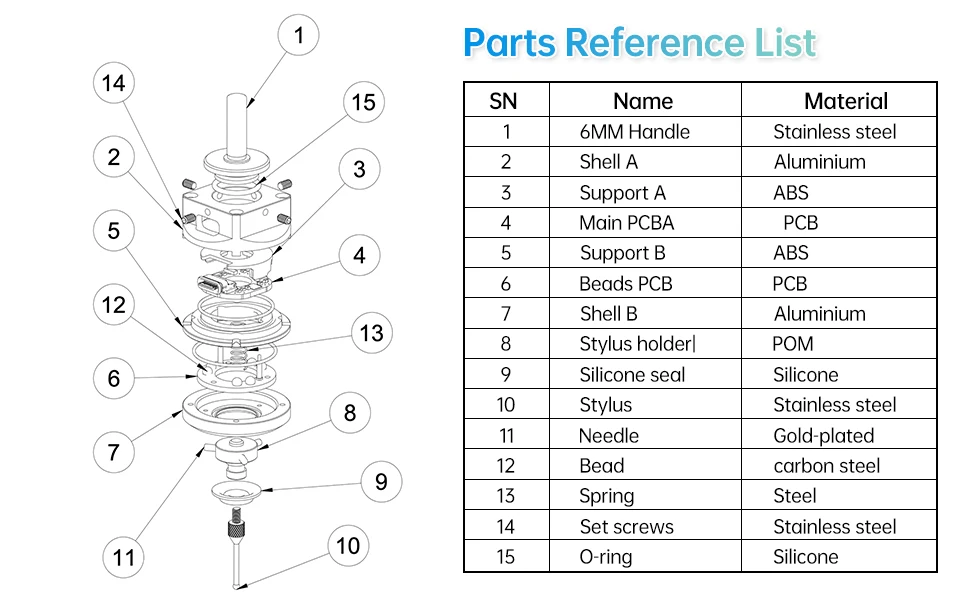

Drawing

Specification:

Power: DC5-24V

NPN-NO 3 wires: Red-VCC (DC5-24V power);Yellow: IO/ Signal Output;Black- GND(DCM)

Repeatability Accuracy: 0.01 mm/ 0.0004 in.

Feedrate: 50-200 mm/min.

Approach Direction: ±X, ±Y, +Z.

Over Travel Protection Distance: X- ± 4mm/0.16 in , Y- ±4mm/ 0.16 in, , Z- 2mm/ 0.08 in.

Lifetime: > 3 million triggers.

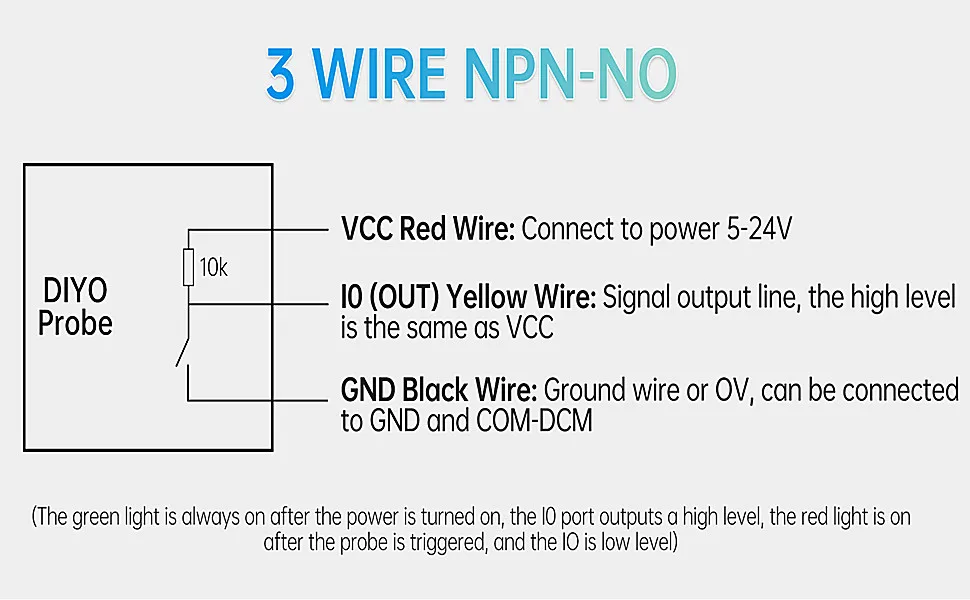

Wirings

NPN-NO 3 wires:

Red-VCC (DC5-24V power);

Yellow: IO/ Signal Output;

Black- GND(DCM);

Indicator light: green light when power on, red light after triggering

Software Recommendation for 3D Probe (We do not provide software)

If you are using a mach3 system, it is recommended to use the open source Probe Wizard.

If you are using the grbl system, it is recommended to use Grblgru

Q&A

1.Need to turn on the spindle speed?

Never, never, never,definitely no.

2.How to distinguish the three wires?

The red wire is VCC, the black wire is GND, and the white wire is IO.

3.Why is the concentricity different every time the probe is installed?

Because your ER chuck spring clip cannot ensure 100% uprightness. Every time the probe is installed, even if the concentricity is adjusted to 1 wire, there will still be deviations when the probe is removed and installed again. So your chuck is best to buy AAA and above accuracy (concentricity <=0.005), because many chucks in China have false standards, it is recommended to use a high-precision gauge or tungsten steel rod to check the table after installing the chuck. Look at concentricity. It's best to place the dial indicator at a distance of 50mm from the chuck, which is roughly the distance between the ball head of our probe and the root of the tool handle.
