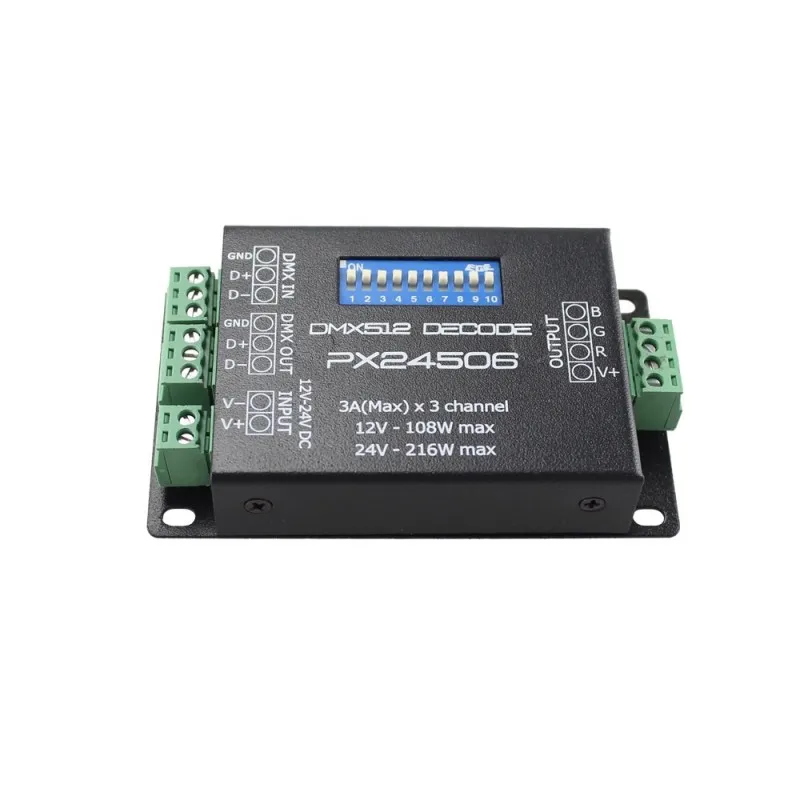

DC12V-24V PX24506 DMX512 Decoder 9A 3CH RGB Dimmer LED Controller Driver for Colorful Light Strip Module Stage Light Bar Lamps

Features:

Comply with DMX512/1990;

256 levels, full-color RGB color control;

The maximum output of 3 channels per channel is 3A;

The control system can be synchronized;

Convert the internationally popular DMX512/1990 standard digital control signal into a PWM constant voltage drive;

Light color control light 1~3 colors;

DMX address can be set freely (DMX address DIP code switch setting); 3 channel output, 256 levels of depth per channel, full color drive control;

10 RGB self-test modes, 8 levels of change speed;

It can be connected to the power amplifier of the power extender.

--------------------------------------------------

Basic parameters:

Product size: L86*W51*H18mm

Weight: 110g

Power supply voltage: 12-24V

Output current: 9A(3A*CH)

Power: 12V≤108W;24W≤216W

Input signal: standard DMX512/1990

Output type: 3-channel constant voltage PWN

Output mode: four-wire three-way

Gray level: 256 levels for each of RGB

--------------------------------------------------

Package:

1 * LED Decoder
