ZBX80 Cross Slide Travel 100mm --600mm CNC X Y Z Axis Linear Stage Motion Actuator Nema23 Stepping Motor
142.56$
114.05$
Quantity:
1
Availability:
Ships From
Guide Length
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Package include:
1 x 80mm width Linear Guide Actuator 100mm-600mm effective stroke Travel
(with motor, but no limit switch)

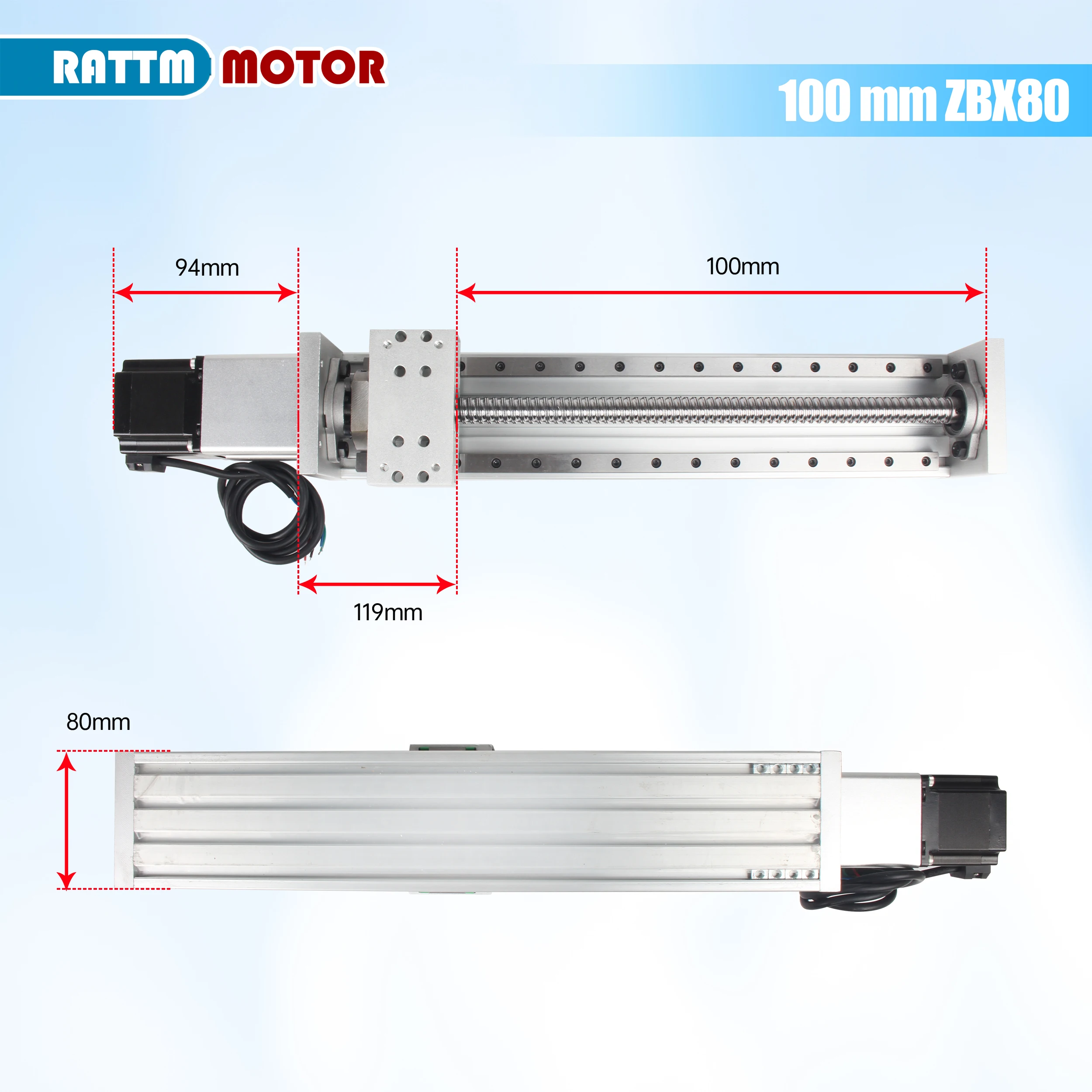

100mm stroke:
Material: Aluminum Alloy; Effective Stroke: 100mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
Standard motor: 57 nema23 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.
Total length of the linear Motion Actuator including the stepper motor : 330mm; Total length of the base plate without: 219mm.
Standard
M6 mounting hole: M6 movable nuts are used on the sides and bottom to
make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03.
200mm stroke:
Material: Aluminum Alloy; Effective Stroke: 200mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
Standard motor: 57 nema23 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.
Total length of the linear Motion Actuator including the stepper motor : 430mm; Total length of the base plate without: 319mm.
Standard
M6 mounting hole: M6 movable nuts are used on the sides and bottom to
make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03mm.
300mm stroke:
Material: Aluminum Alloy; Effective Stroke: 300mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
Standard motor: 57 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.
Total length of the linear Motion Actuator including the stepper motor : 530mm; Total length of the base plate without: 419mm.
Standard
M5 mounting hole: M5 movable nuts are used on the sides and bottom to
make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03.
400mm stroke:
Material: Aluminum Alloy; Effective Stroke: 400mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
Standard motor: 57 nema23 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.
Total length of the linear Motion Actuator including the stepper motor : 630mm; Total length of the base plate without: 519mm.
Standard
M6 mounting hole: M6 movable nuts are used on the sides and bottom to
make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03.
500mm stroke:
Material: Aluminum Alloy; Effective Stroke: 500mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
Standard motor: 57 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.
Total length of the linear Motion Actuator including the stepper motor : 730mm; Total length of the base plate without: 619mm.
Standard
M5 mounting hole: M5 movable nuts are used on the sides and bottom to
make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03.

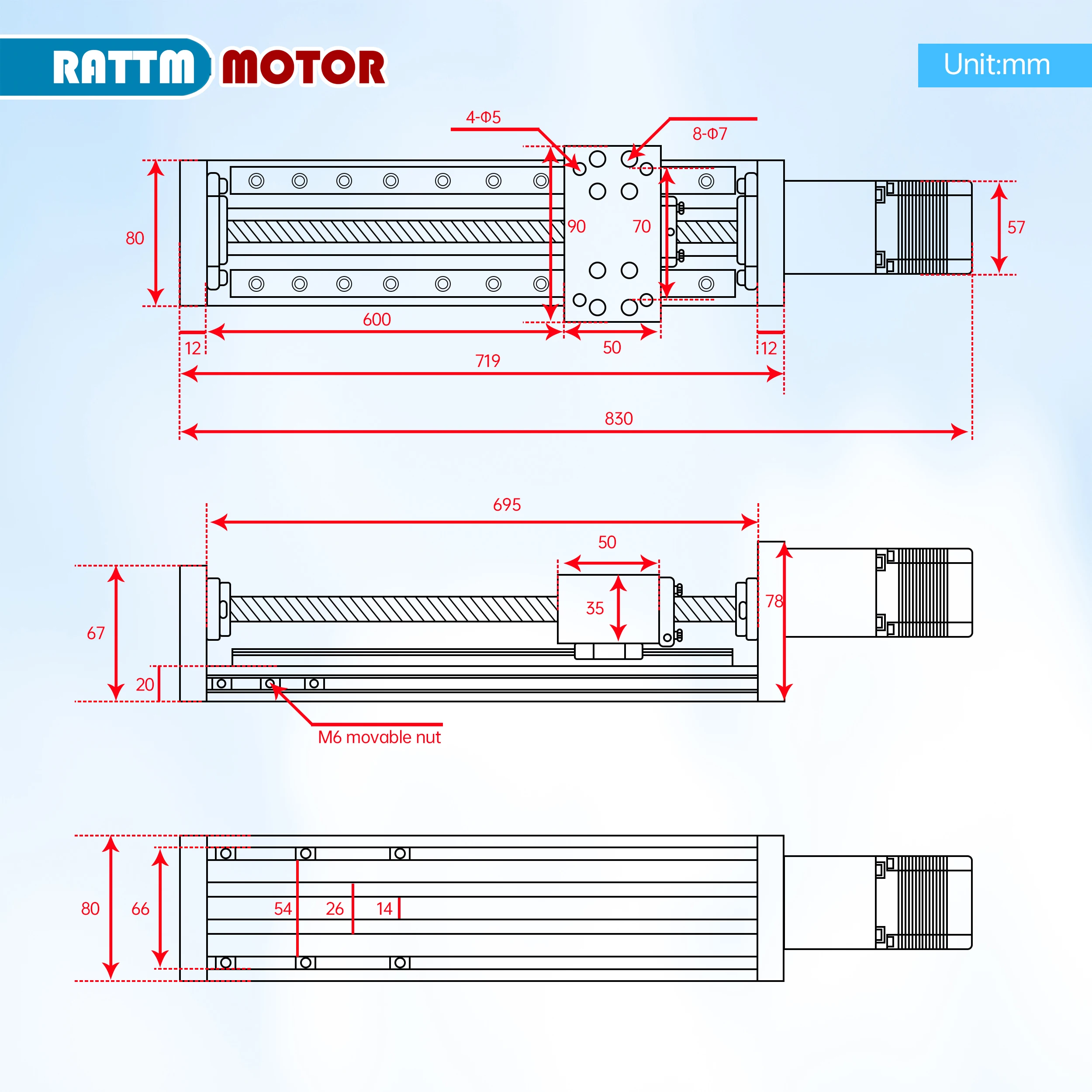

600mm stroke:
Material: Aluminum Alloy; Effective Stroke: 600mm; Horizontally loadable: 80kg; Vertical carrying: 20kg; Width: 80mm.
Standard motor: 57 stepper motor 1.8° 2.8A 1.26N.m; Screw: Ballscrew drive 1605-diameter 16 pitch 5mm.
Total length of the linear Motion Actuator including the stepper motor : 830mm; Total length of the base plate without: 719mm.
Standard
M5 mounting hole: M5 movable nuts are used on the sides and bottom to
make the installation of the sliding table more flexible and changeable.
High speed slient, smooth running; SFU1605 ball screw, accuracy up to 0.03.
Specification:
Material: Aluminum Alloy
Effective Stroke: 200mm
Horizontally loadable: 80kg
Vertical carrying: 20kg
Width:80mm
Standard motor: Nema 23 stepper motor 1.2 N.m
Screw: Ball screw drive 1605-diameter 16 pitch 5mm
Total length of the 200-stroke motor model:430mm
Total length of the base plate with 200-stroke: 319mm
200-stroke effective stroke:200mm
Standard M6 mounting hole

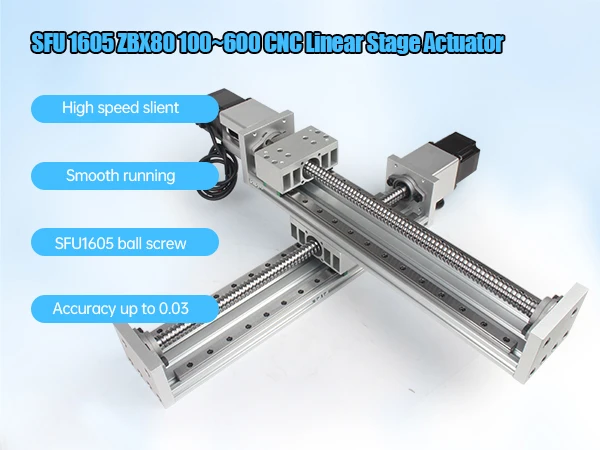

Features:
★ High-quality aluminum alloy, high strength, light weight, corrosion resistance.
★ SFU-1605 ball screw,Accuracy up to 0.03.
★ High-speed silent, smooth running.
★ M6 movable nuts are used on the sides and bottom to make the installation of the sliding table more flexible and changeable.
