Flexible Solar Panel 120W 12V 240W Balcony Power Panneau Solaire for Motorhomes Campers, Vans, Boats and Other Uneven Surfaces

XINPUGUANG Flexible Solar Panel 120W 12V (240W) Monocrystalline Semi-flexible for Motorhomes, Campers, Vans, Boats and Other Uneven Surfaces Solar Cell Solar Panel kit Module

Two colors of black/white solar panels are available, the
Or 12V 120W solar panel kit / 12V 24V 240W solar panel kit is available, please pay attention to choose the solar panel module you need when you place an order.

Package list 1 :1PCS 120w

1X120w White semi-flexible soalr panel

Package list 1 :Black 120W

1X120w Black semi-flexible soalr panel

Package list 2 :2PCS 120w

2X120w White semi-flexible soalr panel

Package list 2 :12V 120W Solar Kit

▶120W 18.15V solar panel *1
▶10A 12V/24V solar charger regulator *1
▶3 meter extend cables *1
▶1.5 meter cable with alligator clips *1

Package list 2 :12V 120W Solar Kit

▶120W 18.15V solar panel *2
▶20A 12V/24V solar charger regulator *1
▶3 meter extend cables *1
▶1.5 meter cable with alligator clips *1
▶2 in 1 Adapter

Our ideal goal is to satisfy every customer. If you have any dissatisfaction with the product, please feel free to contact us. We will give you a satisfactory solution.

Product description:

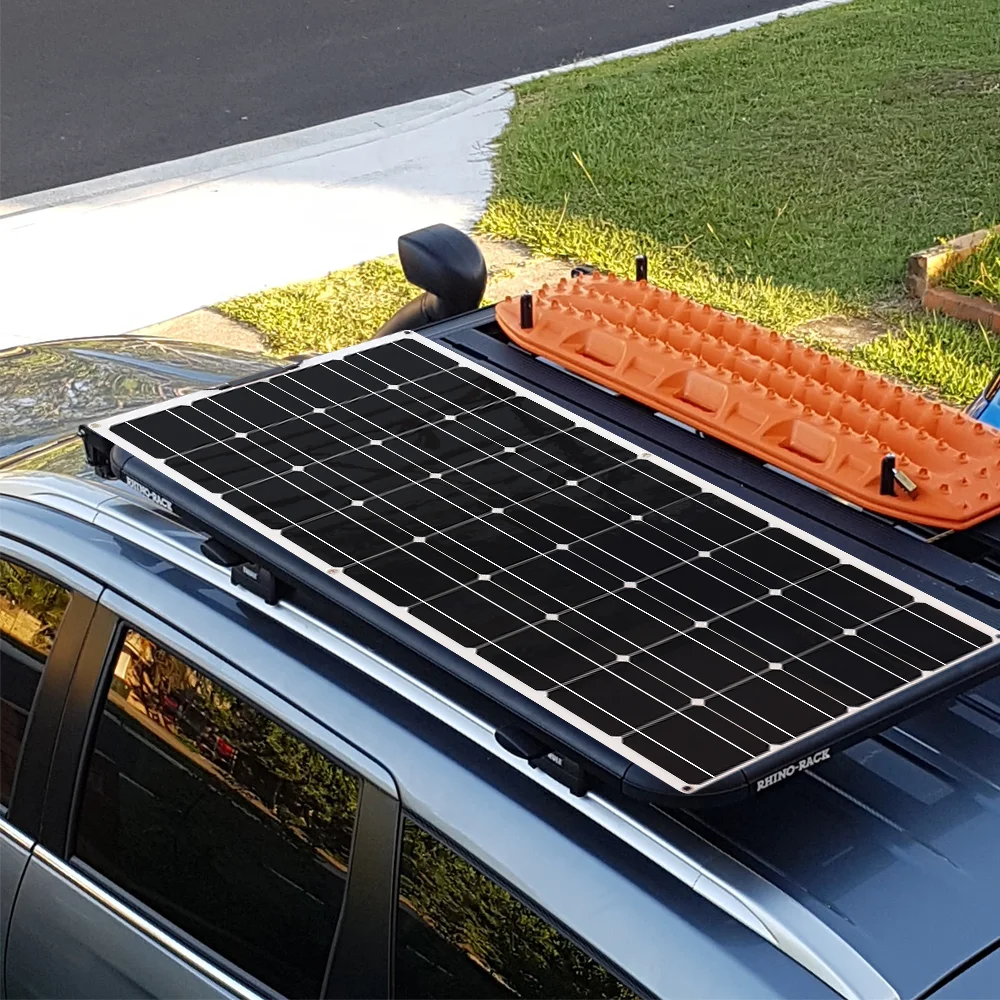

Easy to use: This product is a semi-flexible board that can be bent up to 25 degrees. It is suitable for mounted on an irregular smooth surfaces such as RV roofs, boats, tents, Yacht, vaulted roofs, etc.

High efficiency, Light weight: only 3mm thick, weight 2.06kg, easy to hang, disassemble and carry.

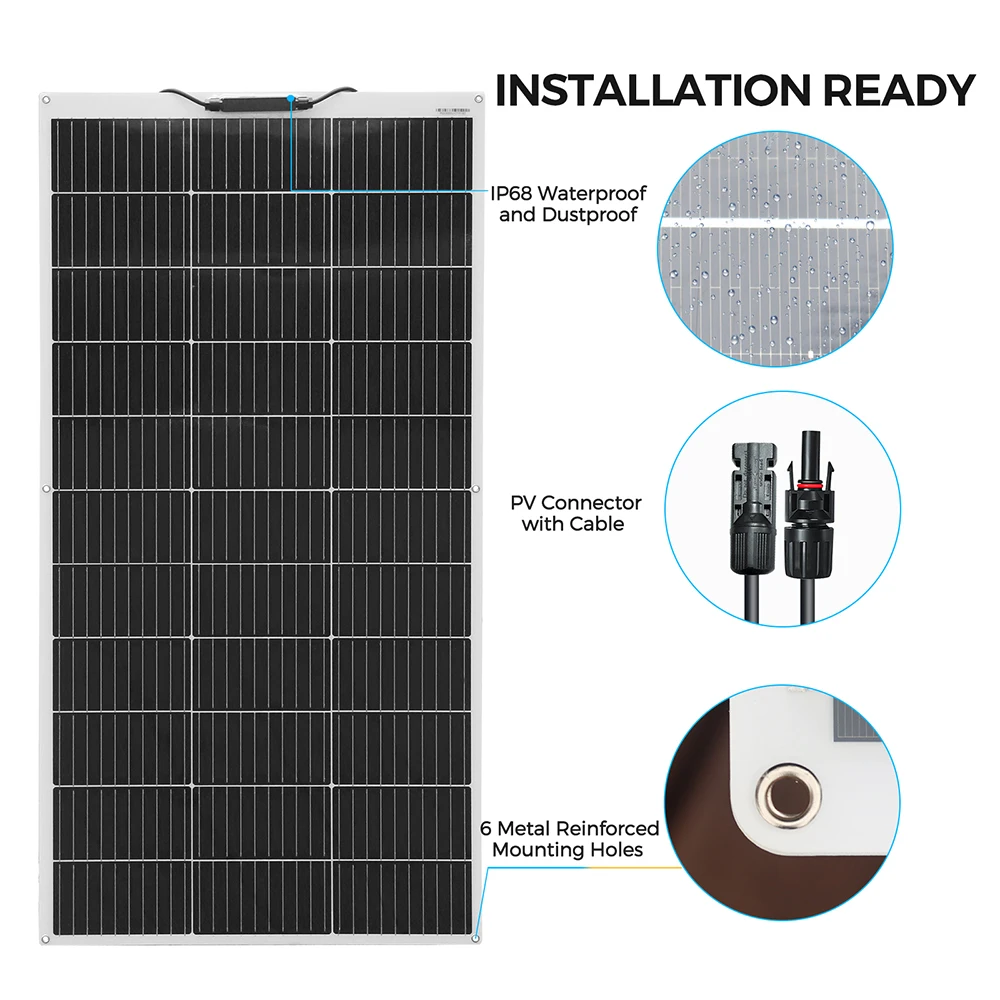

Easy to install: Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times. Please install the product on a smooth surface, do not install it on an uneven surface.

The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.

The solar panel operates at 18.15V.

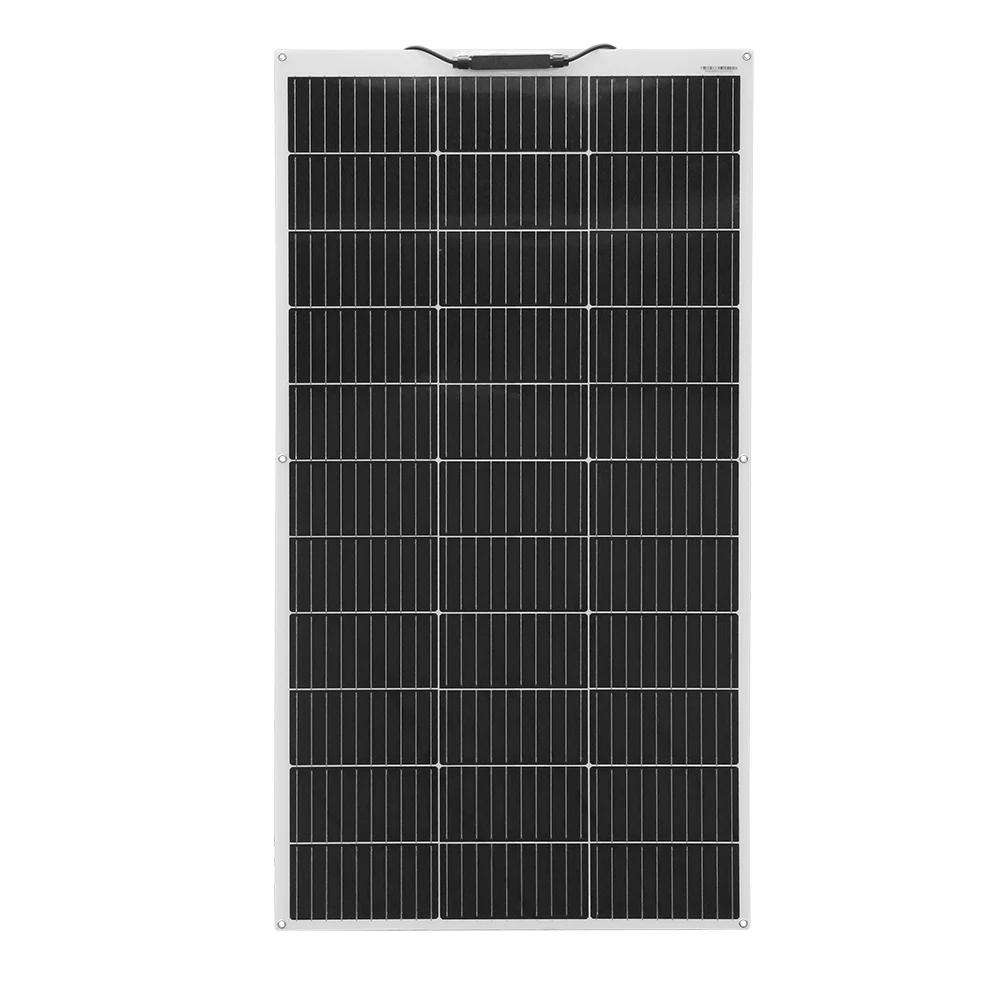

18.15V 120W Solar Panel Specifications

Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g
Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Flexible 18.15V 120W Solar Panel 240W Solar cell Newly High Efficiency For Car RV Boat Home Yacht RV camping 12V Battery Charger
solar panel for caravan /solar panel for camping/solar panel camping/solar power gadget /flexible solar panel/solar panel for rv/solar panel
solar gadget/solar battery charger/solarpanel forcaravan/solarpanel forboat

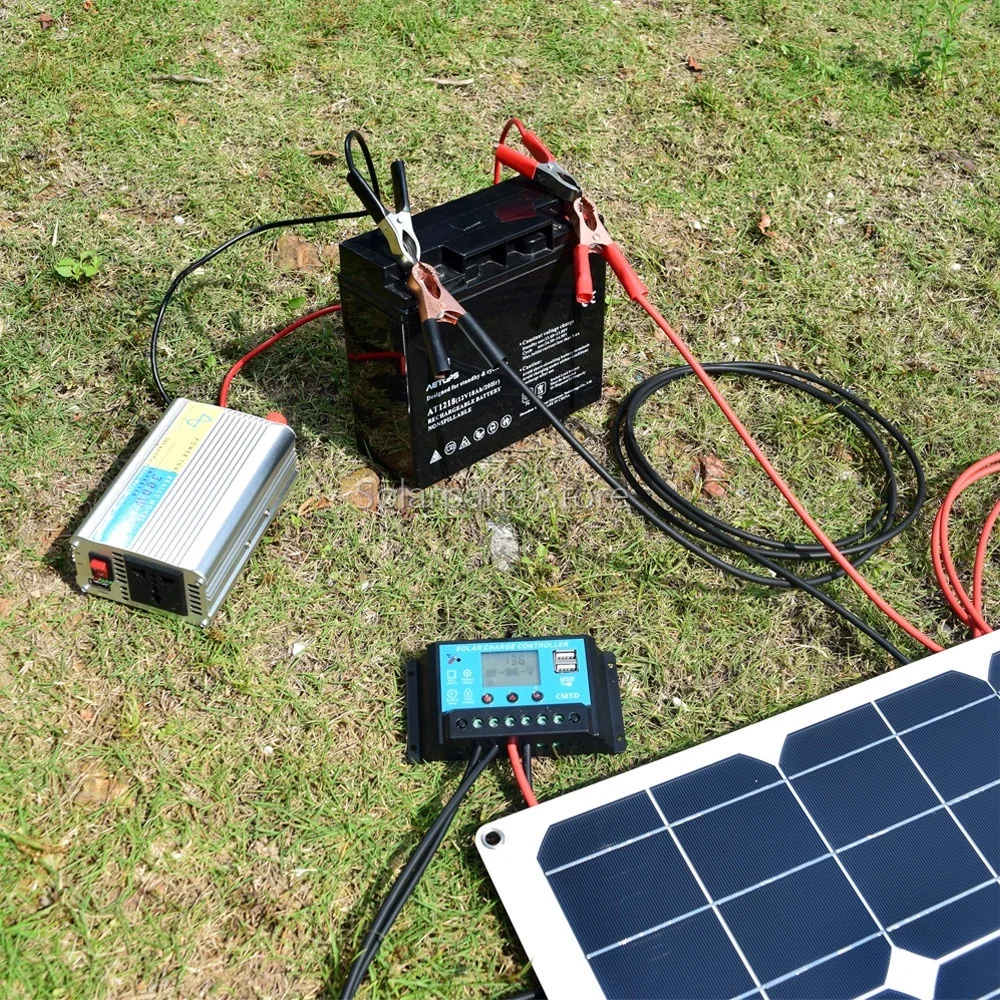

These kits are perfect for the easy installation at your caravan or sailing boat! They allow for an easy operation of 12V DC-consumers such as light, radio, or 12V DC pond pumps, etc. if you connect a inverter and battery, you can also supply any electrical device just as if you were on the grid! This set is an ideal solution if you need solar power only in the evening hours, or weekends, e.g. in your garden or holiday home.
12V/24V 10A~20A Controller: Note : 10A/20A controller without temperature compensation /backlight function,without cut-off current. b01 : Sealed battery b02 : Gel battery b03 : flood battery b04 : Lithium battery custom type b00 : Lead-acid battery custom type

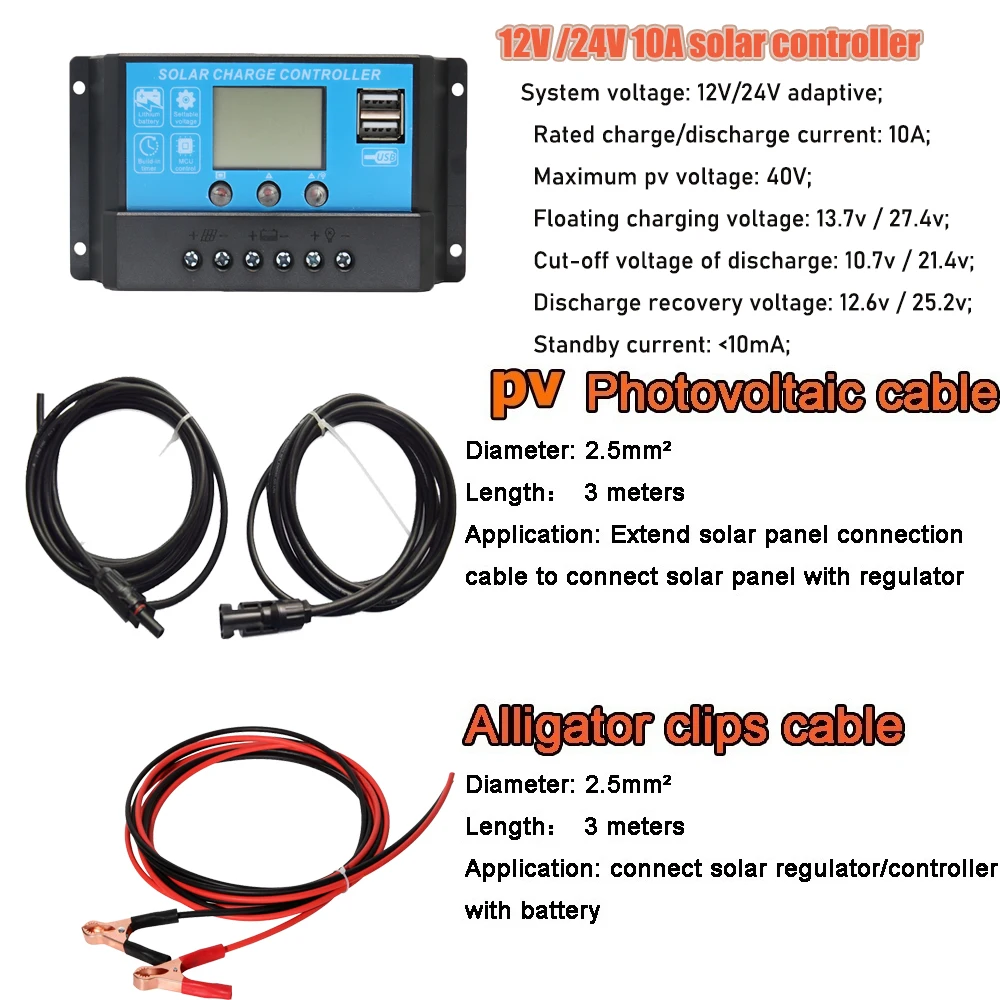

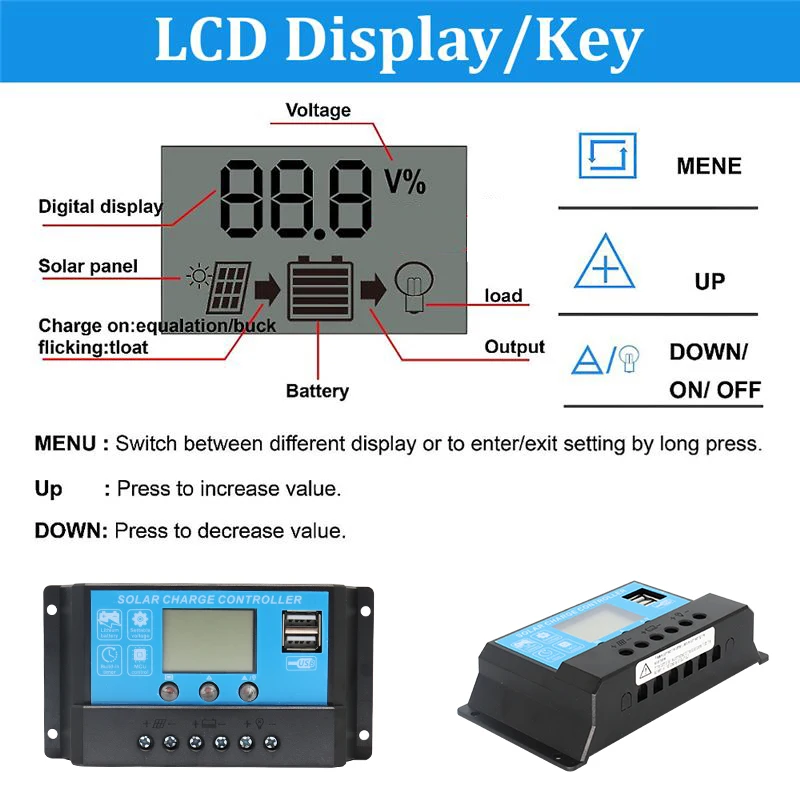

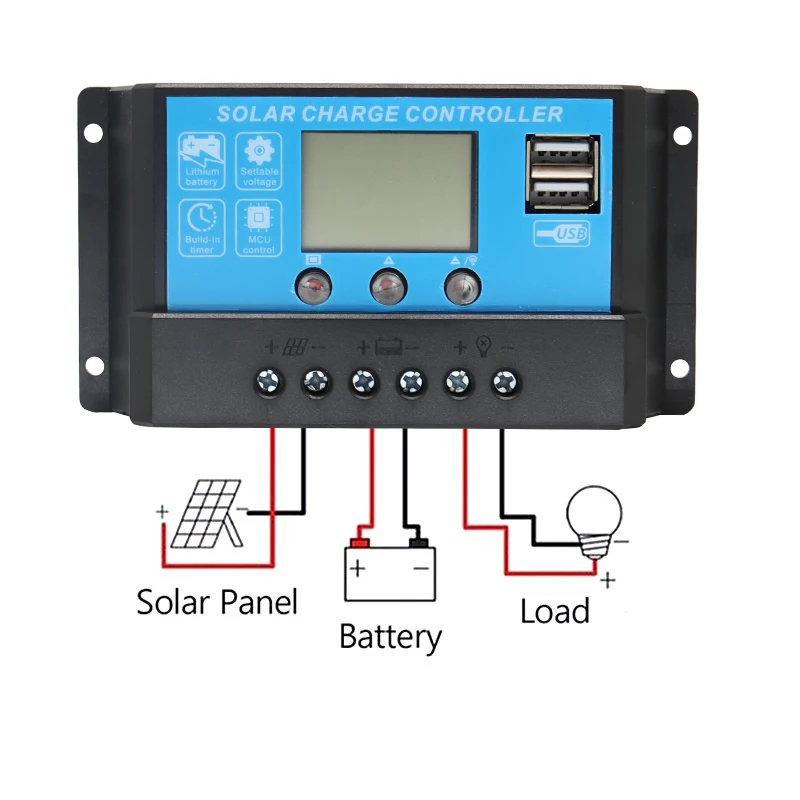

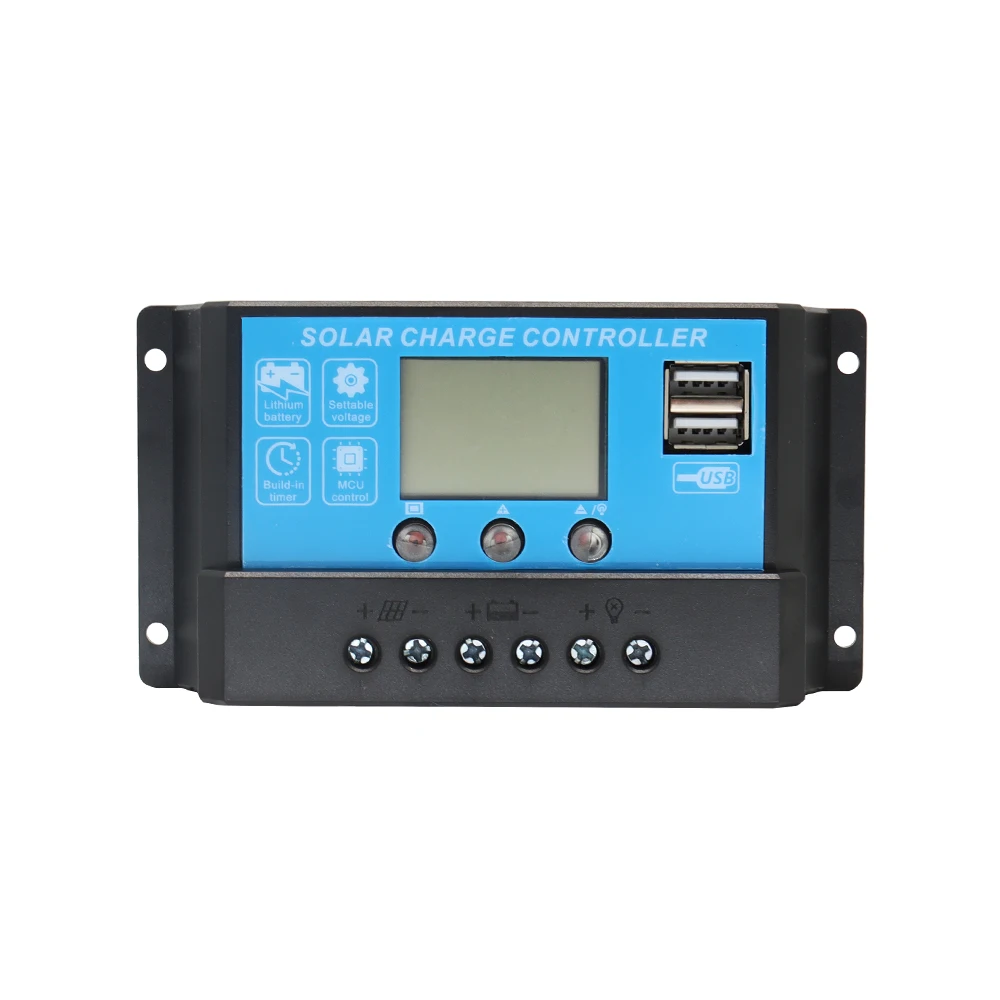

10A /20A Charger Controller

Batt voltage:12V/24V auto
Charge current:10A /20A
Discharge current:10A /20A
USB output:5V/2A
Self-consume:<10mA
Operating temperature:-35~+60 ℃
Suitable for :lead acid batteries AND lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

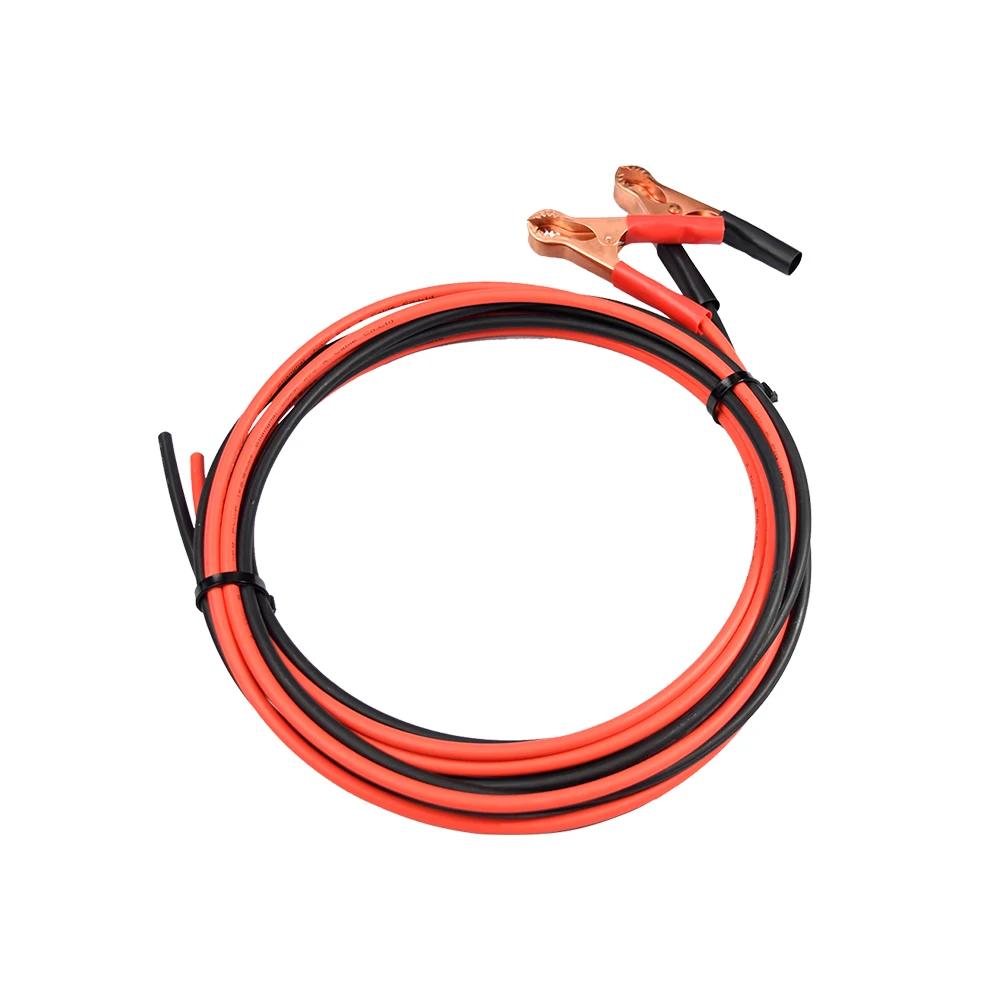

Alligator clips

Model: 1*2.5mm
Number of cores: single core multiple strands
The maximum external diameter of the wire: 5.3 ± 0.2 (mm)
Nominal cross section: 2.5 (mm)
Uses: Photovoltaic power generation
Core material: tinned copper wire
Product Certification: TUV
Voltage rating: 0.6/1KV
Rated voltage: 1000V
Length:1.5M

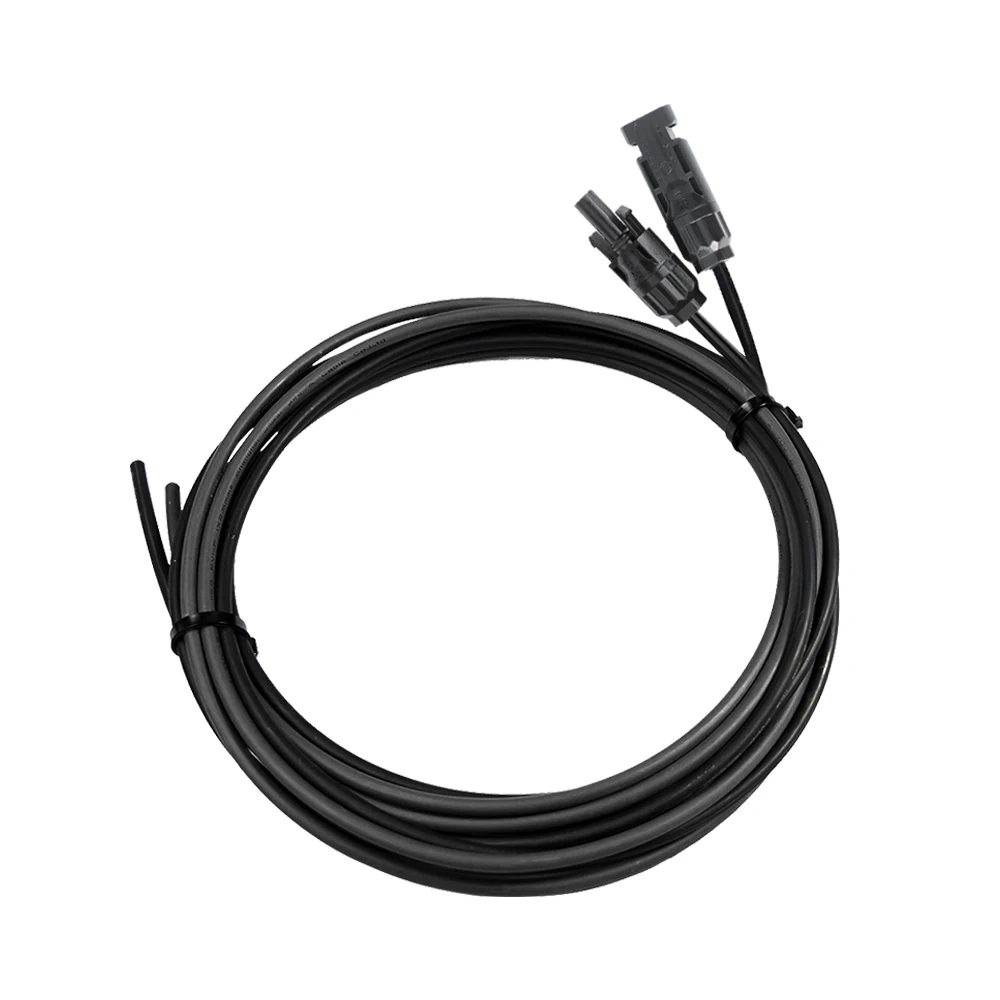

PV Cable

Model: 1*2.5mm
Number of cores: single core multiple strands
The maximum external diameter of the wire: 5.3 ± 0.2 (mm)
Nominal cross section: 2.5 (mm)
Uses: Photovoltaic power generation
Core material: tinned copper wire
Product Certification: TUV
Voltage rating: 0.6/1KV
Rated voltage: 1000V
Length:3M

Features:

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.

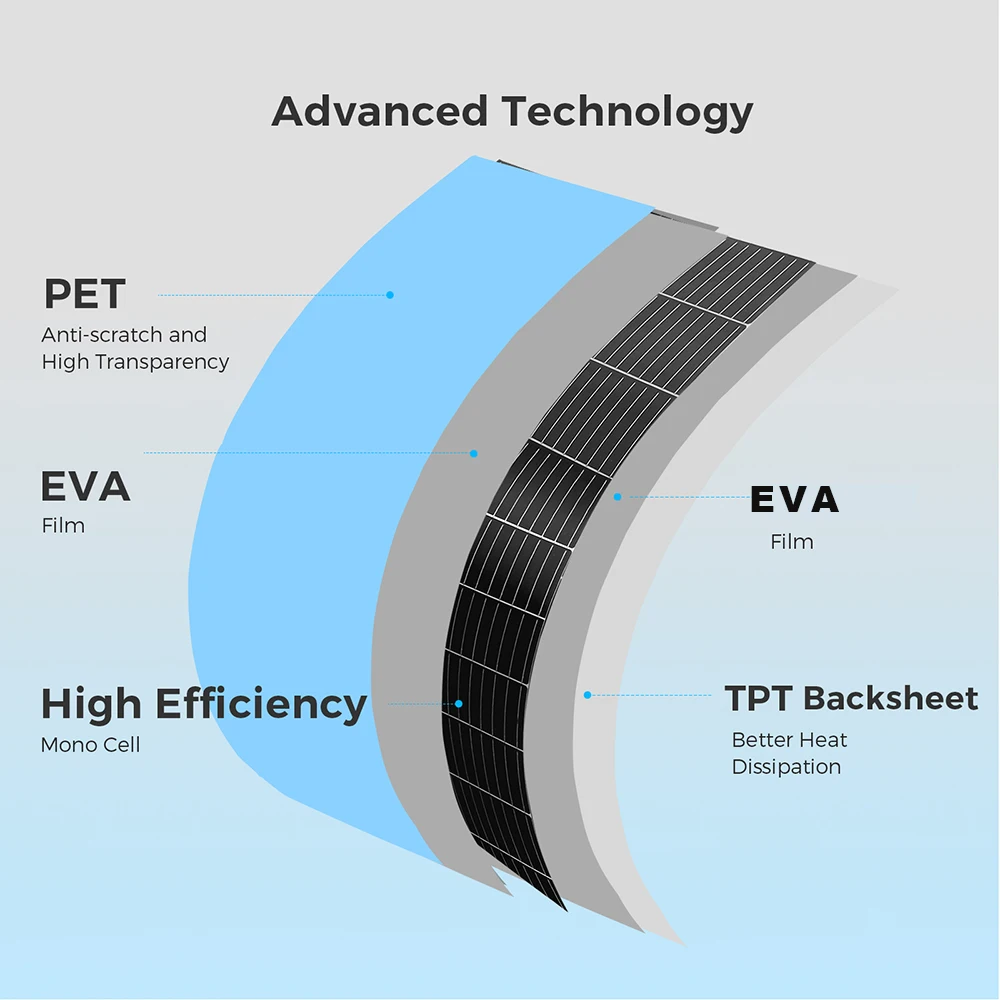

b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f. Use photovoltaic special cable and pv connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.
g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.
