Coilover for BMW 3 E90 2004-2011 24 Levels Damper Adjustable Coilovers Suspension Kit

Fit for:



For BMW 3-Series E90/E91 (RWD) 2006-2013 Excludes M3

Note： For some vehicles, you will need sleeves and washers that already included in our package.

Specifications：

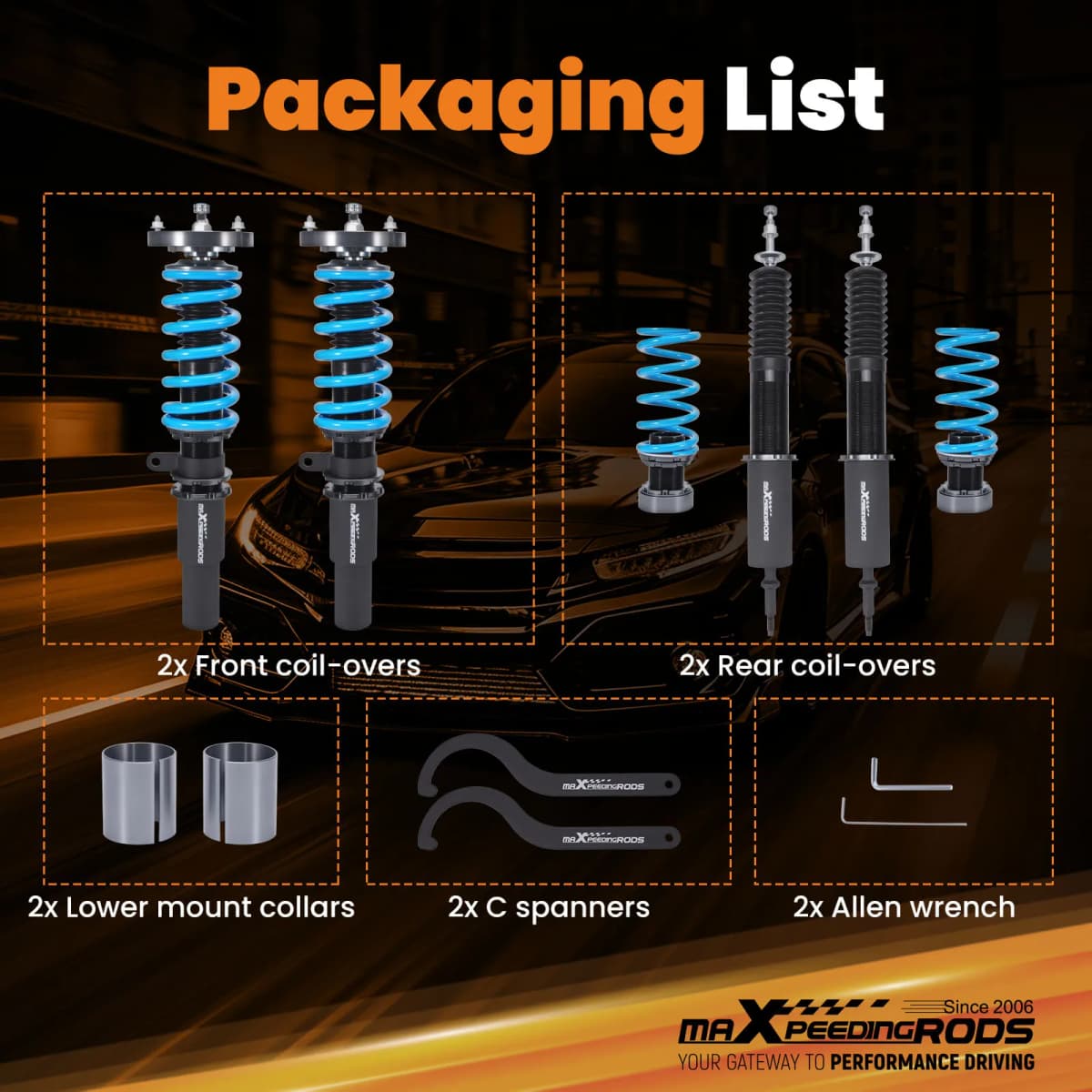

Quantity: Complete set of 2 front and 2 rear

2 Pieces Front Coilover Shock Absorbers
2 Pieces Rear Coilover Shock Absorbers
2 Pieces Stainless Steel Wrench for height adjustment
Sleeves and washers for some vehiles
Note: no top mounts for rear



Shock Type: Twin tube

Top mount: Front & Rear pillow ball

Spring Rate Front: 10 kg/mm (560 lbs/in)

Spring Rate Rear: 8 kg/mm (448 lbs/in))

Spring pre-load setting: 7-10 mm

Dampening: 24-level rebound damping adjustable

Adjustable hight: Yes, Height lowering range：1''-3''

Color: Black body with blue spring

Warranty: 2 years warranty for any manufacturing defect



Features:

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Front Camber plate top mounts help to eliminate the need for a separate camber kit.
4. Pillow ball top mounts - It improves the steering feel and response.
5. Full length dust boot keeps shaft and oil seal from damage.
6. Upgraded damper adjust knob makes damping setting easier.
7. Upgraded valving for more smooth ride.
8. Twin-Tube structure allows sufficient stroke within the shock absorber.
9. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
10. High Tensile Performance Spring- STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
11. Decent appearance benefits from CNC machined parts and special surface treatment.
12. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
13. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
14. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
15. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.



Notice：

* Instruction included; Professional installation & alignment suggested.

* Please check our store for other auto parts you may be interested in.

* Please feel free to contact us for whatever we can help.
