5M DC12V MT16703 Pixel LED Strip Light Individually Addressable Similar WS2815 RGB LED Lights Dual Signal 4 Pin IP30 65 67

1.Light Type: IC16703 Break-Point Continuous Transmission

2.Voltage: DC12V

3.Wattage: 14.4w/m

4.LED Type: SMD 5050 / 4 Pin

5.PCB Width: 10mm

6.LED Amount Per Meter: 30/60

7.Total Length: 5m

8.White : White PCB / Black PCB

9:IP20: Non- waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

10.Working Temperature: -20°to 50 °

11.Life Span: 50000+ hours

12.Cuttable & Flexible: Yes

13.Double-sided Tape: 【IP20 IP65 Yes】 【IP67 NO】

14.Applications:Indoor light decoration for bedroom, living room,

kitchen,TV backlight, cabinet, wall, stairs, curtain etc.

15:IC QTY: DC12V 20/M

16:Cutability:

DC12V 3 led / cutting (External 16703 ic, 1 ic control 3 LED);

18:Beam Angle: 120 °

19.Package Content: 5M LED strip x 1pcs

The price is only Led Strip, Not Included Power Supply or Led Controller!

Must Use DC12V Power Supply AND Led Controller to Control!

every 0.5meter with solder joints, please note!

Dual-signal wires:

TM16703 LED strip is Similar like the version of WS2815 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Mention:

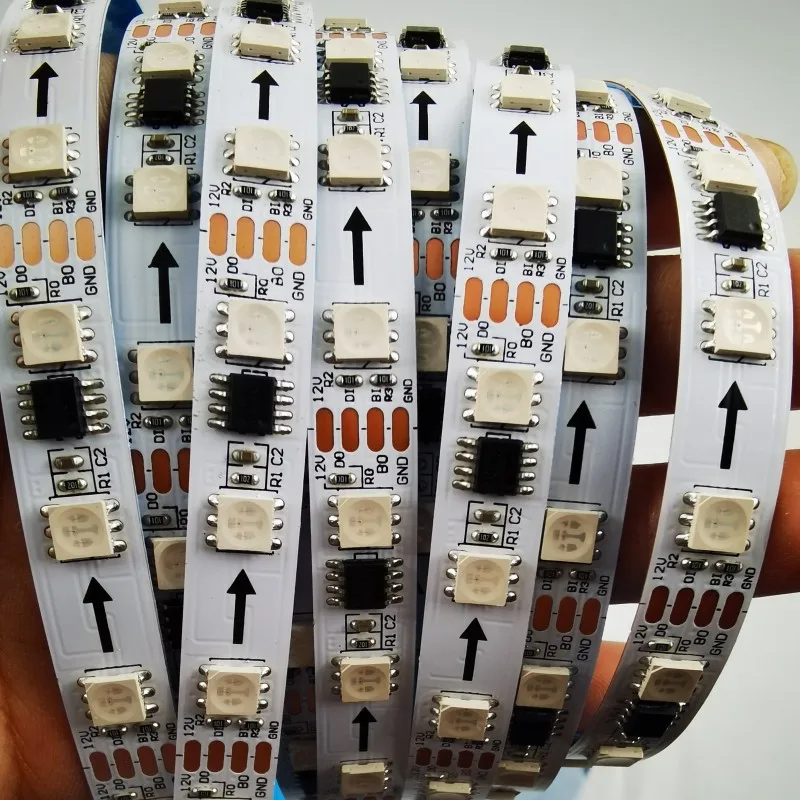

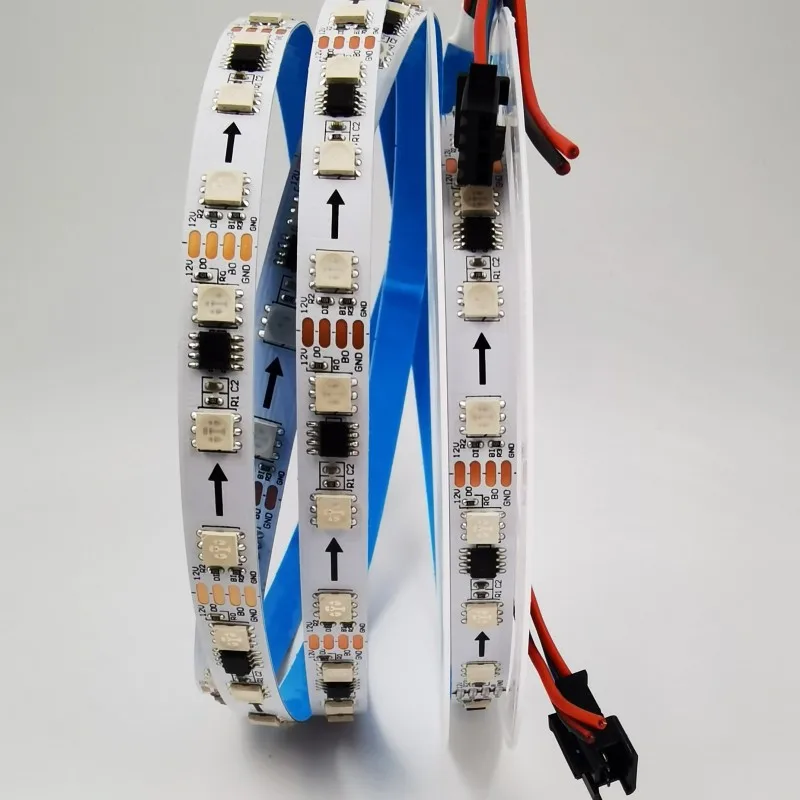

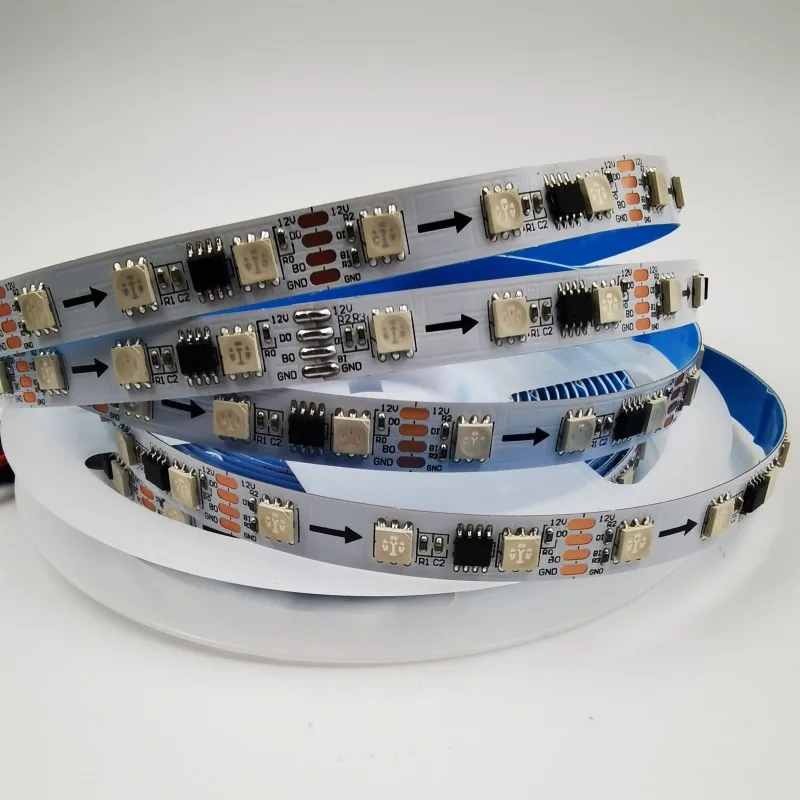

This product has different styles of PCBs (as shown in the bottom picture), but the effect is the same and will be shipped randomly

Different types of PCBs have the same effect
