GODIAG ECU GPT Boot ECU Connector for ECU Reading Writing No Need Disassembly Compatible with J2534/Openport/foxFlash

GODIAG ECU GPT Boot ECU Connector for ECU Reading Writing No Need Disassembly Compatible with J2534/Openport/foxFlash/GT100

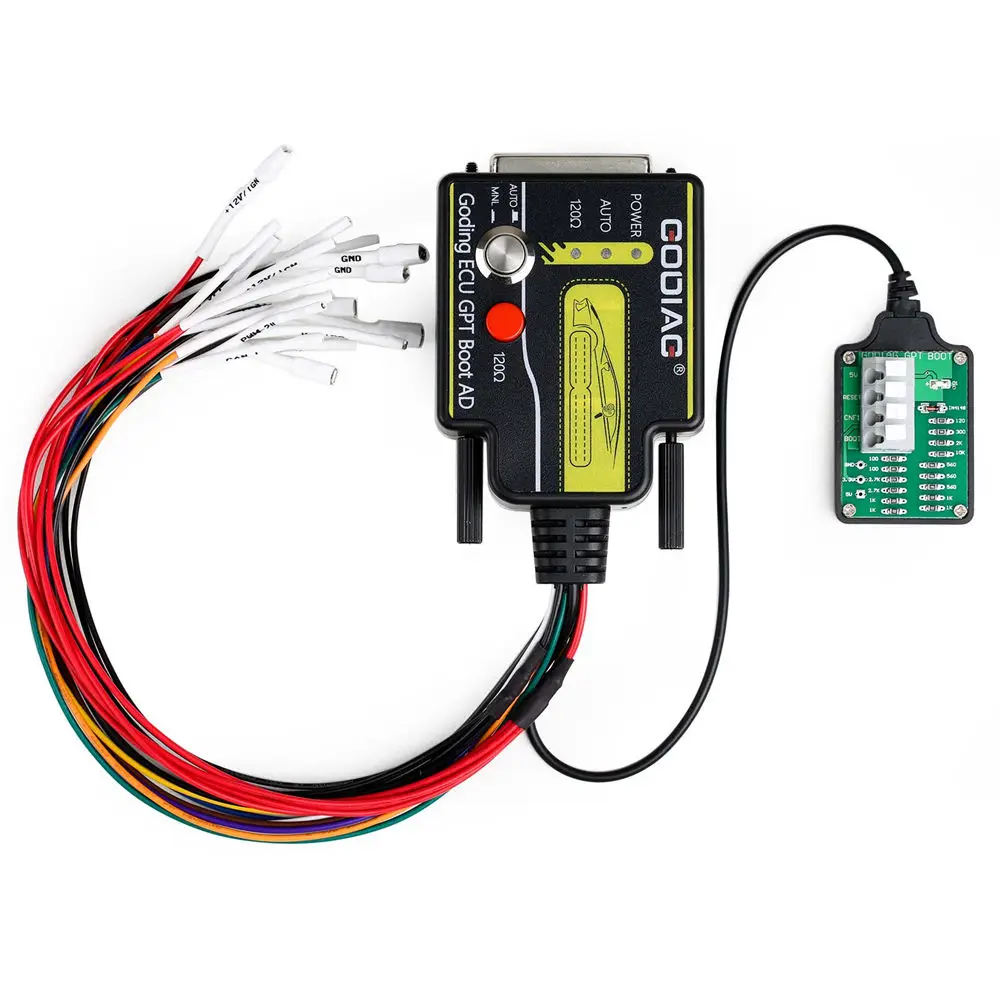

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFLash software.

Product Features:
1. ECU dedicated connection terminal.
2. Support manual ignition power control
3. The ECU interface cable is labeled
4. Support ECU conversion to OBD2 mode to read and write data
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlXXX automatic control of ignition power supply
7. Support ECU opening BOOT method to read and write data
8. CANbus is equipped with a switch to freely select the 120Ω resistor
9. Support GPT to read and write data without disassembling the ECU.
10. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]

Product Functions:
Diagnostic function supports standard OBD2 protocol equipment.
Supports ECU reading and writing data, and supports J2534 devices.
Only Scanmatik 2 PRO for PCMflXX allows to form GPT1, GPT2 signals necessary to work with Module 71.
Other devices Scanmatik OpenPort 2.0, Mongxxse JLR, MongxxsePro JLR,
Teradyne GNA600 (VCM 1), for Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

Connection

Comparison:

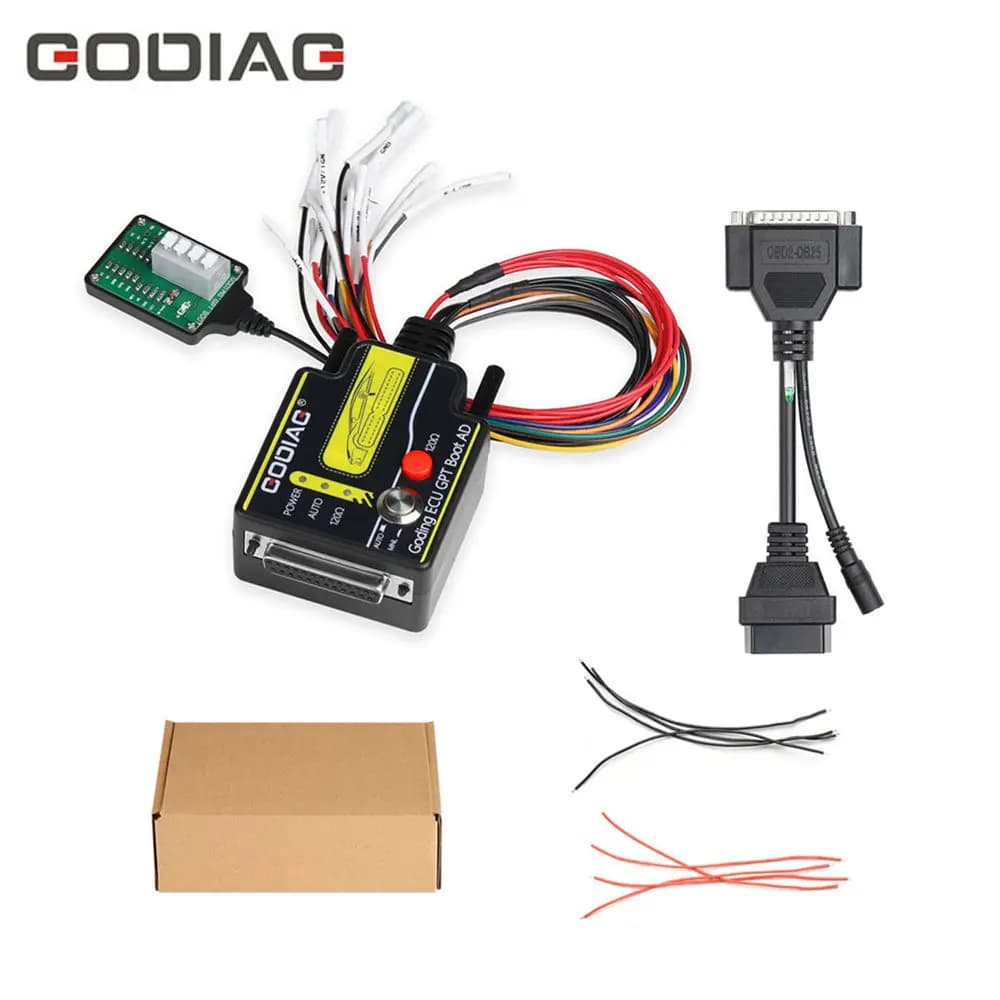

Package Includes:
1pc x GODIAG ECU GPT Boot ECU Connector
