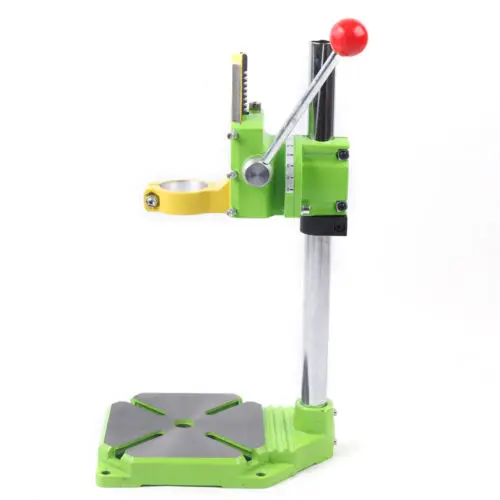

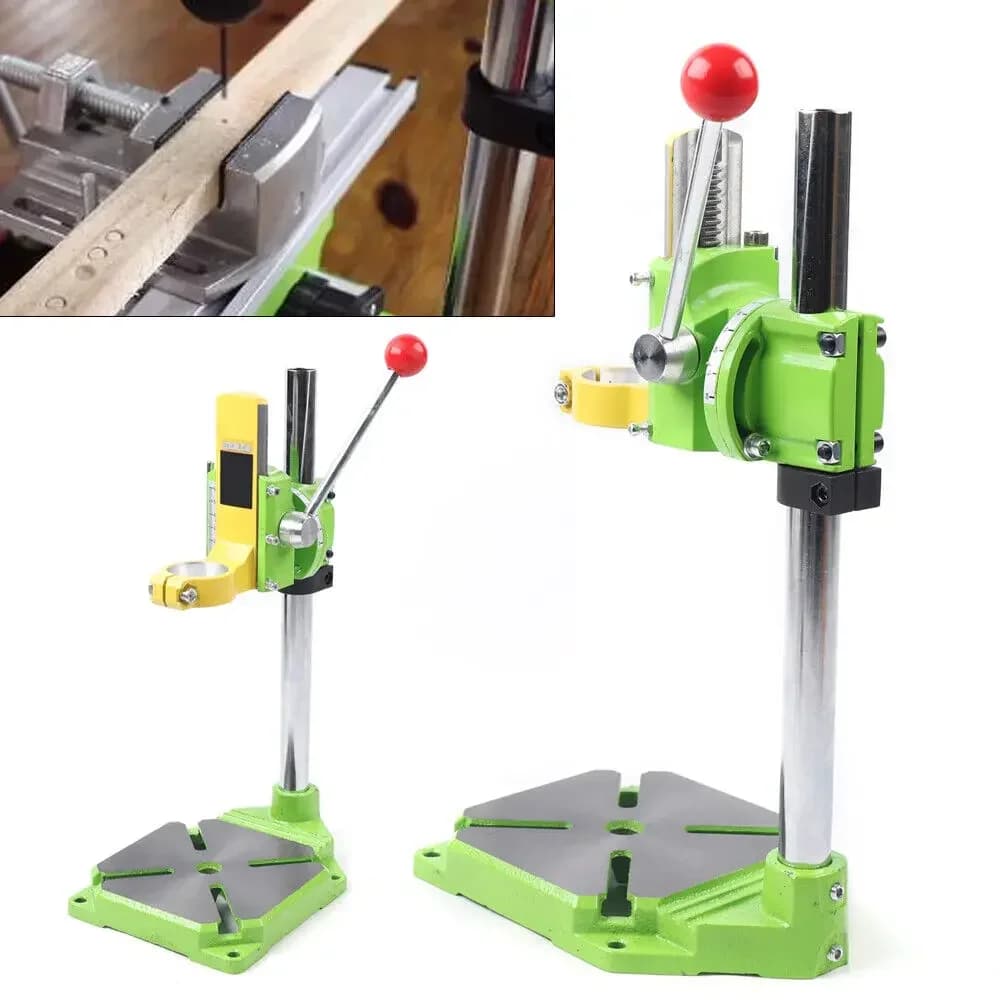

Drill Press Bench Stand Drilling Pedestal Clamp Holder For Electric Hand Drill

Description
Are you looking for a professional yet affordable drill fixture? Are you looking for a robust, trustworthy tool that can handle multiple tasks at the same time? If so, this professional drill bracket is sure to meet your needs. Its ergonomic design facilitates ease of operation for your drilling work. It will be an ideal choice for you.

Key Features

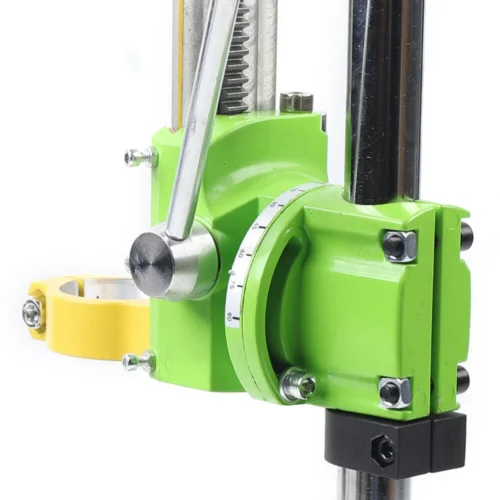

90° Rotatable: Its chuck is rotatable by 90° for drilling work at many angles. Alternatively, it can be used as a grinder by turning the drill horizontally.
High Adaptability: This drill stand has an adjustable chuck ranging from 1.5inch to 6.5inch and will fit most conventional drill sizes. If the drill is slightly smaller, it can be fixed by plastic heads.
Adjustable Height: The height of the stand can be adjusted according to the working height and the length of the drill, making it more convenient to use. It also comes with a fixing sleeve to make the height of the holder more stable.
High Precision: This drill holder has a dovetail guide and a copper plug fine-tuning design to ensure high precision and durability.
Highly Stability: It has a base with screw holes for a firm mounting to your worktop, making it more stable to work with. It also features a geared track that minimises the wobble caused by downward pushing during operation.
Save Money: It has all the necessary features that a drill press should have. This drill stand significantly reduces your costs compared to buying a complete drill press.
Easy to Use: The drill holder has an ergonomic handle for adjusting the angle of the drill. Its spherical grip makes it more comfortable to use and easier to handle.
Excellent After-sales Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us, we will reply and solve the problem for you as soon as possible.

Details
Stroke Scale: It comes with a humanized stroke scale designed for a stroke of up to 2.36inch, providing you with a reference and making it easier to operate.
Cast Iron Base: The base is made of cast iron, which is rust-resistant and wear-resistant making it long-lasting. In addition, the base is designed with extension slots for mounting vices or molds, making it easier to use.
Plastic Heads: It comes with three plastic heads featuring different internal diameters(43mm/1.69in, 40mm/1.57in, 27mm/1.06in), allowing it to be used with a wide range of drills.

Application
It is very suitable for industrial and domestic use.

Specification
Base Material: Cast Iron
Rotatable Degrees: 90°
Height: 49cm/19.29inch
Single Stroke: 0-6cm/0-2.36inch
Shaft: 40cm/15.75inch
Clamping: 3.8-4.2cm/1.5-1.65inch
Y-Axis Travel: 50mm/1.96inch
Shaft Diameter: 25mm/0.98inch
Floor: 22*16cm/8.66*6.29inch
Internal Diameter of Three Plastic Heads: 43mm/1.69in, 40mm/1.57in, 27mm/1.06in
Dimensions: 22*16*49cm/8.66*6.29*19.29inch
Packing Size: 42*19*10cm/16.53*7.48*3.92inch
Weights: 3.65kg/8.04lbs

Package Included
1* Drilling Stand
3* Plastic Heads
1* Cover

Notes
Please check the size of your drill before purchasing as the jaws are 1.5-1.65 inches
Please note that the electric drill in the picture is not included.
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
