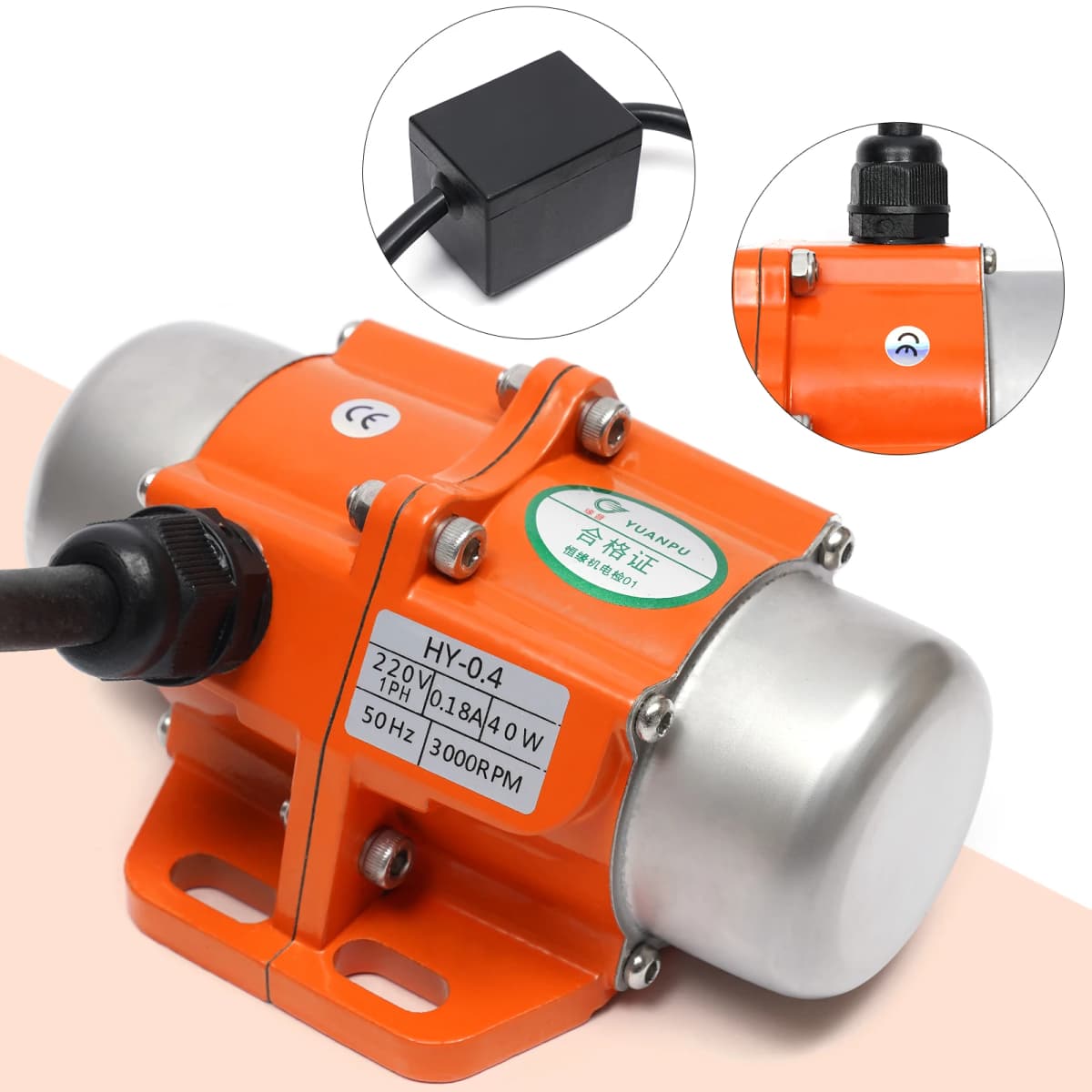

40W 220V Concrete Mining Vibration Motor Vibrating Motor For Shaker Table 1 Phase 3000RPM
73$
40.37$
Quantity:
1
Availability:
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Description
This vibration motor features imported bearings, pure copper enameled wire, and an aluminum alloy housing, ensuring smooth operation, low noise, and rapid heat dissipation. Its adjustable eccentric weight design allows for stepless adjustment of the vibrating force, meeting the needs of a wide range of industrial applications. The fully enclosed structure provides dust and moisture protection, ensuring stable and reliable operation in various environments.
Key Features
Adjustable Eccentricity Block: Adjust The Angle Of Eccentricity Block, Can Stepless Adjust The Excitation Force , Meet All Kinds Of Requirements
Adopt Of Imported Bearings, Low Noise, Smooth Operation, Long Service Life
High Temperature Resistance Pure Copper Enameled Wire, All Copper Winding, Stator Vacuum Dip Paint, Guarantee Insulation Grade
Aluminum Alloy Shell, Light Quality, Fast Heat Dissipation, Fast Temperature Rise
The Machine Shell Is Precision Casting, With o-Ring Seal On The Edge, Fully Closed Structure Design, With Dustproof And Moisture-Proof Function
Anti Vibration Special Power Cable Protection Cover To Prevent Long - Time Cable Vibration Damage
Details
Flexible and Adjustable: The angle of the eccentric weights is adjustable, enabling stepless adjustment of the excitation force to meet a wide range of operational requirements.
Smooth and Efficient: Imported bearings ensure low noise, smooth operation, and a long service life. The lightweight aluminum alloy housing facilitates rapid heat dissipation. A specialized vibration-resistant power cord sleeve protects the cable from damage caused by prolonged vibration.
Application
It is suitable for many occasions, such as mining, metallurgy, coal, electricity, construction, chemical industry, medical treatment, casting, food, and grain machinery, etc.
Specifications
Product Name: Vibrator Motor
Color: Orange + Silver
Material: Aluminum Alloy
Rated Speed: Approx. 3000 RPM
Rated Voltage: 220V
Type: 1 Phase 40W
Current: 0.38A
Force: 25 kg
Product Size: 14.5 × 11 × 7.5 cm
Net Weight: 1.5 kg
Package Included
1 x Vibrator Motor
Notes
1. Wiring instructions: This is a single-phase motor. The yellow-green wire is the ground wire; the other two wires should be connected to the neutral and live wires, respectively (the order of connection is flexible).
2. Please note that slight color variations and measurement discrepancies of 1–3 cm may occur due to lighting conditions during photography and manual measurement. Please confirm that you are comfortable with this before placing your order.
3. To accommodate the installation needs of different customers, this motor does not come with a plug.
