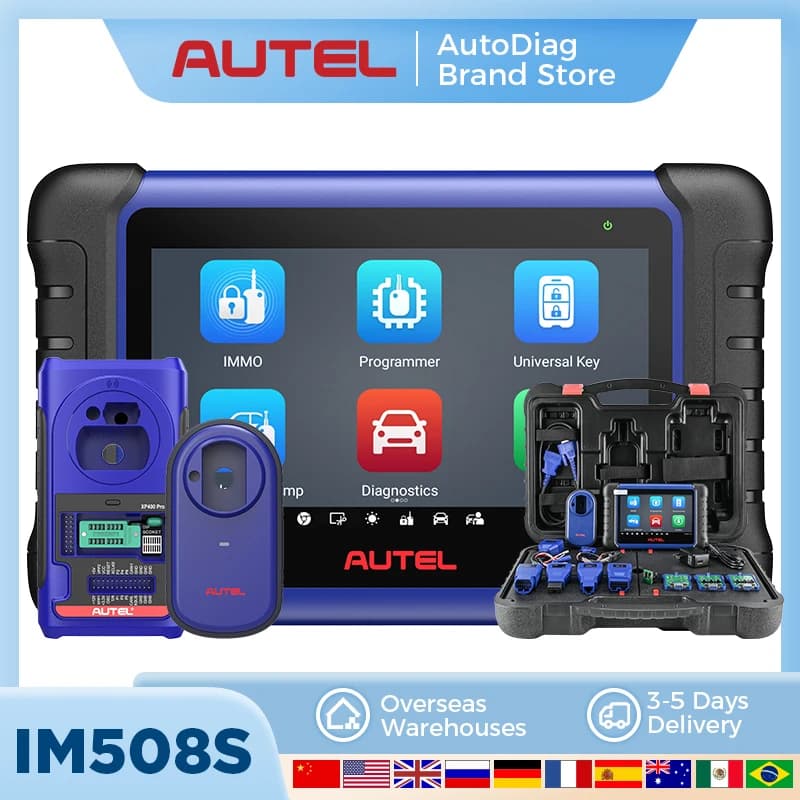

Autel MaxiIM IM508S IMMO Key Programmer Auto All System Diagnostic Scanner IM508S Pro Key Fob Programming Tools

N​ote: IM508S only has 1 year free updates in North America！But you will get a G-box2 as free gift.

Autel MaxiIM IM508S

——​ Advanced Key Fob Programming Tool (Upgraded IM508)

[​Selling Points]

OE-Level Bi-directional Control All System Diagnostic Tool + Powerful Key Programming

✅All Key Lost: When the key is lost, you can delete the lost key and add a new key to restart the vehicle.

✅Advanced IMMO Function: Add New Key + Disable Lost Key + Remote Learning + Key Learning + Key Matching etc.

✅Work with XP400 Pro Key Fob Programmer.

✅40+ Common Service Functions.

✅Premium Hardware + 2-Year Update + 1 Year Warranty.

✅NO IP LIMITED, It can be used in worldwide.

✅21 Languages Supported: Remove language barriers and support English, French, Spanish, Portuguese, German, Russian, Dutch, Japanese, Italian, Polish, and Korean etc.

✅10000+ Vehicle Coverage.

✅Powerful Hardware Expansion: 7-inch 1024x600 LCD touch screen is clear and responsive, Android 4.4 operating system, simple and fast operation helps beginners get started.

[40+ Service, From 28+ to 40+]

Same as Autel Elite II PRO, MS906 PRO and MP900BT, Autel IM508S supports 40+ service for daily maintenance: Oil Reset, ABS, SRS, EPB, SAS Calibration, BMS, Airbag Reset, BMS, Headlamp, Turbo, Cylinder, A/F Adjust, etc.

Note: Special functions available varies on vehicles. Please reach us with VIN to check compatibility before purchase.

[All System Diagnostics]

Autel IM508S PRO allows you send commands to ECU modules, and based on the actu-ator's response identify whether repaired. Such as Inject Coding, Lights/ headlamps test, fuel and coolant test etc.

Autel IM508S PRO also supports full diagnostics to perform pull codes, view live data in text & graph, Freeze data frame, active tests, and etc on Engine, Trans, ABS, Airbag, Body, Chassis, etc.

[Bi-directional Control]

IM508S Pro can transmit commands to ECUs perform specific active tests, such as Fuel Injectors, A/C Clutch, Windshield Wipers, Windows, Doors, Sunroof, EVA-P Purge/Vent Solenoid, Cooling Fan, ABS Motor Pump, EVAP Test, etc, which can pinpoint the fault locations efficiently and accurately.

[Powerful Key Programming = IM608 PRO II]

Autel MaxiIM IM508S PRO all-in-one package provides the highest Key programming capabilities that Autel has yet to offer. It supports Read/ Write EEPROM/ MCU, advanced IMMO Functions like Add a Key/ All Key Lost, Key Generation/ Key Learning, IMMO ECU Adaption/ Refresh/ Coding, etc. Autel 508S Pro also developed dedicated Key programming for specialized cars: For VW/ Audi 4th 5th IMMO Key Learning, BMW FEM/ BDC Key Learning & Adaption, BMW CAS4/3/2/1 Key Learning.

📢EEPROM Read/Write Supported Types

ATMEL
​For AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8
​AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256
​AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22
​AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86
​
​For CATALYST
​CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256
​
​For FAIRCHILD
​NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T
​
​For MICROCHIP
​85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640, 25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040
​93C46X, 93C46A, 93C46, 93C46AX, 93C46BX_93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86
​
​For NXP
​PCF8582C, PCF8594C, PCF8598C
​
​For NATIONAL
​NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66
​
​For OKI
​MSM16911
​
​For SONY
​CXK1011, CXK1012, CXK1013
​
​For Seiko
​S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30
​
​For ST
​M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ST25x01, ST24x02/ST25x02, ST24x04/ST25x04
​ST24x08/ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320
​M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66
​
​TOSHIBA
​TC89101,TC89102,TC89121,TC89122
​
​For TMC
​TMC93LC46,TMC93LC56,TMC93LC57,TMC93LC66,TMC93LC86
​
​For XICOR
​X5043,X5045,X25043,X25045,X24C44
​
​For 9S12 Read/Write Supported Types
​FREESCALE
​MC9S12DG128

Important Notice:
- The equipment does not have the following special cars, if you need the following models, please contact us after receiving the equipment, we will provide you with the contact information of the local dealer, you can contact the offline dealer to add:
Australian car: Fordau, Holden
Malaysian car: Perodua,proton
Brazil, Latin America, South America: Fiat Brazil, Gm Brazil, Maruti Suzuki,Mahindra
Indian cars: Maruti Suzuki, Mahindra, Tat, India Datsun
- According to the new regulations in the United States, AUTEL IM508S will limit the loss of all critical functions of Toyota (Toyota and Lexus) in the United States and Canada. Other areas are not affected and can be used normally.

[XP400 PRO Advanced All-in-One Kit]

This Key programmer IM508S PRO optional XP400 PRO greatly enhances related functions to IM608 PRO 2.

📢XP400 Pro Functions:
1. XP400PRO Advanced All-in-One Key Programmer
​2. XP400Pro Key and Chip Programmer Reads/Writes and Learns Keys to the Vehicle
​3. Performs EEPROM-data Functions Needed for European Vehicles
​4. Enables Programming of Infrared Keys for Mercedes Vehicles and IC Chip Keys on Late Model Hyundai Kia Vehicles
​5. Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU)
​6. Compatible with the IM508, IM608, IM608Pro, IM100 and IM600

📢XP400PRO Vchicle Coverage:
1. For Benz: - One-tap Key Programming via OBD - 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost.
​2. For BMW: - Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC) - Add Key/All Key Lost.
​3. For GM: - Read IMMO Password, Add Key/ All Key Lost up to 2020.
​4. For Ford: - Add Key/All Key Lost (No PIN Needed) up to 2020.
​5. For Mazda: - Add Key/All Key Lost (No PIN Needed) up to 2020 FCA - Read IMMO Password, Add Key/All Key Lost up to 2020
​6. For Land Rover/Jaguar: - Add Key/All Key Lost up to 2019.
7. For Volvo: - Semi-smart Key Learning via OBD up to 2018 - Smart/Blade/Fobik Key Learning via Dump.

[Smart Mode & Expert Mode, IMMO Status Scan]

Smart Mode and Expert Mode to guide you perform advanced functions. For primary technician, perform whole IMMO functions, access to guided smart menu; For skilled technicians, perform individual IMMO functions. IMMO Status Scan is a new function of IM508S PRO, it can performs a comprehensive scanning on IMMO ECU to locate IIMMO faults quickly, speed up diagnosing and located.

[Work with APB112/G-box-2]

​1. Smart key simulator
​2. Compatible with IM608, IM508, and MX808IM
​3. Compact but would need to be used with the XP400
​4. Cannot be used with the XP200
​5. 46, 4D data collection
​6. 46 smart key password calculation
​7. 46 chip simulation
​8. For Toyota 4D (94/ D4, 98) smart key simulation
​9. For Toyota H (88/ A8, A9, 39) smart key simulation
​10. Collects data from the ignition coil
​11. Identify ignition coil troubles
​12. Decode vehicle key chip data
​13. Simulate vehicle key chip (ex - 4D chip)
​14. Must be used with an Autel diagnostic tool
​15. For Toyota/ Lexus smart key all key lost
​16. Chip decoding ( For Hyundai 46)

[Work with G-box-2]

Supports Mercedes Benz All Keys Lost, faster calculate password
​Supports IM608 or IM508 with XP400
​Used for Faster Mercedes ECU data and EIS password calculation
​Mercedes DAS3 can EIS/EZS all keys lost
​Reduces reading time of W204 ECU data & W207 EIS by over 85%
​No need to remove and reinsert the key for W221 & W164 after 2009 models
​Can read and write BMW DME/DDE ISN in boot mode
​Compatible with Auro IM600 & Auro IM100 with XP400PRO

​[Work with IMKPA]

​IMKPA is a Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters for the XP400Pro that enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, for Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and for Volkswagen/AUDI/BMW/Benz Key Unlock.

[Package List]

1 X MaxiIM IM508S Tablet
​1 X AAC001 – MED17 Cable
​1 X KIA-20 Adaptor
​1 X Mazda-17 Adaptor
​1 X Carrying Case
​1 X Quick guide
​1 X Honda-3 Adaptor
​1 X KIA-10 Adaptor
​1 X XP200 Key Programmer
​1 X USB External Power Adapter
​1 X Main cable
​1 X Mini USB Cable
