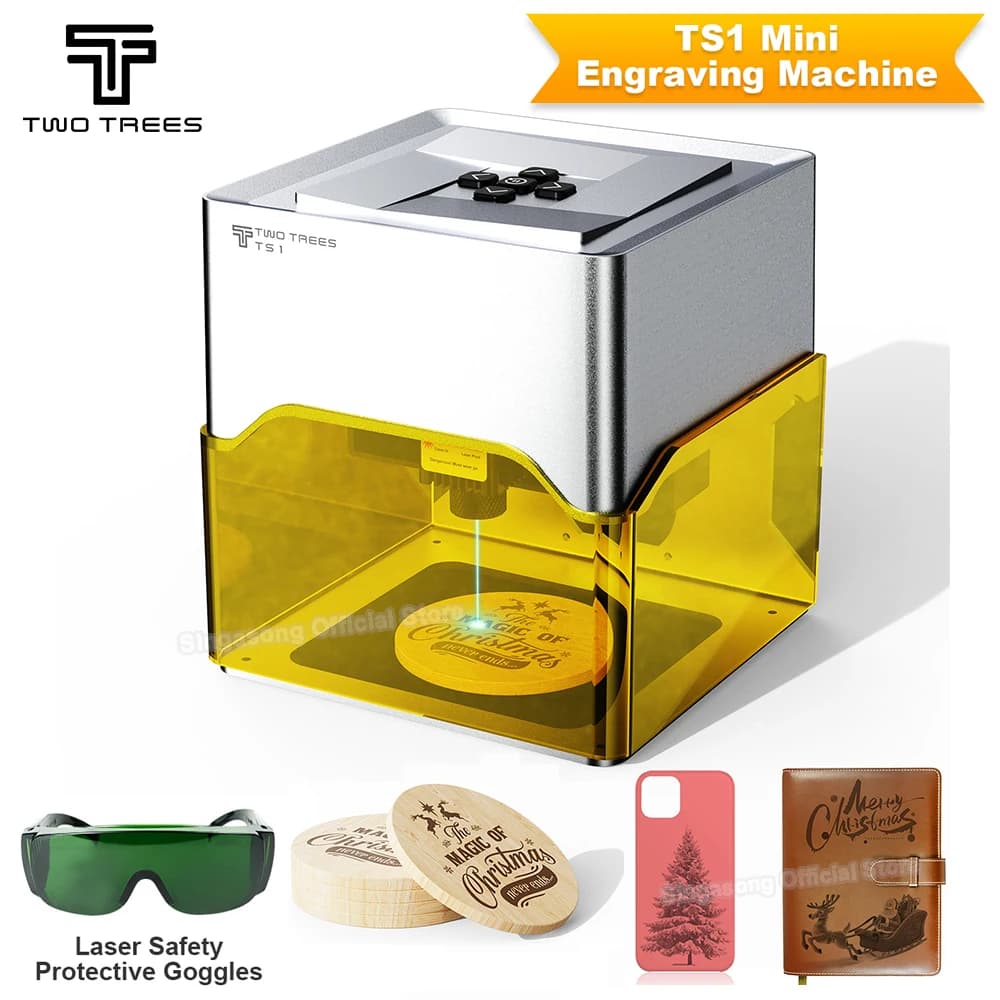

TwoTrees TS1 Laser Engraver 3W Mini Laser Engraveing Machine Support Bluetooth Connection APP Control Speed 3000mm/min A4988

Main material: injection molding + aluminum

Product size: 157X157x167mm

-Inner size-193x200x181mm

-Outer size-203x210x196mm
-Engraving size-80x80mm

Support engraving diameter: 80X80mm (the machine cavity can support objects 0-30mm high)

Laser power: 3W, adjustable focus laser head optimal focusing distance 2.5-6.5CM

Compatible materials: plywood/density board/solid wood board/paper/painted metal/kraft paper/leather/plastic/bamboo

Control panel input voltage: 12V

Working power consumption of the whole machine: 17.5W

Support: Bluetooth, USB port, TF storage support (built-in)

XY axis positioning accuracy: 0.1mm

Engraving accuracy: 0.1mm

Maximum engraving speed: 3000mm/min

Maximum acceleration: 320mm/min

Software used: Lightburn/lasergrbl/MKSLaser (mobile phone APP)
You can use a USB data cable or Bluetooth to transfer engraving files, then operate on your phone/PC.
This mini laser engraver is compatible with Lightburn (Windows OS/Mac OS/Linux), LaserGRBL (Windows OS, not yet available for MacOS).
Manual control of the focal length, with a focusing range of 25-65mm, and a laser wavelength of 455±5nm.
Equipped with laser protective goggles, the machine has a light-filtering acrylic shield to protect your eyes from laser damage in all directions.
The mainboard features cloud storage memory, eliminating the need for external connections, allowing for one-click repeat engraving and offline engraving.

Scope of application:

Advertising industry: Mini engraving machines are widely used in the production of billboards, logos and displays, and can quickly and accurately cut and engrave complex patterns and texts.

Crafts and gifts industry: When making personalized gifts, such as customized wooden accessories, leather products and metal crafts, mini engraving machines can provide fine engraving effects and increase the added value of products.

Printing and packaging: In the printing and packaging industry, mini engraving machines are used to engrave various packaging materials, such as cardboard, plastic film, etc., to create unique packaging designs.

Leather industry: Mini engraving machines are used to engrave patterns in leather processing, which improves production efficiency and reduces material waste.

Model making: In architecture, industrial design and prototyping, mini engraving machines can accurately cut (paper) and engrave various parts of the model.

Arts and crafts: Artists and craftsmen use mini engraving machines to create unique works of art, such as engraving fine wood carvings or making personalized decorations.

Technical features

High precision: Mini engraving machines can achieve high-precision engraving and are suitable for applications that require fine processing.

Multifunctional: It supports the processing of a variety of materials, including non-metal and painted metal, which broadens the scope of application. It can easily handle cutting such as kraft paper (1mm) and leather (1mm).

Environmental protection: The use of laser processing technology reduces the noise and dust in traditional mechanical processing, which meets modern environmental protection requirements.

Intelligent: It integrates advanced control systems and supports computer-aided (CAD) design software, which improves the convenience of operation and the degree of automation of processing.
