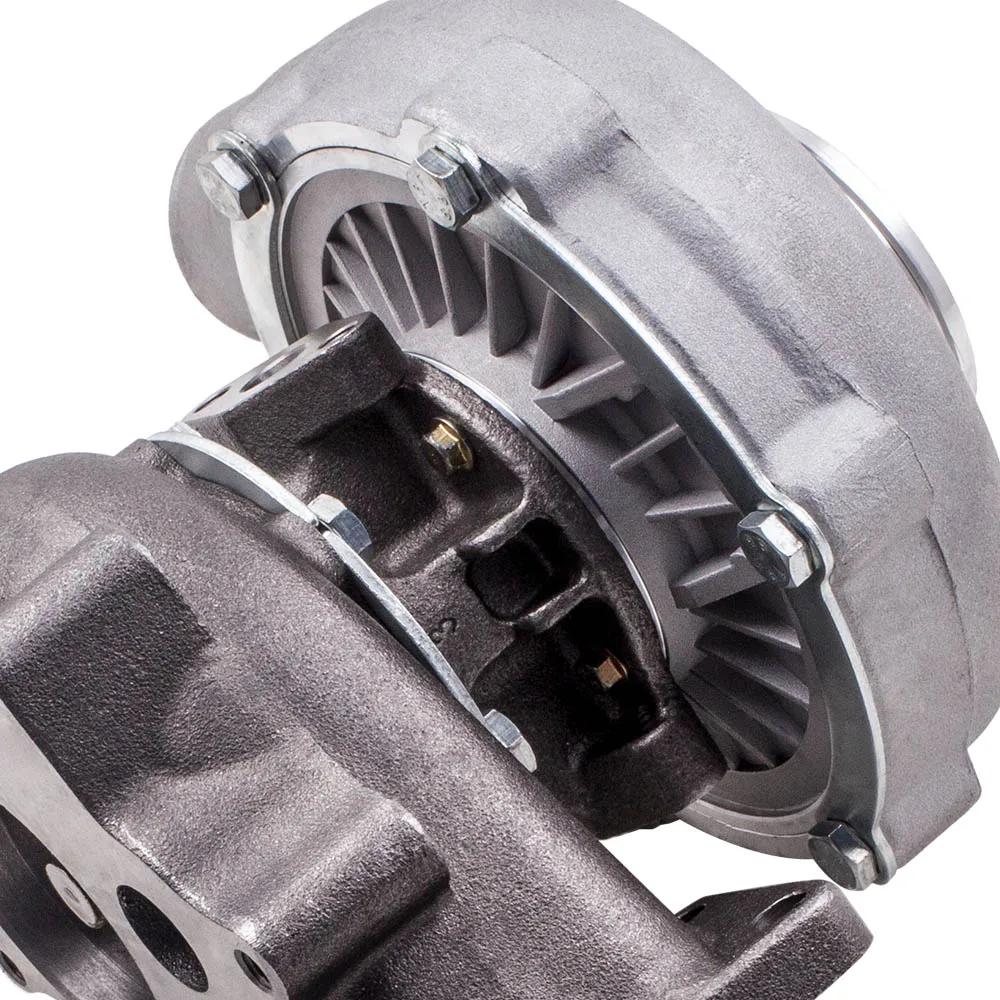

T3 T04E Turbo Turbocharger 400HP .57 A.R universal exhaust turbine for 1.5 -2.5L

T04E T3/t4 .57 A/R Turbo Turbocharger Compressor Up to 400HP Boost Stage 3

Fit for:

This item fits: Universal Application.

for 1.5L to 2.5L any 4/6 cylinder engine up to 400+ HP

Maximum 18PSI

Feature

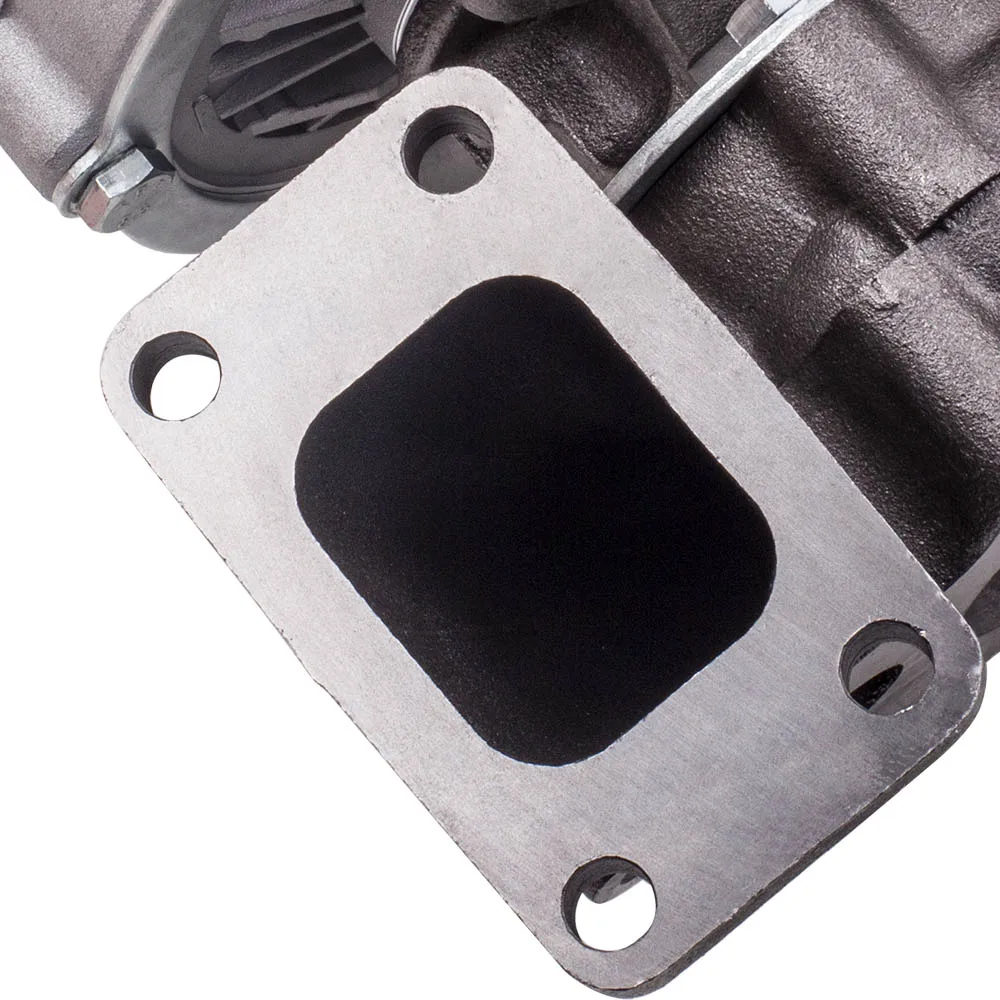

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

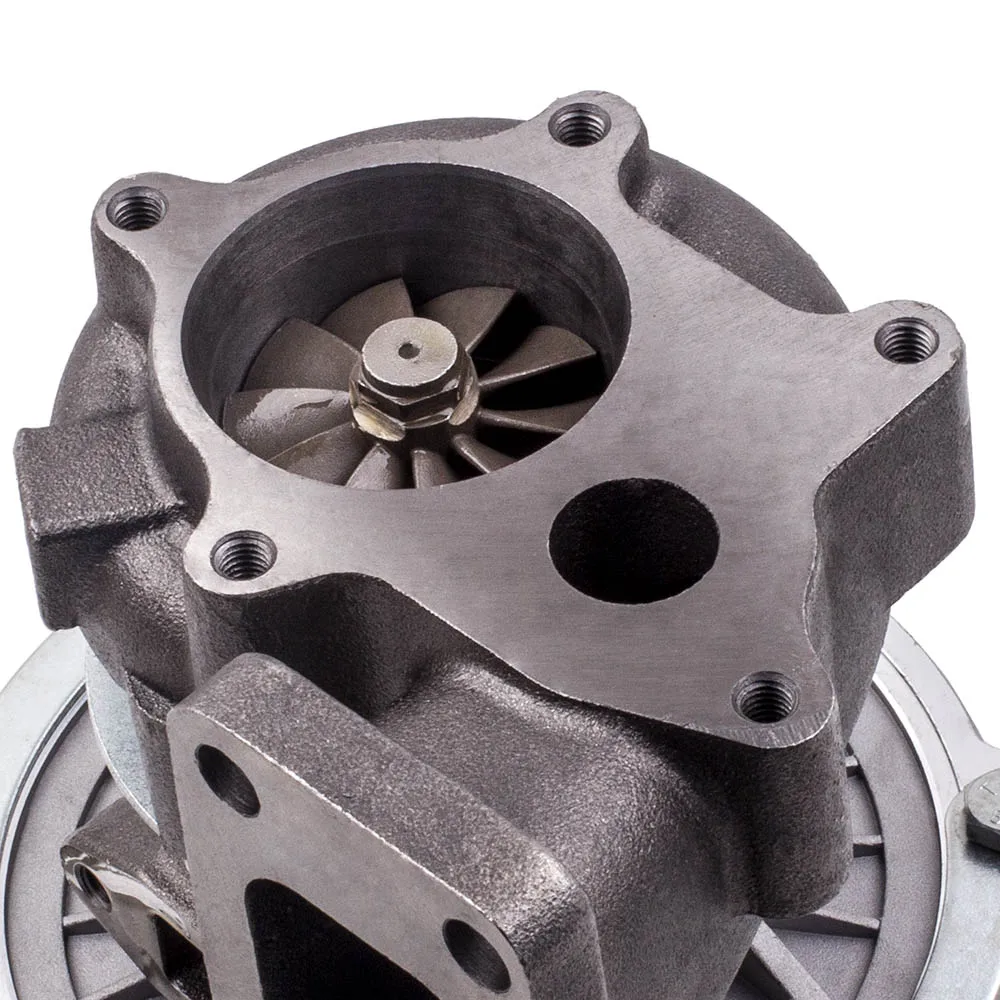

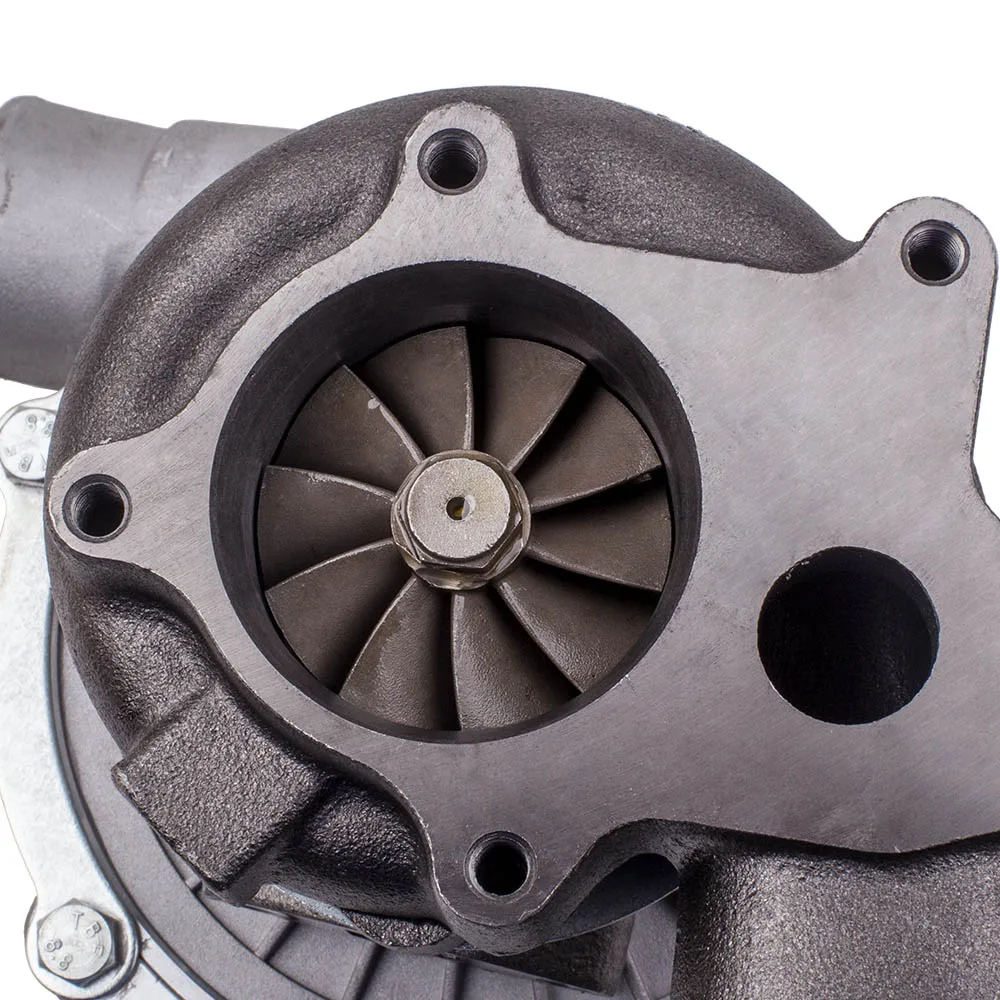

Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern

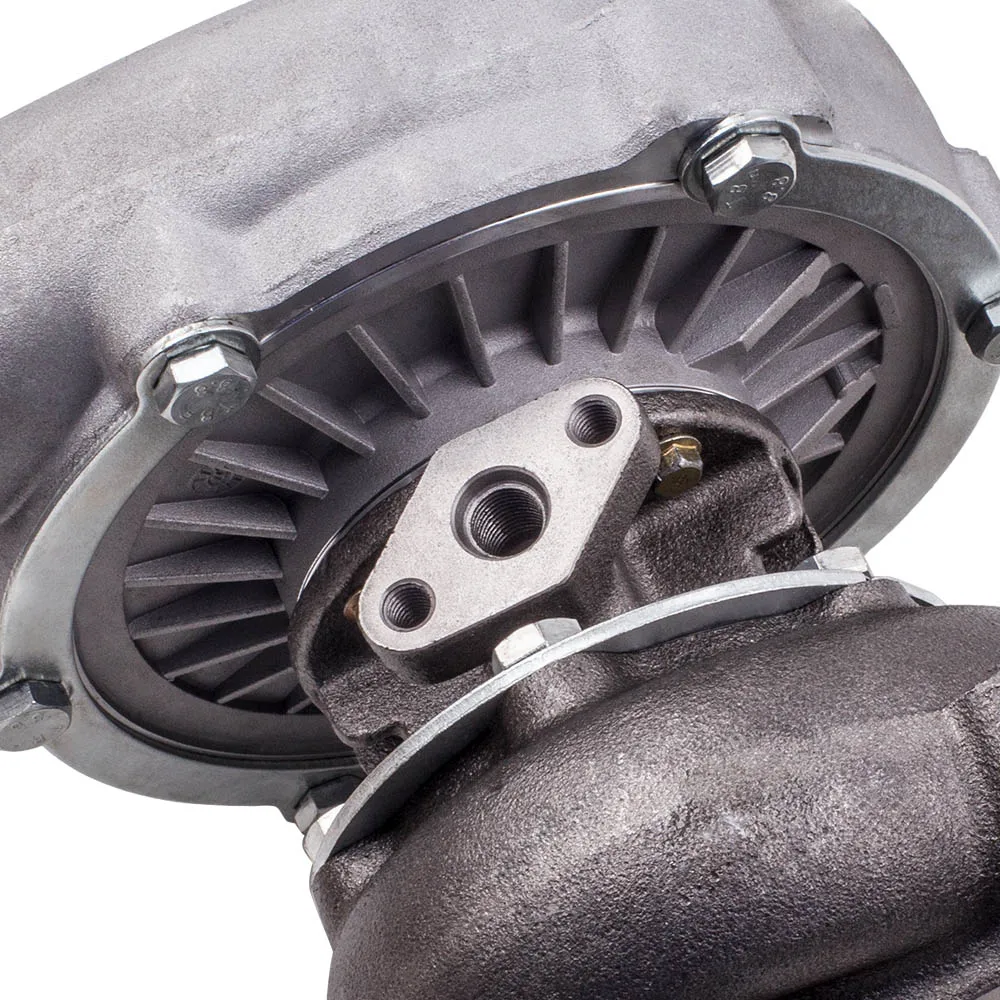

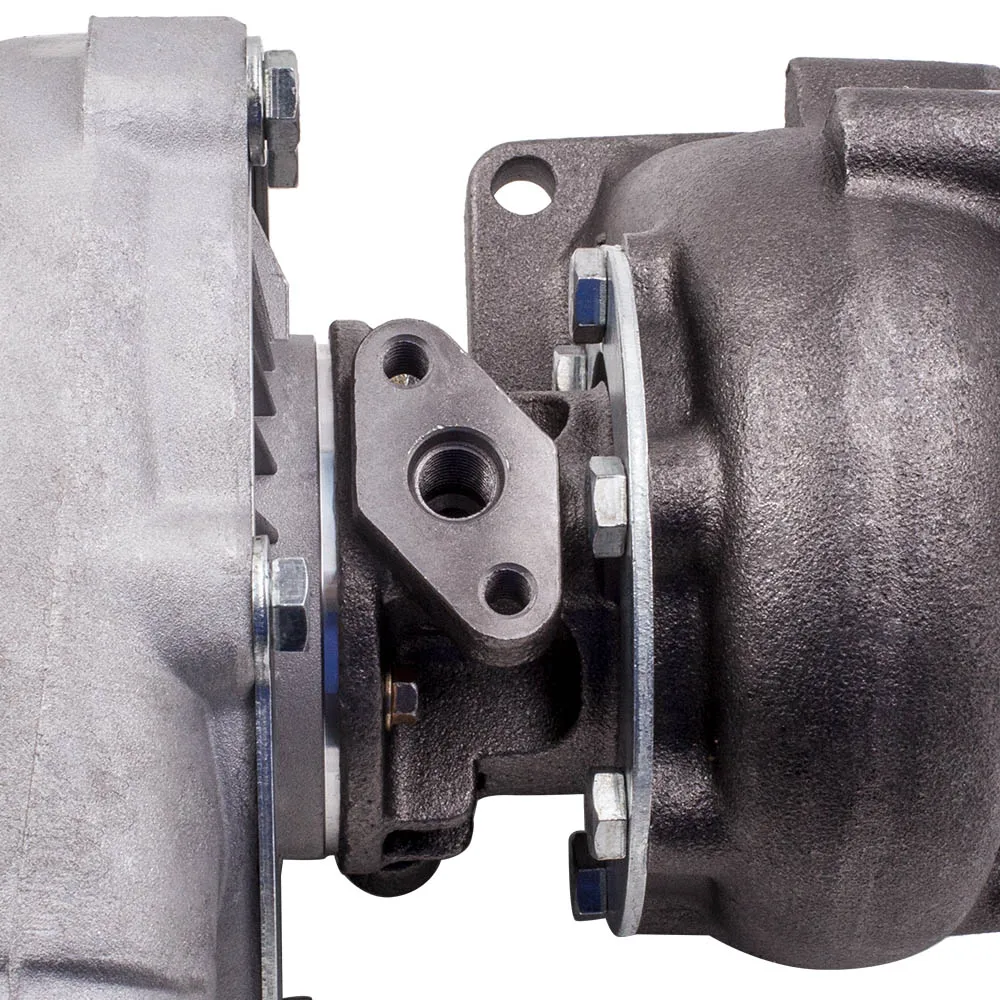

Cooling Type: Oil Cooled

Wastegate: Without Wastegate

Compressor:

Trim: 48.1

A/R: 0.5

Inducer: 52.7

Exducer: 76

------------------------------

Turbine:

Trim: 74.2

A/R: 0.57

Inducer: 64.8

Exducer: 55.8

----------------------

Turbine exhaust inlet：45mm/87mm

Compressor outlet：42mm(inside diameter)、52mm(Outer diameter)

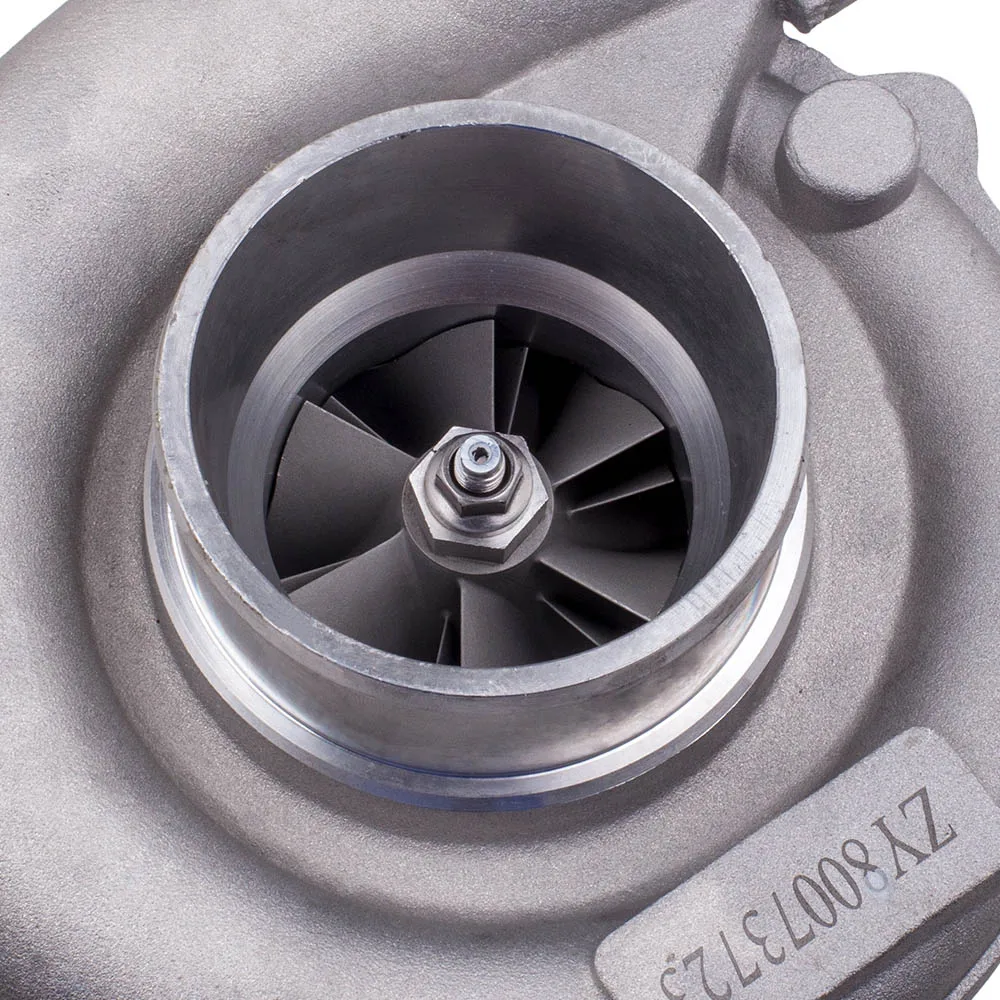

Compressor inlet：68 mm(inside diameter)、77mm(Outer diameter)

Condition: Brand New

Bearing Type: Floating bearing

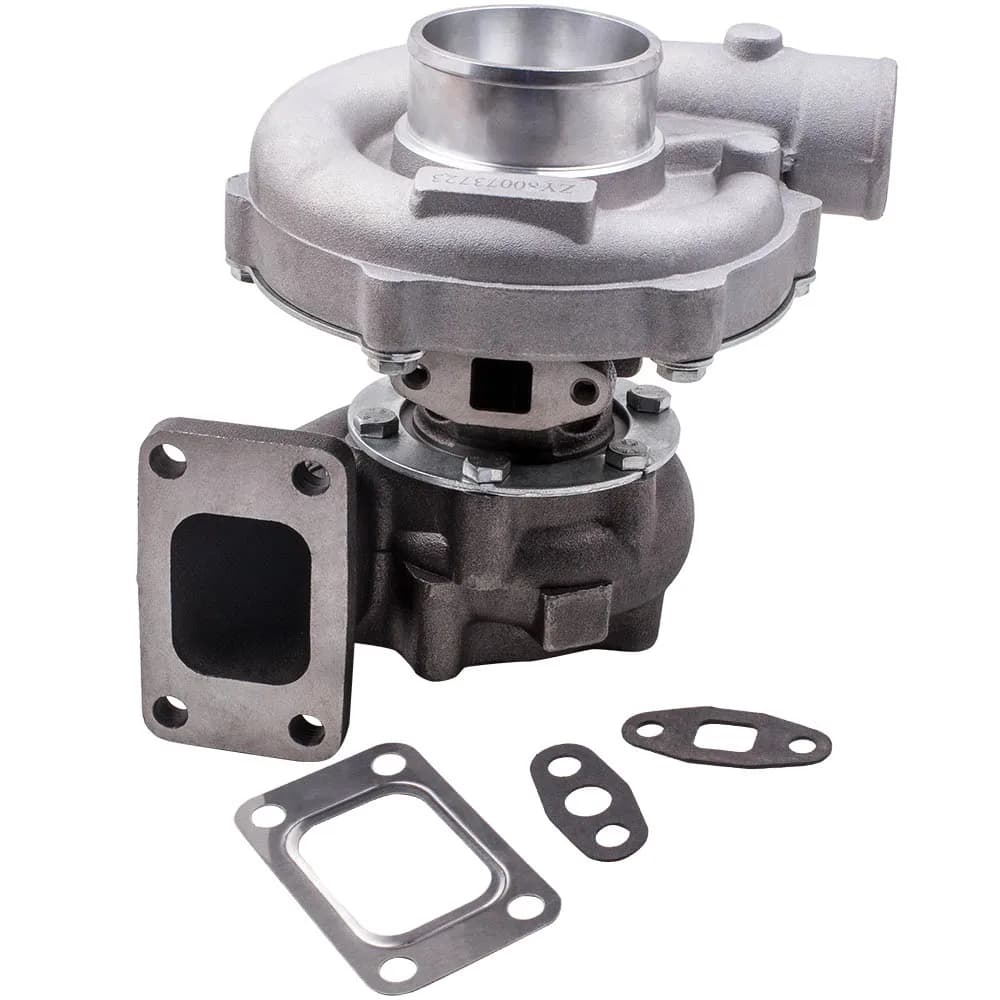

Accessories: You will get exactly as shown in the picture above

Note

*100% Brand New
