POWACE 2.2KW ER20 CNC Air Cooled Spindle Motor Square For Woodworking Router Engraving Milling Machine

Package include:

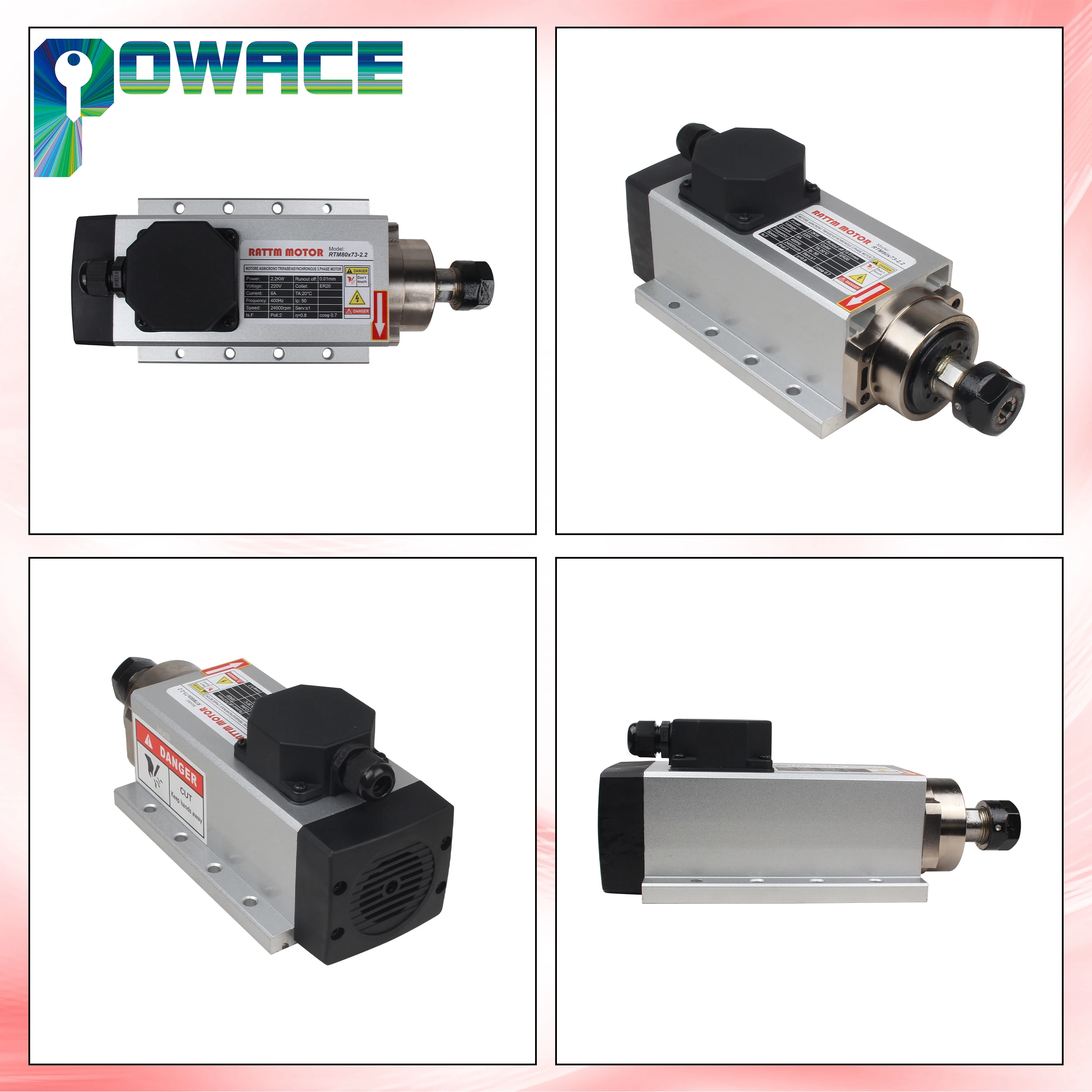

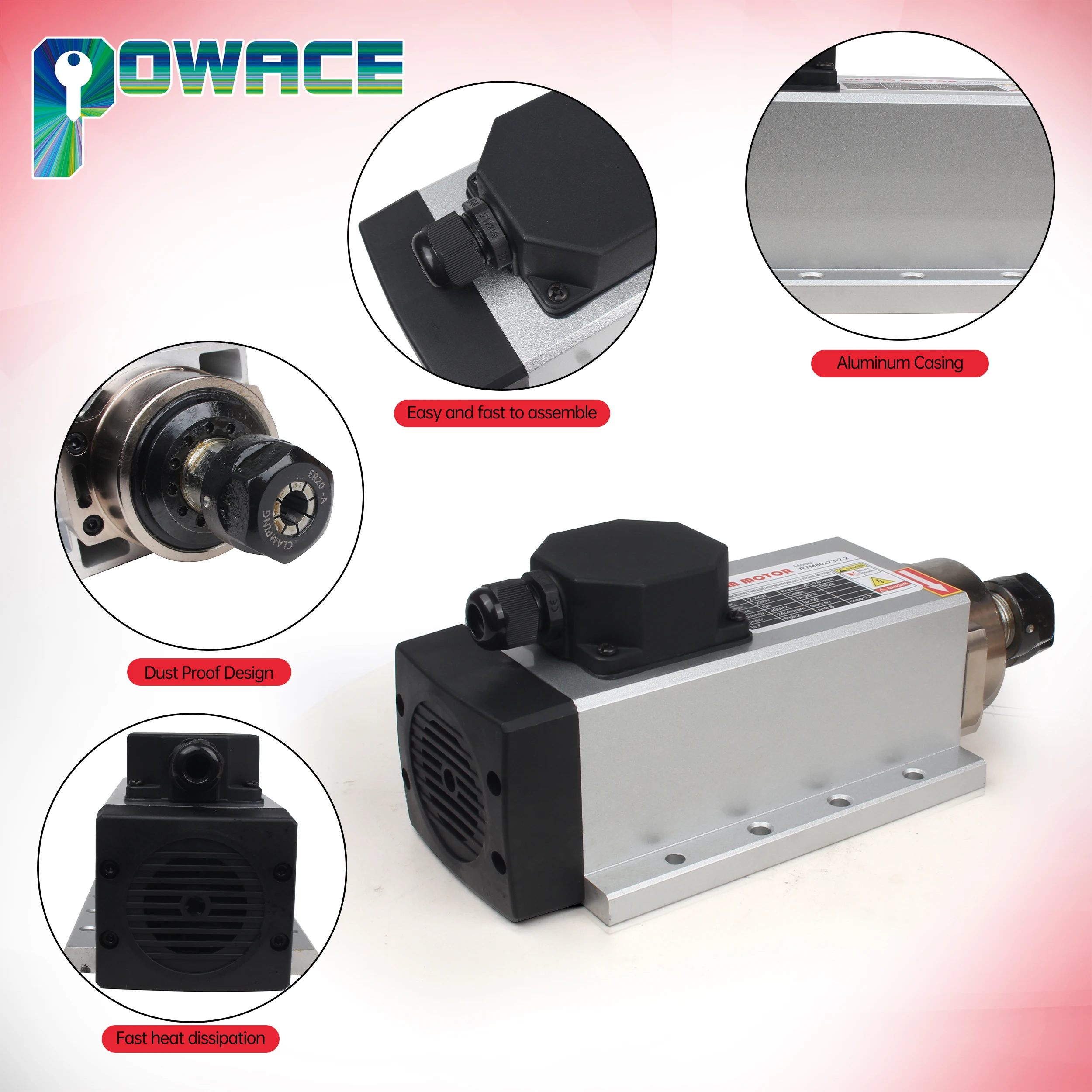

1 x air cooled spindle motor 2.2KW ER20

1 x 2.2KW inverter VFD (optional)

Product show:

Material:Stainless Steel

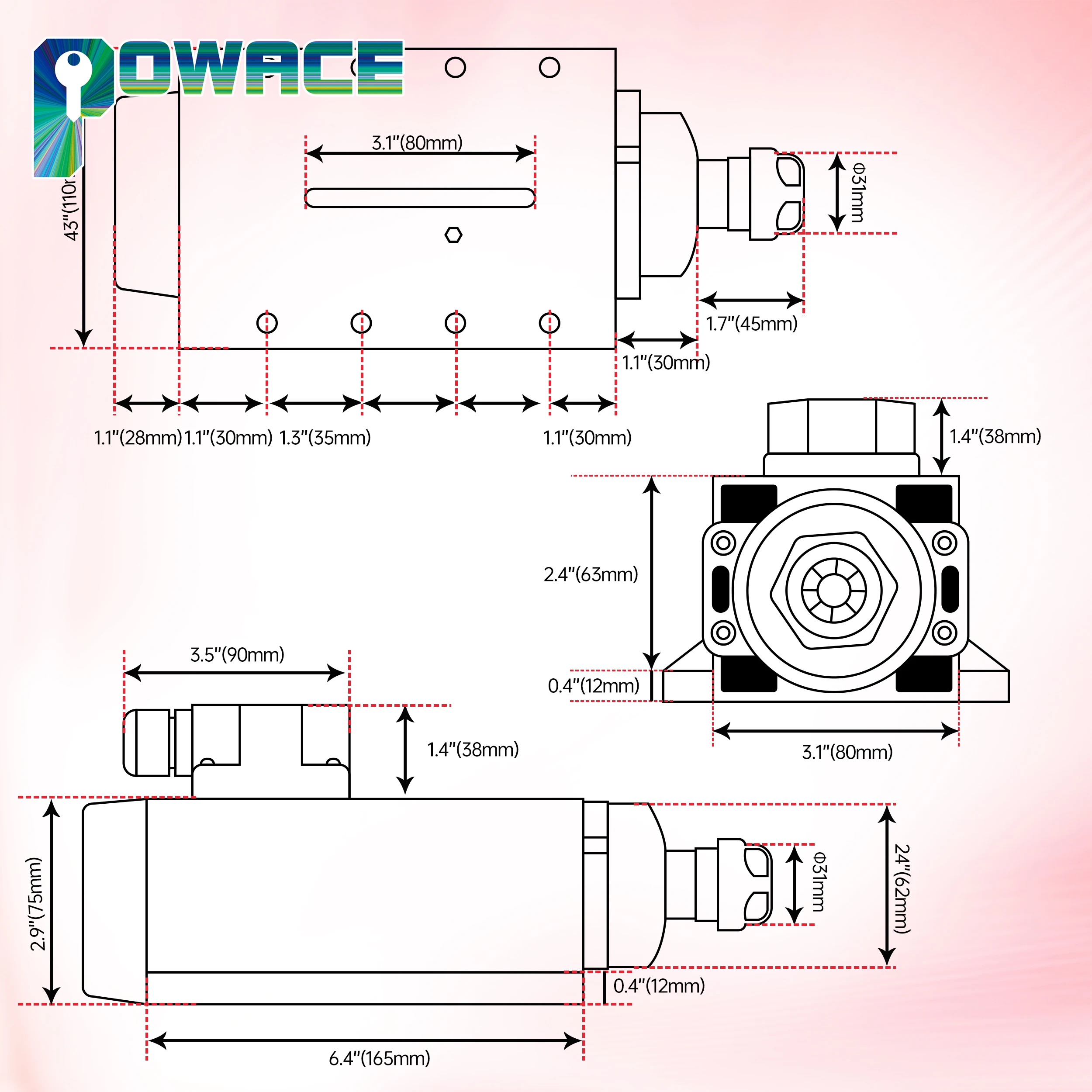

Size:

Power:2.2Kw

Voltage:220VAC

Current:6A

Frequency:0-400Hz

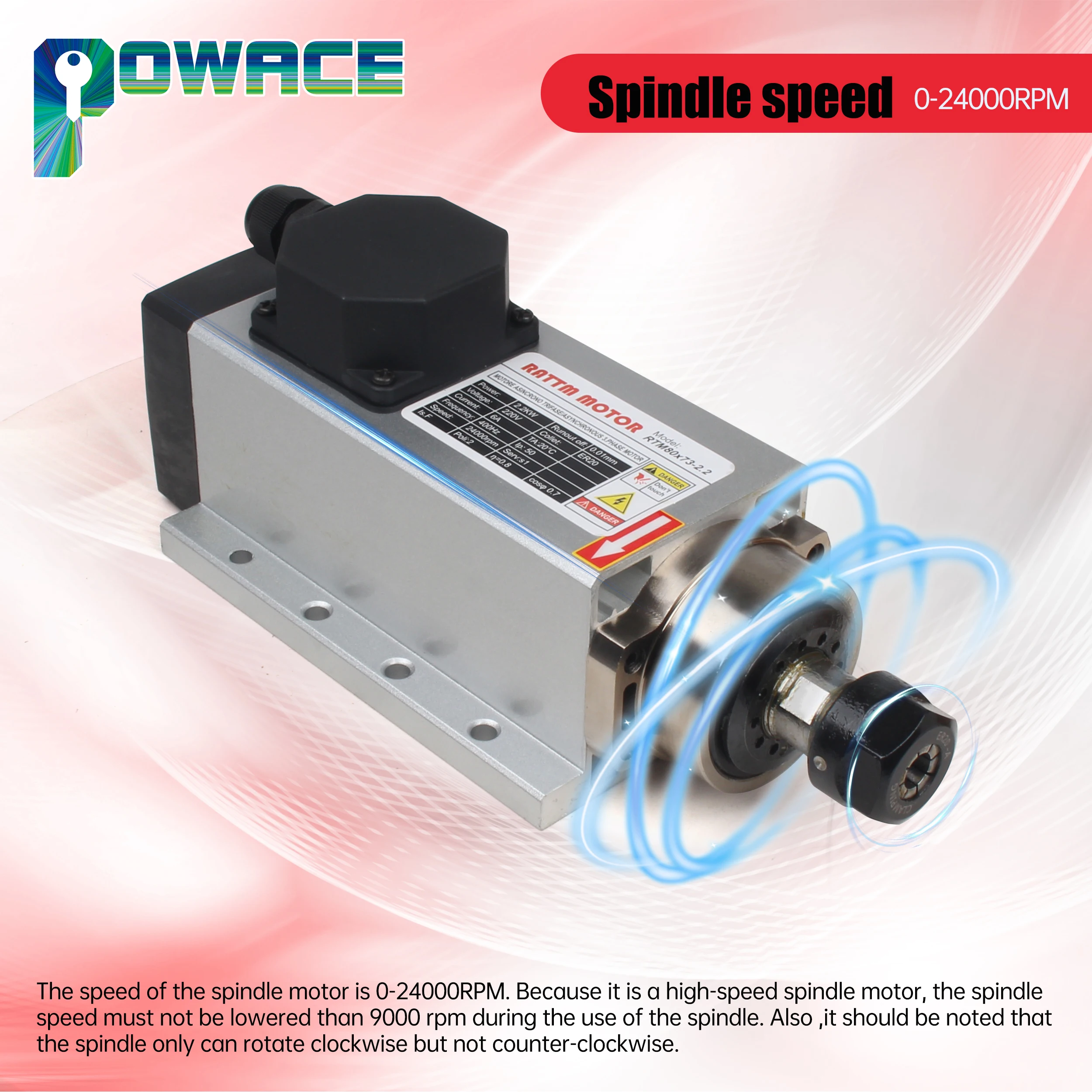

Speed:10-24000rpm

Cooling:Air-cooled

Runout off:≤0.01mm

Precision tapered bore:≤0.005mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:4PC steel bearing

Net Weight:4.9kg

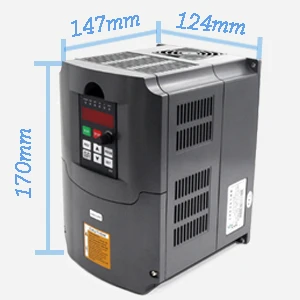

Mini inverter VFD:

HY inverter VFD:

Feature

PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

Easy PLC function can realize 16 legs of speed and inverter control function;

With extremely strong anti-jamming capability

Low output ratting torque0.5HZ-150%, low speed running ability;

Carrier adjustable by 16KHZ, completely soundless working environment;

Broad voltage working area, normal running in 304V-456V;

Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

With perfect error protection and short circuit starting protection capability;

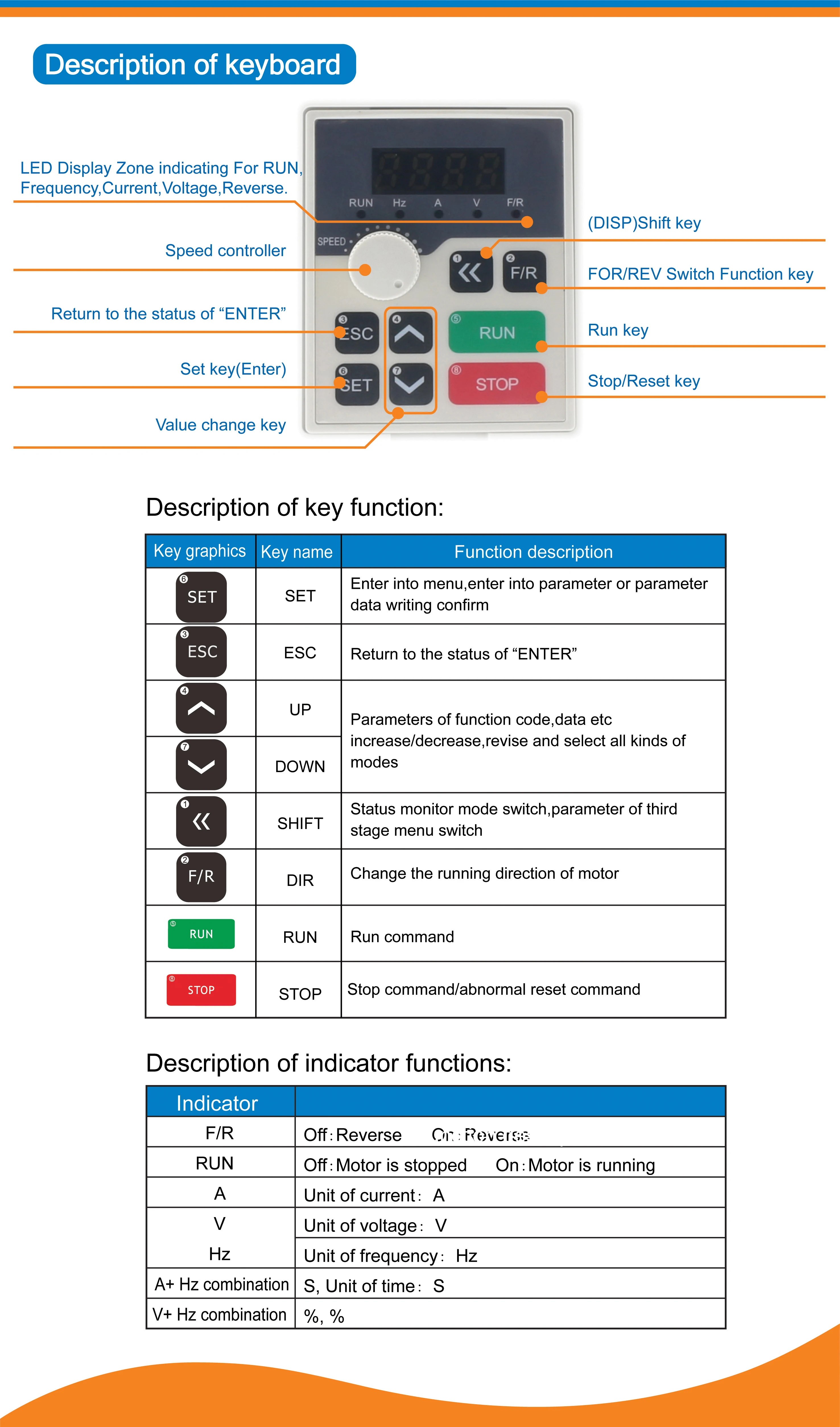

LED Display

1: Led display zone, indicating: POWER, FOR, REV, Frequency, Current, Revolution, etc.

2: Main diaplay zone, indicating: Frequency, Current, AC V, DC V, Revolution, Counter temperature, etc.

RUN: Run key

Stop: Stop / Reset key

JOG: FOR / REV switch

PRGM: Fuction key

SHIFT: ( DISP ) Shift key

SET: Set key ( Enter )

UP / Down: Power value change key

Wiring

Notice: If your motor's speed is not 24000rpm, please first restore the factory settings and change PD013 to 8, then you can set other parameters, after that can you connect the VFD to 3 phase motor.

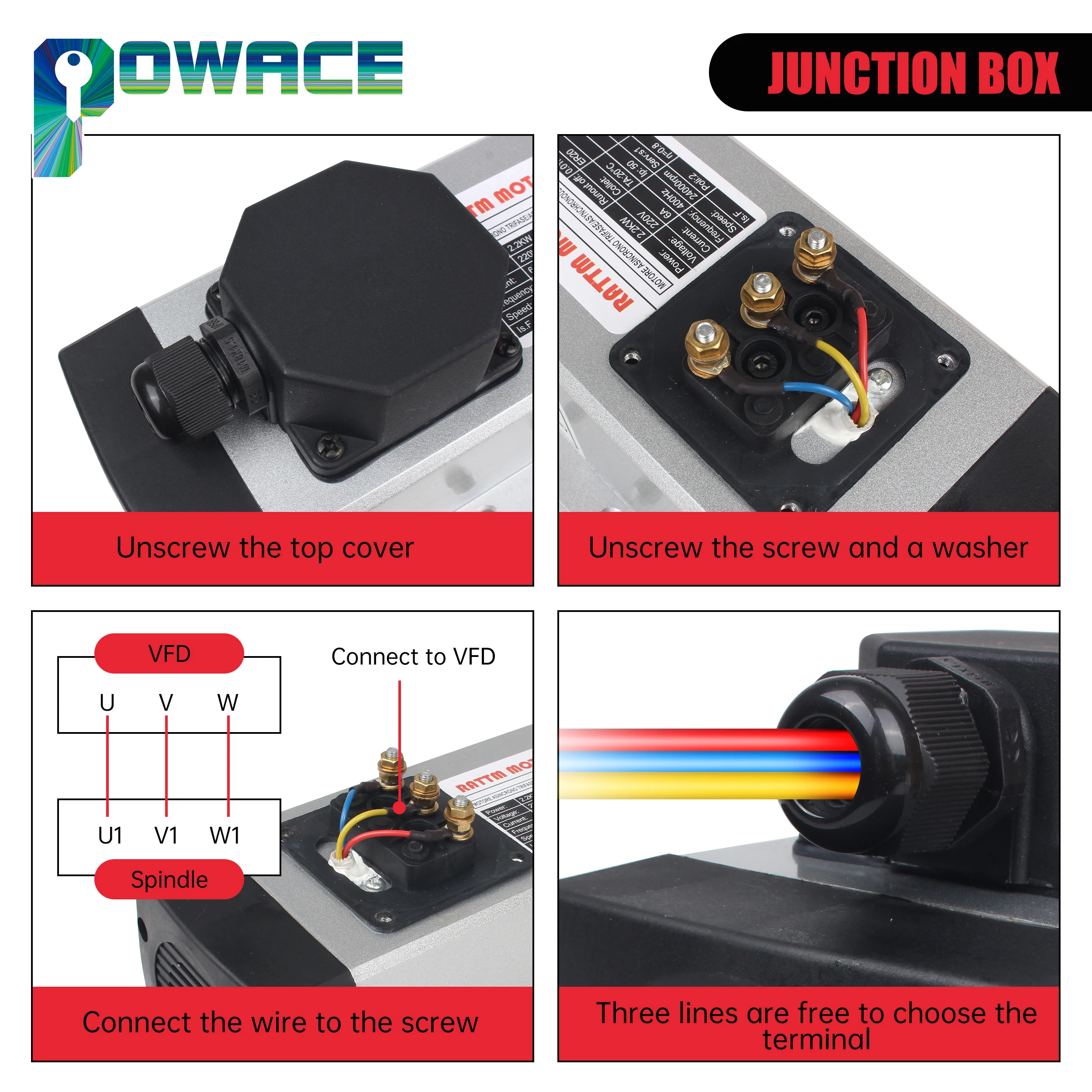

Wiring:

VFD's U= Spindle's U1

VFD's V= Spindle's V1

VFD's W= Spindle's W1

Connect any 2pin terminal "R", "S" or "T" of the inverter to "220VAC".

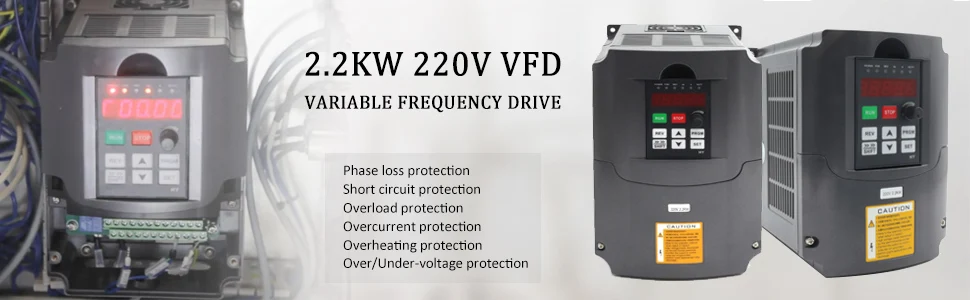

Multi-Protection Functions

Including overload protection, FUSE broken-motor stops protection, over-voltage / low-voltage protection, restarted by frequency track after instantaneous stop, anti-stall during acceleration/deceleration operation, electronic circuit protection.

And many other protection functions, such as over-heat protection, restriction of reverse running, direct start after power on, fault reset, parameter lock PID, one-drive-more, ect.

FL inverter VFD:

Tech parameters:

1) Input Voltage: 220V

2) Output Voltage：0- 220V

3) Input Frequency: 50/60 Hz

4) Output Frequency: 0-1000 Hz

5) Input Phase: 3 phase

6) Output Phase: 3 phase

7) Warranty: 1 year from the date you purchased
