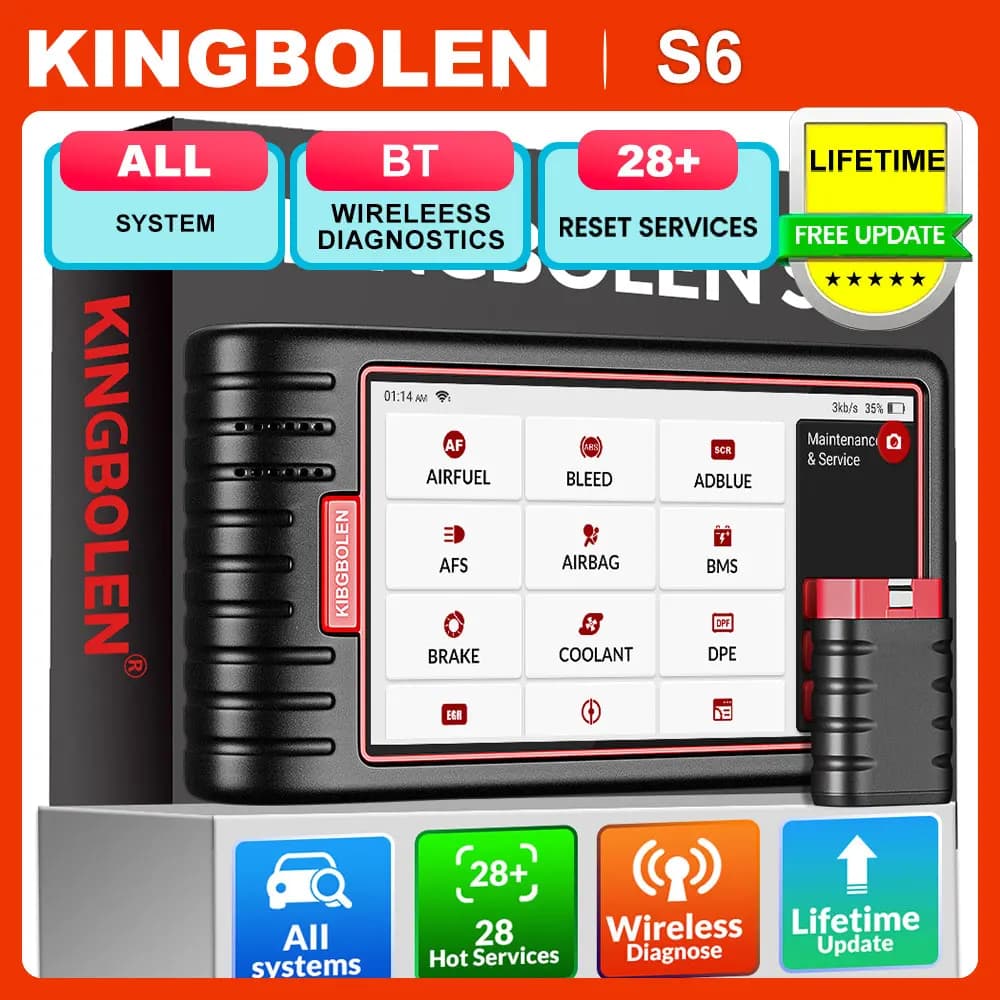

Kingbolen S6 OBD2 Scanner, Bluetooth All System Code Reader Car Diagnostic Tool,Auto-VIN 28+ Maintenance SAS/BMS/TPMS Scan Tool

100% Original KINGBOLEN

1.Lifetime Kingbolen after-sales technical support

2.S6 has Lifetime free update

3.Wholesale pricing available for distributors.

Powerful All System Diagnostic Code Reader

KIINGBOLEN S6 Bluetooth obd2 Scanner with Auto VIN reading allows users to diagnose all equipped electronic control modules with one click. You can use it read/clear fault codes, reading ECU information, and displaying combined live data from all diagnosed electronic modules. S6 diagnostic tool offers car owners and and technicians an easy and affordable solution to pinpoint problems with Engine,TCM,ABS,SRS, Windows, Seats, Audio, TPMS, etc..

28 Most Used Maintenance Functions

The KINGBOLEN S6 OBD2 Scanner is an ideal auto diagnostic scanning tool, it provides you 28 most used maintenance functions, such as Brake Reset, Oil Light Reset, SAS Reset, Electric Throttle Relearn, TPMS Reset, Injector Coding, etc. It helps to do various daily automotive maintenance functions on certain systems, with KINGBOLEN S6 you will be a expert by saving much effort and money on car codes.

OBD2 Scanner with 10 Modes

Covering all OBDII vehicles, KINGBOLEN S6 error code scanner can perform full obd2 functions, such as read fault codes, clear fault codes, O2 Sensor Monitor, View freeze frame, 4-In-1 live data stream, I/M readiness, EVAP test, DTC Lookup, on- board monitoring and vehicle information. KINGBOLEN Scanner track engine system all the time, you can check its working status and live data to fully know your car’s condition.

Advanced Hardware

It is an evolving intelligent scanner for vehicle diagnostics based on Android's multitask-capable operating system and features 1440*720 pixel resolution, built in a 4-core processor, a 5.99-inch touchscreen and 2GB+32GB of memory for storing more vehicle documents and customer data. This automotive diagnostic scanner can provide you with a smoother and faster diagnosis.

Lifetime Gratis One-click Update via WiFi

Include an online upgrade that provides lifetime gratis use and updates of all system basic functions and diagnostic software that allows you to update to get the latest software version for expanding vehicle coverage on each model, functionality and user experience. It also supports a Feedback function, one-click Screenshots, Record & Playback diagnostic data, and a built-in Google browser for searching for DTC definitions and descriptions.

Intelligent Auto VIN+ Wireless Connection:

KINGBOLEN S6 automotive scanning tool designed advanced AUTO-VIN function which identifies your car's info like year/ manufacture/model/ VIN of most models automatically and quickly, it leads you enter the vehicle diagnostic menu in a convenient way. KINGBOLEN S6 is a Bluetooth OBD2 diagnostic tool, which has 10 meters diagnosis range, you can operate the scanner in a comfortable place and position.

Wide Coverage+ 17 Languages

It will be able to perform full system diagnosis on 93 OBD2-compliant car brands, including most 1996 US-based, 2000 EU-based, 2005 Asian-based, or newer OBD II & CAN domestic or imported vehicles, and supports 17 languages, including English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Farsi, Arabic, Greek, Slovak, Traditional Chinese, Korean, Dutch. The default is English, you can change it by setting the device.

Full System Diagnostics:

All System Diagnosis
Experience in-depth access to all available systems with KINGBOLEN S6. It involves testing and assessing various aspects of the system to identify any potential issues, errors, or per-formance concerns. It brings:

Efficiency: Analyzes multiple data & parameters and pinpoint where to fix, saving time and effort in the diagnostics.

Accuracy: Conducts a thorough examination of the whole system and gives more precise and reliable results when spotting issues.

Preventive Maintenance: Accurately catches small issues and detailes, allowing for proactive maintenance and minimizing the risk of system failures.

Optimal Per-formance: With quick identification and resolution of potential issues, full system diagnostics can make sure the system runs smoothly and efficiently, leading to better per-formance and a longer lifespan.

Supports Full OBD2 Functions:

1. Read Codes:Show detailed description of Diagnostic Trouble Codes (DTC)

2. Clear Codes & Reset: Turn off the Check Engine Light (MIL), clear codes and resets monitor

3. Data Stream:Reads and displays live ECU/PCM data streams, graphically plots functions , and stores frozen frame data.

4. I/M Readiness status:Shows whether the vehicle's various emissions-related systems are functioning properly and are ready for inspection and maintenance testing.

5. Read Live Data Stream: Display continuous data stream information from a vehicle in a live graphic (waveform) display. (3 data stream display modes available: figure/value/4 data stream in one graph)

6. View Freeze Frame Data:Check certain vehicle conditions that are recorded by the onboard computer at the time of the emissions-related fault

7. O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recent tests from the vehicle's onboard computer.

8. On-Board Monitor Test:Retrieves and displays test results for emissions-related Power-train components and systems.

9. Read Vehicle Information:Display information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration Verification Number), etc.

10.Component Test: Some vehicle components can be actuated by commands sent from the scanner to test their operability.

Support 28 Maintenance Functions:

1.Oil Reset: Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

2.Throttle Adaption: To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

3.Brake-pad Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

4.SAS Reset: It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

5.Battery Matching: Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

6.ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

7.Gear Learning: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

8.Injector Coding: After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

9.TPMS Reset: When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

10.Suspension Matching: When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

11.AFS Reset: It is used to initialize the adaptive headlamp system

12.Gearbox Matching: This function can complete the gearbox self learning to improve gear shifting quality.

13.ETC..

Note: Not universal for all vehicles. Available maintenance functions vary depending on the make, year, and model.

Auto VIN Scan

Once KINGBOLEN S6 and the tested vehicle are properly connected, this auto scanner can automatically receive VIN information (such as make, year, model, etc.) to quickly identify the vehicle and start an auto detection process. For vehicles that are not based on the Auto VIN Scan feature, manual input is also available.

Auto VIN methods let you say goodbye to the era of manual input. With KINGBOLEN S6 car scanner diagnostic for all cars, you can m locate the vehicle information more quickly and accurately and directly start the system diagnostics, and bring a good start for your diagnosis and maintenance work.

4 in 1 Live Data Stream

The car scan will show you real-time data in text and graphics such as engine speed, engine coolant temperature, fuel system status, short-term fuel trim & more.

View the dynamic data stream to determine vehicle condition. Most car scanners only allow you to view two data streams in one graph. However, this KINGBOLEN S6 auto diagnostic scanner will display and combine 4 data streams in one graph, such as "Engine RPM", "Vehicle Speed", "Engine Coolant Temperature" and "Absolute Throttle Position", providing an intuitive presentation.

DTC Lookup& Google Chrome Query DTC

KINGBOLEN S6 has a separate DTC database, which supports the independent fault code query function. At the same time, the device has a "Google Chrome" browser. If you encounter an unclear DTC code, it is convenient to query the DTC.

One-Click Online Update

You’ ll never need to worry about your OBDII scan tool KINGBOLEN S6 would become outdated because it supports lifetime f-ree updates：because it supports lifetime f-ree update, to give more features you may enjoy more features, newer vehicles, and better performance. Unlike the tedious upgrade steps that require a computer connection, the scanner S6 supports a one-click upgrade. Tap "Upgrade", select software, tap "Update" to start downloading software, and then they will be installed automatically.

17 Languages：

including English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Farsi, Arabic, Greek, Slovak, Traditional Chinese, Korean, Dutch. The default is English, you can change it by setting the device.

One Tool to Cover 98% Cars!

FCA Autoauth Access: for 2018~ Chrysler, Jeep, Alfa Romeo, Fiat, etc…

100+ Brands & 10, 000+ Models, 1966-2O22

Technical Detailed：

• Screen Size:5.99"

• Operation System: Android • Battery Capacity:3.7V/3150mAh

• RAM:2GB

• Storage Capacity:32GB

• Resolution:720*1440 Pixel

• Working Temperature: -10℃ to 45℃ (14℉ to 113 ℉)

• Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)

Packing List:

1x Host Computer
1x VCI Bluetooth Connector
1x Charging Cable
1x Multilingual Quick Start Manual
1x Carry Bag
