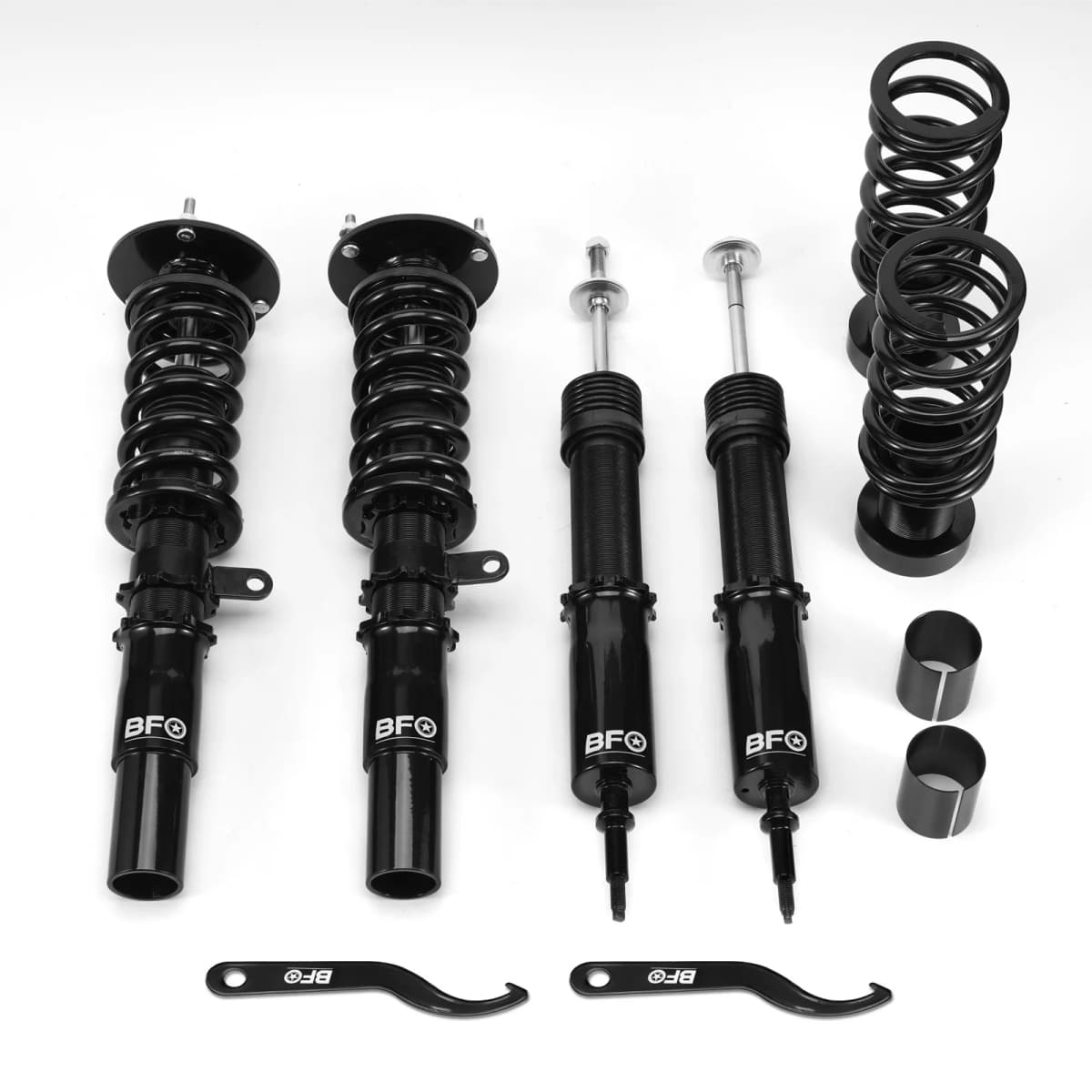

Coilover Struts For BMW 3 Series (E91) Estate / Touring (2004-2012) Coil Spring Kit For BMW 3 Series (E90) Saloon

Application



For BMW 3 Series (E90) Saloon (2004-2011)



316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d.



For BMW 3 Series (E91) Estate / Touring (2004-2012)



316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d.





Note:
1) This product fit RWD vehicle only, Not for the M3 model.

2) We suggest adding washers to avoid the engine bar and drilling the rear OE shock top mount upper part a little bigger to a diameter of 12mm.










Specifications



Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping: not adjustable

Top mounts: Front - Pillow ball top mounts

Top mounts: Rear - not include

Spring rate Front: 10 kg/mm (560 lbs/in)

Spring rate Rear: 8 kg/mm (448 lbs/in)

Spring length Front: 200mm

Spring length Rear: 180mm

Coilover overall length Front: 485mm-520mm

Coilover overall length Rear: 500mm-570mm

Shock type: Twin tube

Spring Preload advised: 7-10 mm
