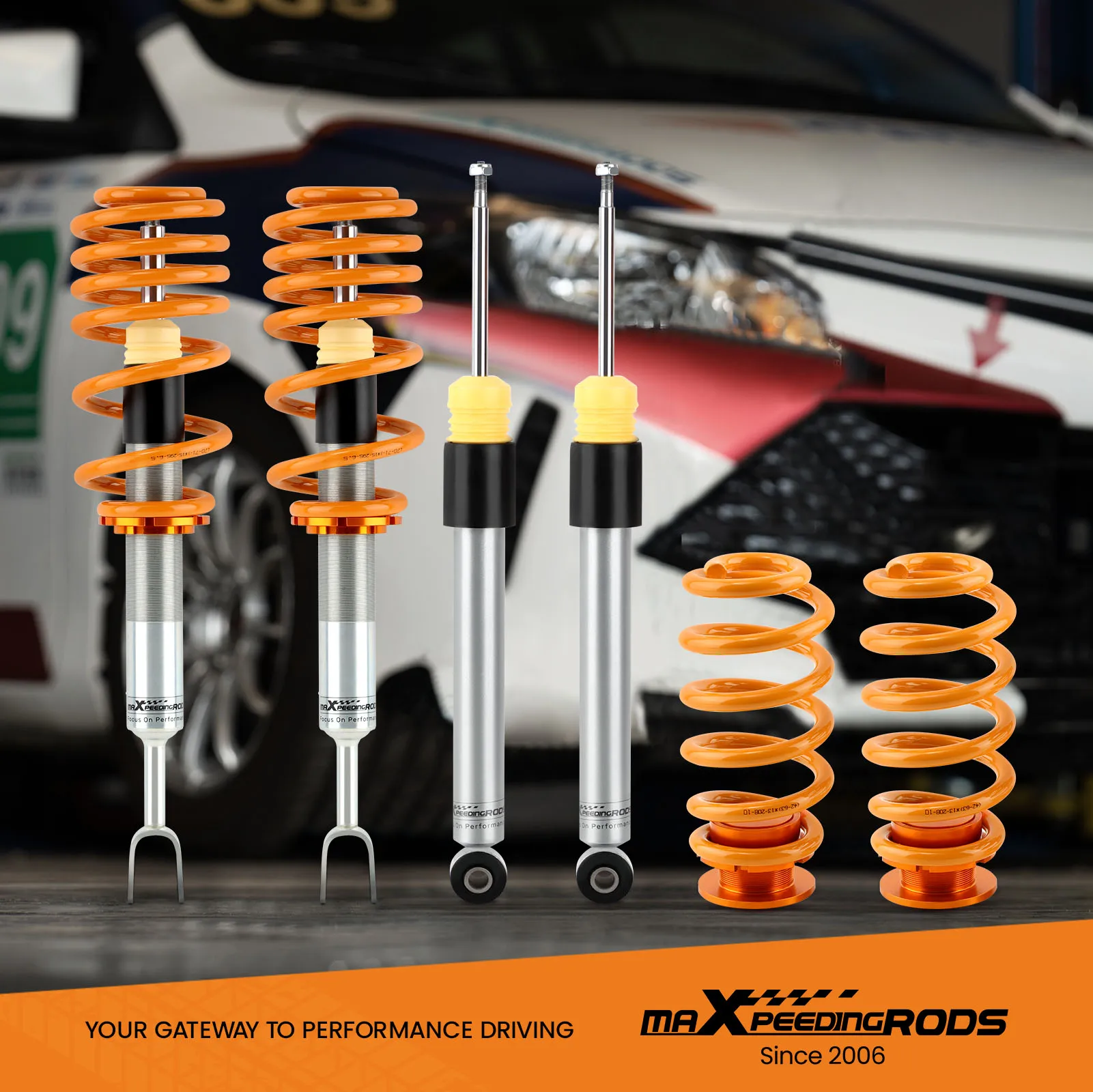

Street Coilover Kit for AUDI A4 B6 B7 (8E) CABRIO 2WD / Adjustable Coilovers Shocks Strut Springs Kit

Introduction
maXpeedingrods' MXR-S1 series is ideal for those who want to change the old worn out strut but improve handling at same time. It features with height adjustable and maintain the OE ride quality to the greatest extent.




Application

For Audi A4 Avant (8E5, B6) 2000-2005 3 /1.9 TDI /1.8 T /2.0 FSI

For Audi A4 Convertible (8H7, B6, 8HE, B7) (01/2002-12/2009) 3/1.8 T/2/ 2.7TDI

For Audi A4 (8E2, B6) (11/2000-12/2005)1.8 Tquattro /3.0quattro

For Audi A4 Avant (8ED, B7) (11/2004-06/2008) 2 /1.6 /2.0 TFSI /1.8 T /1.9TDI

For Audi A4 (8EC, B7) (11/2004-06/2008)2.0 TFSIquattro/ 1.8 Tquattro


Note: Front OE top mounts need to be modified ( drill bigger hole for shaft)





Specification

Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
Damping : Not adjustable
Top Mount: not included
Spring rate Front: 6.5 kg/mm (364 lbs/in)
Spring rate Rear: 10 kg/mm (560 lbs/in)
Front spring inner diameter:70-71mm
Rear spring inner diameter:42-46mm
Spring length Front: 295mm
Spring length Rear: 208mm
Spring Preload advised: 7-10 mm
Shock Type: Twin tube





Package included
2x front coil-overs
2x rear coil-overs
2x C spanners




Dimension
Package Size: 71*51*21 cm
Weight：24200g





Feature

1. 0-25mm(depends on vehicle models) lower height adjustable
2. Dust boot, solid rubber bump stops
3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets
4. Simple install, Easy to adjust.
5. Use the vehicle's original upper mounts (not included in our product kit).





Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
