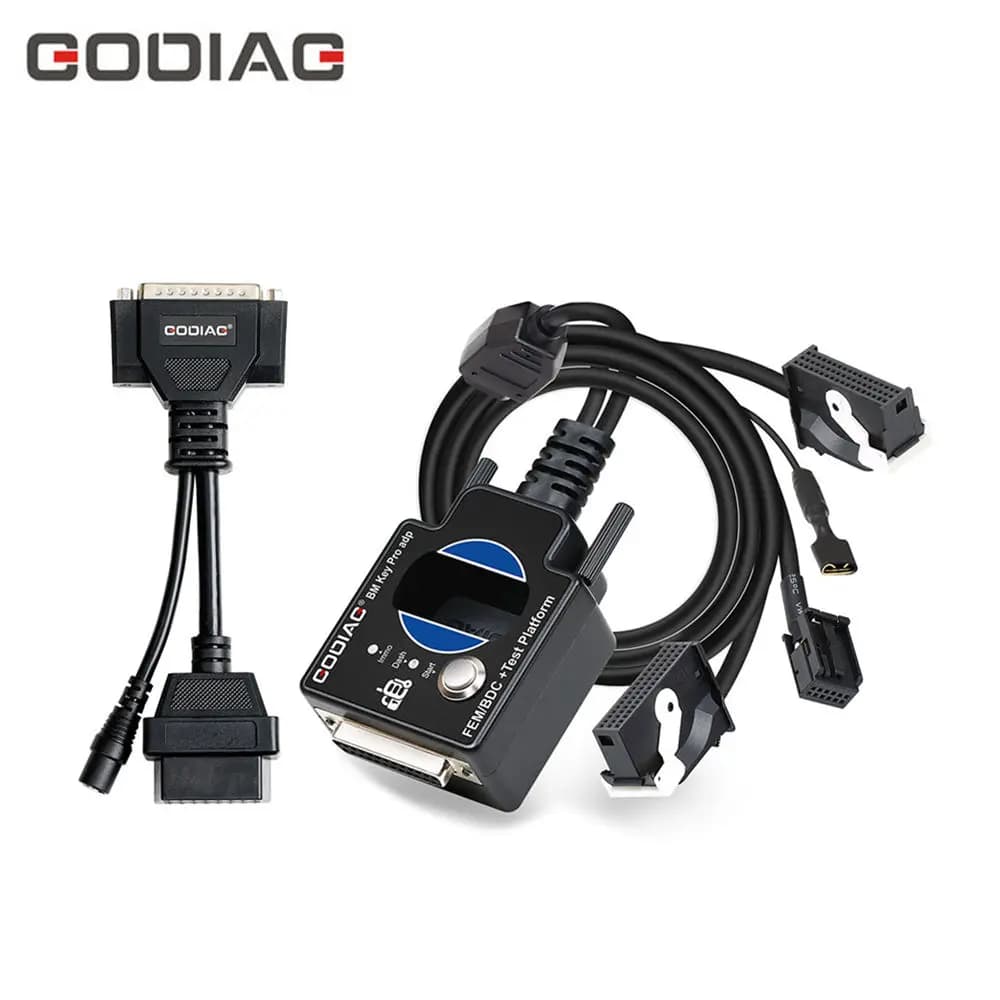

GODIAG Test Platform for BMW FEM/ BDC Programming

GODIAG Test Platform for BMW FEM/BDC Programming

Godiag FEM / BDC programming test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and FEM / BDC programming engineers.

Godiag FEM / BDC programming test platform features

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.
2. Perform the synchronization test for the programmed FEM / BDC and the key
3. Provide a test environment for the engineers who professionally recycle FEM/BDC.
4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.
5. Provide professional engineers with connecting FEM BDC modules and instrument.

1. By working together with Godiag GT100 & xhorse vvdi 2 / for bmw vvdi bim tool / Autel im608 etc, Godiag FEM / BDC test platform can program new key, can add new key and replace FEM / BDC ECU module.

2. Allowed to connect this test platform to the FEM / BDC module to test whether it can communicate or there is any malfunction.

3. Used to read out & backup the data after preprocessing, used to replace FEM / BDC immobilizer module

4. Before installing the FEM / BDC module back to the car, it can be used to test whether the programmed key synchronizes with FEM / BDC.

5. Godiag FEM / BDC test platform can help expand business for the Engineers who are skilled to program FEM / BDC key.

When a car owner lost the key, he / she can remove the FEM / BDC module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and FEM / BDC.

6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between FEM / BDC and the key.

7. This test platform adopts the dedicated OEM FEM / BDC fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of FEM / BDC module.

8. GODIAG for BMW FEM / BDC Programming Test Platform Structure Description

① DB25 female connector． (used to connect the DB25 male port of GODIAG GT100)
② Ignition simulated start switch.
③ Immobilizer dashboard simulated indicator.
④ Key sensing area.
⑤ Screw bolt.
⑥ CON7.
⑦ Source connection port.
⑧ Appearance.
⑨ CON8.

9. Dimension

Package includes
1pc x GODIAG For BMW FEM/ BDC Programming Test Platform
1pc x GODIAG OBD2 to BD25 Cable
