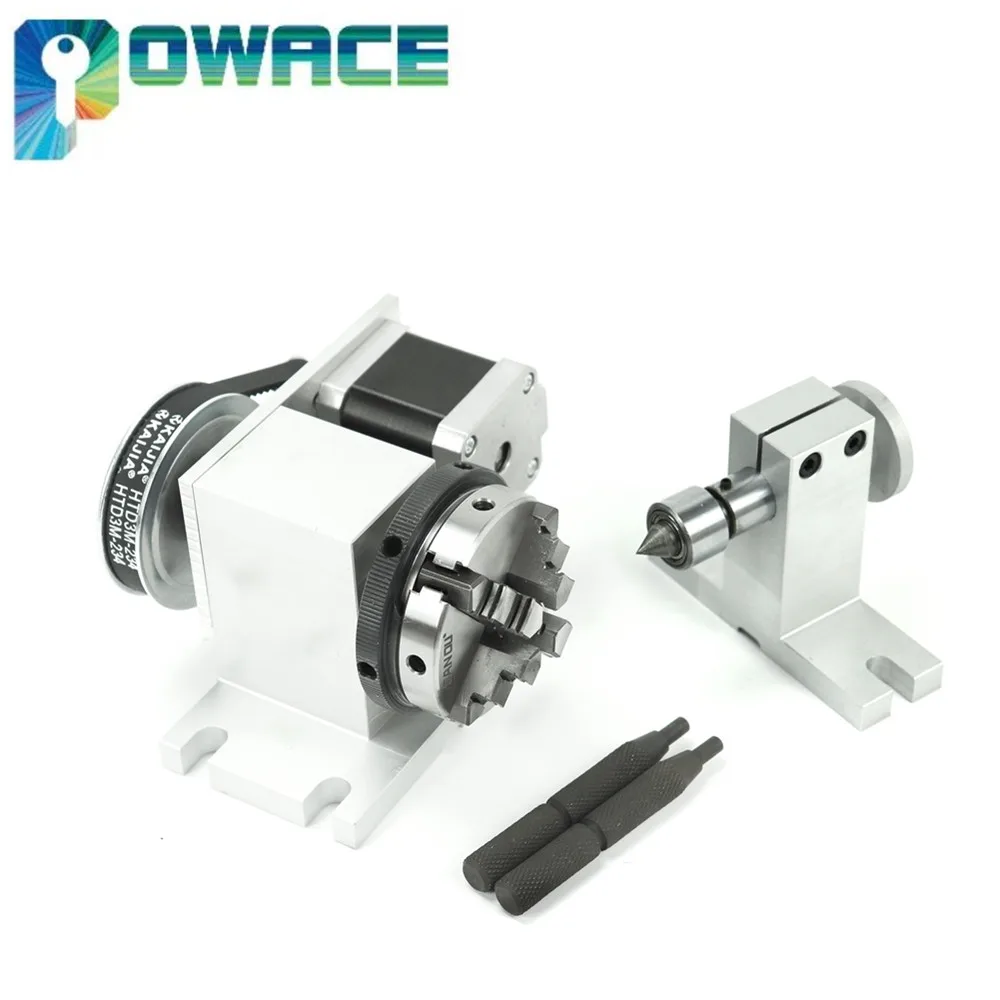

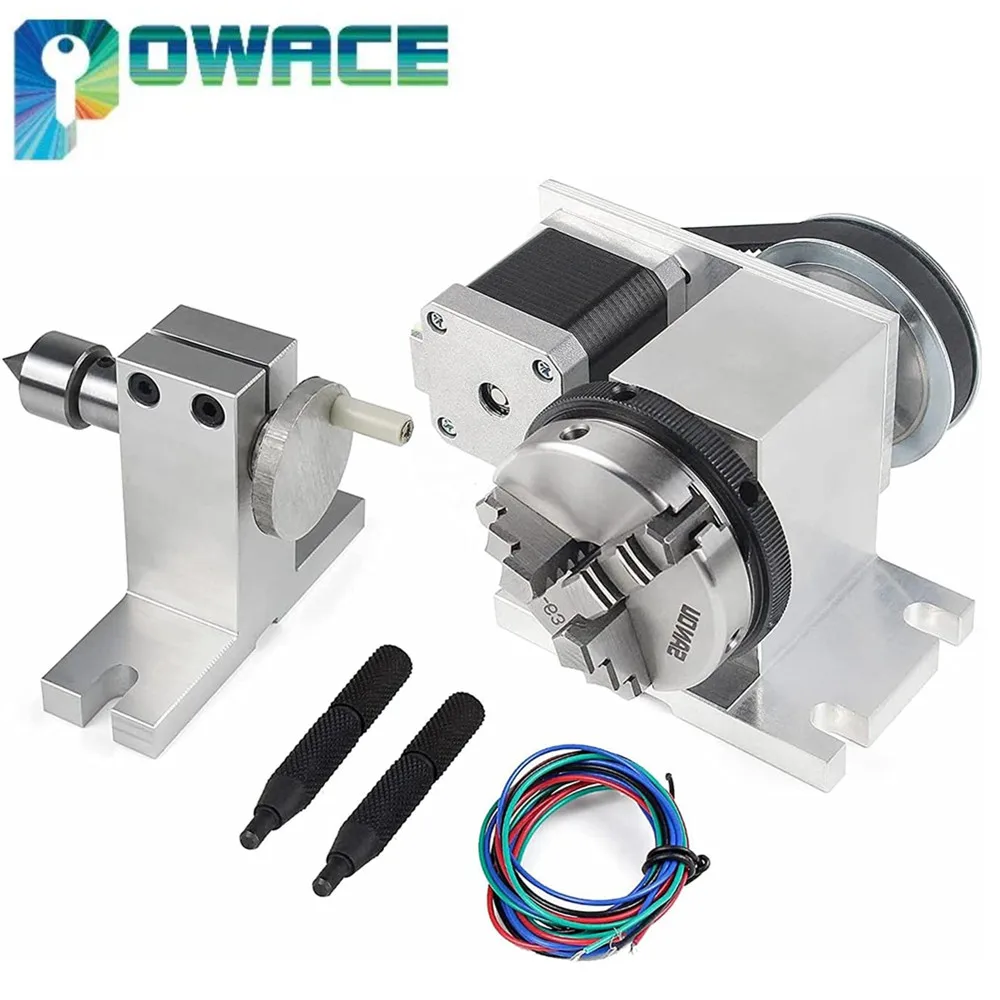

【EU Stock】CNC Fouth 4h Rotary Axis Lathe Accessories Part K11-65mm K12 3 4 Jaw Chuck Index Dividing Head With Tailstock

1 x Rotary K11-65mm / k12-65mm 4th axis (with Nema17 stepper motor) Reducing ratio 4:1

1 x 54mm Tailstock

2 x wrench

1set cables

Specifications

K11-65mm 4th axis

Center height: 54mm

Total height: 85mm

Angle: 0.3°/step

Transmisiion output shaft diameter: 20mm

Speed reducing ratio: 4:1

Clamping Range : 1-50mm

Hold tight size range:16-50mm

Centering precision: 0.05mm

Chuck Model: K01-63

Chuck:3 Jaw Chuck

Chuck Diameter: 63mm

Stepper Motor:

Motor Model: Nema17 stepper motor 2 phase

Motor Torque: 45N.cm (64oz-in)

Motor Current: 1.7A

Step Angle: 1.8 degree

Wiring's

Motor's Red wire connect to driver's A+

Motor's Blue wire connect to driver's A-

Motor's Green wire connect to driver's B+

Motor's Black wire connect to driver's B-

Tailstock:

Center height: 54mm

Top tip: activity type

Telescopic stroke: 30mm

Axial lock key for riding stock
