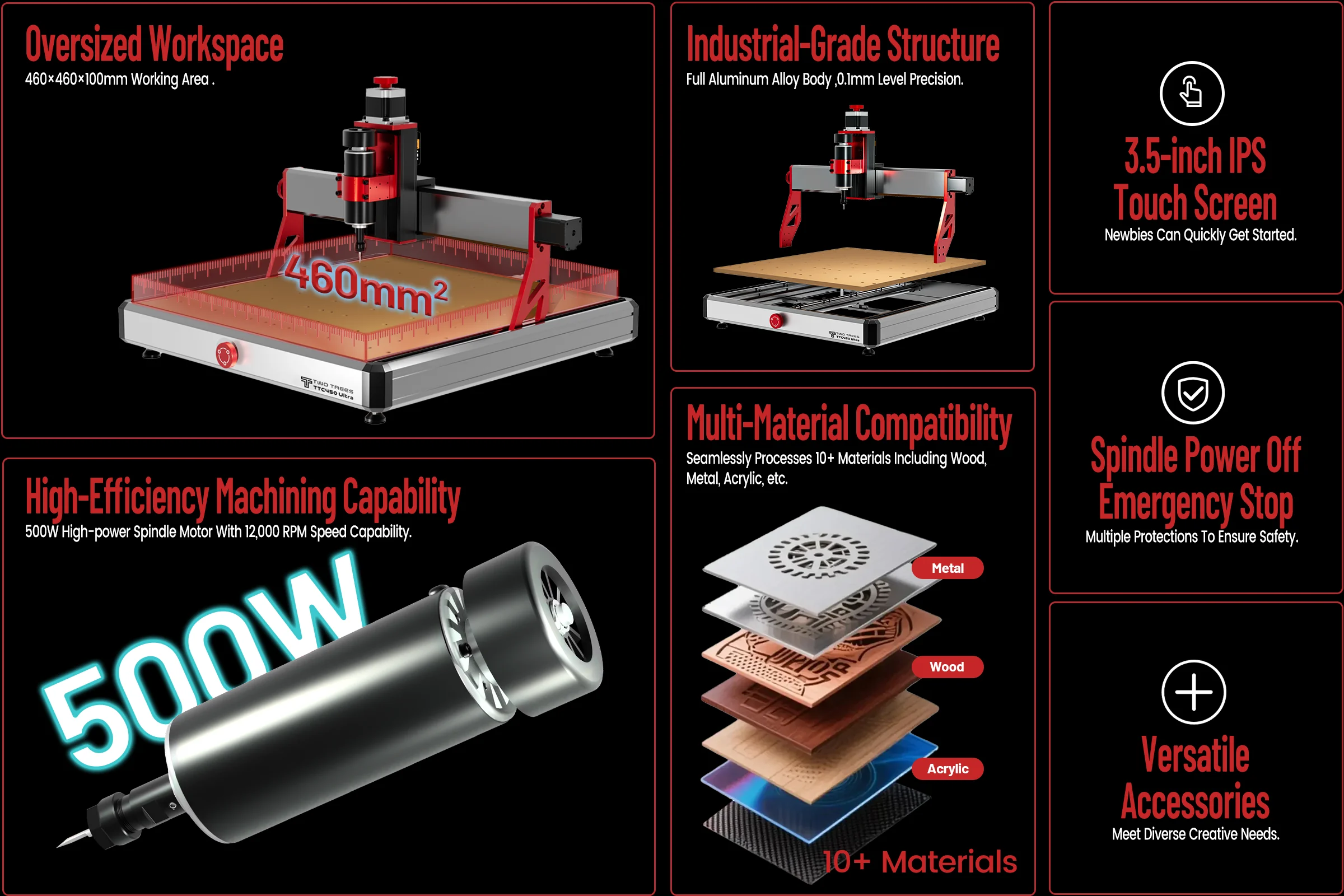

Twotrees TTC450 Ultra High Precision CNC Router 3-Axis/4-Axis Milling Cutting Machine 500W Spindle Carving Metal CNC Engraver

Model: TTC450 ultra

Working Range: 460mm x 460mm x 100mm (18.11in x 18.11in x 3.94in)

Machine Dimensions: 745mm x 660mm x 473mm (29.33in x 25.98in x 18.62in)

Supported Tool Diameter: 0.5mm to 7mm (ER11 Collet)

Compatible Engraving Materials: Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel, etc.

Control Panel Input Voltage: 24V

Touchscreen: 3.5-inch IPS Capacitive Touchscreen (480x320 resolution)

Supported Operating Systems: macOS, Windows, Linux

Supported Program Formats: .nc, .Gcode

Touchscreen Language Switching: Supports (Chinese, English, German, Russian, Japanese, French, Portuguese, Spanish)

X/Y Axis Positioning Accuracy: 0.01mm

Z Axis positioning accuracy: 0.0025mm

Engraving accuracy: 100±0.05mm

Maximum engraving speed: 3000mm/min

Maximum acceleration: 500mm/s²

Spindle safety switch: Used to shut down the spindle during tool changes to prevent others from turning it on.

The advanced motherboard design eliminates the need for firmware updates and allows for easy switching between laser modes through an intuitive UI.

The control box features a spindle stop function, allowing the spindle to be powered down with a simple press of a button when changing tools, enhancing safety.

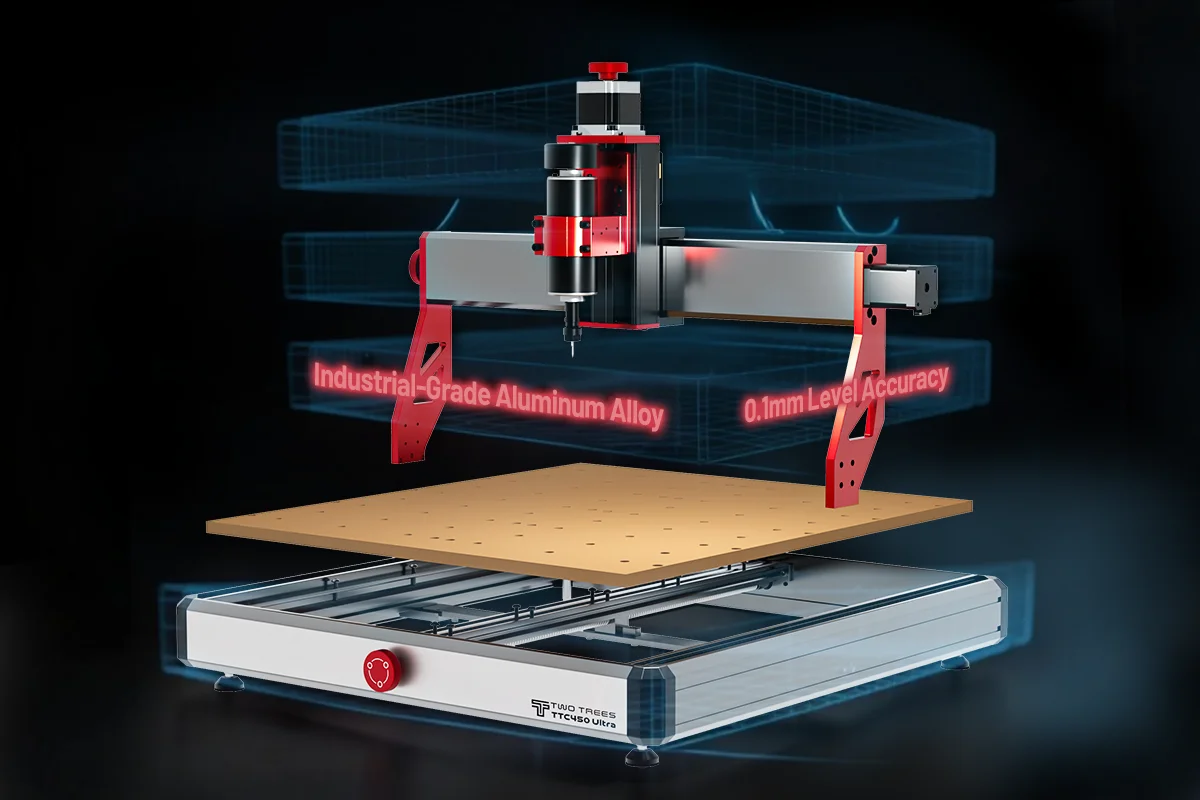

The upgraded 12H metal slide rail ensures more stable and faster processing.

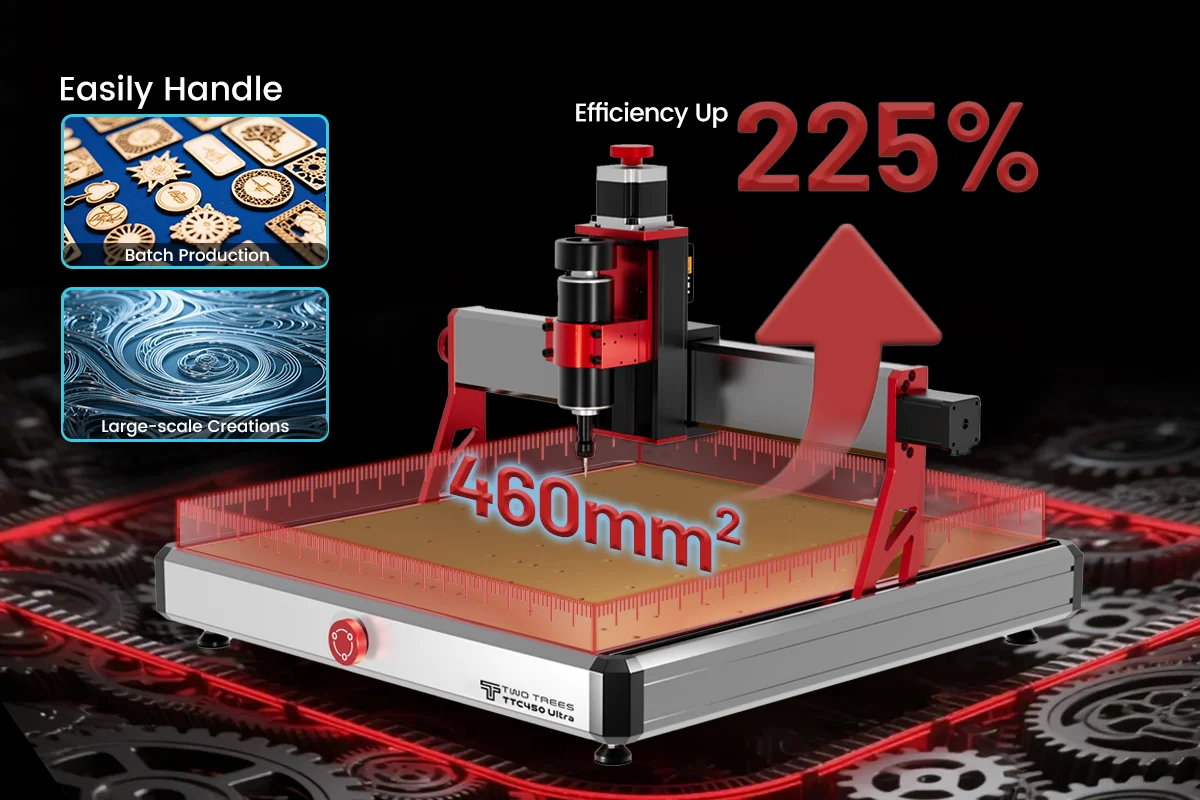

The large 460x460x100mm engraving area represents a 20mm increase in size compared to the 450 ProZ axis.
