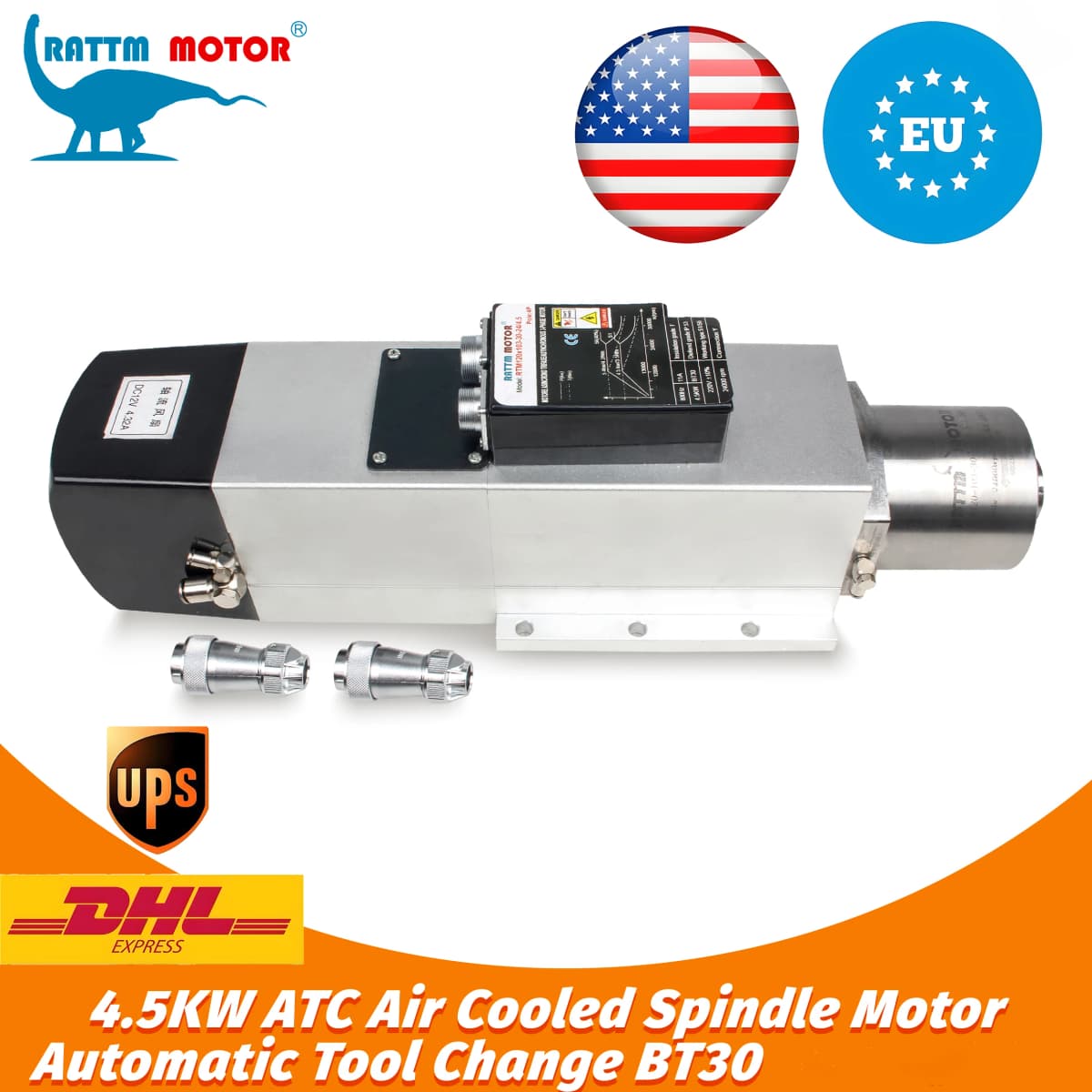

【US EU BR】ATC 4.5KW /7.5KW BT30 Auto Tool Changer Air-cooled Spindle Motor 24000RPM 380/220V for CNC Router Milling Machine

European customers who need to be exempt from VAT can change their country to Norway. After placing your order, please leave a message with your physical address.

The goods will be shipped from Germany to your specified real address.

Package Include:

1 x 4.5KW/7.5KW BT30 ATC Automatic Tool Changer Air cooled spindle motor ( 24000rpm,4 bearings,800HZ,220V/380V )follow your choice

1 x 5.5KW/7.5KW Fuling Brand VFD( 220V/380V ) (VFD's parameters already been setted well for this ATC Spindle)

2 x Navigation plug(Spindle Connector)

1 x BT30-ER25 Tool Holder

1 x pull stud

4.5KW BT30 ATC Automatic Tool Changer Air cooled spindle motor

Number of phases:3

Bearings type: 2*7008+2*7006

Cooling type: Air cooling

Warranty: 1 year from the date you purchased

Poles:4

Electric current:11A

Rated frequency: 800 Hz

Collet: BT30

Maximum speed: 24000rpm

Peak torque: 3.6Nm

Voltage:220V/380V

Rated power: 4.5KW

7.5KW BT30 ATC Automatic Tool Changer Air cooled spindle motor

Number of phases:3

Bearings type: 2*7008+2*7006

Cooling type: Air cooling

Warranty: 1 year from the date you purchased

Poles:4

Electric current:12A

Rated frequency: 800 Hz

Collet: BT30

Maximum speed: 24000rpm

Peak torque: 7.2Nm

Voltage:380V

Rated power: 7.5KW

Product Feature:

1)This

spindle is built-in type spindle motor, built-in three asynchronous

motors,by the inverter control.As the spindle has a compact

structure,high power, big torque,small vibration. low noise

characteristics,so it can achieve high speed high powe cutting,high

precision and high stability operation.

2)

The bearing of spindle use arease lubricated anaular to contact

bearings.can be achieved lifelong lubricating within the life cycle.

3)

The spindle use forced coolling mode to coolling motor,front and rear

bearings.Coolant flow through the reasonable arrangement cycle

watercourse of the spindle body,thus can take the heat generated of the

spindle rotation speed,to achieve thermal equilibrium,let spindle

temperature within a certain constant value. External coolina device

effect: maintainina a constant temperature of the coolant.

4)

The spindle built-in PTC 140 temperature sensor(Technical parameters

are visible in other sections of this specification),you can read it

anytime if you need to protect the motor temperature.

5) The tool clamping methods:this spindle built-in automatic tool change device,shank form is BT30.

5.5KW/7.5KW Fuling Inverter VFD 220v or 380V

This

VFD can be used for constant torque loads( such as hard starting:Air

compressors, HVAC units)and variable torque loads(such as pumps, fans,

etc). It can be used as a motor speed control and a phase converter. The

input for this VFD is 1 or 3 phase as you like. You can control

different speed when you use this VFD. Most of our customers bought this

VFD from us TOuse for:Lathes, Mills, Car Hoists, Pumps Conveyors, etc.

This item uses Sine wave PWN(SPWM )for the control system and

performance excellently.

Feature:

It could adapt TO the Dust working environment.

Output frequency:0-1000hz

220V Configuration:

Brand Name:Fuling

Power:5.5kw

Rated output current:23A

Output voltage:3phase AC220V

Input voltage:1phase AC220V

Frequency:0-1000HZ

380V Configuration:

Brand Name:Fuling

Power:5.5kw

Rated output current:23A

Output voltage:3phase AC380V

Input voltage:3phase AC380V

Frequency:0-1000HZ

380V Configuration:

Brand Name:Fuling

Power:7.5KW

Rated output current:18A

Output voltage:3phase AC380V

Input voltage:3phase AC380V

Frequency:0-1000HZ
