32 Channels Motion Sensor LED Stair Light Controller Kit DC 12V 24V Step PIR Automatic Controler for Stairway Staircase Lighting

Features:

Made of high quality plastic and aluminium, with a stable output and sensitive sensing. Perfect for homes, shopping malls, shops etc.

Fully automatic, turns on the light when it senses someone walking and turns off the light when they leave.

With anti-leakage system, stable output, safer and more secure use.

Touch the setup button to adjust the speed of the lights off on the controller.

Long press for 5 seconds to set the number of stair lights, blue light means the serial number light is on. Click the button until all lights are on, up to 32 stair lights can be controlled, press and hold again to confirm.

Product description:

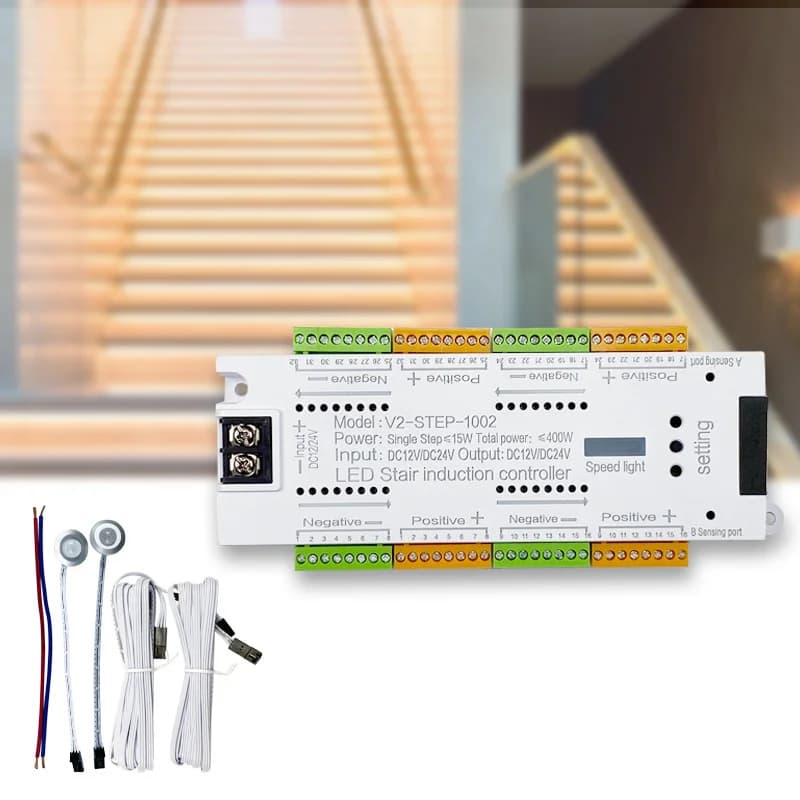

Product name: 32-channel stair sensor controller

Voltage: DC12V/DC24V

Power: ≤350w

Channel: 32

Sensors: 2

Operation settings:

-1-Long

press the setting key for 5 seconds to enter the step number setting.

Short press once to set one step of LED lighting. The controller has a

corresponding blue indicator light, and the blue light will light up for

each step.

-2-Short

press the setting button once to adjust the speed of the LED. The speed

has four gears for adjustment. The more red lights turn on, the faster

the LED lights up.

-3-After

the above two steps are completed, you need to press and hold the

setting button for 5 seconds to automatically save the corresponding

setting.

NOTE:

1-A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.

3- The product is not waterproof.

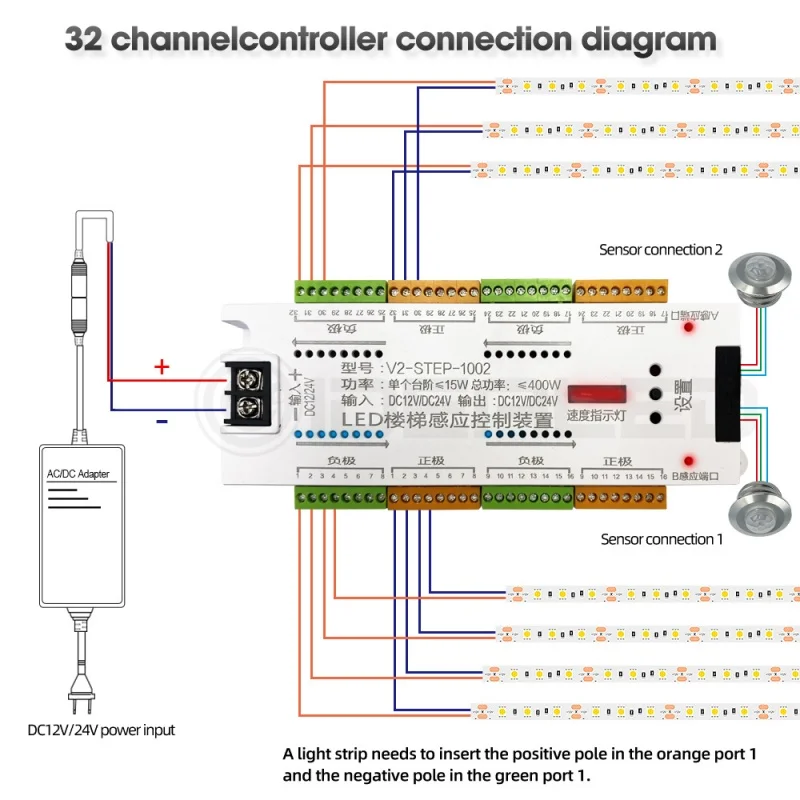

Important

note: The positive and negative terminals of the power supply input of

the controller cannot be reversed, the red wire V+ is connected to the

positive electrode of the switching power supply, and the blue (or black

wire) V- is connected to the negative electrode of the switching power

supply.

Product package:

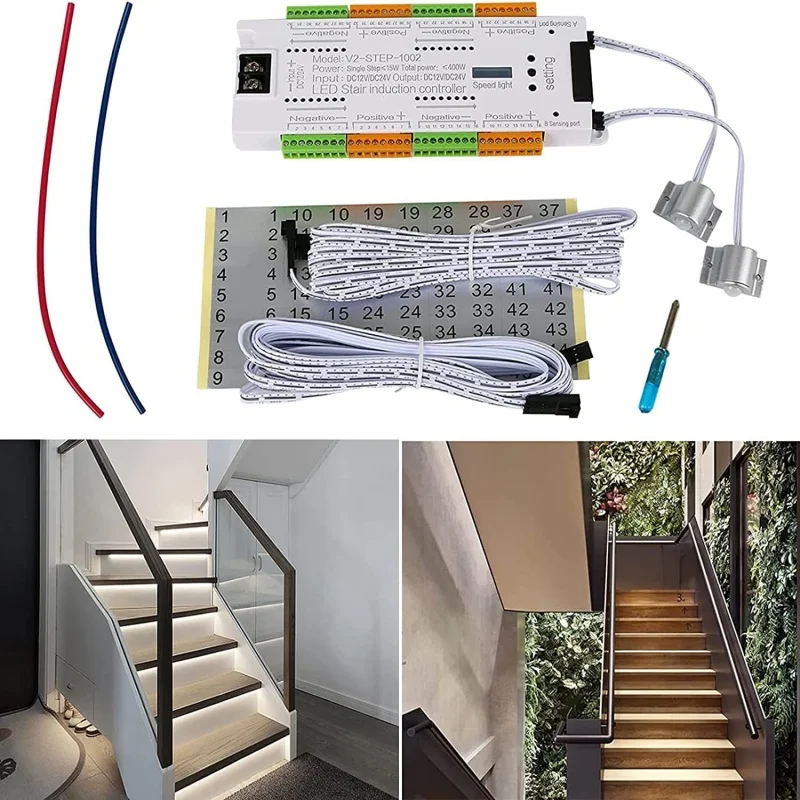

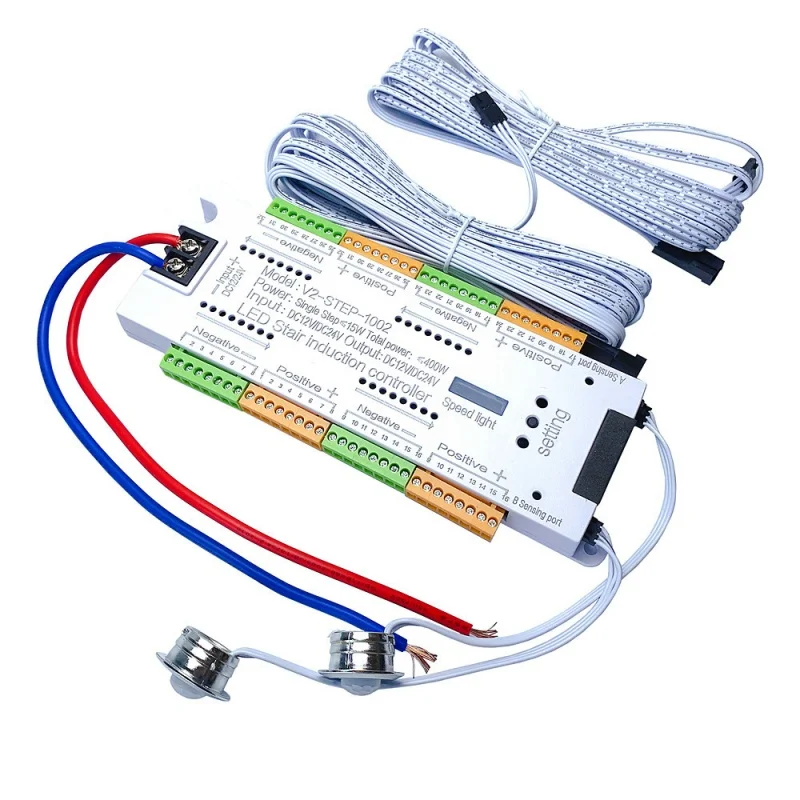

Only LED controller: 1pcs LED Controller + 2pcs sensor + Output Cables
