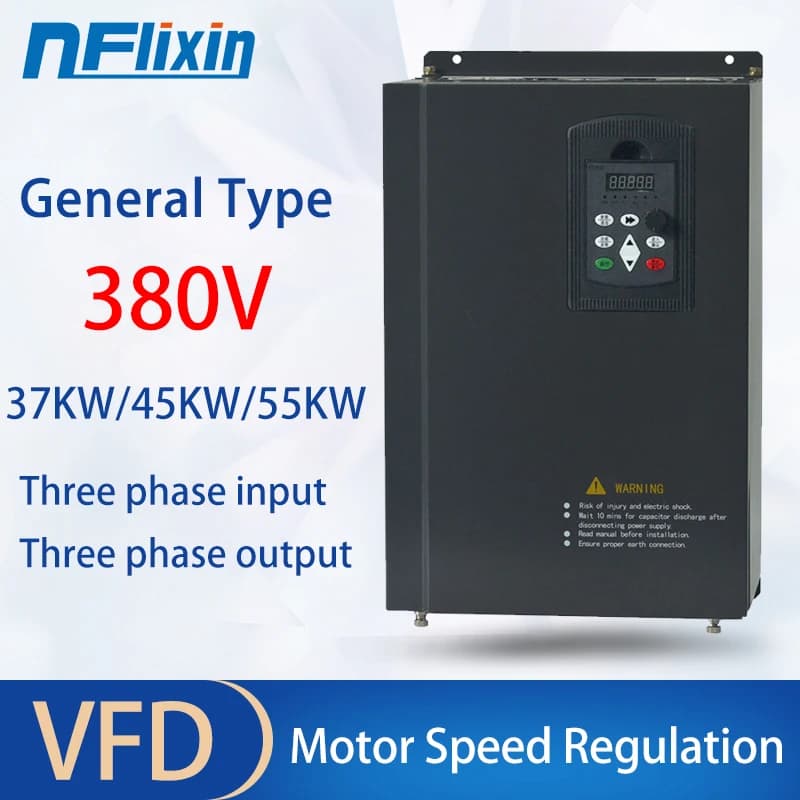

NFlixin VFD 37kw/45kw/55kw 3Ph 380V Output Frequency Converter Variable Frequency Drive

If you have any questions, please contact my WP 86 17688978149 and we will quickly address your concerns

Output Power:11KW/15KW/18.5KW/22KW/30KW/37KW/45KW/55KW

Control way: Open loop vector control(SVC)      V/F control

Starting Torque: G type machine:0.5Hz/150%( SVC)

Basic Function: Speed tracking,PID control,auto speed compensation,AVR,Torque control.time control, multi-speed choice etc

Digital Display/Status ldicator: Display frequency.speed,current.voltage ,forward/reverse,fault etc

Main function: Control and adjust the speed of the ac motor

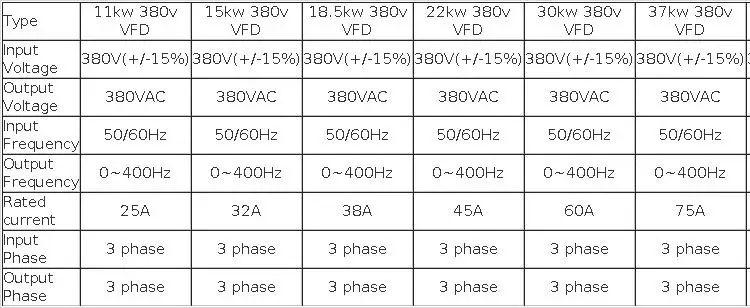

Model selection

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

01 V/F control, vector control  and output torque control;

02 Built-in RS-485 communication interface

03 Compact size, easy to install;

04 With a speed potentiometer and external panel;

05 Built-in synchronous control and proportional synchronization control;

06 16 speed control modest,Can run automatically;

07 Can choice multiple running commands or frequency channel;

08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);

09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;

10 6 digital opto-isolated inputs, 100 kinds of ways optional;

11 3 analog input, 1 analog output channel;

12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;

13 Built-in user timer / counter;

14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.

15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.

About us and our products

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

A. V/F control, vector control  and output torque control;

B. Built-in RS-485 communication interface

C. Compact size, easy to install;

D. With a speed potentiometer and external panel;
