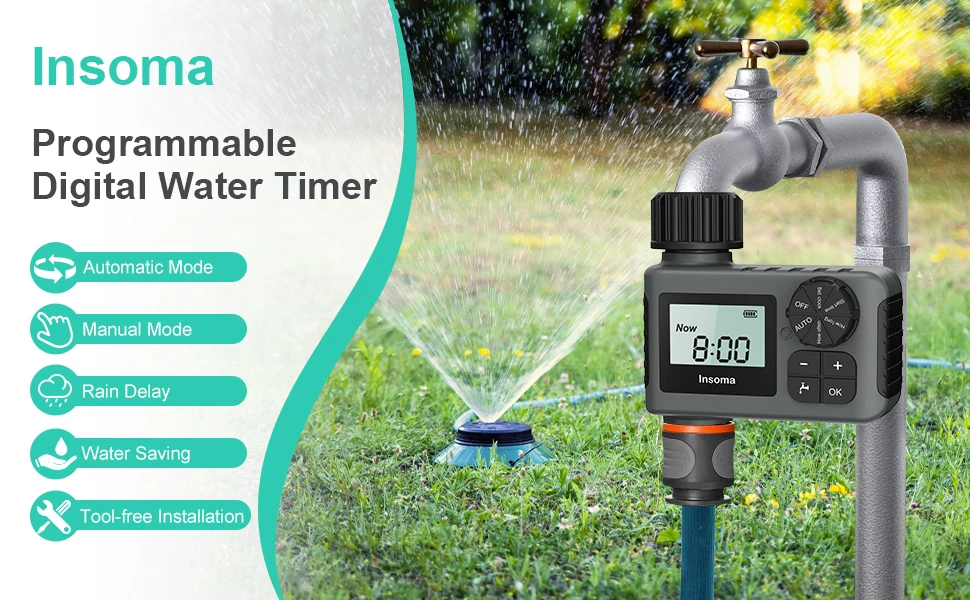

INSOMA Automatic Watering System Smart Garden Irrigation Water Timer with Brass Swivel for Hose Fuacet Outdoor Garden IPX5

Specification

Lasting time: more than 6 months.
Min/max operating pressure: 0.5~8bar (7.25~116psi)
Working temperature: 4.5~45℃ (40.1~113℉)
Power: 2xAA alkaline batteries (not included)
Waterproof: IP55
Rain delay time: 1 day and up tp 7 days
Connect: 3/4' and 1/2'
Operating model: Both automatic and manual
Certification: CE, FCC, ROHS, ISO9001
Package Including: water timer*1, seal tape*1
, 3/4" Male NPT to 1/2" Female NPT reducer adapter*1, 3/4"GHT male thread *1, user manual*1

Note

For outdoor use only.

Please don't use recharging batteries which can't provide enough voltages. Please use 50cm AA alkaline batteries

Clean the filter regularly and replace if it's worm in order to extend the working life of timer.

In winter, please remove batteries, drain and store it indoor to away from freezing.

Do not install the timer with tools. Hand tighten Only. Use of tools may damage the timer.

Do not subject the product to extreme force and shock.

To prevent leakage, make sure that the water timer is tightly attached to the faucet and hose, add rubber washer and thread seal tape of necessary.

Insoma----Your Garden Carer

The Insoma brand focuses on creating high-quality garden irrigation products. the garden irrigation system timer is deal for outdoor gravity drip irrigation system, garden irrigation watering, lawn sprinkler controller, greenhouse mist system, pool, etc.

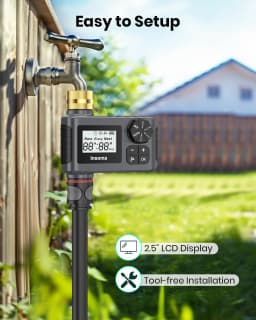

Easy to Program

With Insoma sprinkle timer, you don’t need to worry about that plants is dead or lawns is soggy when you are busy or go out for vacation. And it also helps you save water and money on your watering bill. Be your perfect garden helper.

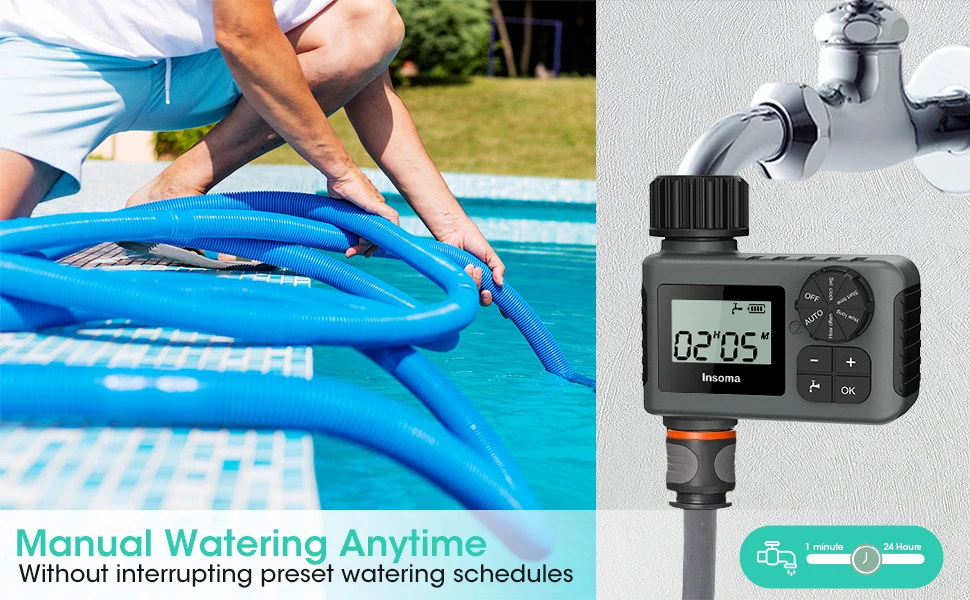

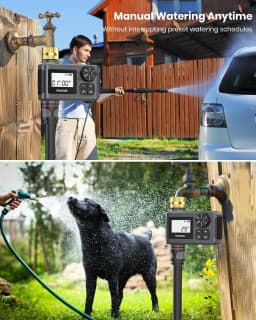

Manual Mode

With Manual mode, you can use faucet to do other things from 1min to 23hours59 mins without interrupting your schedule.

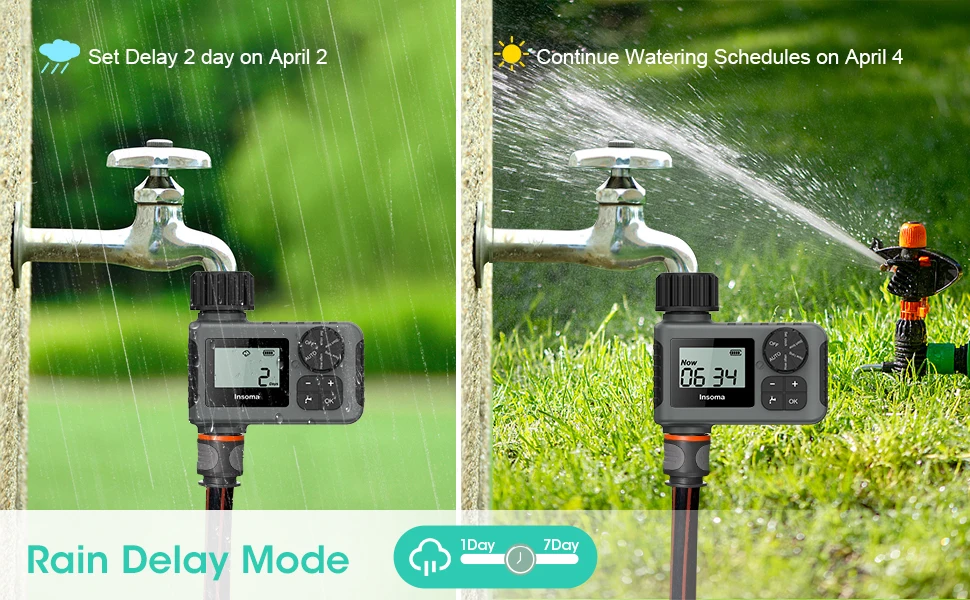

Rain Delay Mode

In rainy day, the rain delay setting helps you pause your schedule 1-7 days and will be automatically resumed, saving water and bills. Long press "+" enter rain delay setting.

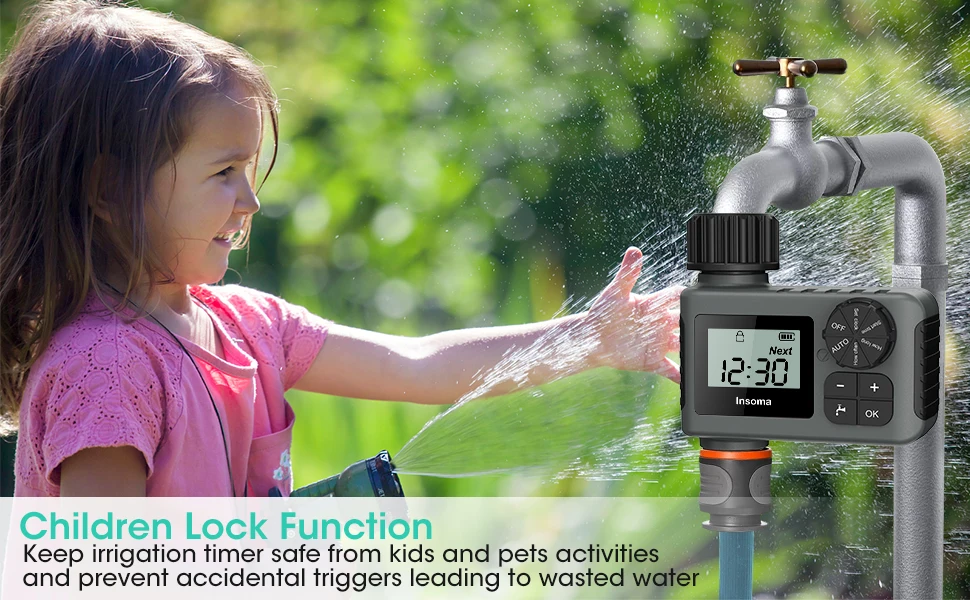

Children Lock Mode

Child Lock mode keep the garden hose timer safe from kids and pets activities, avoiding mistaken operation. Long press "-" enter children lock setting.

FAQ

Q1: The LCD screen doesn't display anything when the batteries are installed.

A1: Two batteries loaded are new 1.5V AA alkaline batteries, make the batteries are properly placed in the battery box.

Q2: Water doesn't come on at preset time.

A2: ① clock should be set to the correct time.
② start time is set to desired the time.
③ rain delay is on.
④ off mode is on.
⑤ the batteries are low.
⑥ the faucet is turned off.

Q3: The hose tap connection/outlet leaks.
A3: ① the O-ring is connected correctly to the hose
tap.
② the connection outlet or water pipe is
broken.
③ the faucet and water pipe has a different
thread. If necessary, please use appropriate
adapter or PTFE tape.
