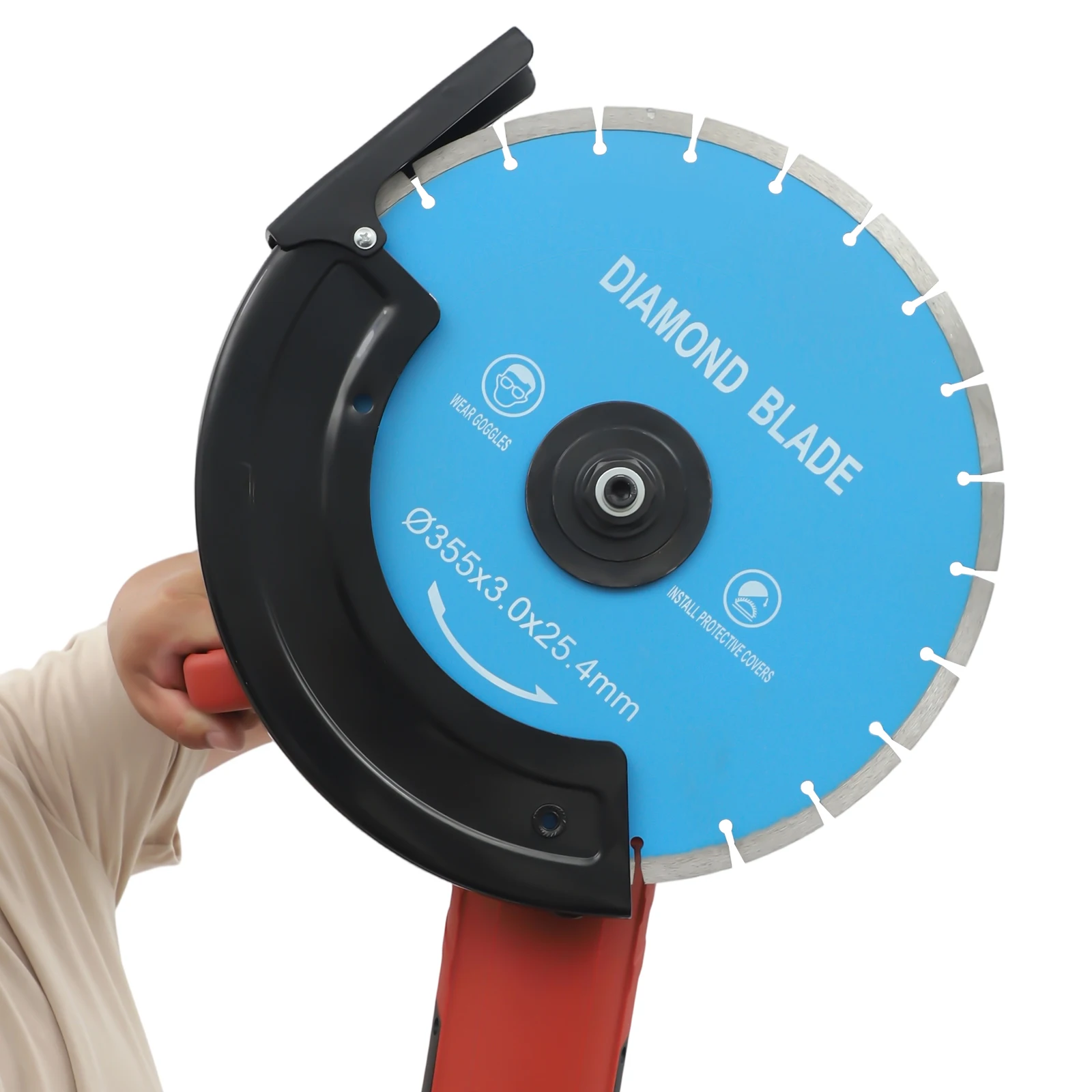

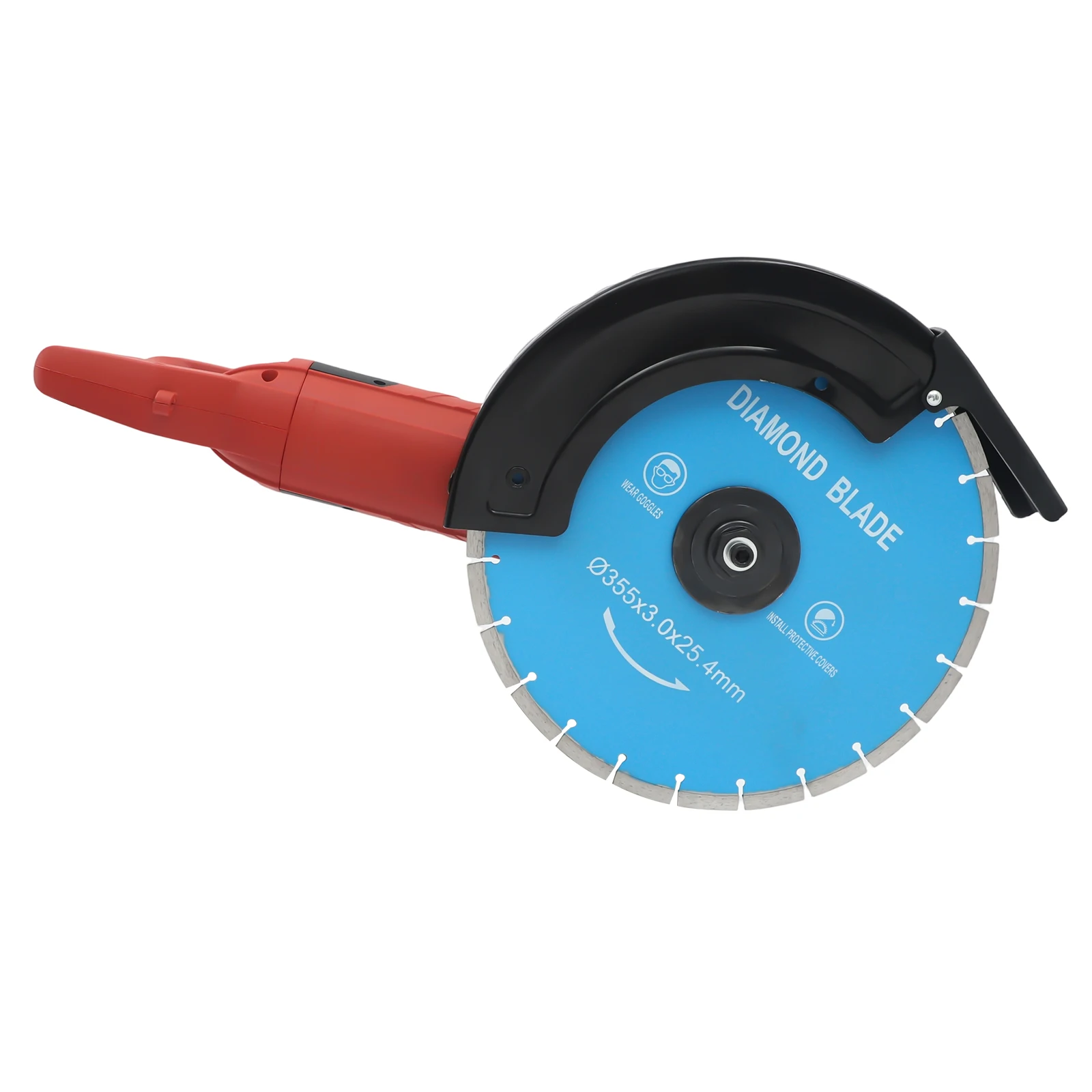

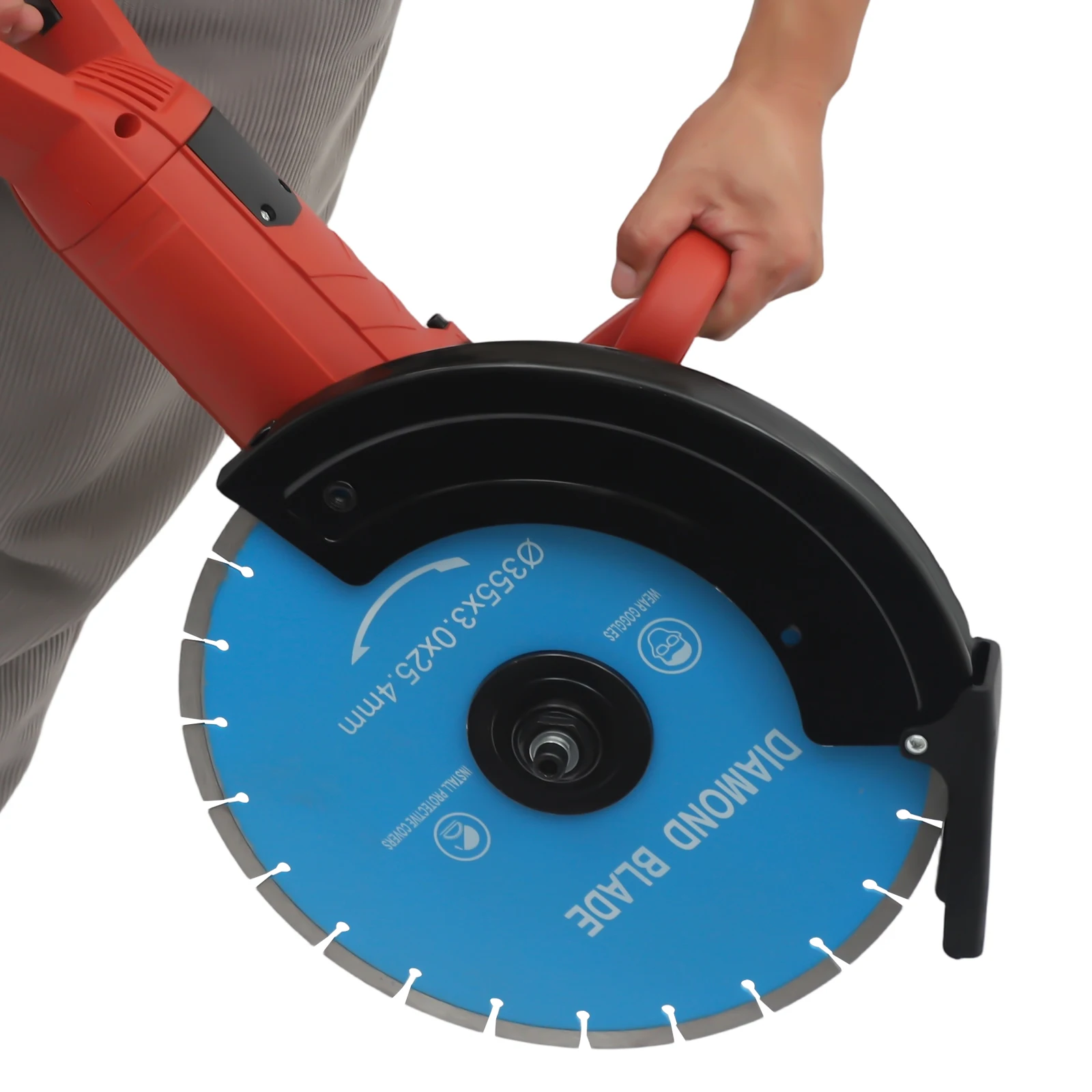

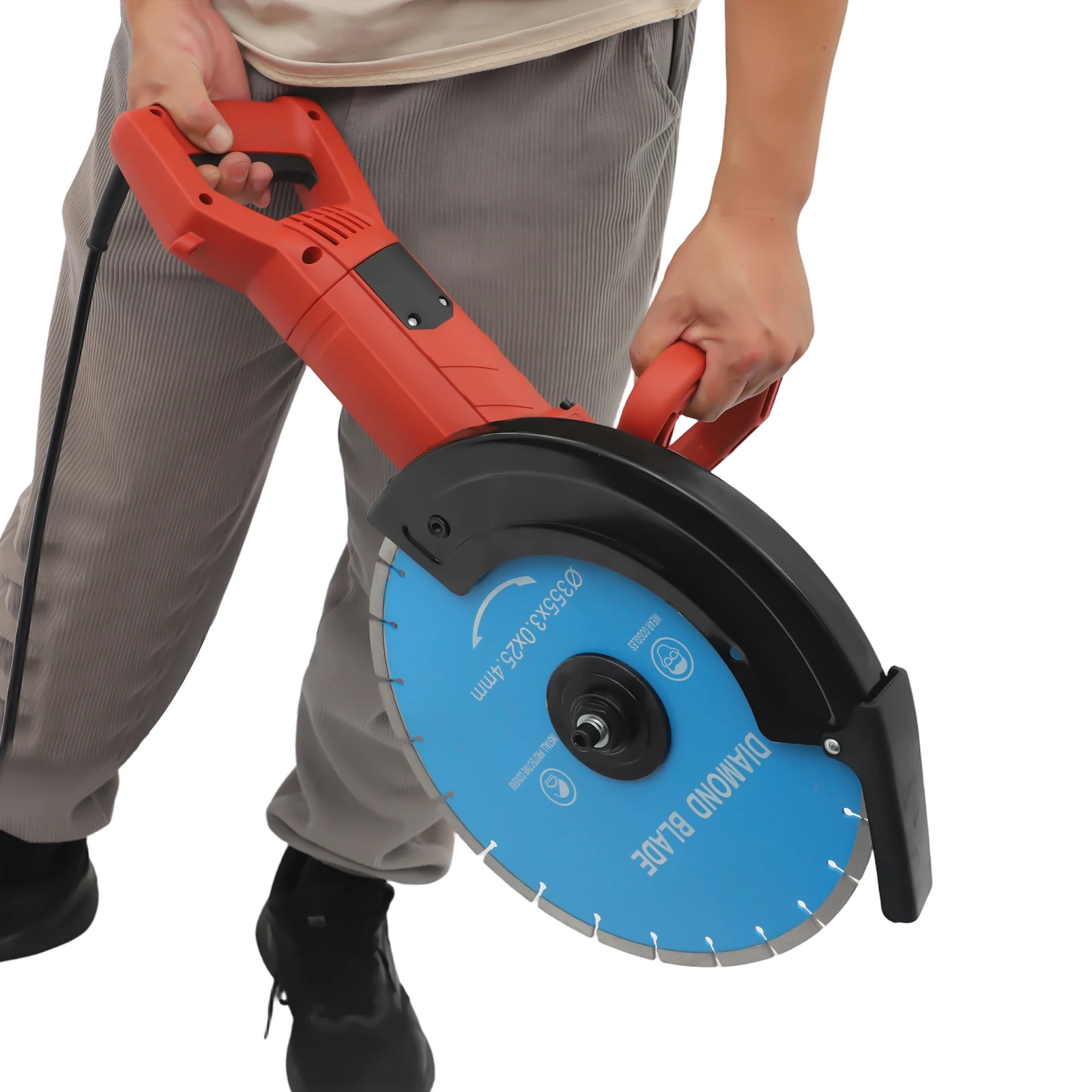

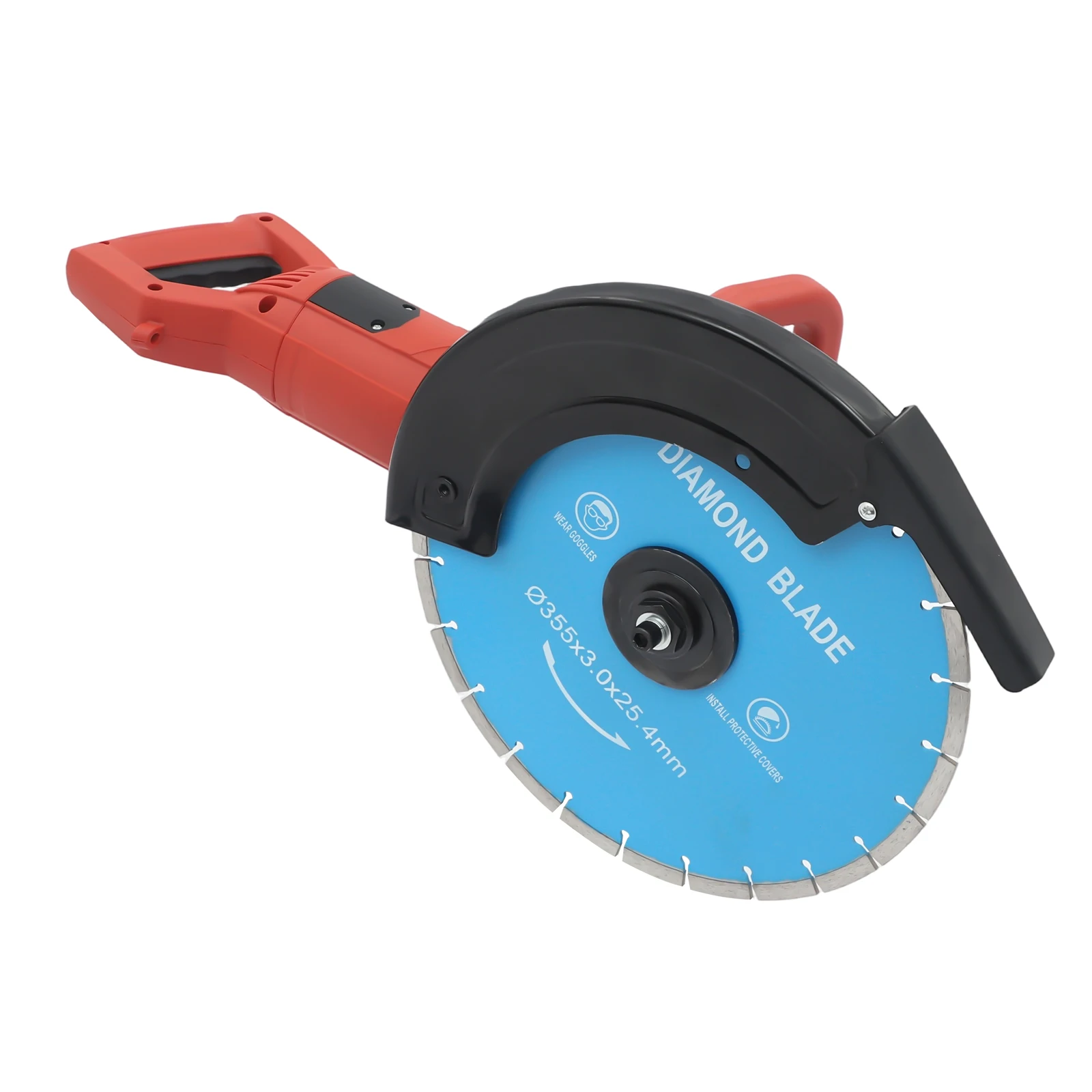

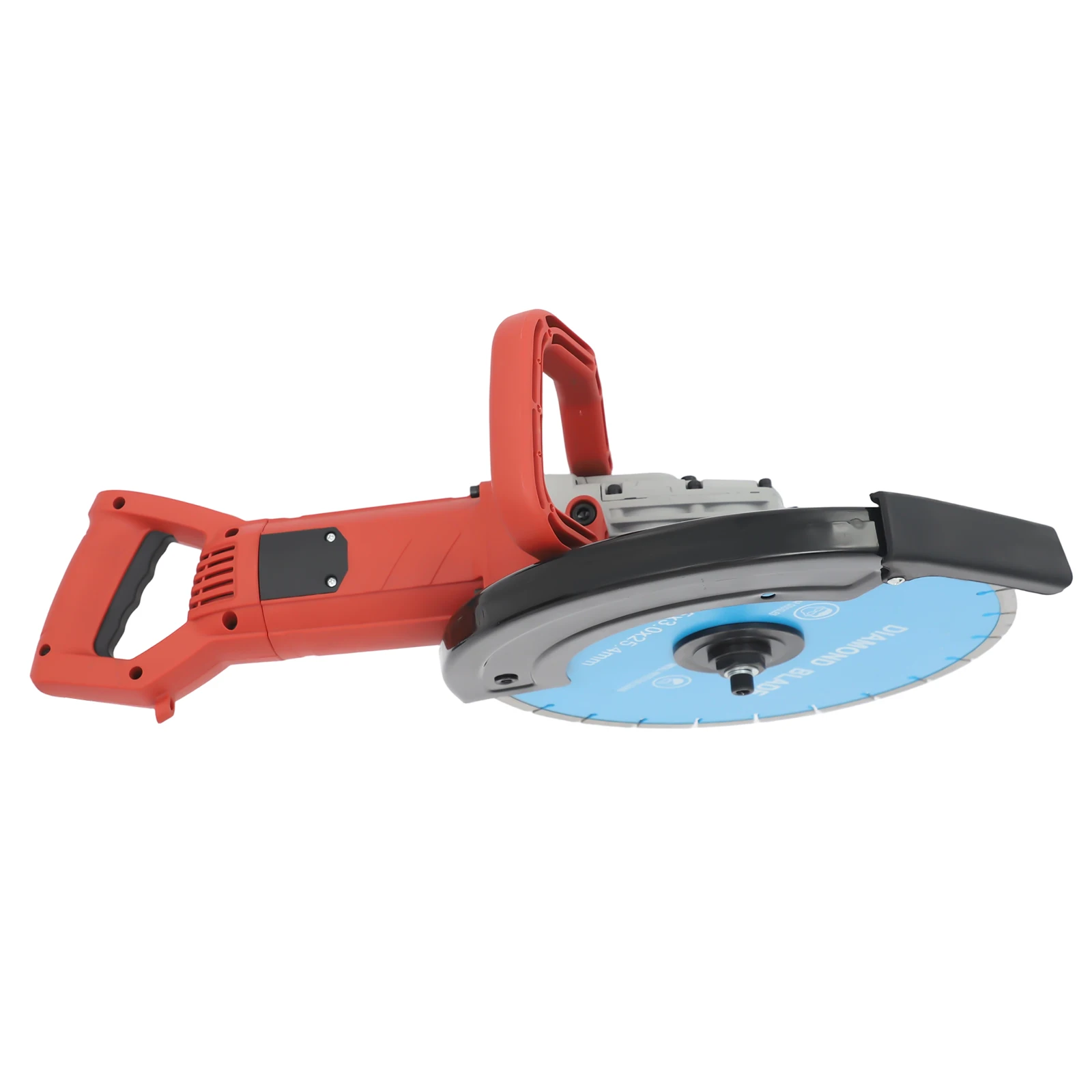

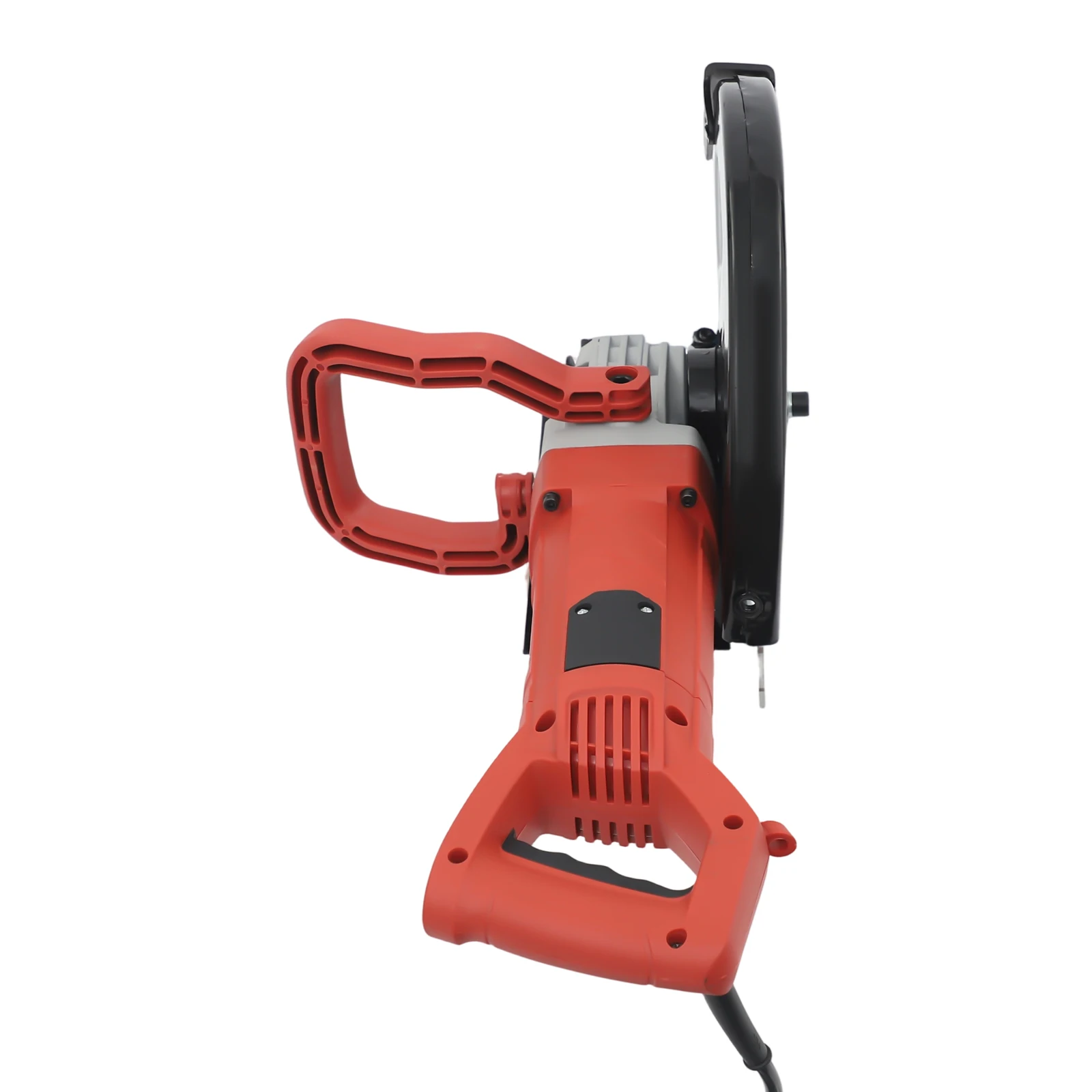

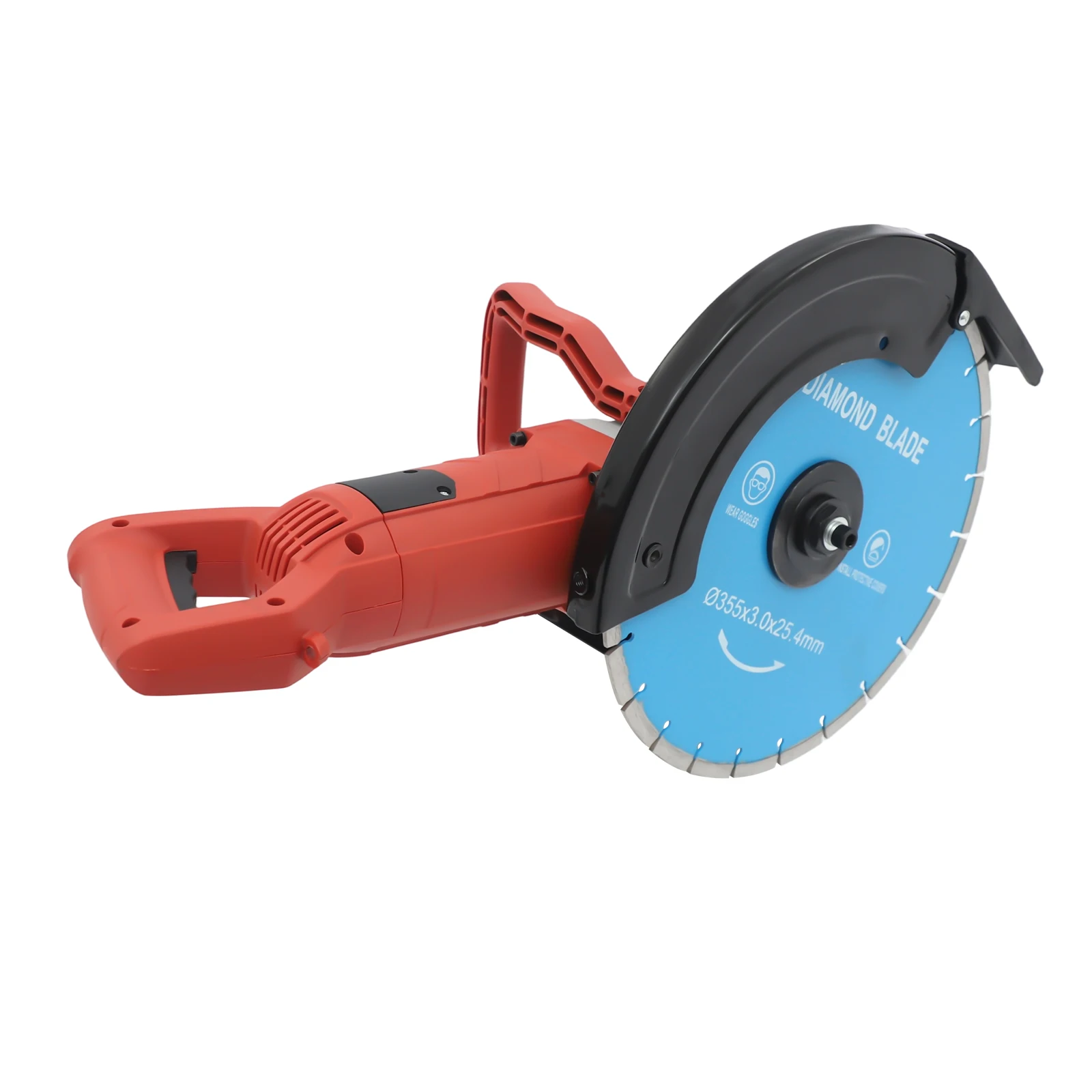

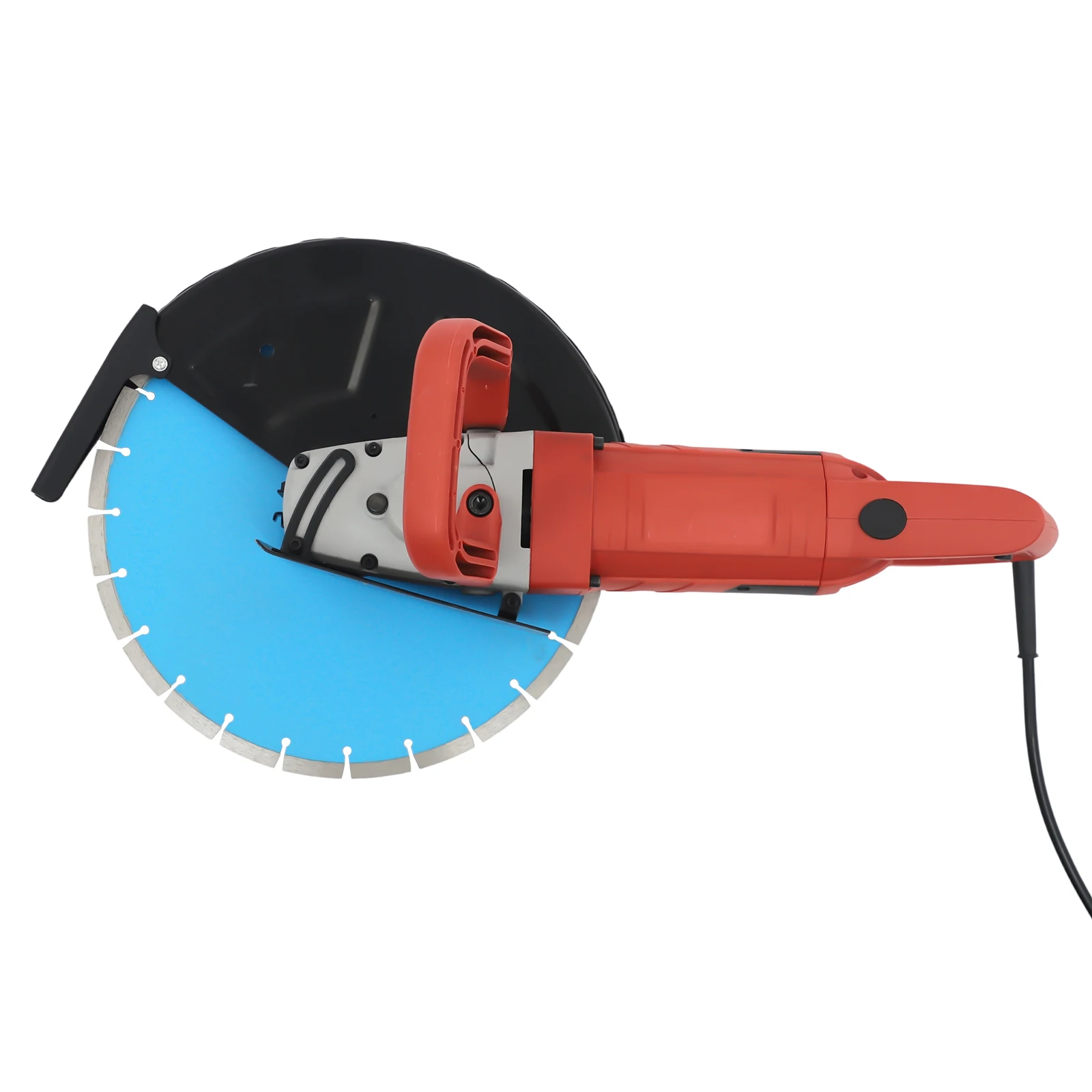

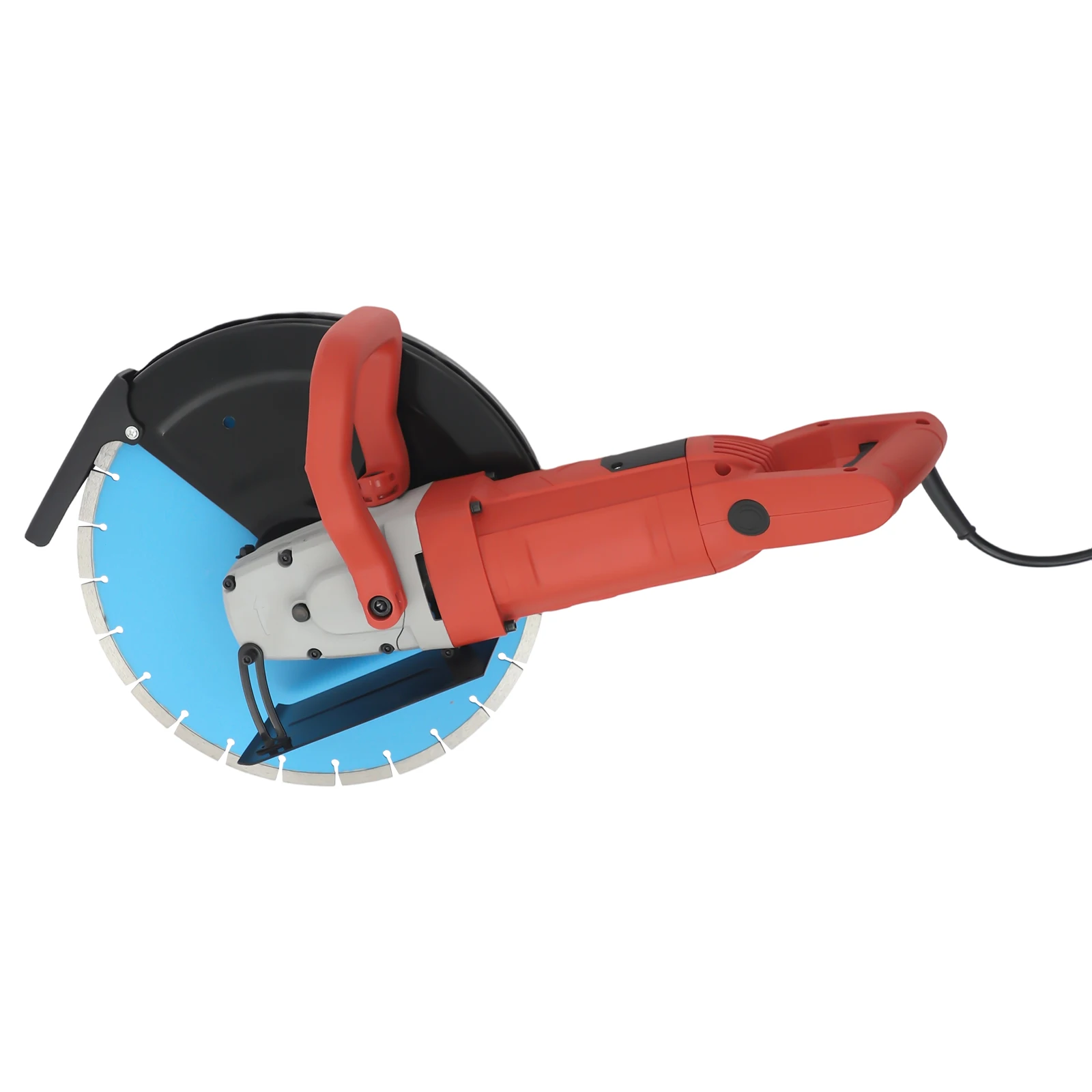

3KW Electric Concrete Saw w/350mm Blade,Wet Dry Cutting Saw Handheld Circular Saw Grooving Machine Wall Slotting Machine 3800RPM

Professional 220V 3000W 3800RPM Handheld Electric Concrete Saw with 35cm/13.77inch Diamond Blade, 13.5cm/5.3inch Max Cutting Depth, Wet/Dry Dust-Free Cutting Machine, 180° Rotating Handle Cutter for Granite Marble Brick Stone Tile

NOTE: This product has both EU and UK plugs, we will ship according to the country you order from.

The work of slotting and cutting itself is difficult, and without suitable and useful tools, it can be truly frustrating. A handheld single piece concrete saw will be your effective assistant at work! The high-quality pure copper motors can work stably for a long time, greatly improving your efficiency. The wide cutting angle, flexible handrails, and lightweight body all provide you with a good user experience. Take our concrete saw home and start a brand new work experience!

Key Features

Highly Efficient: The pure-copper motor provides high power of 3000W and a speed of up to 3800r/min. The cutting blade with high diamond content is sharper and can quickly and easily penetrate tiles, concrete, and wood, greatly improving your work efficiency.

Stable Performance: The pure-copper motor can run for a long time with a noise level of only about 70 decibels, providing you with a better user experience. In addition, the large-sized heat dissipation holes provide good ventilation and heat dissipation, protecting internal components from burning out.

High Safety: The waterproof design allows you to use water for dust removal during work at ease, with overload protection, wall blocking self-stop, and soft start, protecting the motor from injury and preventing accidents.

Dust-free Cutting: This set is equipped with a suction pump and a roll of water pipe, which can achieve dust-free cutting by supplying water to the saw blade, greatly reducing the damage caused by dust and extending the service life!

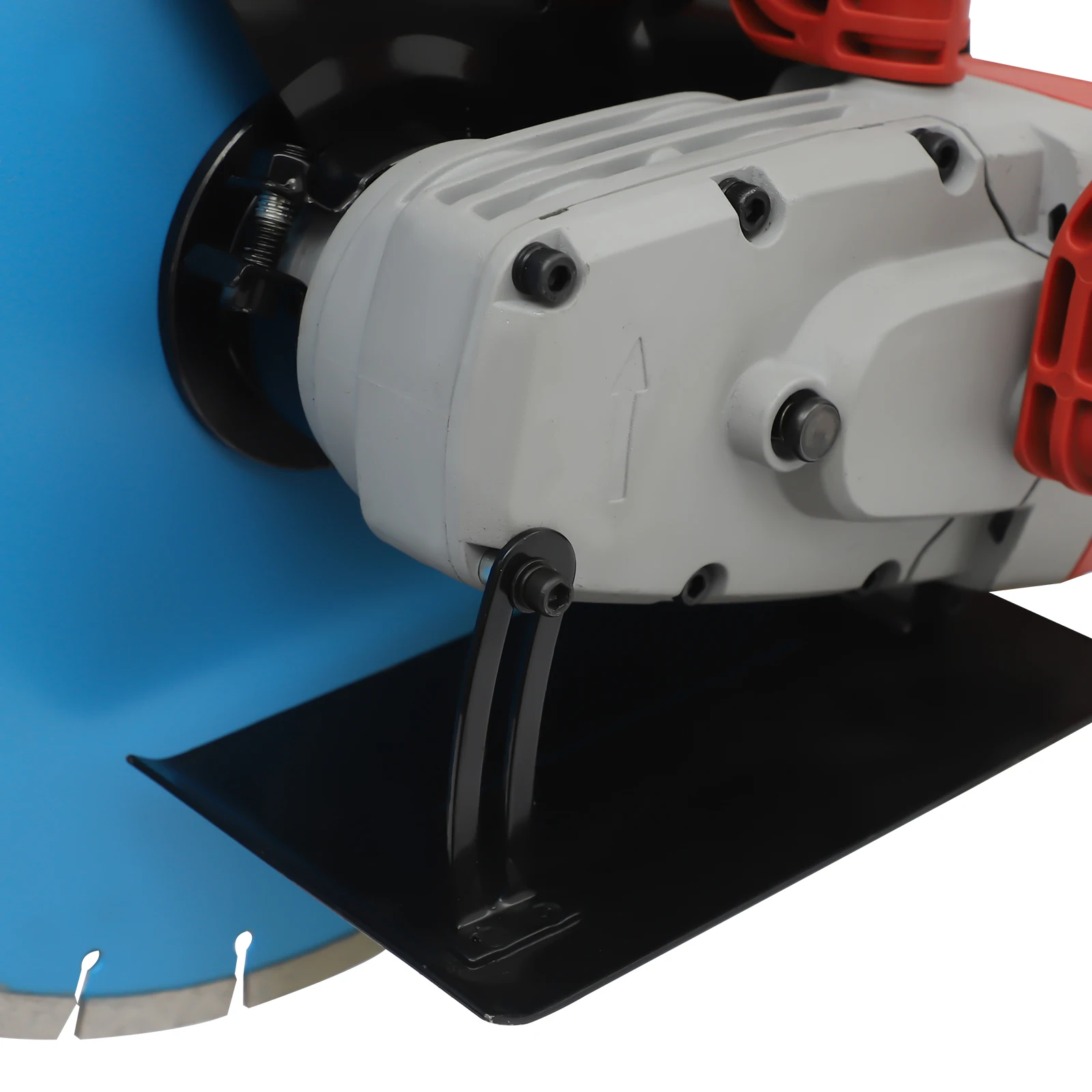

Adjustable Depth: By adjusting the position of the depth plate, you can freely choose the cutting depth, with a maximum depth of 5.3-inch, to meet your different needs.

Durable and Sturdy: The high-quality aluminum alloy dust cover, iron plate, and ABS shell, combined with electroplating and sandblasting, make it sturdy, wear-resistant, impact-resistant, rust-proof, providing stable power transmission and a longer service life.

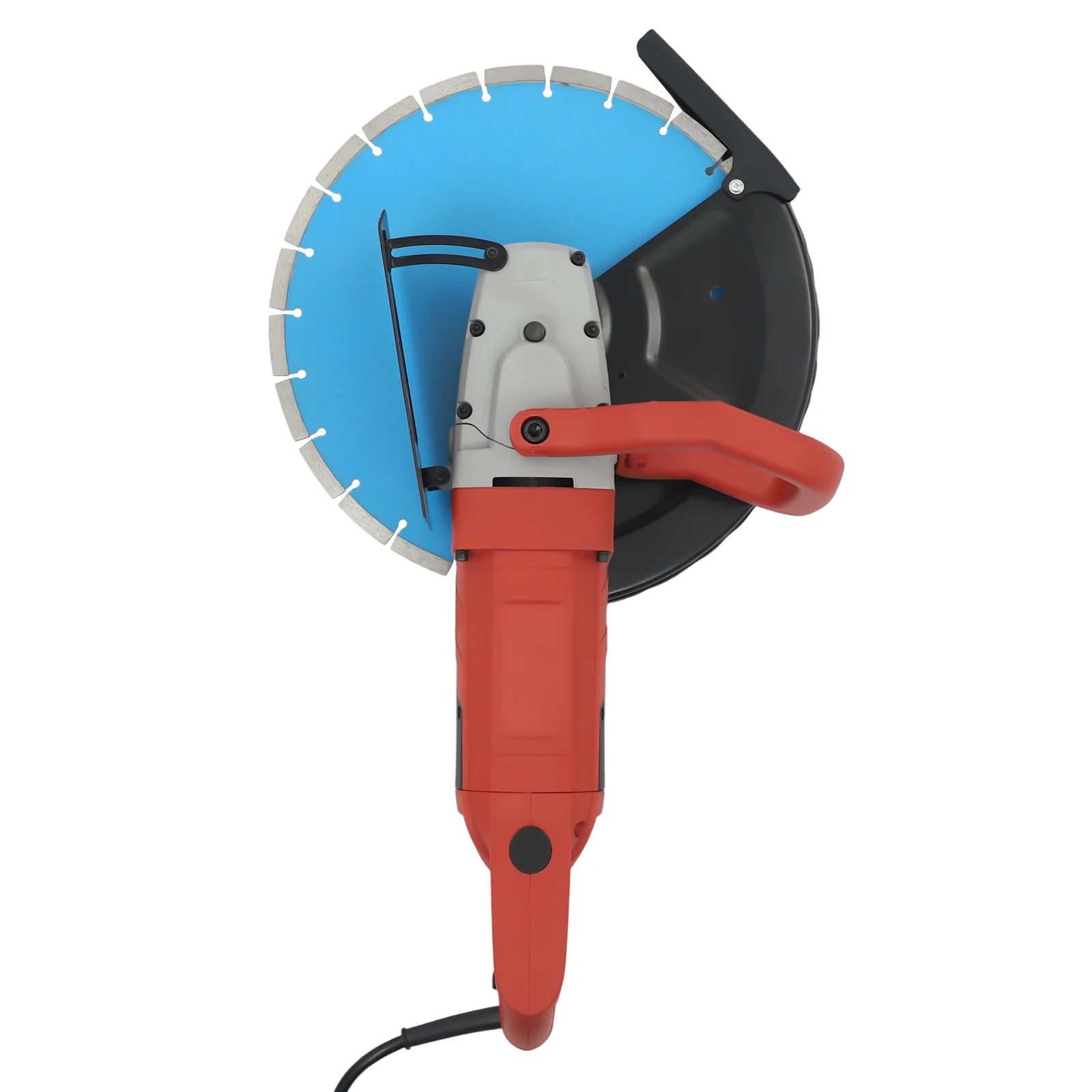

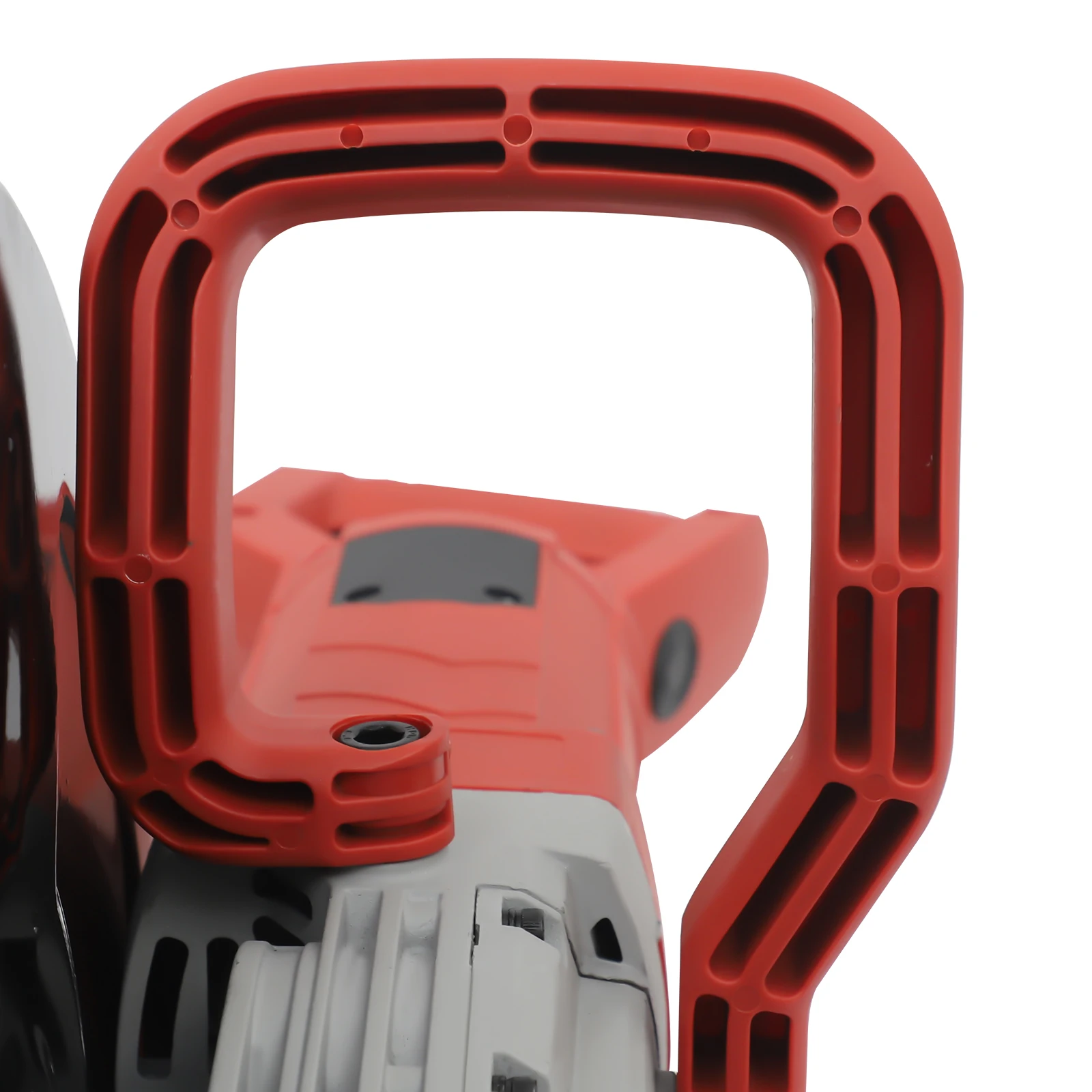

Rotating Handles: Simply press the rotary knob on the handle to rotate the main handle 180 degrees so it can adapt to different working environments for vertical and horizontal cutting.

User-friendly Design: The curved handle conforms to ergonomics providing good convenience and accuracy for your operation. The external carbon brush design achieve easy disassembly and assembly, which is time-saving and user-friendly.

Details

Protective Cover: The protective cover can effectively block flying objects and dust during the operation, and also protect workers from accidental cuts. The lid can also be opened for wider angle cutting.

High-quality Power Cord: It's equipped with a 9.5ft long power cord , providing you with more flexible available space. The power cord is also equipped with a leakage protection device to increase safety.

Lock Button: It can lock the machine's open state, so you don't have to keep holding down the switch.

Application

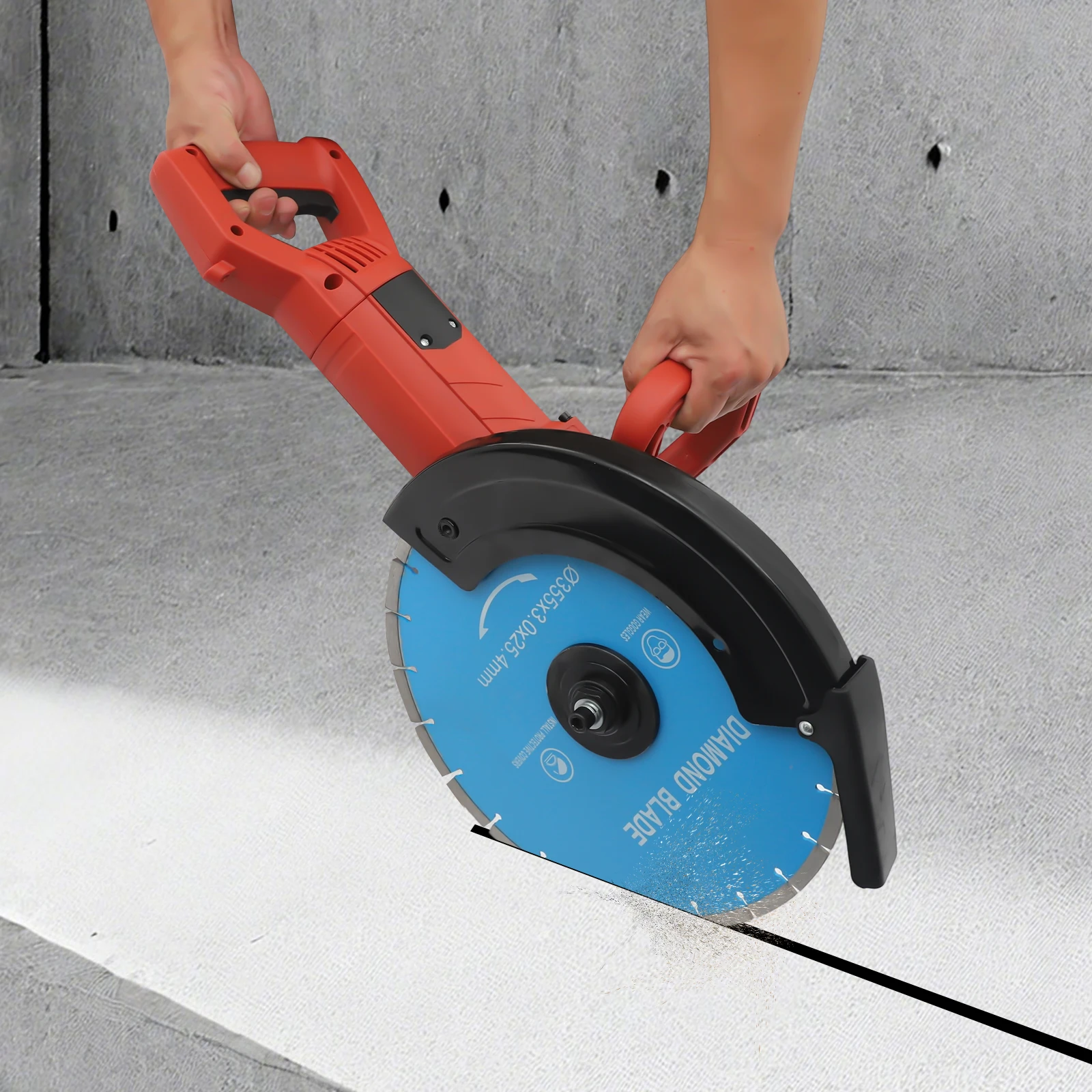

It is suitable for materials such as steel, marble, granite, cement, wood, ceramic tiles, etc., to perform tasks such as opening holes for doors and windows, grooving, cutting on roads and walls, stone processing. It is very suitable for factories, workshops, households, wood industry, and DIY work.

Specifications

Material: ABS, Copper, Aluminum Alloy, Iron

Color: Orange, Black, Blue

Style: Modern

Power Source: Corded Electric

Motor Type: Pure-copper Motor

Dust Removal Method: Water Wet

Surface Treatment: Electroplating, Sandblasting

Speed: 3800r/min

Power: 3000W

Max. Load Power: 5800W

Saw Blade Rotation Direction: Turn Back
Voltage: 220V
Noise: About 70DB
Cutting Depth: ≤13.5cm/5.3in
Main Handle Rotation Angle: 180 °
Power Cord Length: 2.9m/9.5ft
Main Handle Width: 14cm/5.5in
Sub-Handle Width: 15cm/5.9in
Saw Blade Diameter: 35cm/13.77in
Saw Blade Bore Diameter: 2.54cm/1in
Saw Blade Thickness(Cutting Width): 3mm/0.12in
Gross Weight: 12.25kg/27lbs
Net Weight: 11.05kg/24.36lbs
Product Size: 65*37cm/25.6*14.56in
Package Size: 57*37.5*20.5cm/22.44*14.76*8.07in

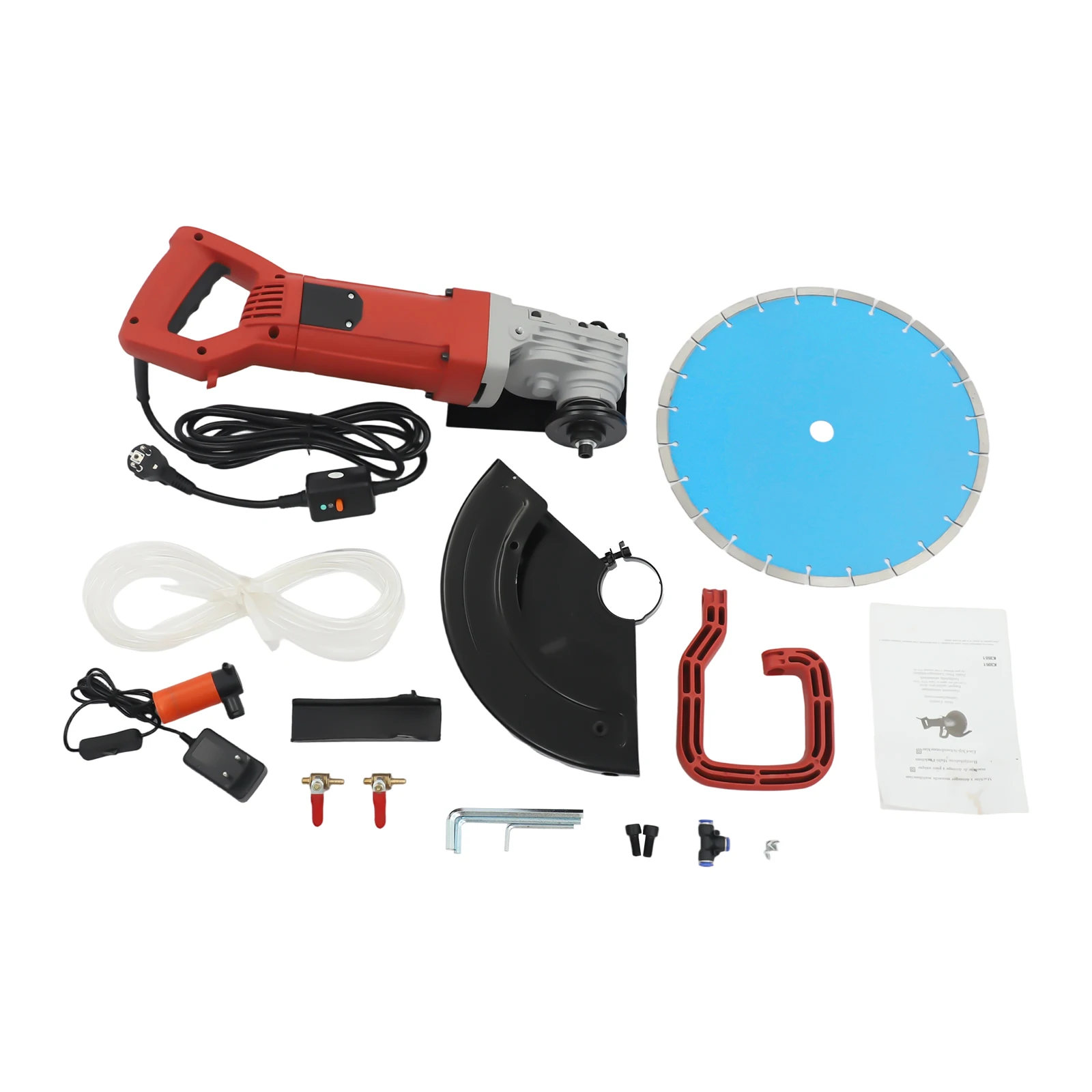

Package Included
1* Concrete Saw
1* Saw Blade
1* Protective Cover
1* Secondary Handle
1* Water Tube
1* Suction Pump
1* English Manual
All Accessories for Assembly


How to Replace the Blade
1.Press and hold the locking button.
2.Turn the spacer with a spanner.
3.Place the saw blade and cover the spacer.
4.Press and hold the locking button and tighten the spacer.

Notes
1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.When using water for dust removal, please note the machine head should be facing downwards to prevent water from flowing into the machine body. And when cleaning the machine, water should be avoided from entering the machine through the ventilation opening.
3.Please note the reason for the saw blade folding back: The saw blade folding back is because the hand has cushioning to withstand this recoil. This steering makes it easier for users to apply greater thrust and to some extent accelerate cutting speed.
4.Please regularly check the carbon brushes for wear and replace them promptly if there are large sparks. Before inspection or maintenance, please turn off the machine and unplug it.
5.When the machine slows down, you can raise the machine to idle for 1 minute and then continue running to avoid overloading and burning.
6.Please do not operate it in explosive environments, such as in environments with flammable liquids, gases, or dust.
7.Please note that protective equipment must be worn when using this product.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
