Discounted Sales of Solar Panels: Different Power Specifications Available – 100W / 120W / 150W / 200W

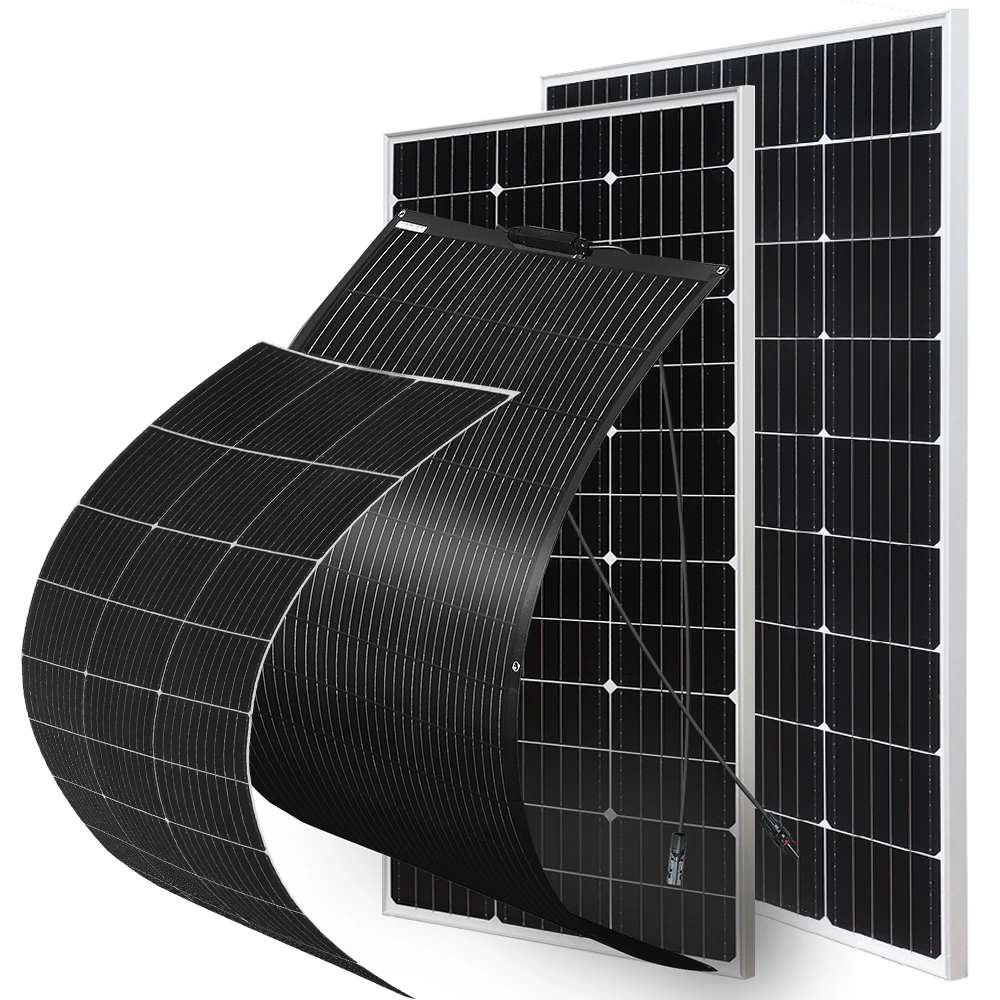

Discounted sales of solar panels: solar panels with different power specifications are available: Semi-flexible solar panel 100W / 120W / Rigid Solar Panel 150W / Glass solar panel 200W.

16.5V 100W Semi-flexible solar panel Specification

Maximum power(Pmax) 100W

Maximum system voltage 600V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.66A

Maximum power voltage(Vmp) 16.5V

Maximum power current(Imp) 6.06A

Number of cells 30pcs

Weight 1.7kg

Size 1000mm*550mm*2.5mm

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note that the solar panel power output refers to the test output at STC: lrradiance1000w/m2,Temperature 30 Celsius system, AM=1.5
The output power of other tests in different environments will be different. In addition, the solar panel needs to be in the sun to have output. If you want to test, you need to test it in the sun

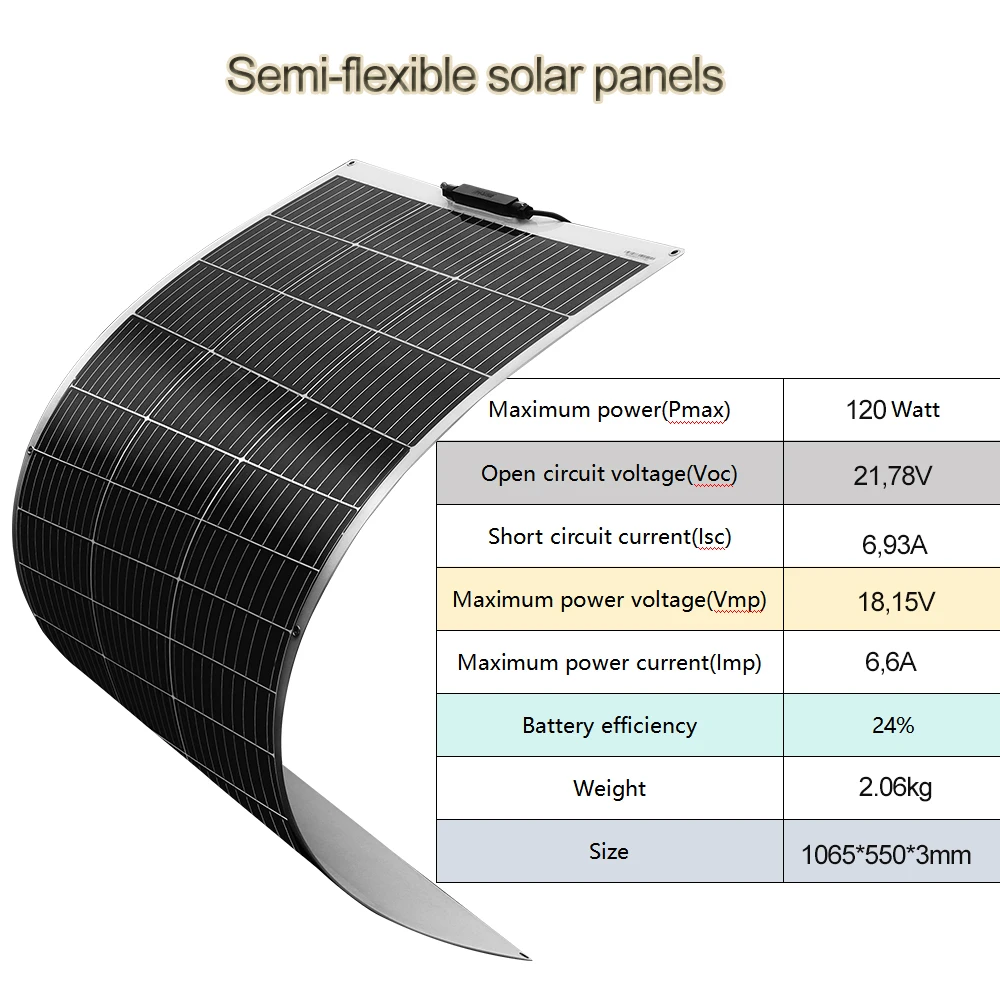

Semi-flexible solar panels

120W solar panel Specifications

Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g
Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

The flexible solar panels inside this link are available in Two colours.

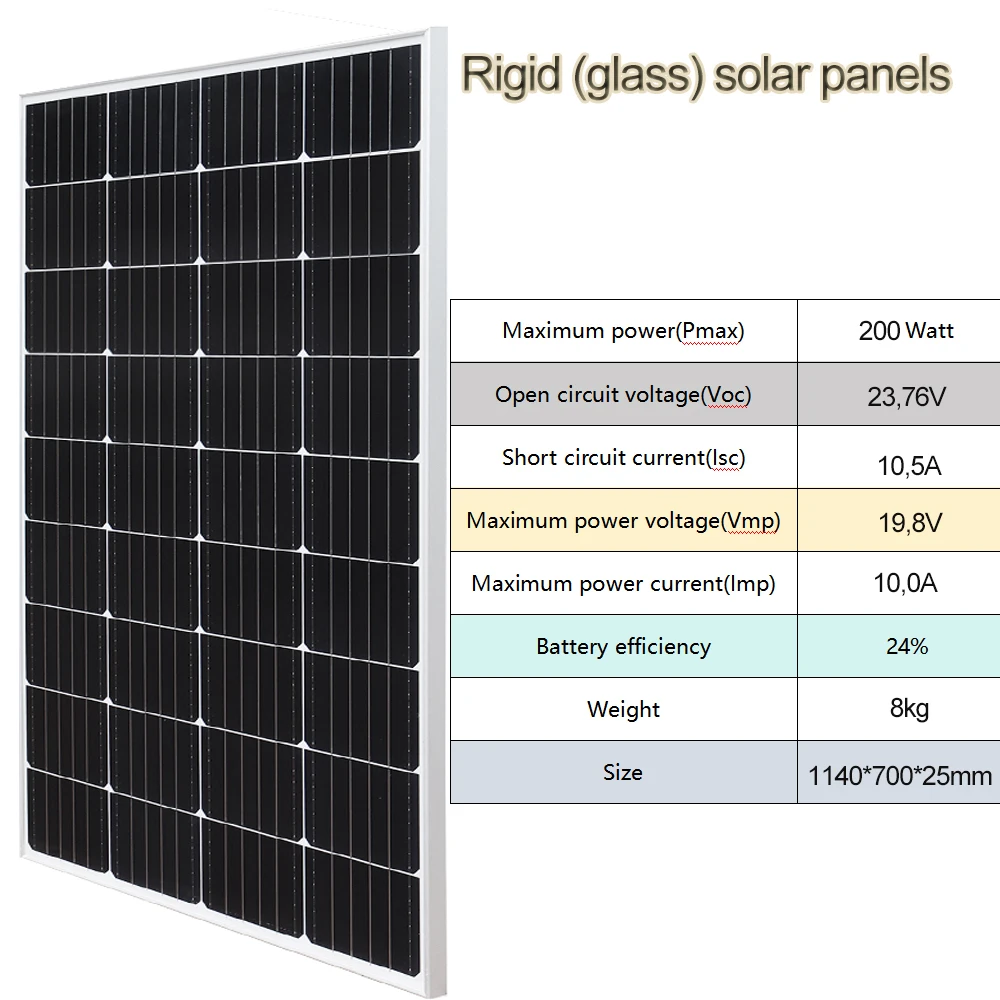

19.8V 200W Solar Panel Specification:

Maximum power(Pmax) 200W

Output tolerance ± 5%

Maximum system voltage 1000V DC

Open circuit voltage(Voc) 23.76V

Short circuit current(Isc) 10A

Maximum power voltage(Vmp) 19.8V

Maximum power current(Imp) 10.5A

Cell efficiency 24%

Operating temperature(NOCT) 45±2℃

Temperature range -40℃～+80℃

Cell Monocrystalline silicon

Number of cells 36pcs

Weight 8kg

Size 1140*700*25 mm

Surface material Toughened glass

Back film Color White

Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
