315/433MHz RF Transmitter Receiver Module Wireless Remote Module for Arduino 3.5-12V/DC5V Smart Electronics Module for Arduino

(315MHZ Transmitter/315MHZ Set/433Mhz Transmitter/433Mhz Receiver/433MHZ Set/315MHZ Set/315Mhz Transmitter/433Mhz Transmitter/433Mhz Receiver/433MHZ Set/433Mhz Receiver/315Mhz Transmitter/315MHZ Set/433MHZ Set/433Mhz Transmitter)--RF Transmitter Receiver Module
315/433 Mhz RF Transmitter Receiver Module 3.5-12V/DC5V Wireless RF Transmitter Receiver 10MW Wireless Remote Module for Arduino DIY
Feature:
1. Long-Range Transmission: The RF transmitter receiver module operates at a lower frequency, providing strong penetration power and long transmission distance.
2. User-Friendly: This wireless RF transmitter receiver is designed to be simple and easy to use. With basic wiring and setup, users can quickly establish wireless communication connections. No complex configuration or programming is required for wireless data transmission.
3. Versatile Applications: The remote control module finds extensive applications in various fields such as remote control, wireless doorbells, security systems, smart homes, and more. It meets communication needs across different industries.
4. Low Power Consumption Design: Typically, the remote control module features a low power consumption design, saving energy and extending battery life. This makes it ideal for portable devices and battery-powered systems.
5. Satisfaction Guarantee: We strive to provide the highest standard of customer service to every customer to ensure you have a pleasant shopping experience. If you have any questions, queries or need help, please feel free to contact us.
Specification:
Origin: Mainland China
Type: Module
Condition: New

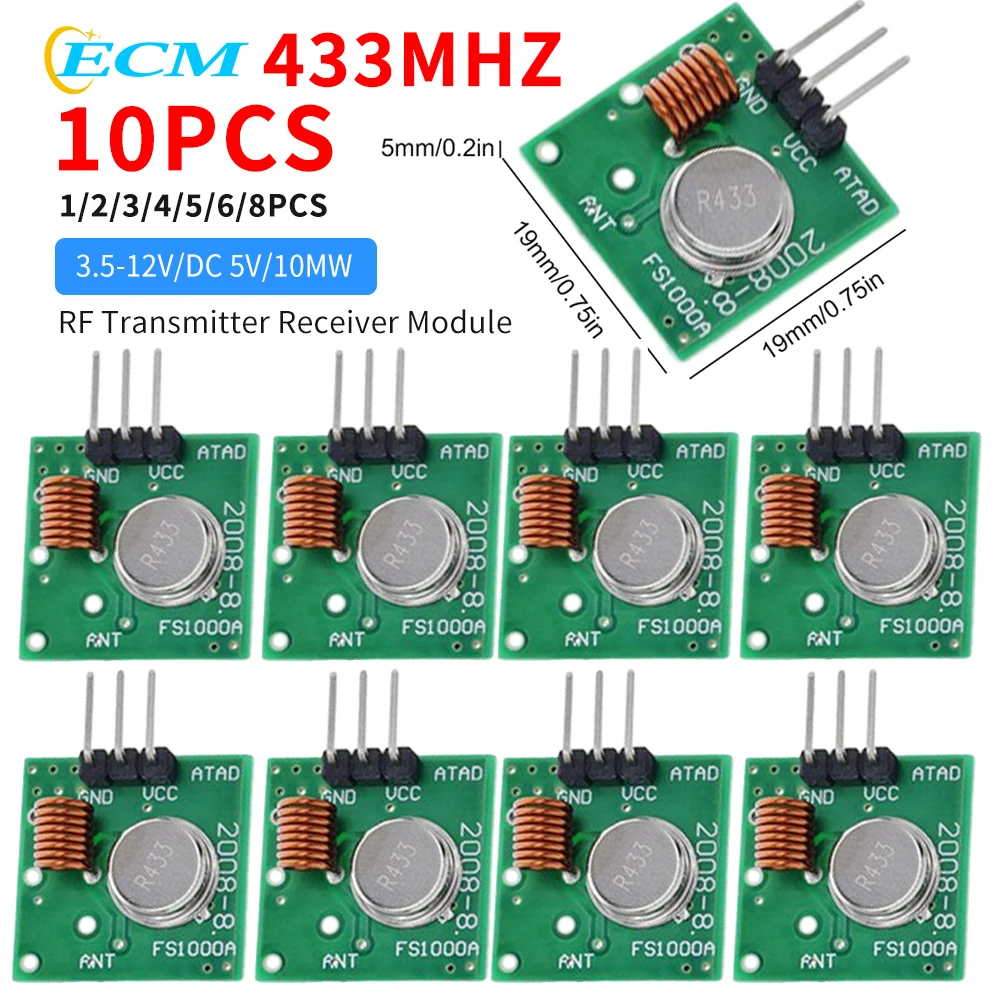

Transmitter technical parameters
Product model: MX-FS-03V
Launch distance: 20-200 meters (different voltages, different effects)
Working voltage: 3.5-12V
Overall size: 19*19*5MM/0.75x0.75x0.2inch
Working method: AM
Transmission rate: 4KB/S
Transmitting power: 10MW
Transmission frequency: 315/433MHZ
External antenna: 25CM ordinary multi-core or single-core wire
Pin arrangement from left to right: (DATA;VCC;GND)

Receive module technical parameters
Product model MX-05V
Working voltage: DC5V
Quiescent current: 4MA
Receiving frequency: 315/433.92MHZ
Receiving sensitivity: 105DB
Size: 30*14*7MM/1.18x0.55x0.28inch
External antenna: 32CM single core wire, wound into a spiral transmitter head technical parameters

Specification:
1*315MHz transmitter module
1*315MHz receiving module
1*315MHz transmit + receive module
1*433MHz transmitter module
1*433MHz receiving module
1*433MHz transmit + receive module


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
