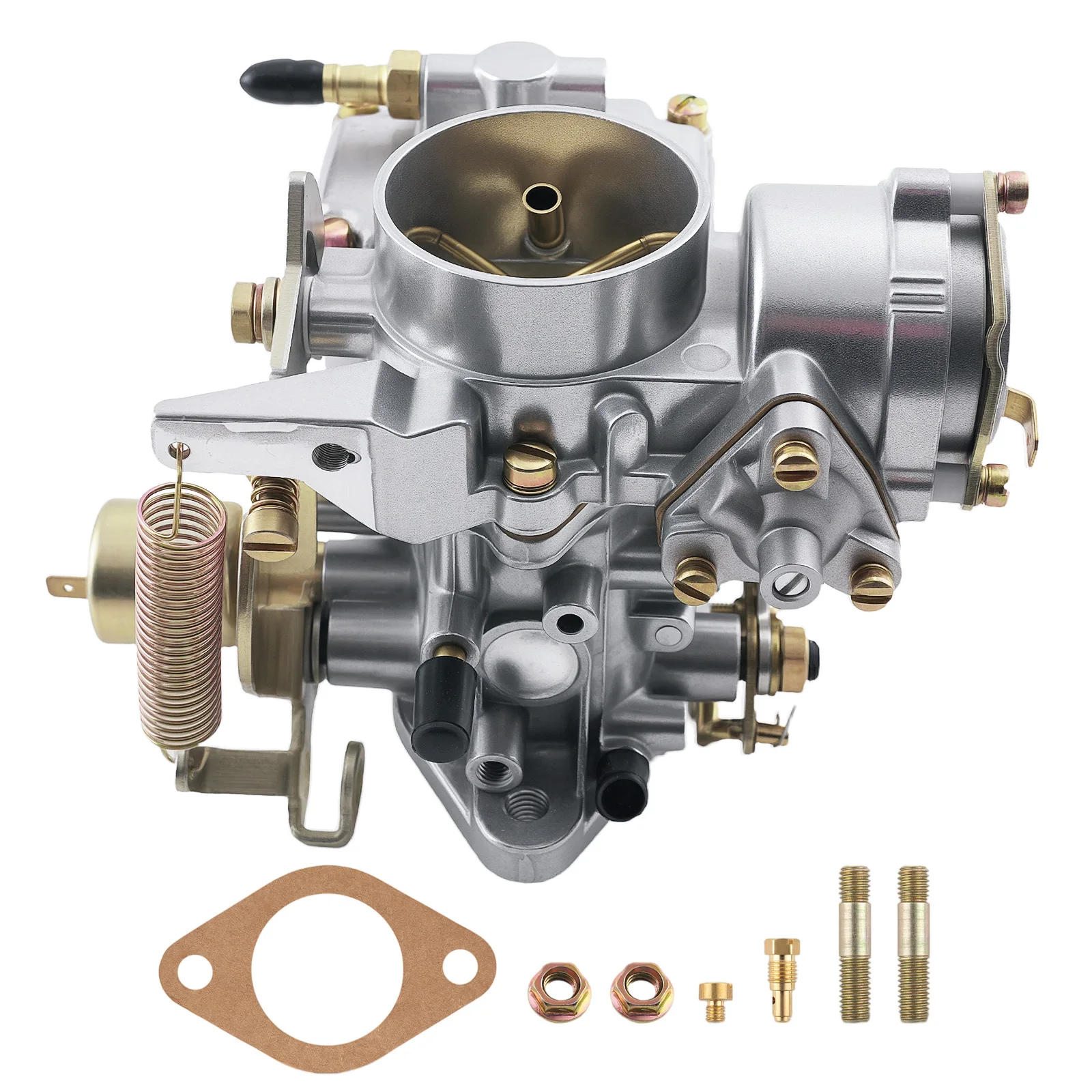

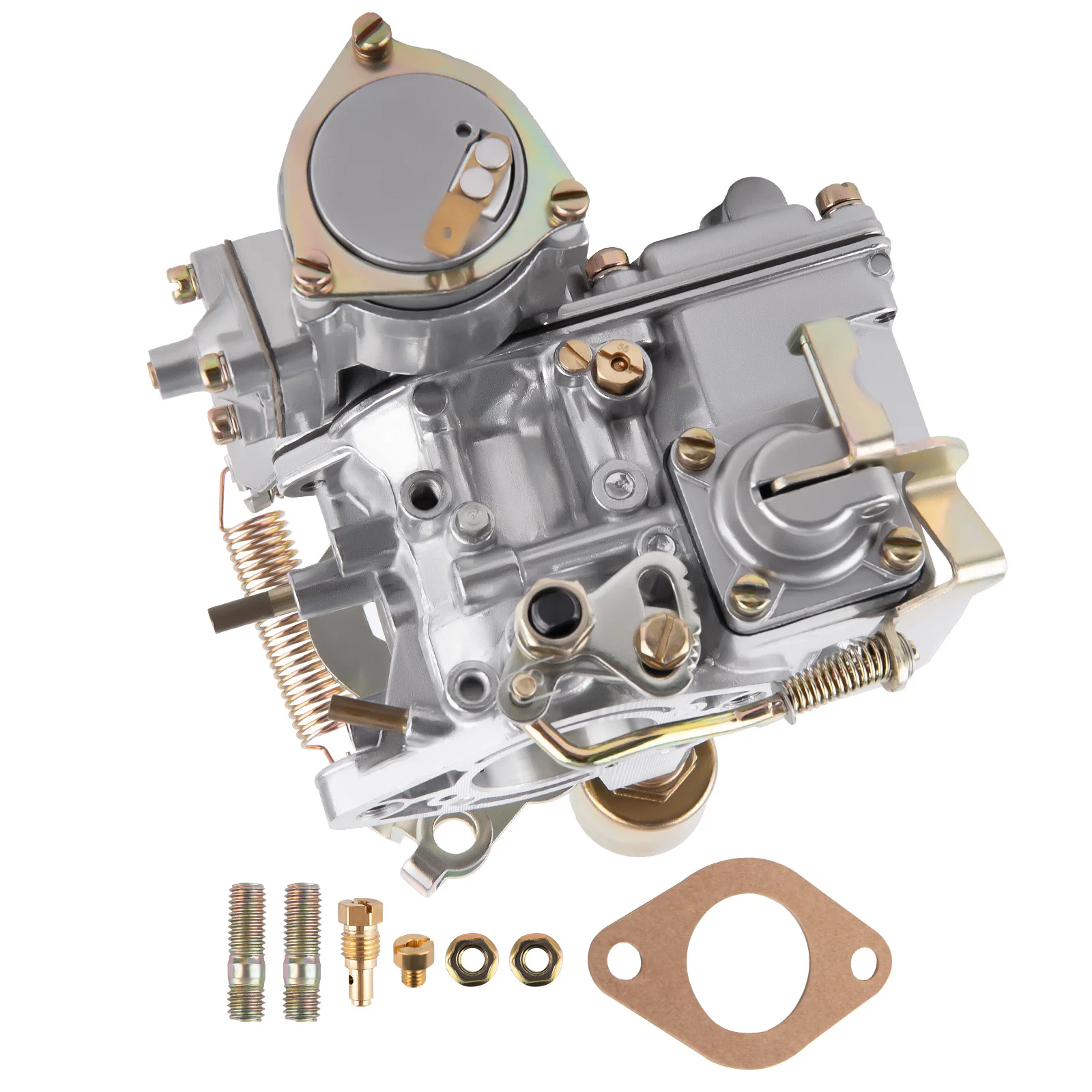

Carburetor Fit for VW 34 PICT-3 12V Electric Choke 1600CC for 113129031K

Carburetor Fit for VW 34 PICT-3 12V Electric Choke 1600CC for 113129031K

Fitment:

for Volkswagen Beetle 1971-1979

for Volkswagen Super Beetle 1971-1979

for Volkswagen Thing 1973-1974

for Volkswagen Karmann Ghia 1971-1974

for Volkswagen Squareback 1967-1973

for Volkswagen Transporter 1969-1972

- It will apply to any 1600cc for VW Air cooled Type 1 engines

- Compatible with any 1.6L Dual Port Engines. (Only for Dual port engine, not for single port engine)





OE/Part number:

for 34PICT3, for 34PICT-3, for 34 PICT-3, for 98-1289-B

for 113129031K, for 113 129 031 K, for 113-129-031K







Specification:

Materia:Aluminum Alloy

Vehicle Service Type:Car

Choke Type:Electric Choke

Barrel Count:1

Mounting Flange Type: Bolt On

Fuel Type: Gasoline

Bolt Hole Spacing Length: 68mm (Center To Center)

Intake Side Diameter: 34mm

Air Filter Side Inner Diameter: 47.7mm

Air Filter Side Outer Diameter: 51.5mm

Venturi Diameter: 26mm

Note:

*Please allow 1-2mm error due to manual measurement.

*Please check the measurement information of the carburetor and confirm your old part number and car engine to ensure you are ordering the correct part.









































Package Included:

1x 34 PICT-3 Carburetor

1x Gasket

2x Jets Screws

2x Mounting Bolts

2x Screws















Feature:

1.The carburetor was made of high quality Zinc alloy, add more horse power while maintaining near stock fuel mileage.

2.To mix air and gasoline in a correct ratio to ensure proper engine function，Give your machine the new power it deserves.

3.Solve problems such as engine lack of power and low fuel efficiency, engine backfiring and overheating and hard starting.

4. Low fuel consumption, Start fast stable idle speed,allowsing you to get a better driving experience and maneuverability

5.100% tested For reliability and performance，backed by satisfying after-sales service























Note:

*The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.

*Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work. (No Instruction Included)

*To ensure correct purchase,please compare carburetor against picture before you purchase.










Q&As of maXpeedingrods 113129031k carburetor

1. Q: What is the venturi size of this?

A: 26mm

2. Q: what is the cfm?

A: 600 cfm

3. Q: What does bbd mean?

A: The bbd is an abbreviation for barrels, carburetors are designated as one barrel meaning only one venturie ,two barrel meaning two venturie and so on to a maximum of four.

4. Q: My current carburetor has a manual choke. If I replace it with this one that has an electric choke will I only need to have a 12 volt power source?

A: If there is only 1 electrical pin for the choke then you will only need to wire a 12v positive "switched " source.

5. Q: How much fuel pressure do these need ？

A:Low pressure, just like any carburetor (60's -80's). The needle valve needs to be able to close the fuel bowl inlet. 4-6 psi should be enough.

6. Q: Can these carburetors be mounted in an angle at around 45 degrees?
A: Yes

7. Q: How do you clean the oil channels as mentioned in the product description?
A: You need to soak carb un carb clean solvent

8. Q: Does this carburetor have a manual choke or automatic choke?
A: Automatic
