Dokio Brand 12V Flexible Solar Panel 90-540W Monocrystalline Solar Cell Solar Panel Kit For RV/Boat/Home System

Delivery is not supported in the following areas:

Spanish island region. The zip code starts with
"35" and “38"

Dimensions have been changed due to material upgrades.

If you received a new size solar panel,the product has no quality problems.

If you are not satisfied with the new size, please contact us for return, thank you.

Ukrainian warehouse supports local delivery.

If you need solar panels, please contact store customer service,thank you

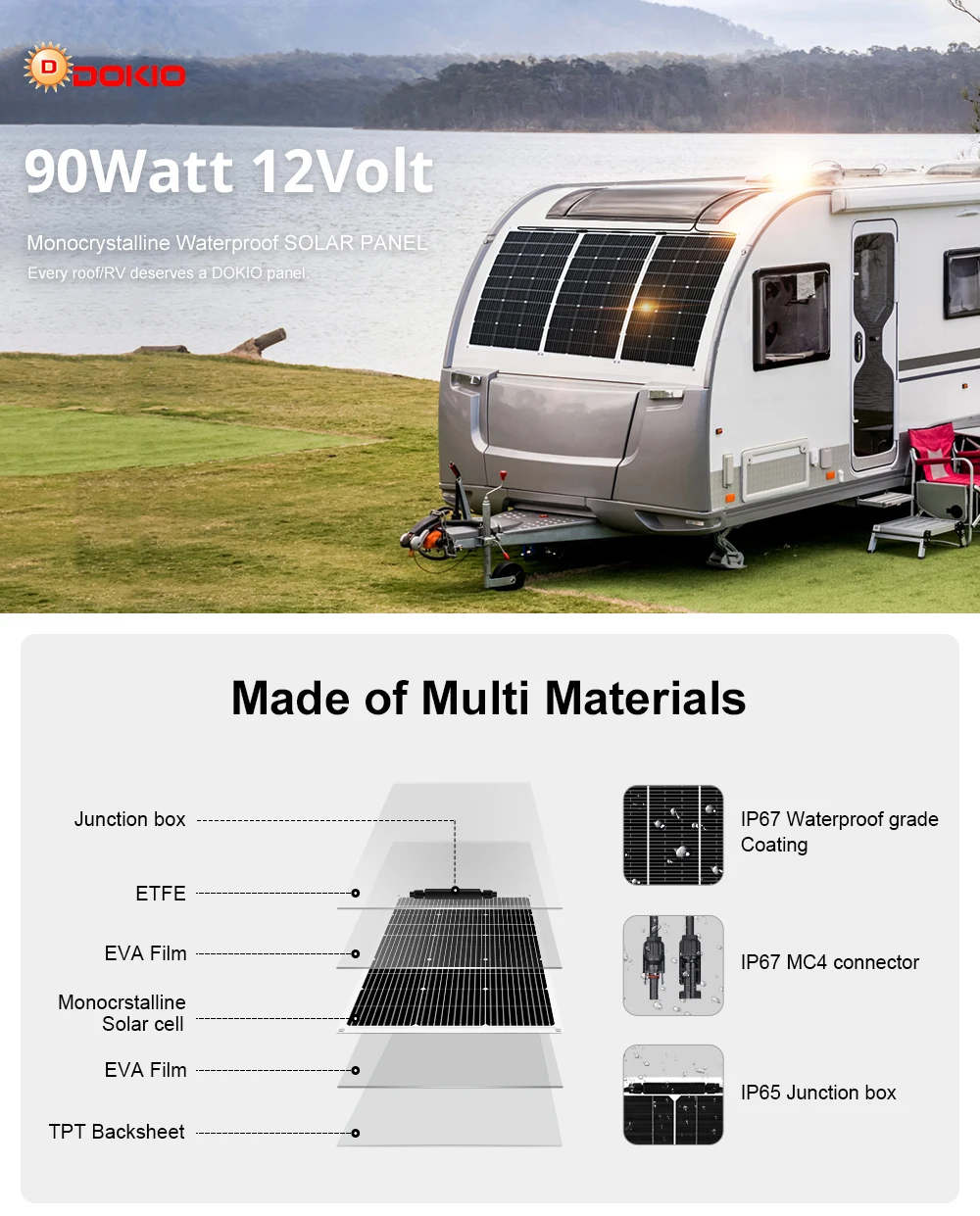

Easy to use

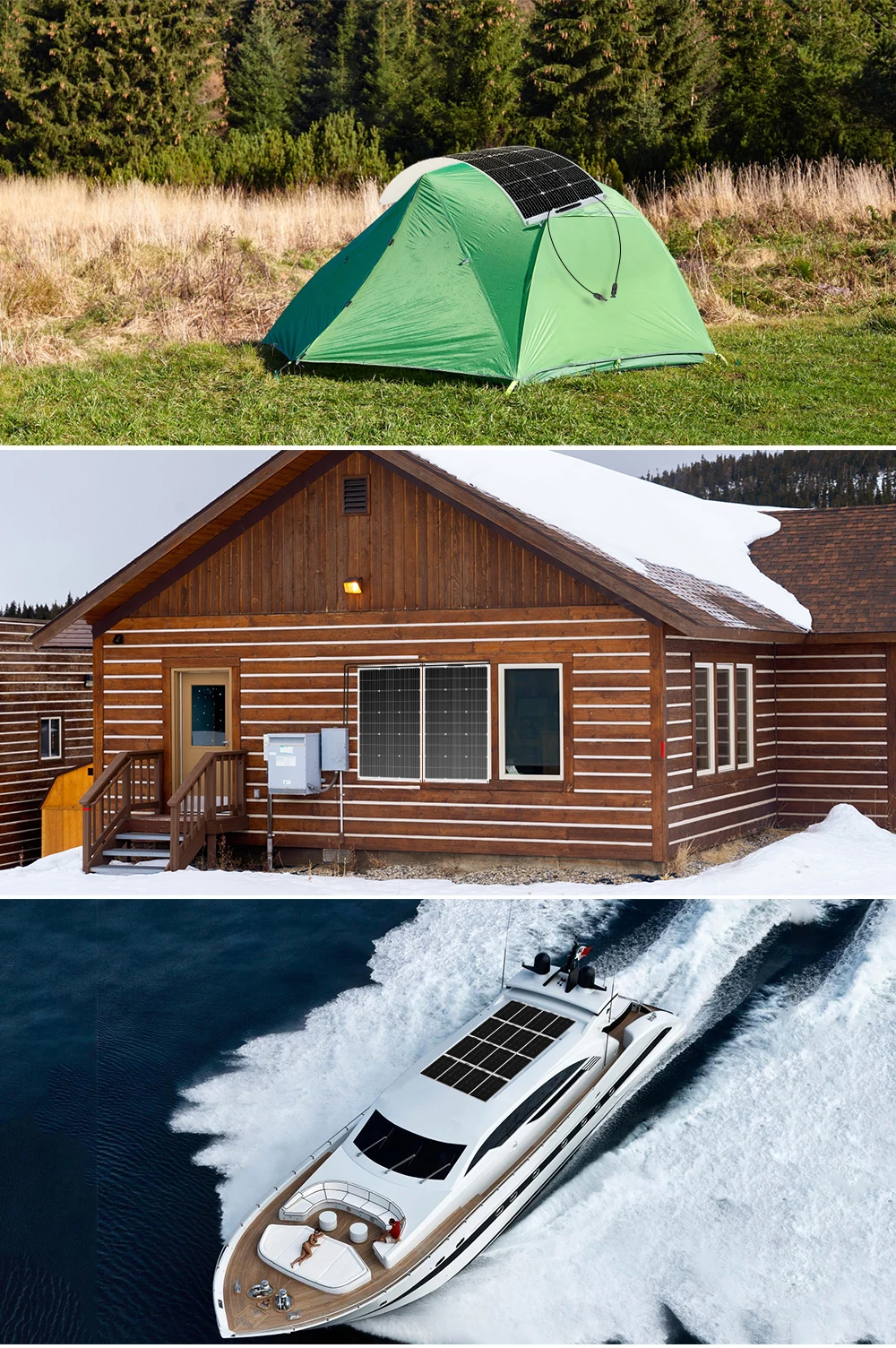

Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.

Light weight

only 1mm thick, weight 1.1kg, easy to hang, disassemble and carry.

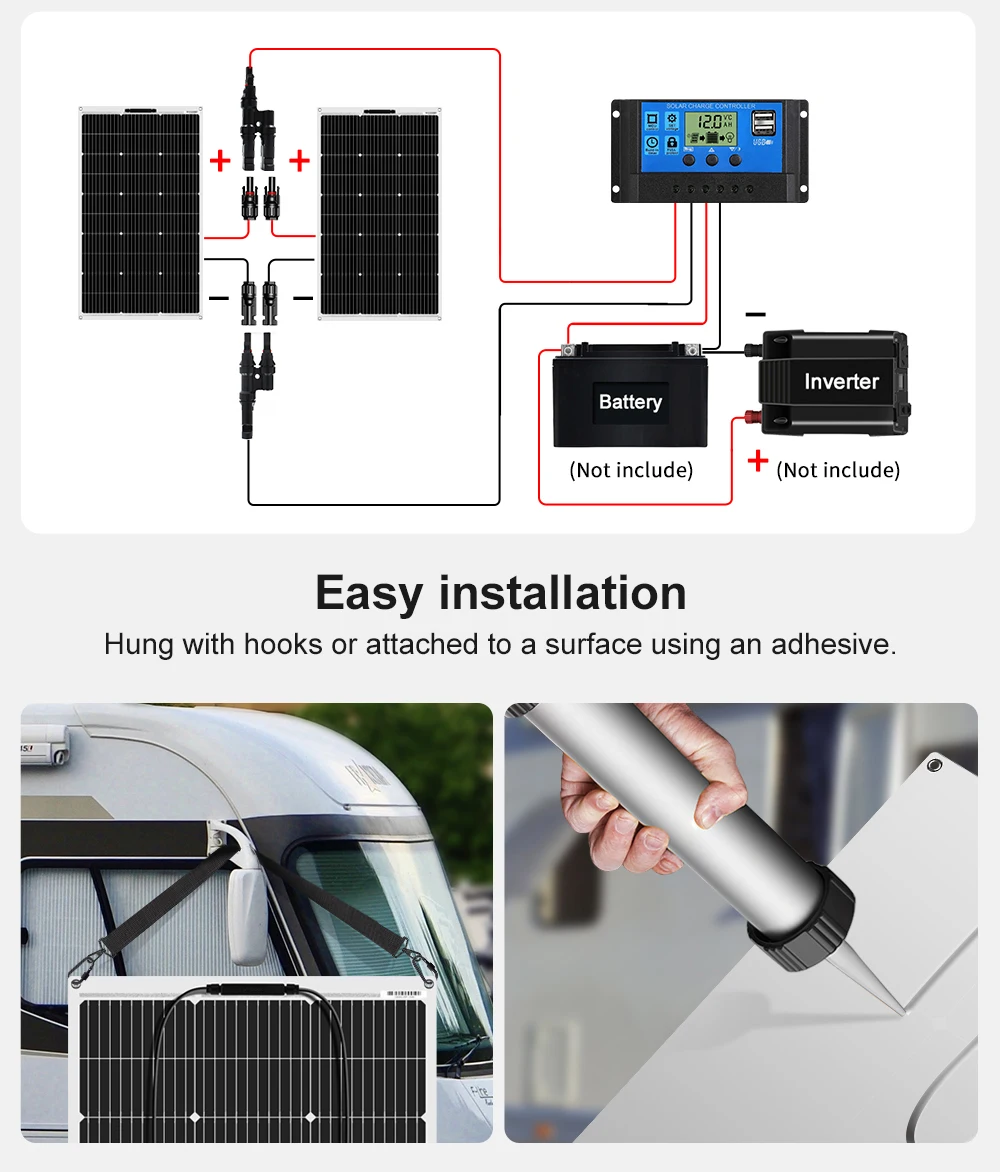

Easy to install

Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.

Waterproof

The junction box on the back of the solar panel is IP65 rated

High efficiency

18V solar panel, 36 cells. Efficiency is better than ordinary 16V solar panel.

The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.

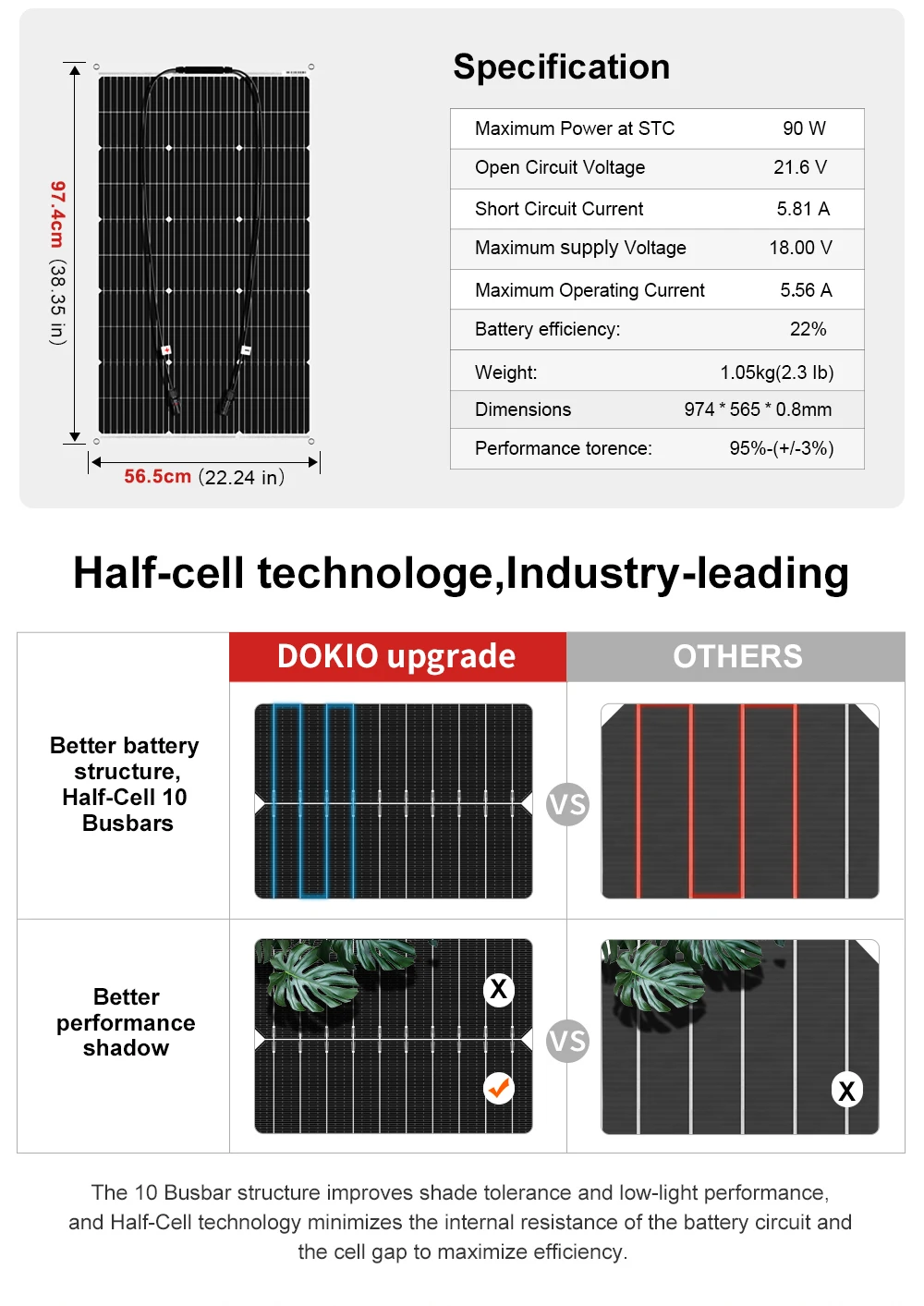

Maximum Power(Pmax): 90W

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):5.56A

Open-Circuit Voltage (Voc): 21.60V

Short-Circuit Current (Isc):5.81A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
