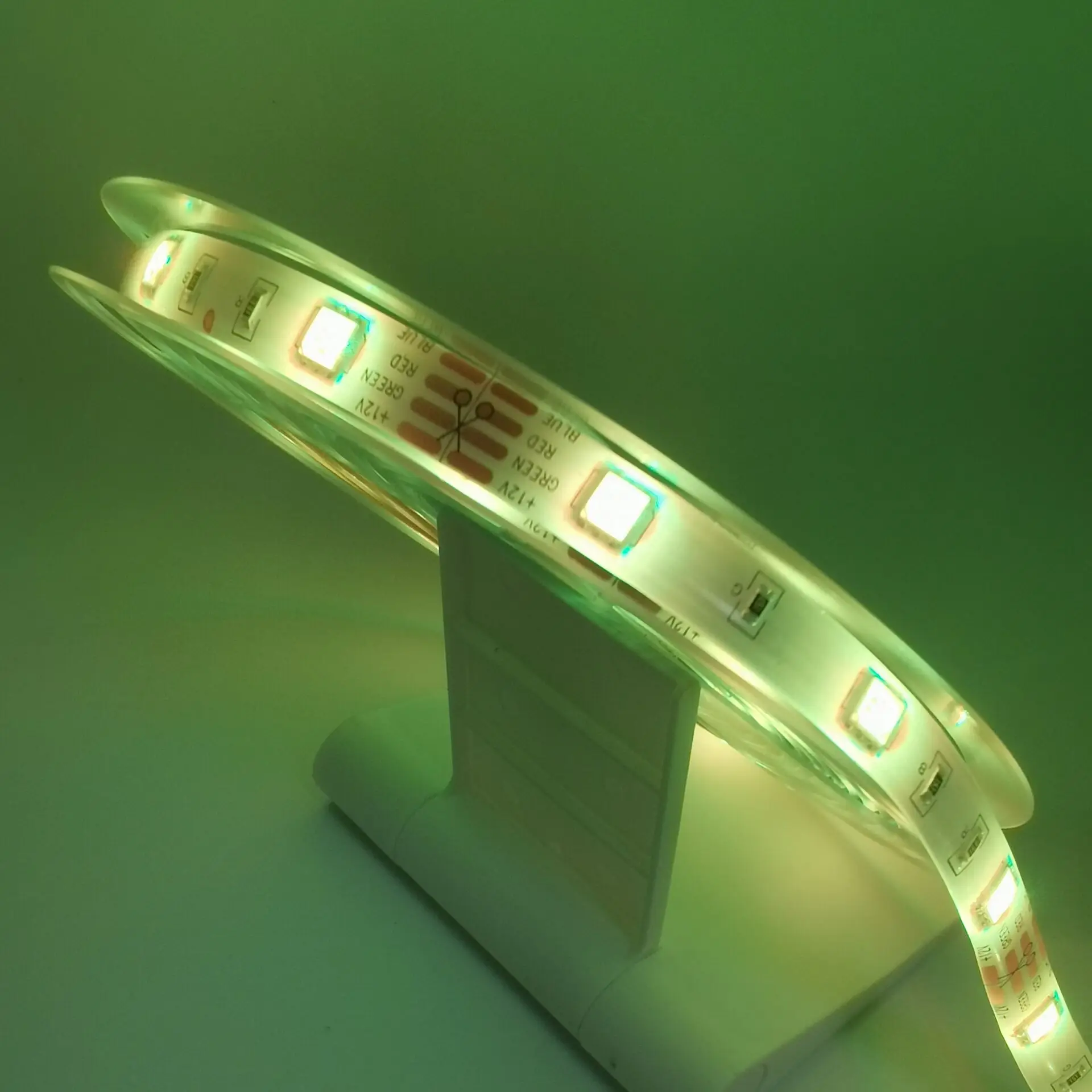

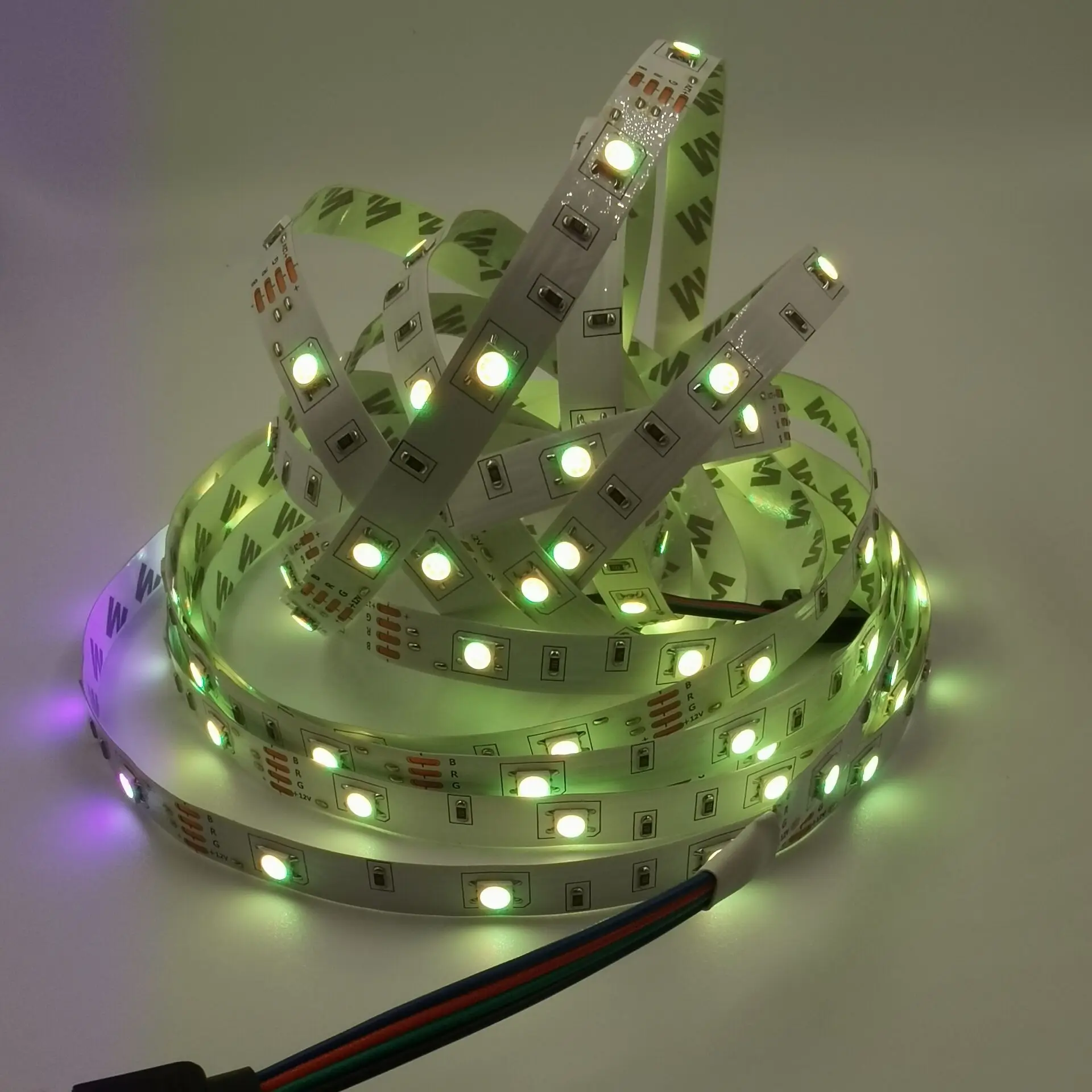

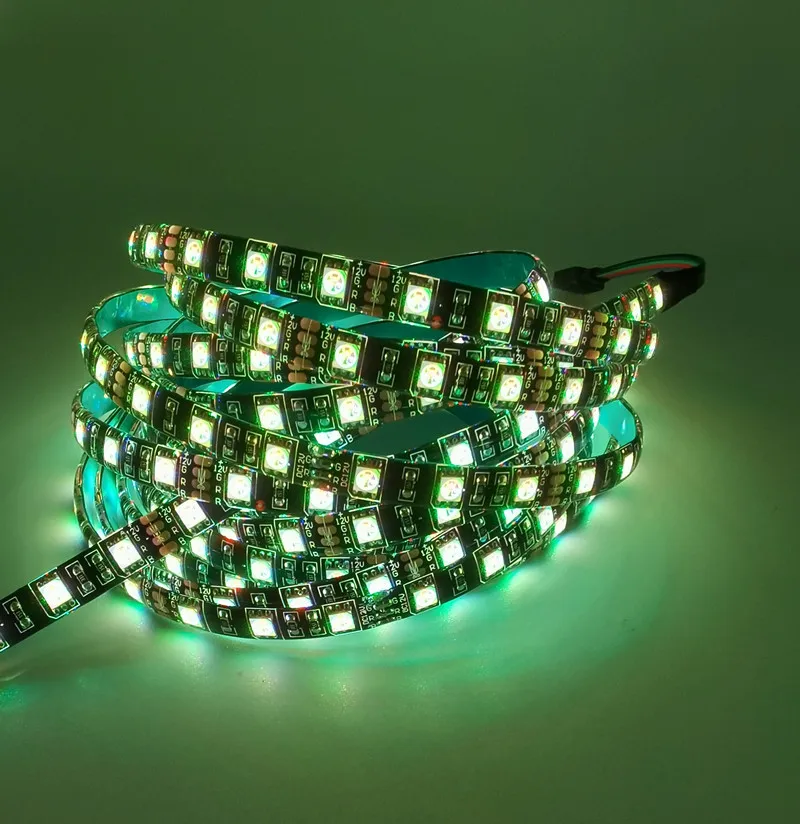

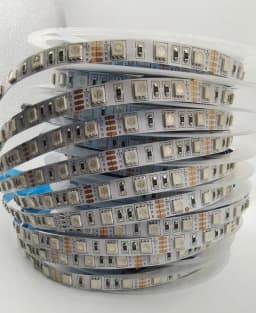

SMD 5050 RGB LED Strip 5M 300LED DC 12V 24V CCT RGBCCT RGBW RGBWW WHITE WARM WHITE Fita LED Light Strips Flexible

NOTE :  IP20 Non waterproof(3M adhensive back)

IP65 Waterproof(3M adhensive back)

IP67 Tube Waterproof  (No adhensive back)

CCT     --White+Warm white (only 10mm PCB)---4pin

RGBW  --RGB+White        (12V is 10mm PCB)(24V is12mmPCB)---5pin

RGBWW --RGB+Warm white (12V is 10mm PCB)(24V is 12mmPCB)---5pin

RGBCCT --RGB+White+Warm white(only 10mm PCB)---6pin

Product Features:

1. Superb right 5050 SMD LED, high intensity and reliability.

2. Long life span 50,000 hours

3. Continuous length, packed with 5 meter.

4. Flexible ribbon for curving around bends

5.Completely smooth and even light spread, solving the uneven luminous problem

6.Ultra-bright but running at low temperature

7.Low power consumption

Specifications:

1.Size: L500cm (5M) x W1cm x T0.1cm( 24V RGBW and RGBWW 12mm PCB )

2.Emit Color: white / warm white /RGB/RGBW/RGBWW/CCT/RGBCCT

3.Protection Rate IP20 for NO Waterproof        IP65 for Waterproof  IP67 for Tube waterproof

4.Working Voltage: 12V / 24V

5.LED Quantity: 60leds / m, 5meter / roll

6.View angle: 120 ° ~ 140 °

7.Working Temperature: -20 ° to 50 °

8.350-450mcd/led

9.Wattage: max 12W/meter,

10.Color Temperature:

warm white:3000-3200k

white: 5000-5500K

Cool White:6000-6500k

Application:

1.Ideal for decoration of building outlines, landscape illumination, amusement themes,

2.Holiday light sculpture, decorative figure, active signs, displays, shop windows

3.And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.

Package Content :

5meters/1 Roll  5050 Strip  (Do not contend controller and power supply)

RGBCCT(RGB+White+Warm white) LED Strip

10mm PCB 6pin ↓

CCT LED Strip 4pin ↓

RGBW(RGB+White)   RGBWW(RGB+Warm white) 12V LED Strip  10MM PCB 5pin ↓

RGBW(RGB+White)   RGBWW(RGB+Warm white) 24V LED Strip  12MM PCB 5pin ↓

RGB-4pin

White-2pin

Warm white--2pin

12V/24V LED Strip  10MM PCB 5pin ↓
