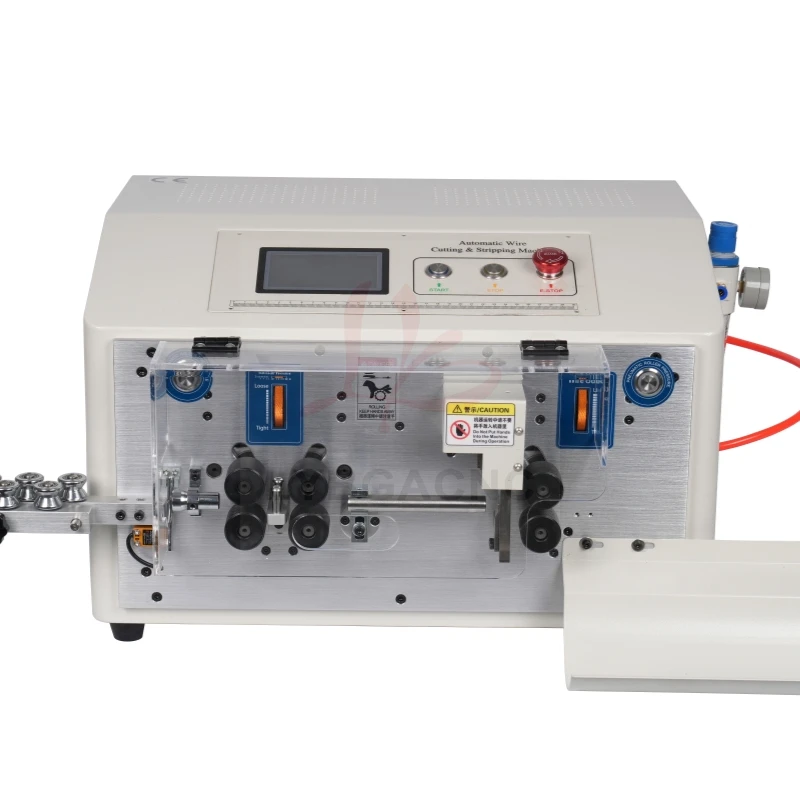

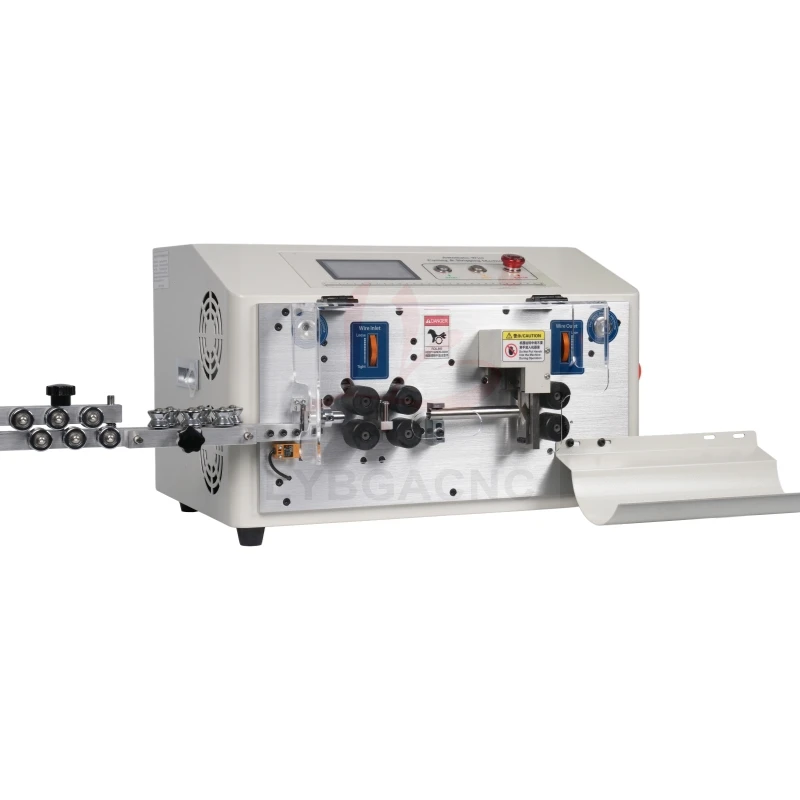

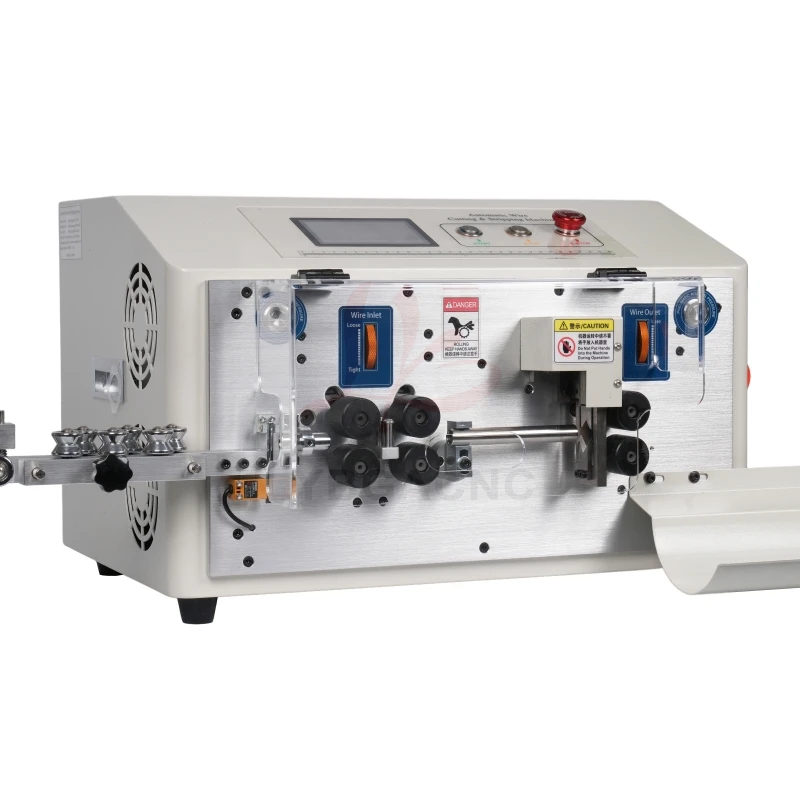

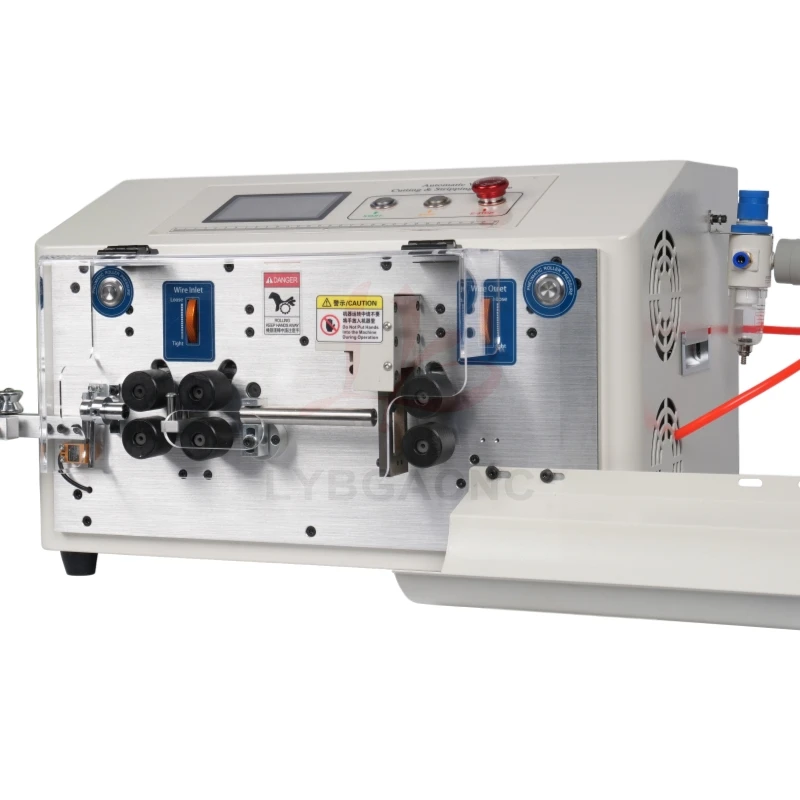

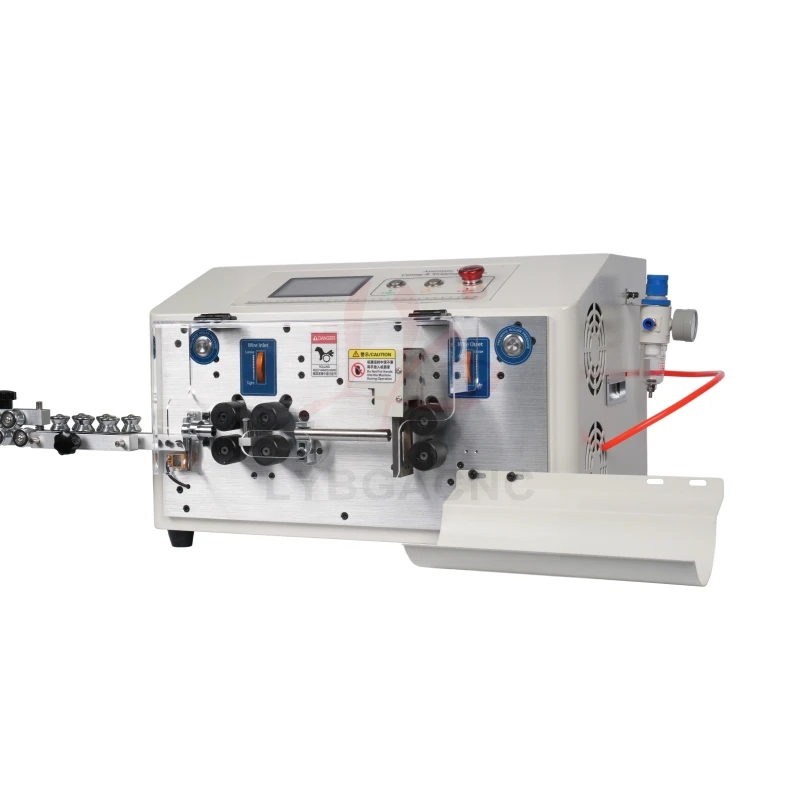

SWT-608-MAX1-6S Automatic Peeling Stripping Cutting Machine 0.2 To 25mm2 550W 6 Wheels Drive Touch Screen Control

SWT-608-MAX1-6SAutomatic Peeling Stripping Cutting Machine 0.2 To 25mm2550W 6 Wheels Drive Touch Screen Control With Wire Breakage Device & Front Back Straightener

(RE:

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 / MAX1-4 / MAX1-6 / MAX1-8 / HT2 / YHT3 / YHT4 / HT2/6Sabove models with Wire Cable Straightener only, other models need to buy extra.

2.Such as ES, SDS, DB2S, JES, JE2S, MAX1/6S, HT2S are touch screen panel models.

3. Crystal Protect casenot included, need to buy extraly.

4. Wire collectorfree gift now.(Before need to buy extraly.)

Options:

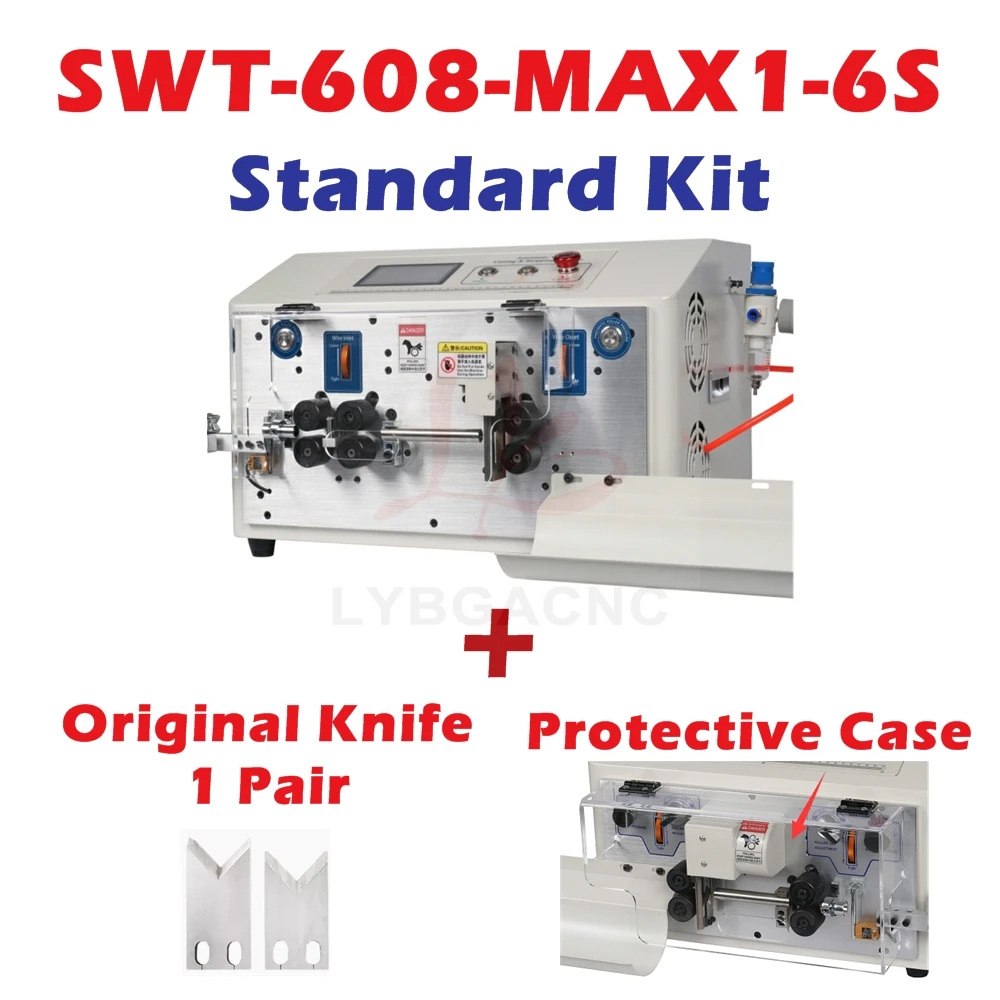

1.SWT-608- MAX1-6S

2.SWT-608- MAX1-6S+ 1 Pair More Knife

3.SWT-608- MAX1-6S+ 1 Pair More Knife +

Protective Case

Specification:

Model：SWT608-MAX1-6S（6 wheels, 25mm² wire stripper with touch screen）

Weight：43KG

Electrical connection: 110V/220V 50HZ/60HZ

Power：550W

Operation interface: 4.3 inch Chinese and English switching touch screen display

Machine dimension: 460*470*325mm

Wire length range：1～9999mm

Strip length：Front end:0-80; rear end:0-50mm

Length accuracy：± (0.002xL)mm

Intermediate peeling times:16 times

Wire cross section: 0.2～25mm² ( BV single strand wire 6mm²)

Max conduit inside diameter:￠11mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material:High-speed steel

Transport speed: (L=100MM piece/hour）3000-4000 pieces

Driving mode: six-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)
