XINPUGUANG Balcony Solar Panel Complete Kit 400W 200W Power Photovoltaic Solar Panels + 600W / 300W Inverter 230V System Module

XINPUGUANG balcony Solar Panel complete 400W 200W power plant N x 100W photovoltaic solar panels inverter 220V 230V 300W 600W

This XINPUGUANG balcony power plant includes everything you need to connect, plug in and play. The package includes2/4/ 6 pieces of high-efficiency 100W solar panels, a 300w/600w inverter, a 5m cable, 2 pieces of photovoltaic cables .
Feeding the electricity generated by the solar panels into the grid, without batteries, saves money on electricity bills, reduces CO2 emissions and makes an important contribution to environmental protection.

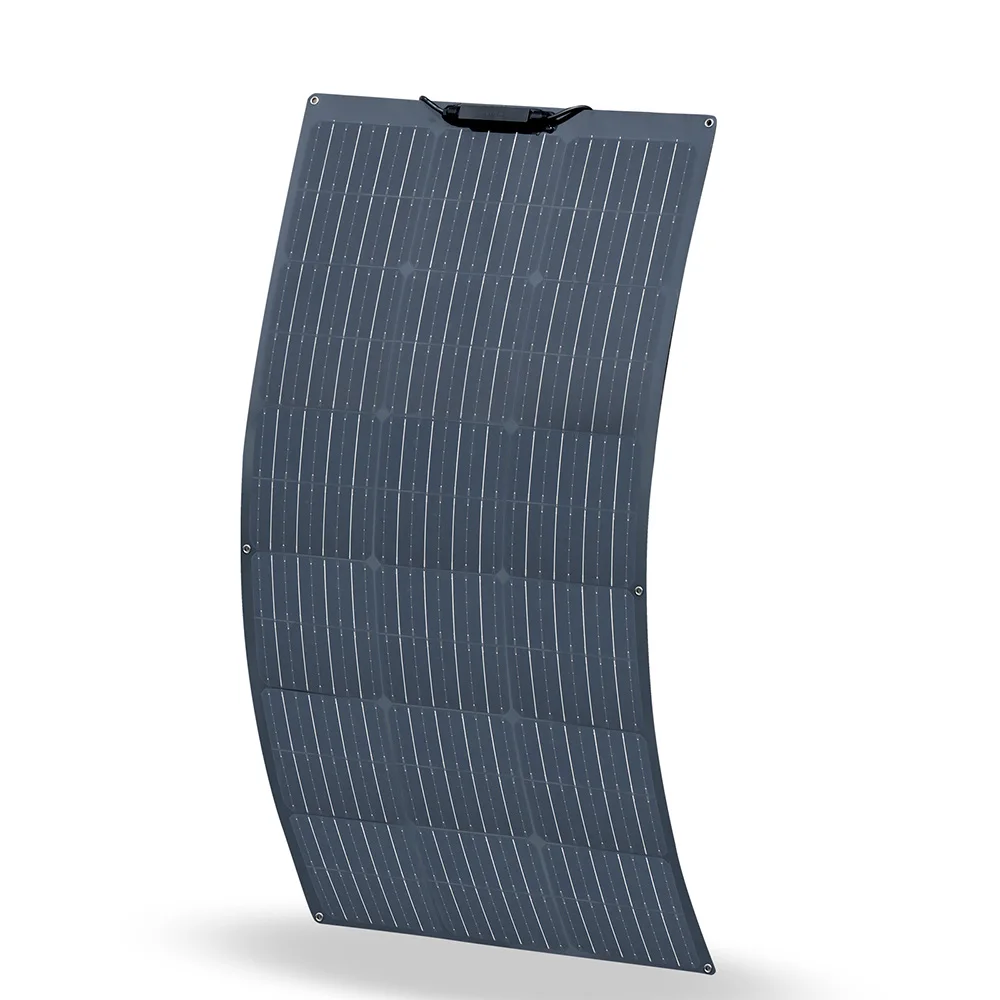

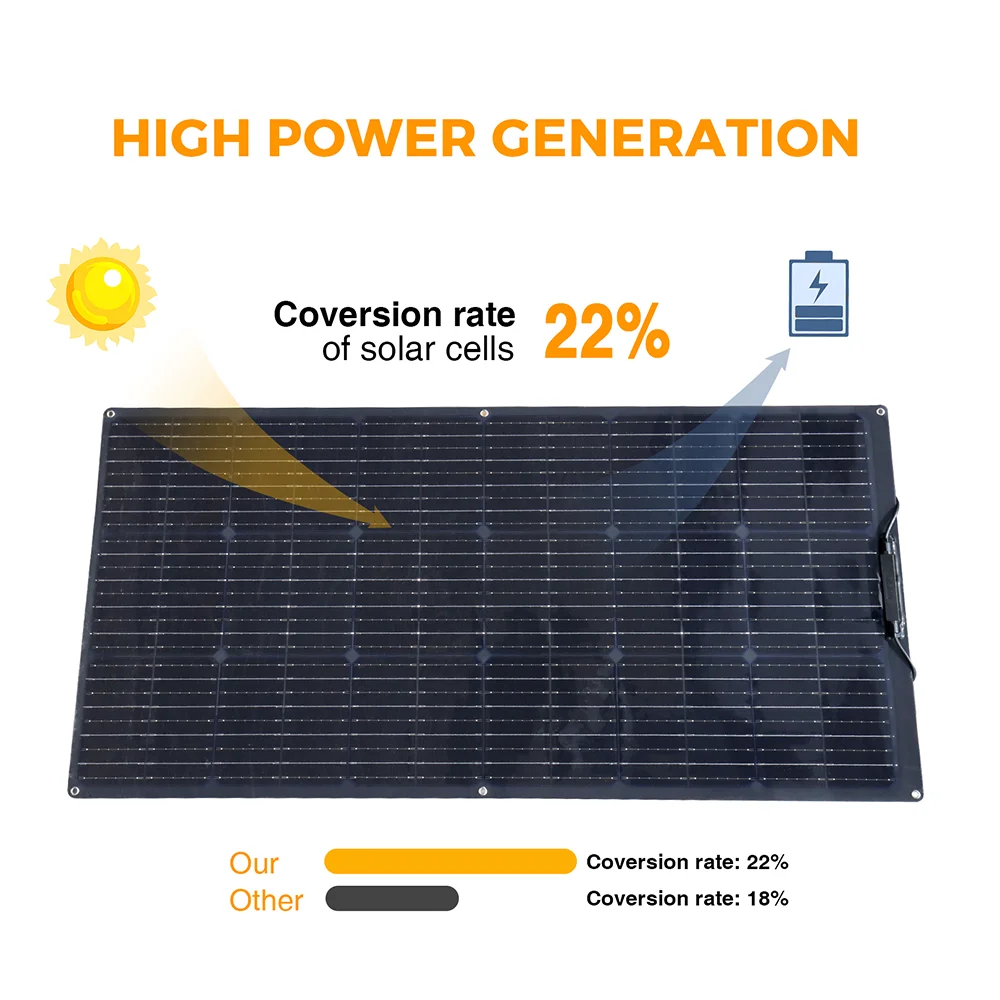

The 100W solar module with PERC solar cells made of monocrystalline silicon with high efficiency. The conversion rate is up to 22%.

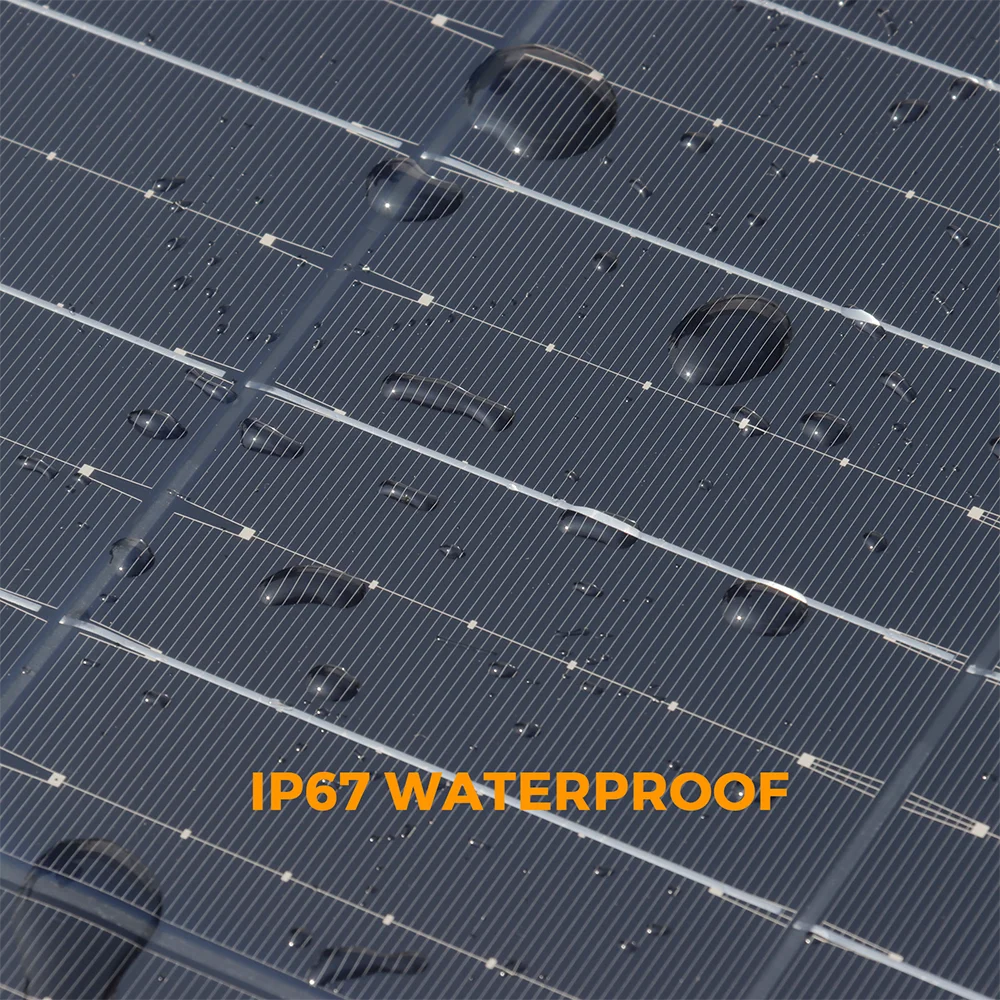

The bypass diodes are pre-installed in IP67 waterproof junction box to minimize the performance degradation caused by shadows and ensure excellent performance in low-light environments.
This grid-tied system is easy to install and can be placed on balconies, rooftops, gardens, etc..

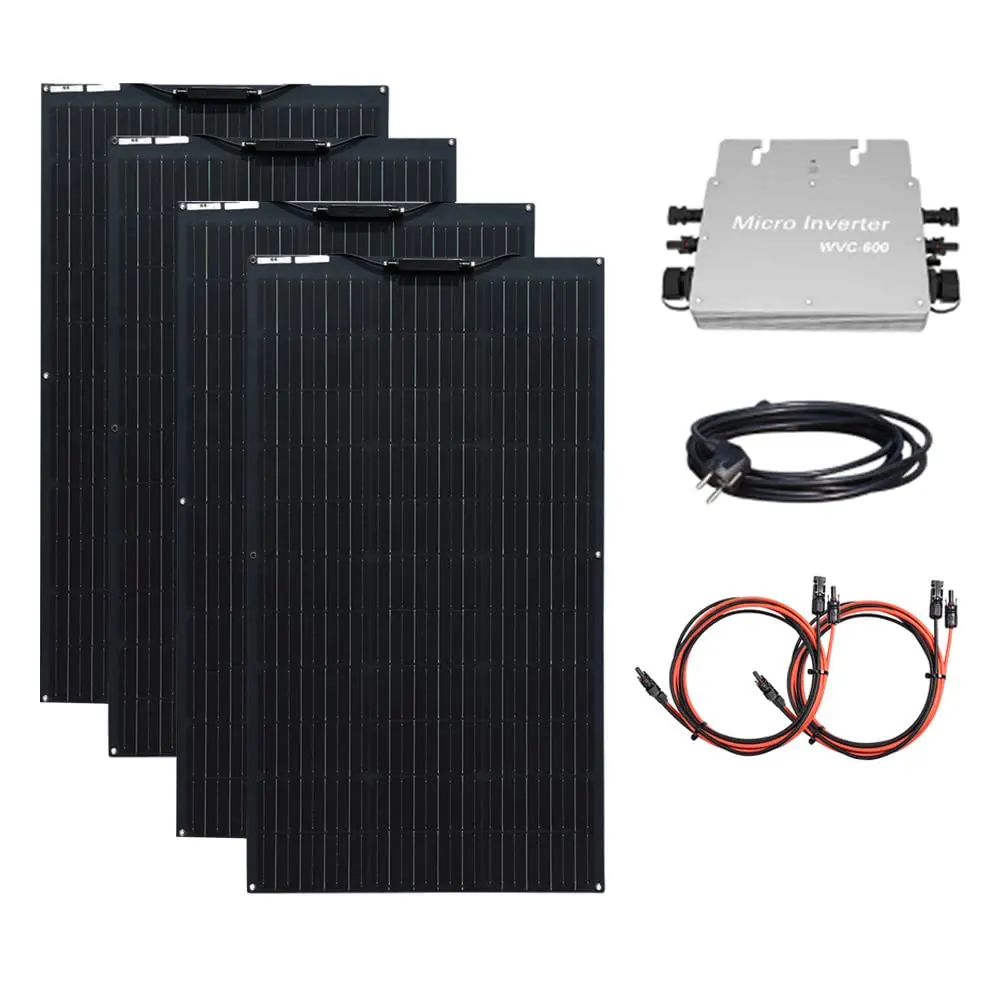

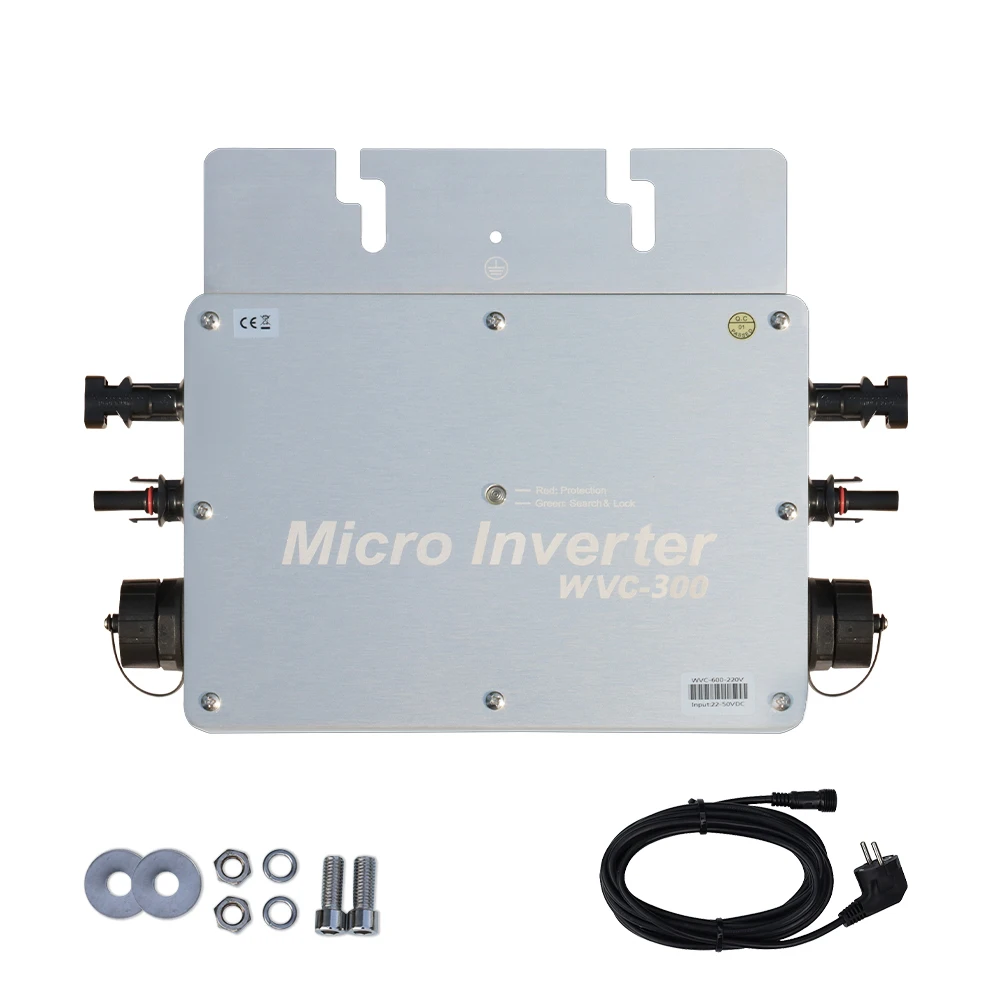

The XINPUGUANG 200W / 400W grid-tied solar panel The kit includes 2-4 high efficiency 100W monocrystalline solar panels, a 300W/600W 220V/230V micro inverter and a long extension cable. Plug-and-Play. Directly connected to the power grid, no batteries required. You can install the solar panels on the balcony, ground, roof, railing, garden. XINPUGUANG solar kit is a complete solution to power your home. Lower your electricity bill.

Specification:

Solar panel 100w

Maximum power (Pmax) : 100 W

Open circuit voltage (Voc) : 21.6 V

Short circuit current (Isc): 6.11 A

Maximum power voltage(Vmp): 18 V

Maximum power current (Imp): 5.55 A

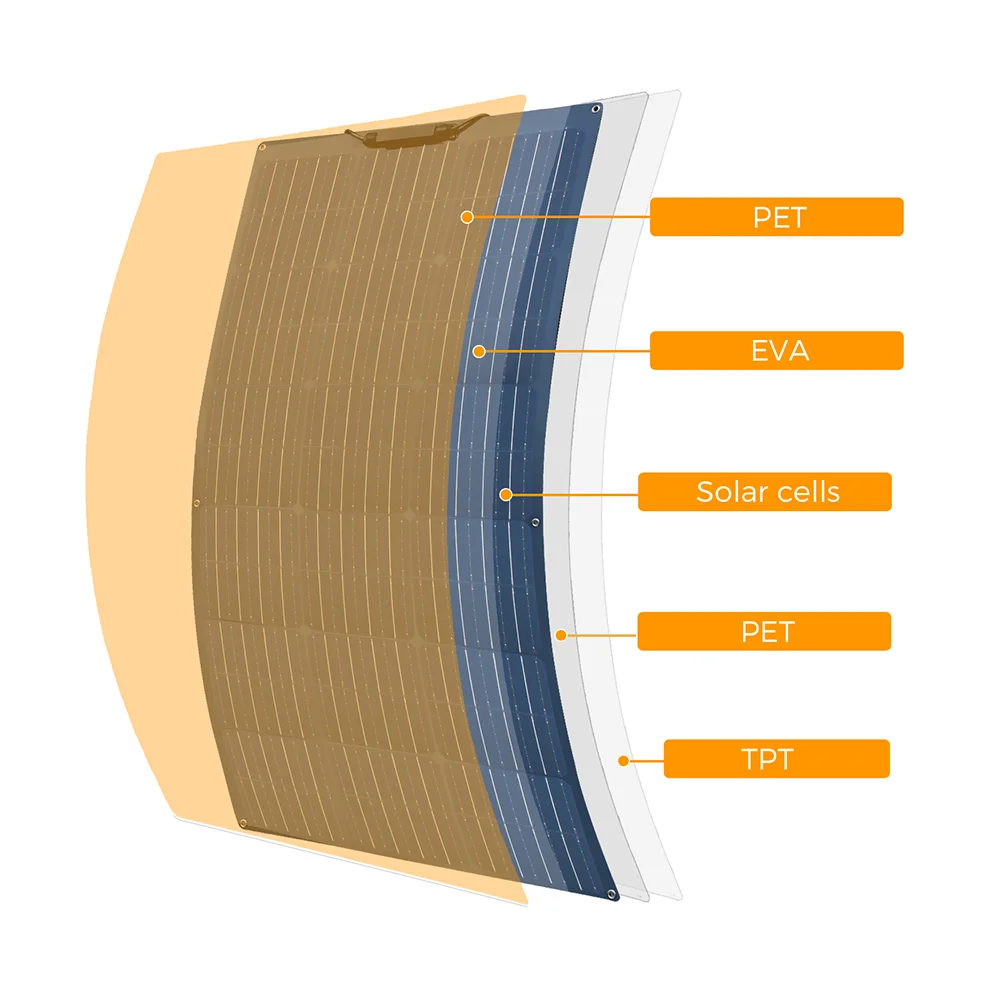

Material: Monocrystalline PERC solar cells

Cell efficiency: 22% ；Number of cells: 33pcs.

Standard test conditions irradiance: 1000 W/m2, temperature 25 ℃, AM=1.5

Weight: 1560 g；Size: 955 * 530 * 3 mm.

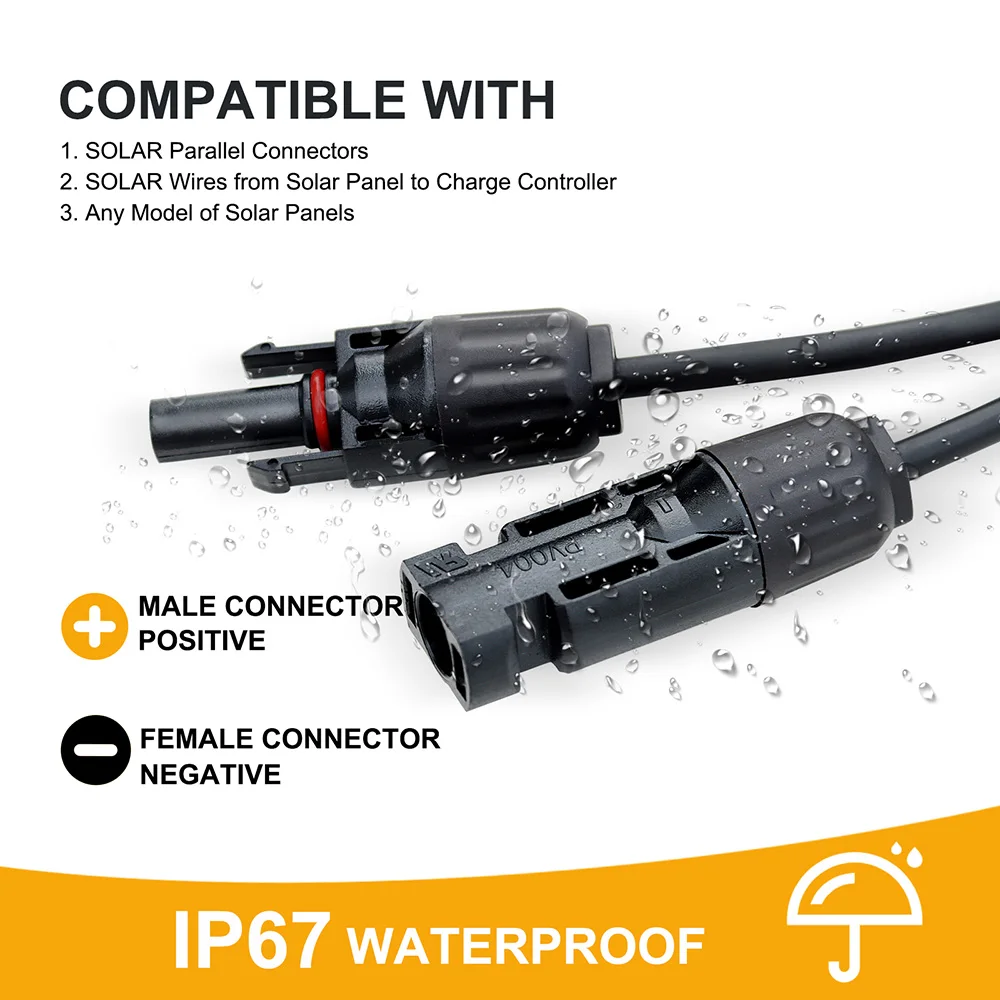

Junction box type: IP67；Cable length: 90 cm

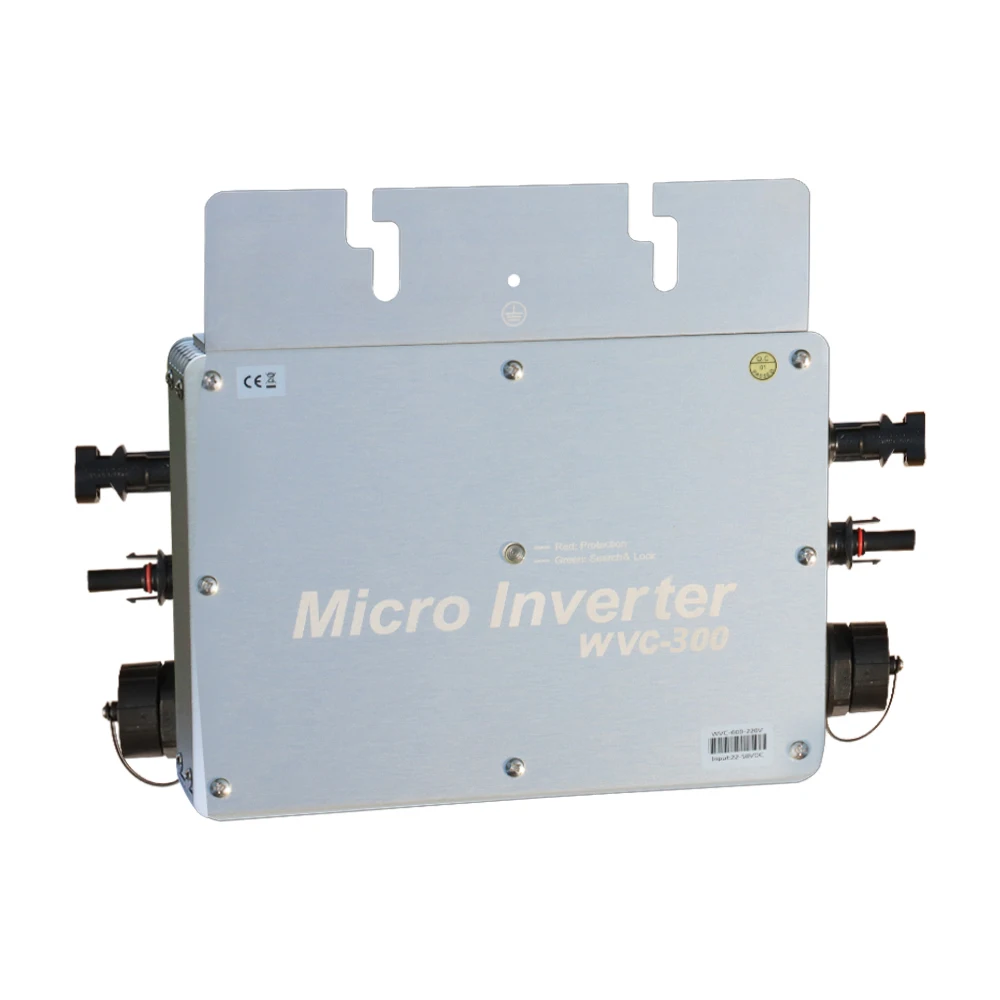

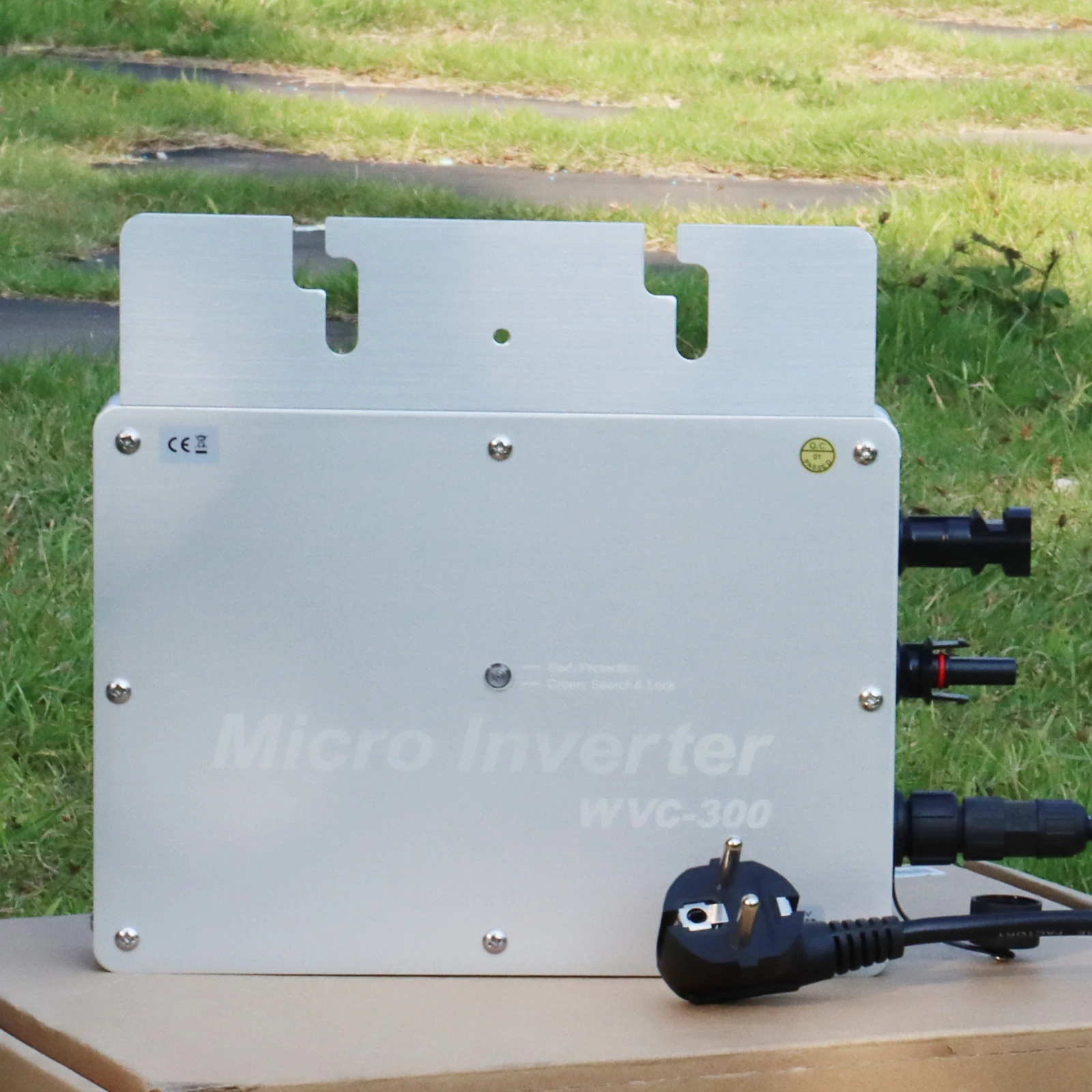

Input data (micro inverter)

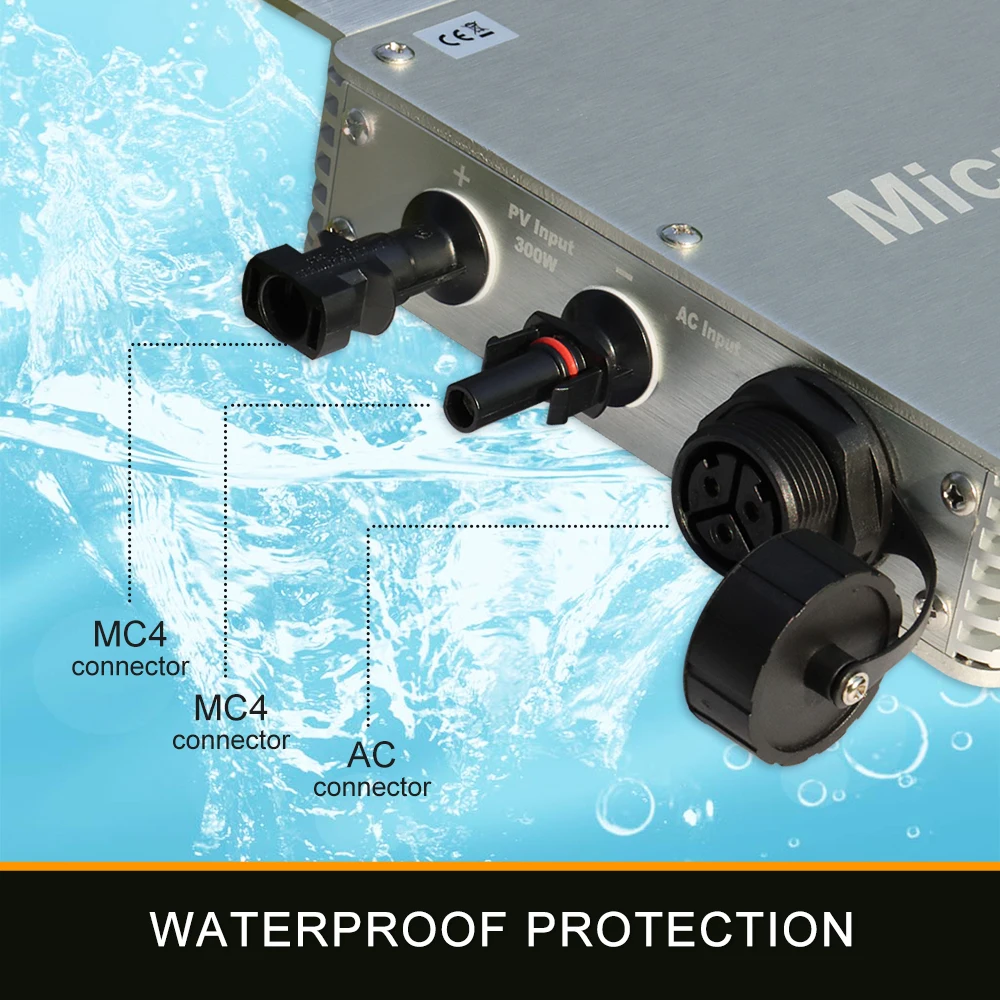

Number of M C4 input terminals: 1 set
MPPT voltage range: 24V-40V
Operating voltage range: 18V-50V
Maximum input voltage: 50V
Starting voltage: 18 V
Maximum input power: 600 W / 300 W
Maximum input current: 24A / 12A

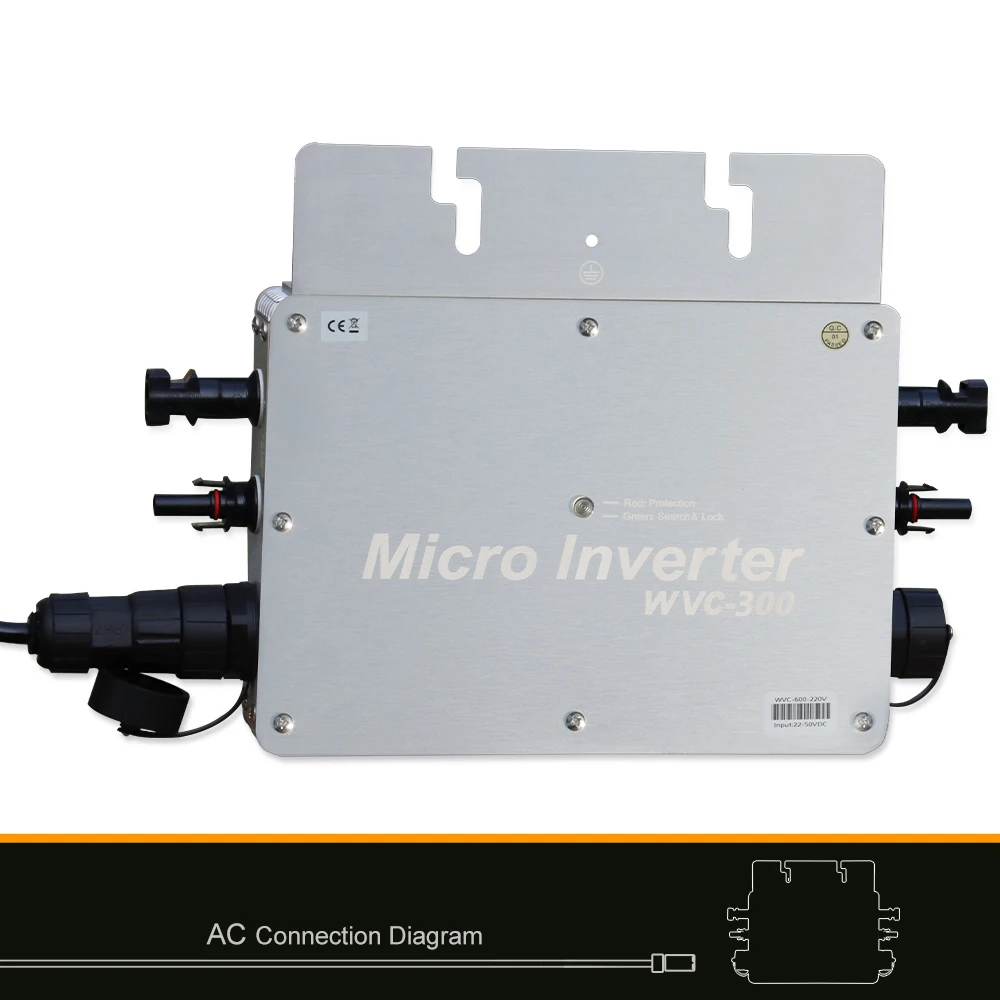

Inverter 600w /300W

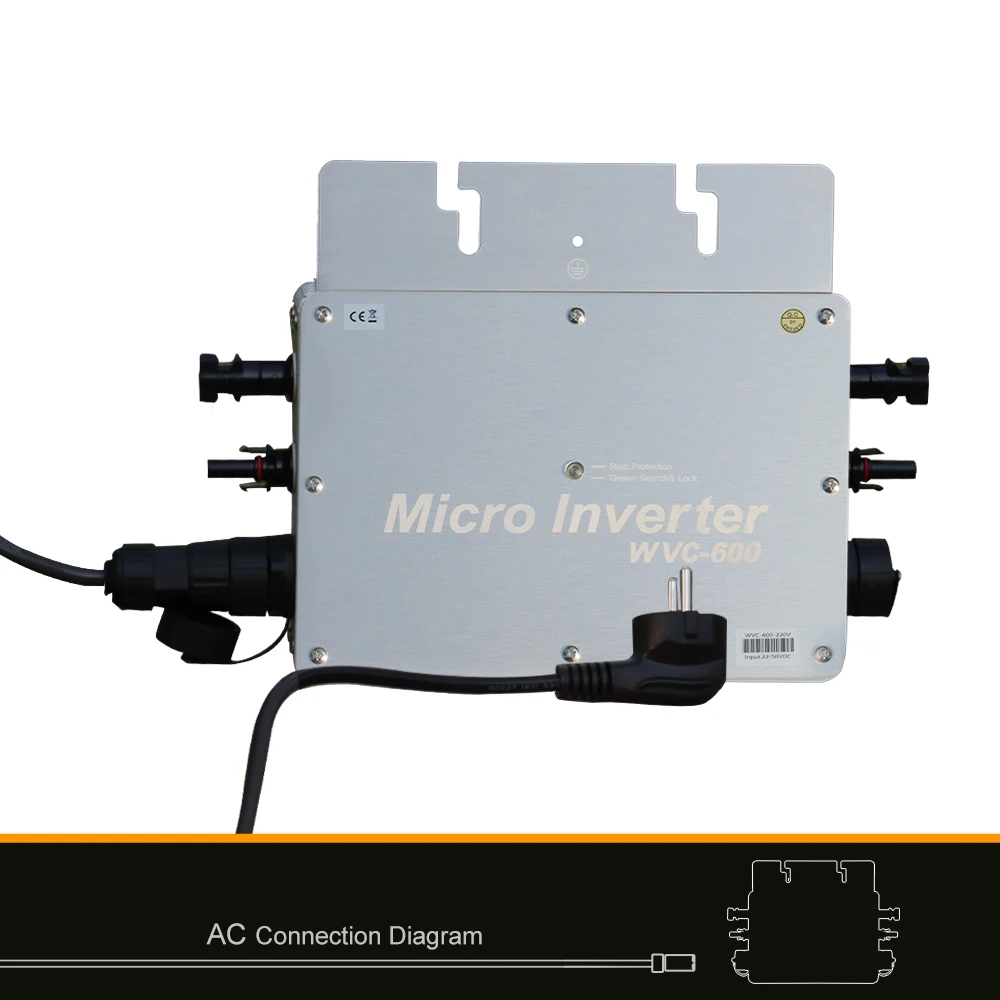

Output data (micro inverter)
Single phase mains type: 220 V
Maximum output power: 600 W/300W
Nominal output current: 2.52 A
Nominal output voltage: 220 VAC
Standard output voltage range: 180 V-280 V
Nominal output frequency: 50 Hz
Peak efficiency: 92
Dimensions: 41 mm x 106 mm x 282 mm；Weight: 0.95 kg.
Integrated grounding: Equipment grounding is provided by the PE in the AC cable. No additional ground is required.
Protection functions: Isolated island, voltage, frequency, temperature, current, etc.

600W

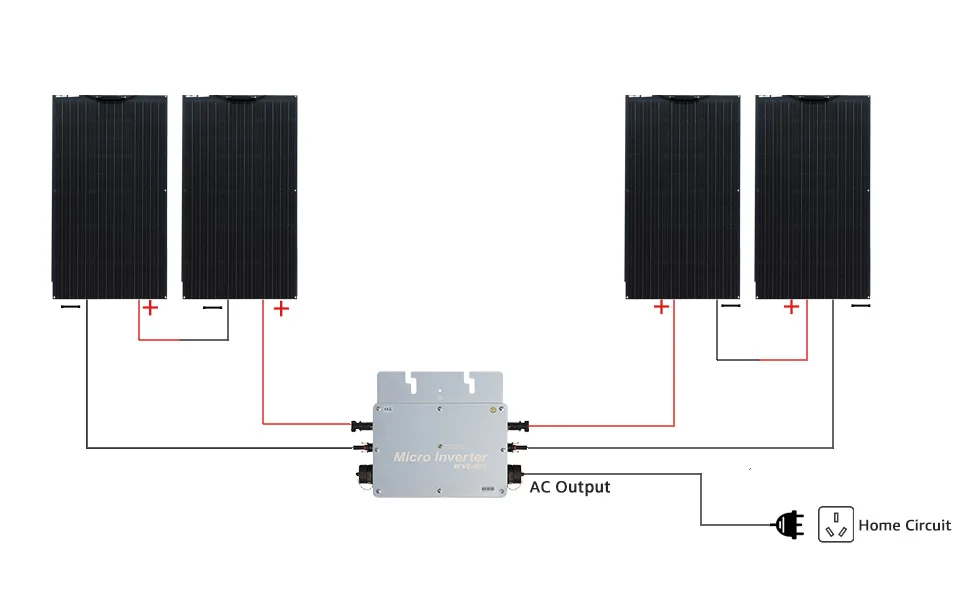

400w SYSTEM Connection method：

1. All Two boards are connected in parallel

2. Connect the two strings of boards in series after connecting them in parallel.

3. The solar panels are connected to the input of the inverter

4. The output of the inverter is connected to the house grid.

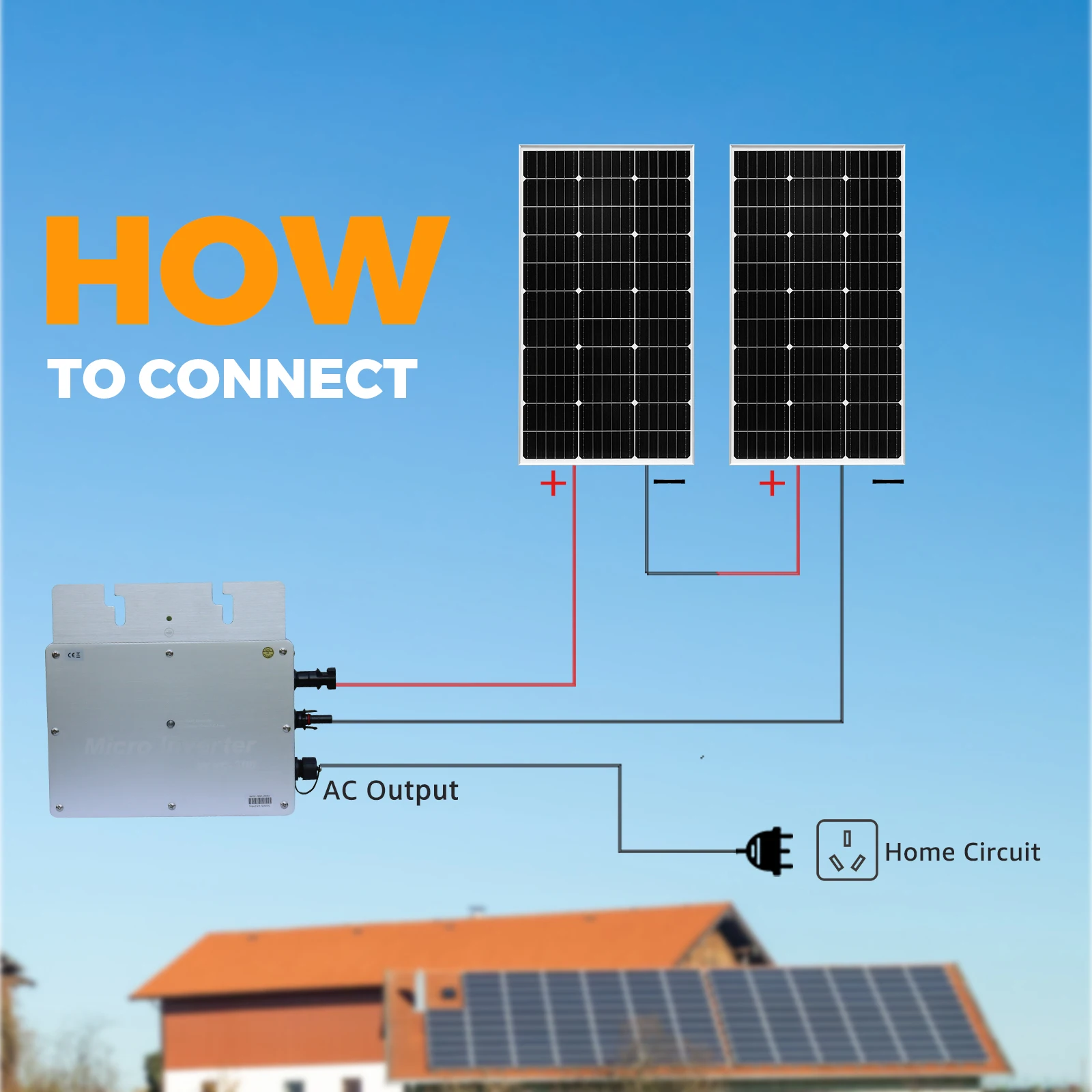

200w SYSTEM Connection method：

1. Connect the two strings of boards in series

2. The solar panels are connected to the input of the inverter

3. The output of the inverter is connected to the house grid.

Remarks:

The bracket is not included in the scope of delivery, please make it yourself

Notice:

The black corner protector is not included with the solar panel, but is used to protect the corner of the solar panel. It is only used to protect the solar panel during transportation. It is therefore not included in the package list. If the black corner protector is damaged, please remove it and throw it away. We cannot reissue corner protectors, please note. Thank you very much.

Notice:

Thank you for purchasing the Balcony Power System. Due to the size of the item, we ship it in 2-4 packages, you will receive these packages one by one, if you receive the first package, please do not worry, please rest assured, the rest of the packages will arrive one by one. If you mind this shipping method, please place your order with care. Thank you very much.
