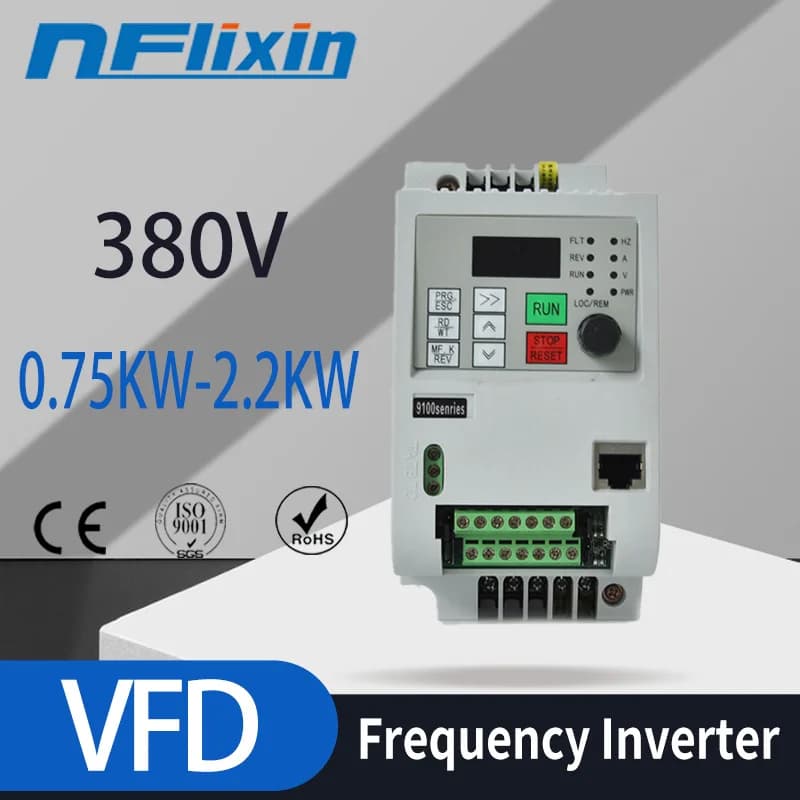

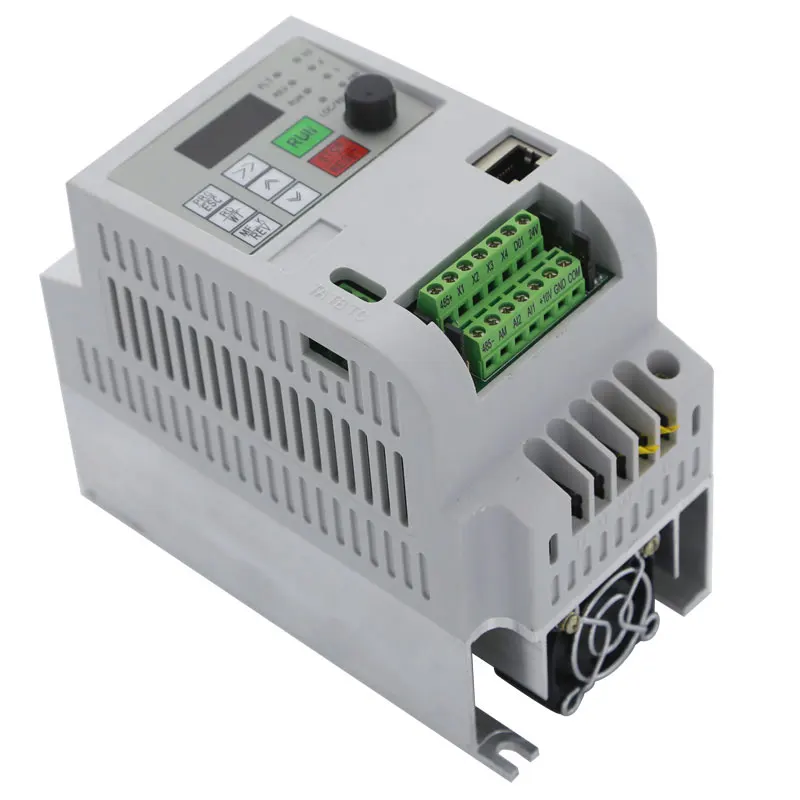

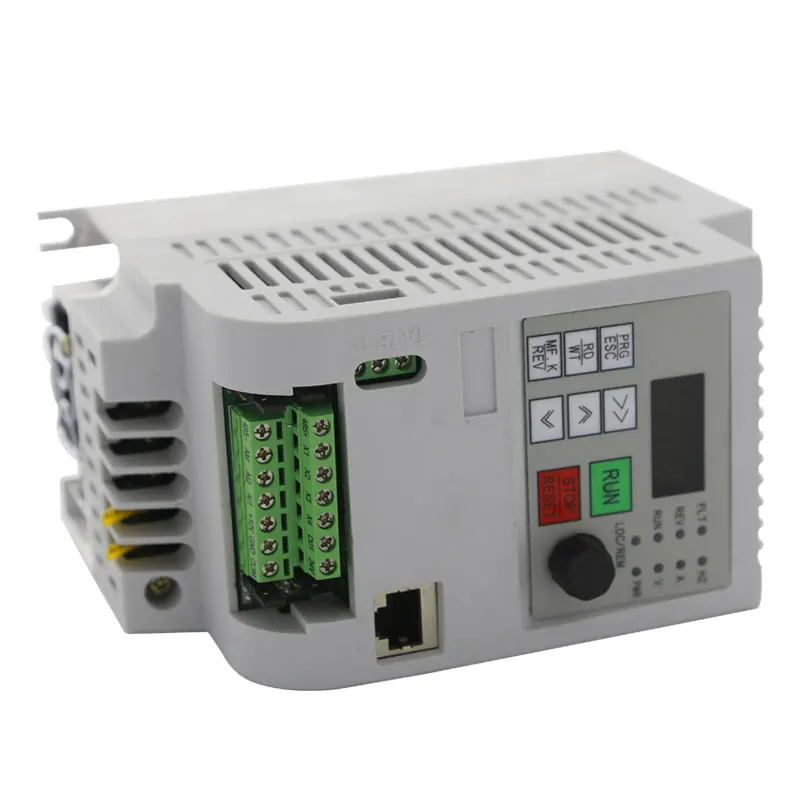

380V 2.2KW 3HP Three Phase Input Output Frequency Converter Inverter Variable Frequency Drive VFD Motor Speed Control 3Phase

1.Input:3 phase 380V±15%

2.Output Voltage Range:3 phase 380V±15%

3.Output Power:0.75kw/1.5kw/2.2kw/4kw

4.Rated current:2.5A/3.7A/5A/8.5A

5.Rated Frequency :50hz/60hz

6.Output Frequency Range:0~650Hz

7.Control way: Open loop vector control(SVC)V/F

380V 0.75KW / 1.5KW / 2.2KW/4KW Frequency inverter

Size: 85mm*125mm*150mm

Type selection instructions:

A. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring;

B. This Frequency converter does not support single-phase motor speed regulation with capacitance.;

C. Speed regulation of three-phase AC motors with six or more stages. Please purchase a converter with higher power than the motor;

D. If you don't know how to choose the type, you can also contact us to give you some suggestions.​

E. NFlixin frequency converters do not have RS485 communication function by default, nor do they have built-in braking units. If you need RS485 communication function of frequency converter or need to use with brake resistance, Please leave a message when ordering

OUR PRODUCT TECHNOLOGY

• Our products have excellent performance.

A. 0.5Hz can provide 150% starting torque;

B. Overload capacity: 150% rated current 60s; 180% rated current 10s;

C. Carrier frequency: 0.5k ~ 15.0kHz.

• Our products have powerful functions.

A. PID control function — Closed-loop automatic control technology;

B. Multi-speed control function — 8-speed control;

C. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.

• Our products have a comprehensive configuration.

A. 17 functional terminals—Hundreds of functions can be realized through different combinations

B. Relay output—More complex linkage control functions can be realized.

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;

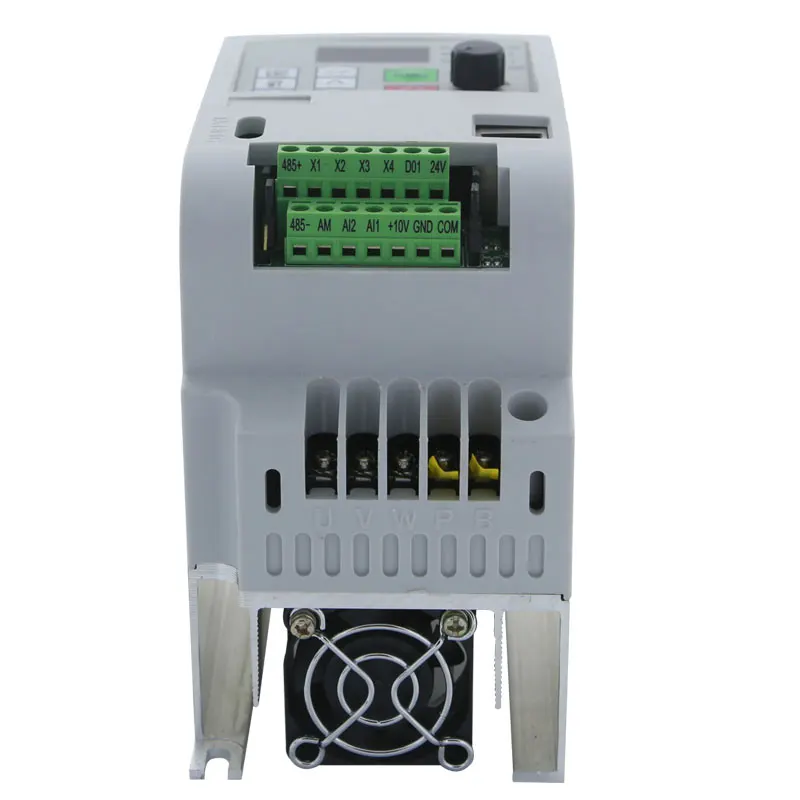

10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
