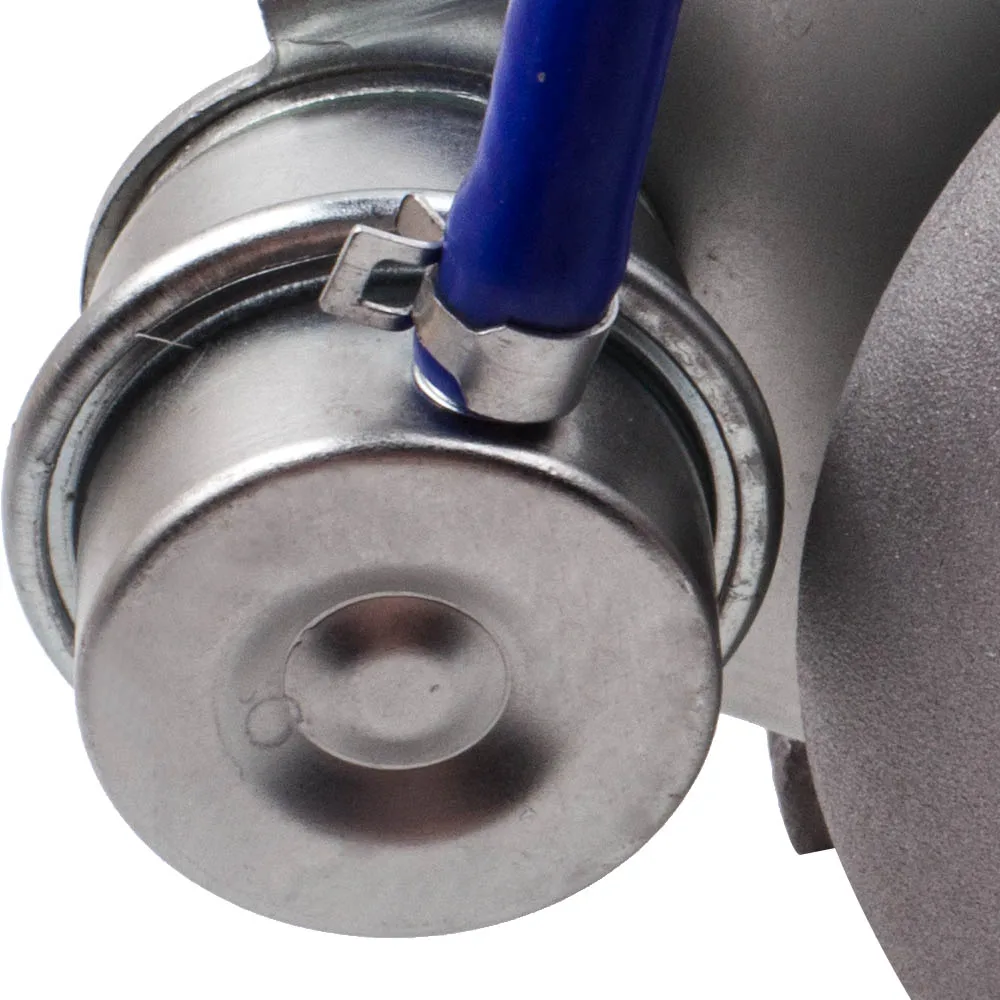

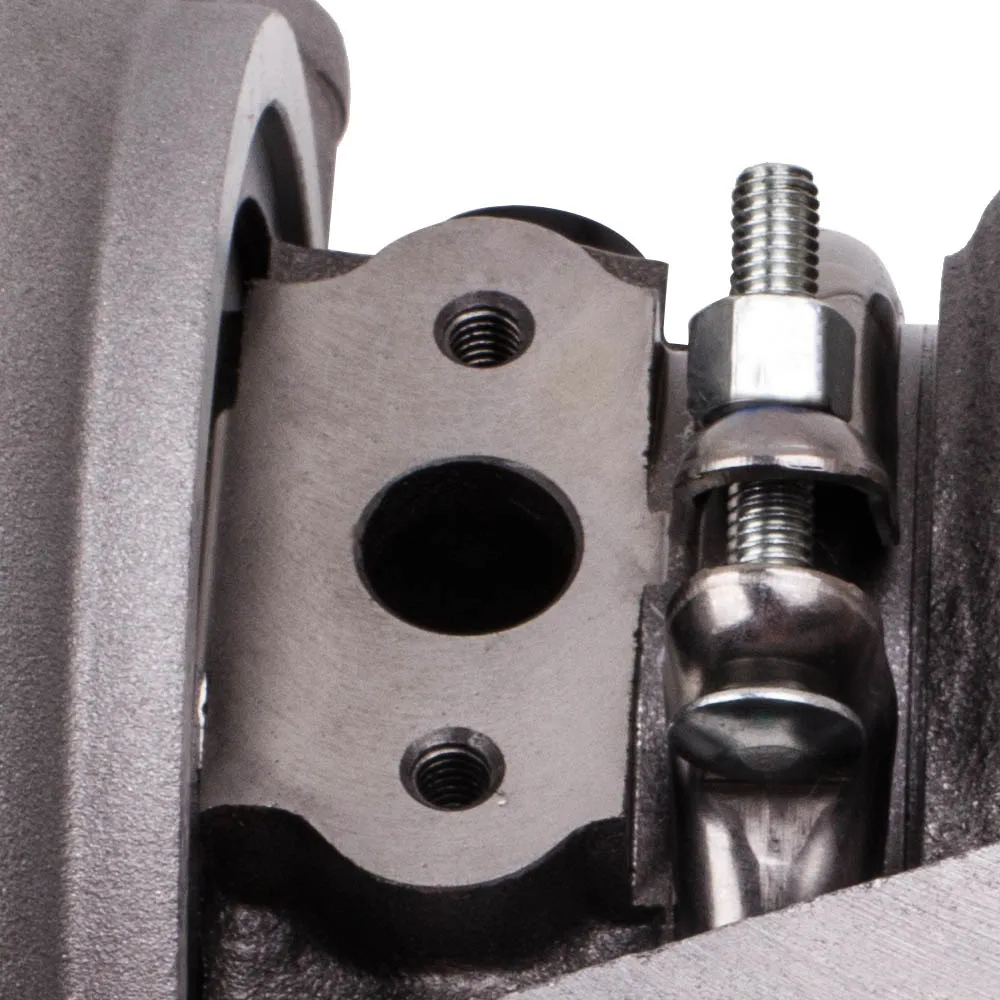

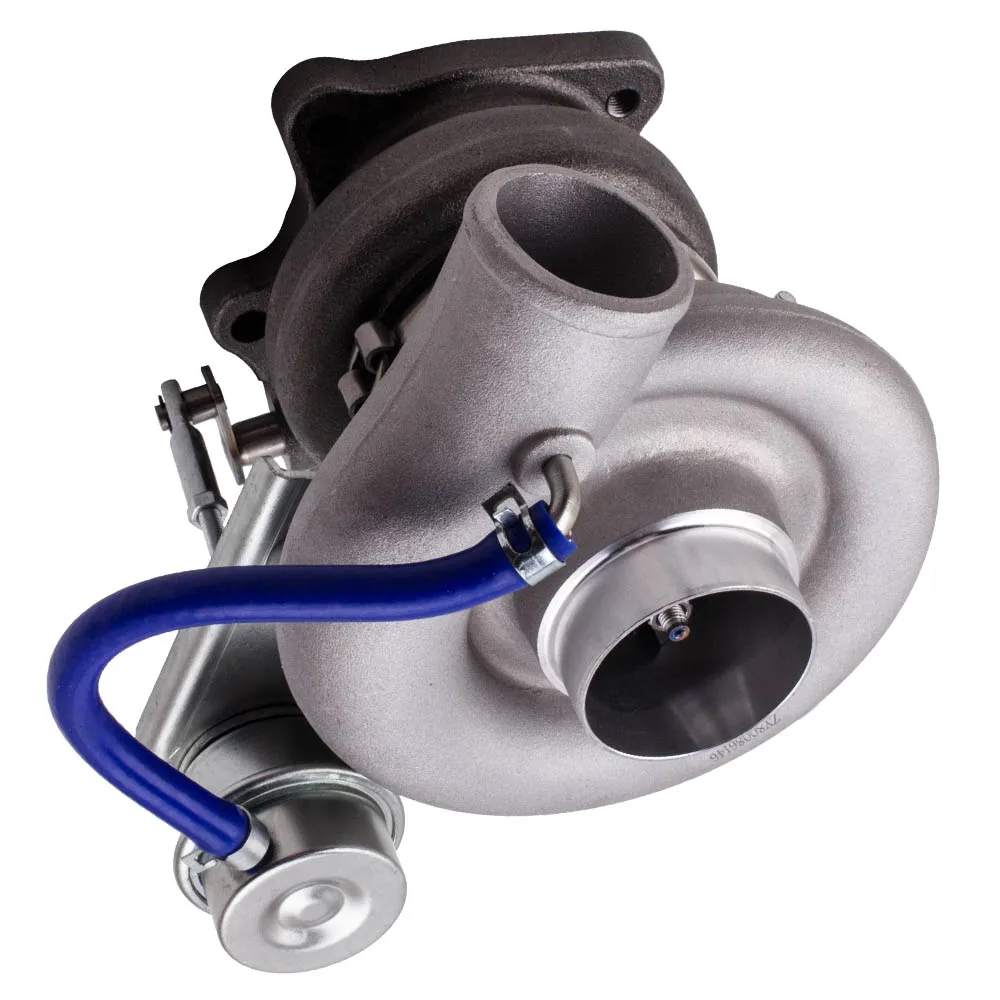

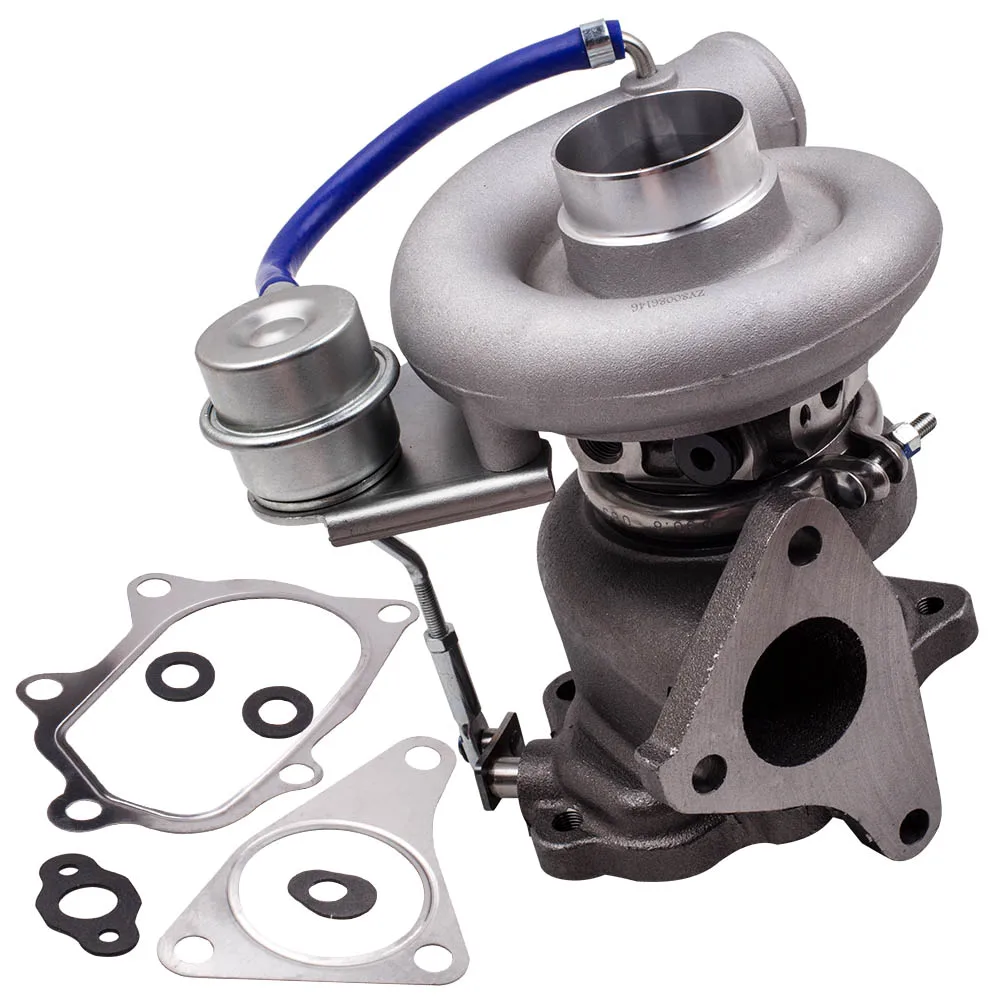

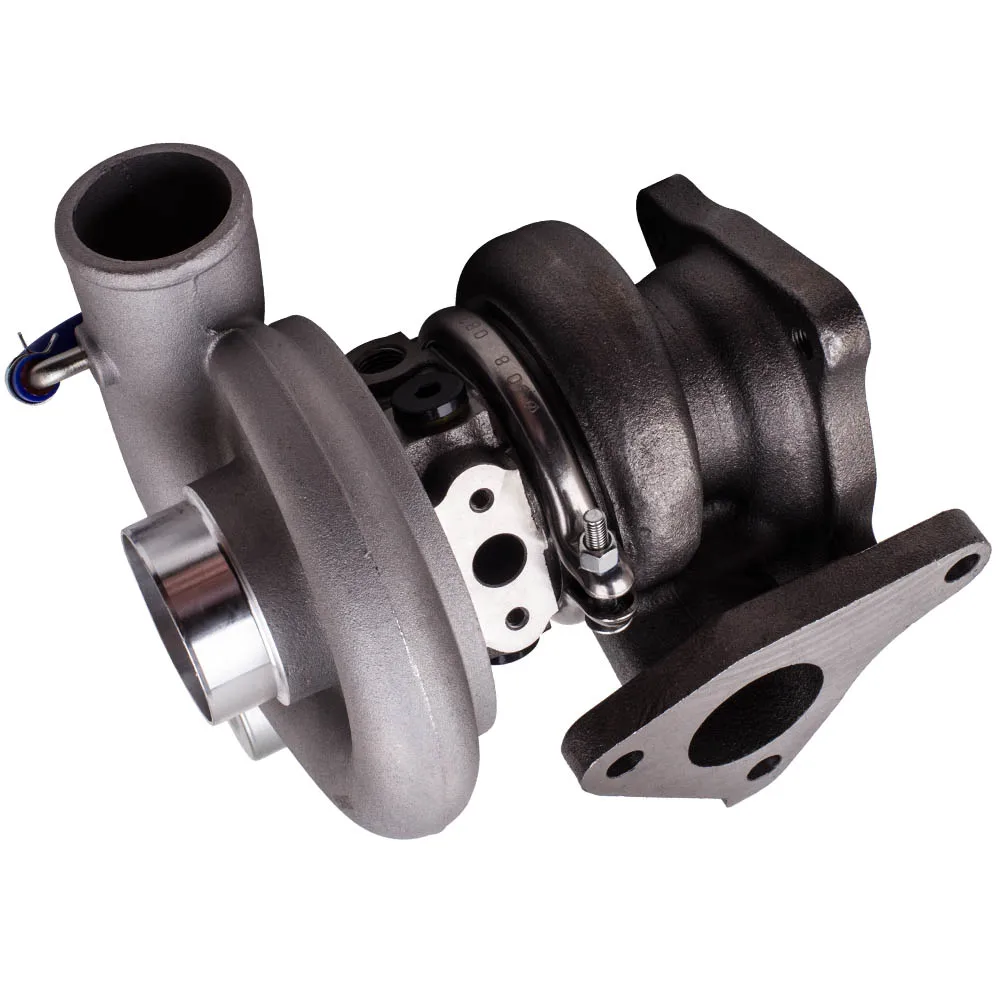

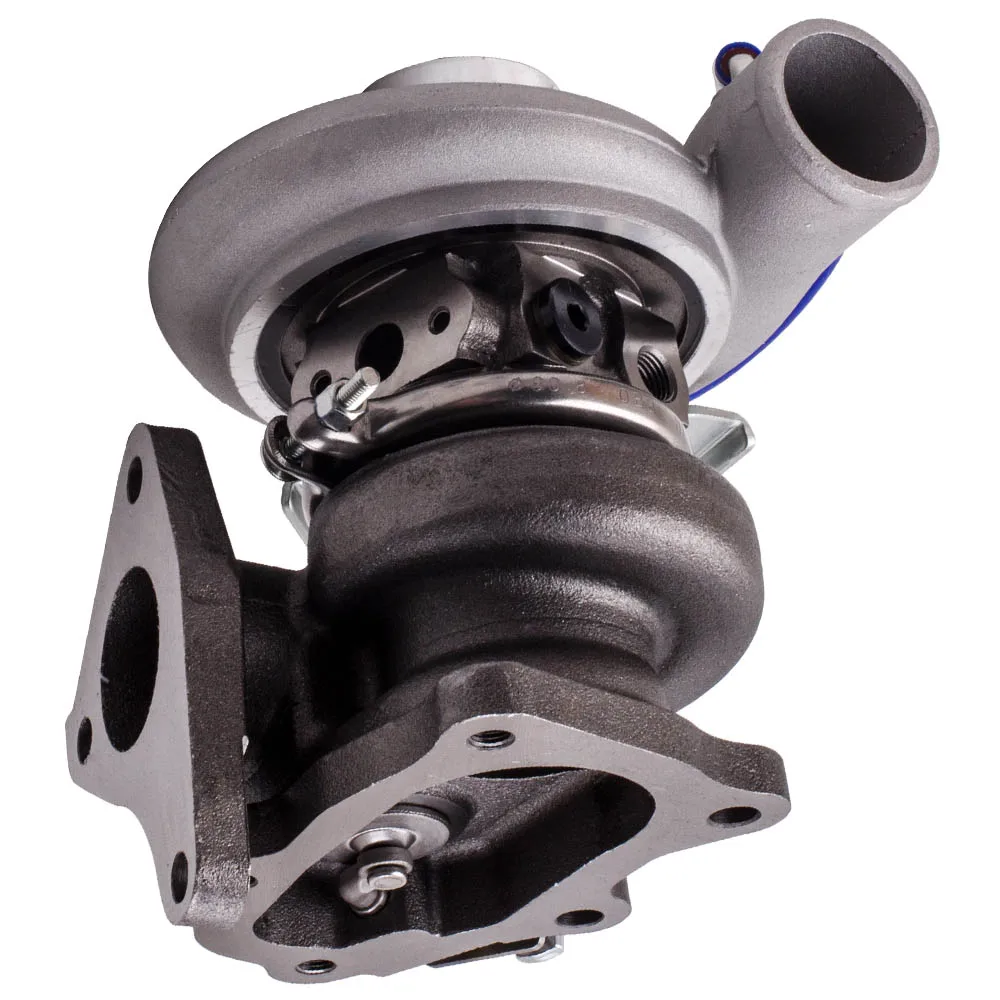

High Performance Turbo TD05 20G 7cm For SUBARU EJ20 25 Impreza WRX STI Turbocharger Turbolader Turbine

Upgraded Turbocharger for Subaru Impreza WRX STI TD05 20G EJ20 EJ25 2002-2006

Application:

For Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002 - 2006

*Notice:

All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo.

Specification:

Exhaust Outlet Flange:5-Bolt Flange

Exhaust Intlet Flange:3-Bolts Flange

Turbine Side:

Turbine Trim: 76.4

Turbine Housing: 7cm²

Turbine Inducer Diameter:56mm

Turbine Exducer Diameter: 48.96mm

Compressor Side:

Compressor Trim: 59.8

Compressor Inducer Diameter: 52.6mm

Compressor Exducer Diameter:67.9mm

Compressor Housing Inlet OD: 57.8mm

Oil Feed: M10*1.5

Oil Drain: 2*M6*1.0

Water In/Out: M14*1.5

Turbine housing: 7cm²

Compressor housing inlet OD: 57.8mm,ID:53.62mm

Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing: Wet Float/Journal Bearing

Cooling Type: Water + Oil cooled

Thrust Bearing:270 degree

Hosepower: Up to 420 HP

Turbo Type:Individual

Condition: 100% Brand New
