Waterproof 2200W CNC Spindle Motor 220v ER20 2.2kw Round Water Cooling Spindle 24000RPM +2.2kw VFD 48-63hz+Water Pump+80mm Clamp

Notice:

Dear friends,we havewarehouseinGermany/United States/Russia，we can ship to all EU countries from our Germany warehouse via DHL, ship to United States from our USA warehouse via UPS, which isfast delivery.

1 x 2.2KW ER20 waterproof water-cooled spindle motor

1 x 2.2KW Inverter 220V

1 x 80mm spindle bracket

1 x 80W Water pump

1 x 5M water pipes

1 Set of ER20 collet(14pcs)

The manual for the inverter will send via email.

Note:This listing is with several options, so pls check carefully when you place the order, thanks in advance.

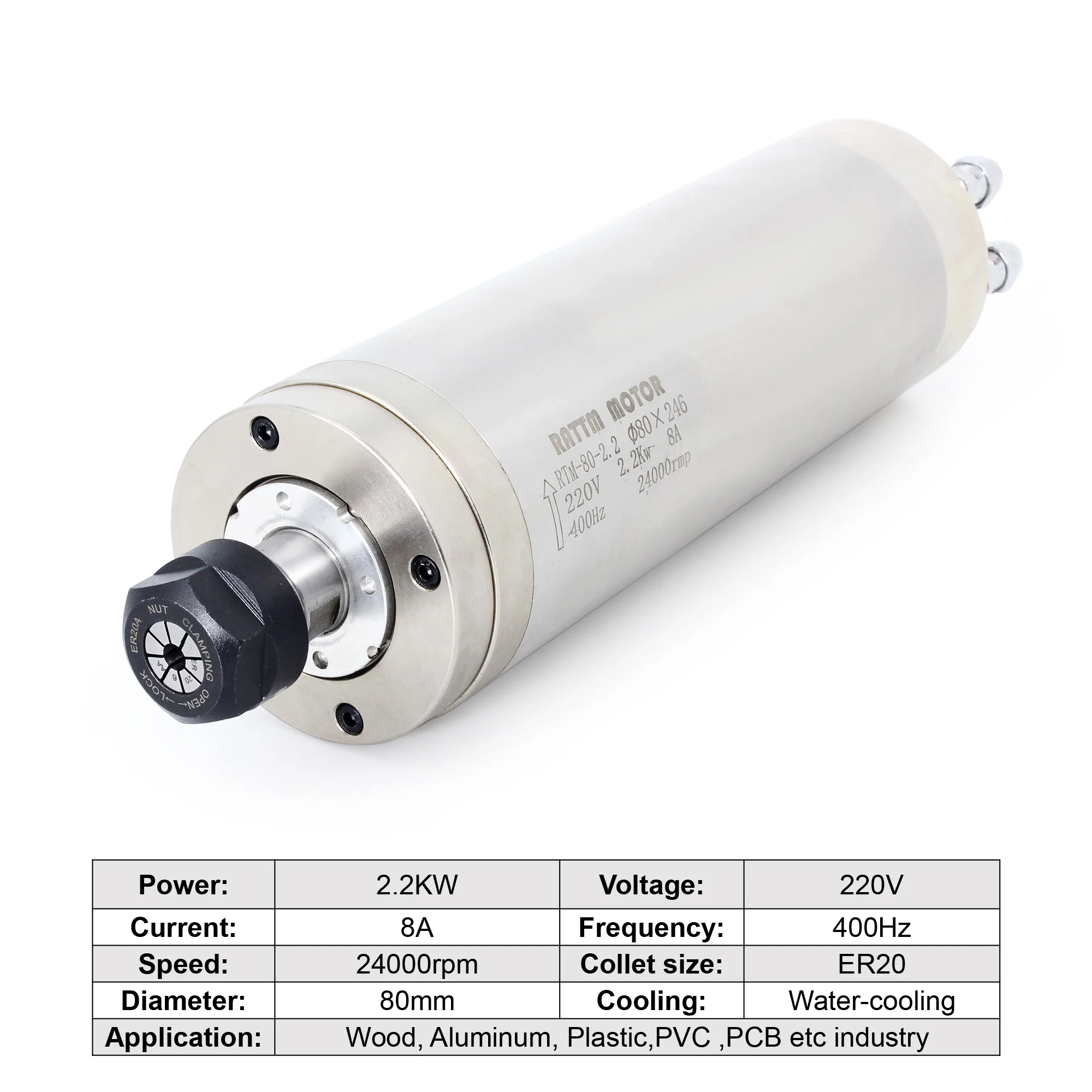

I. 2.2KW ER20 waterproof water-cooled spindle motor

2.2KW ER20Waterproof Water-cooled spindle motor Carved metalENGRAVING MILLING GRIND

Specification:

Material:Stainless Steel

Size:Φ 80x246mm

Power:2.2Kw

Voltage:220VAC

Current:8A

Frequency:0-400Hz

Speed:10-24000rpm

Cooling:Water-cooling

Precision tapered bore:0.01mm

Runout off:Less than 0.01mm

Bearing Lubrication:Grease

Collet size:ER20

Bearings:4 bearings(C7005x2 + C7003x2),P4 class

Net Weight:6.1kg

Power supply interface:Professional

aviation Interface, Interface 1234 marked 123 respectively connected to

the inverter output end of the (U, V, W), 4 is blank to avoid

connection wrong to burnt the spindle.

Main application:Wood, Aluminum, Stone, Metal, Glass, PVC industry

II. 2.2kw Inverter VFD 220V

Input Voltage:220V(+/-15%)

Output Voltage:220VAC

Input Frequency:50-60 Hz

Output Frequency:0-1000 Hz

Input Phase:1 phase

Output Phase:3 phase

Warranty:1 year from the date you purchased

◆Two speed control modes: no PG vector control (SVC), V/F control

◆ No PG vector control (SVC): starting torque 0.5Hz up to 150%

◆ 8-stage simple PLC function, multi-speed control and PID control

◆ Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

◆ I/O terminals can be freely programmed to combine multiple working modes according to user needs.

◆With jump frequency control function, it can effectively suppress

mechanical resonance and make the system more stable and reliable.

◆ With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure

◆ With over torque and under torque detection

◆ Automatic voltage adjustment function to effectively solve the low frequency oscillation problem of high power motor

◆Provide

a variety of fault protection functions: over-current, over-voltage,

under-voltage, over-heat, overload, lack of equal real-time monitoring

and protection to ensure safe operation

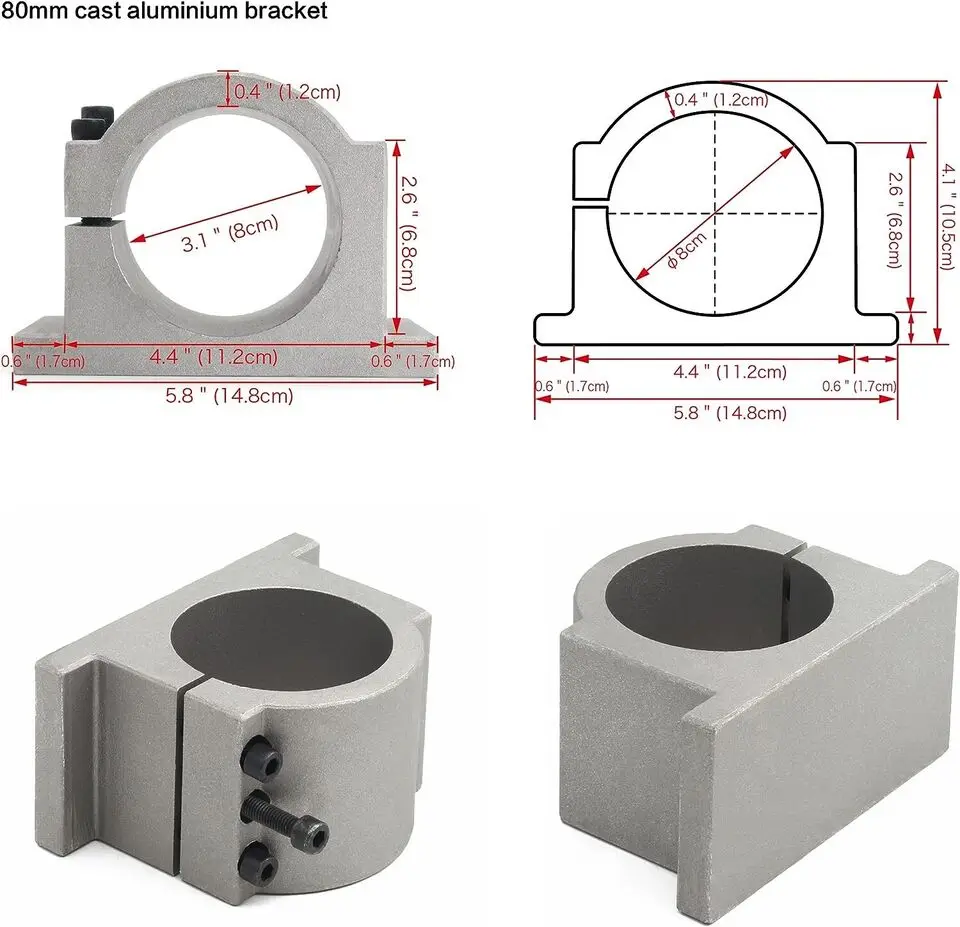

3.80mm cast aluminium bracket

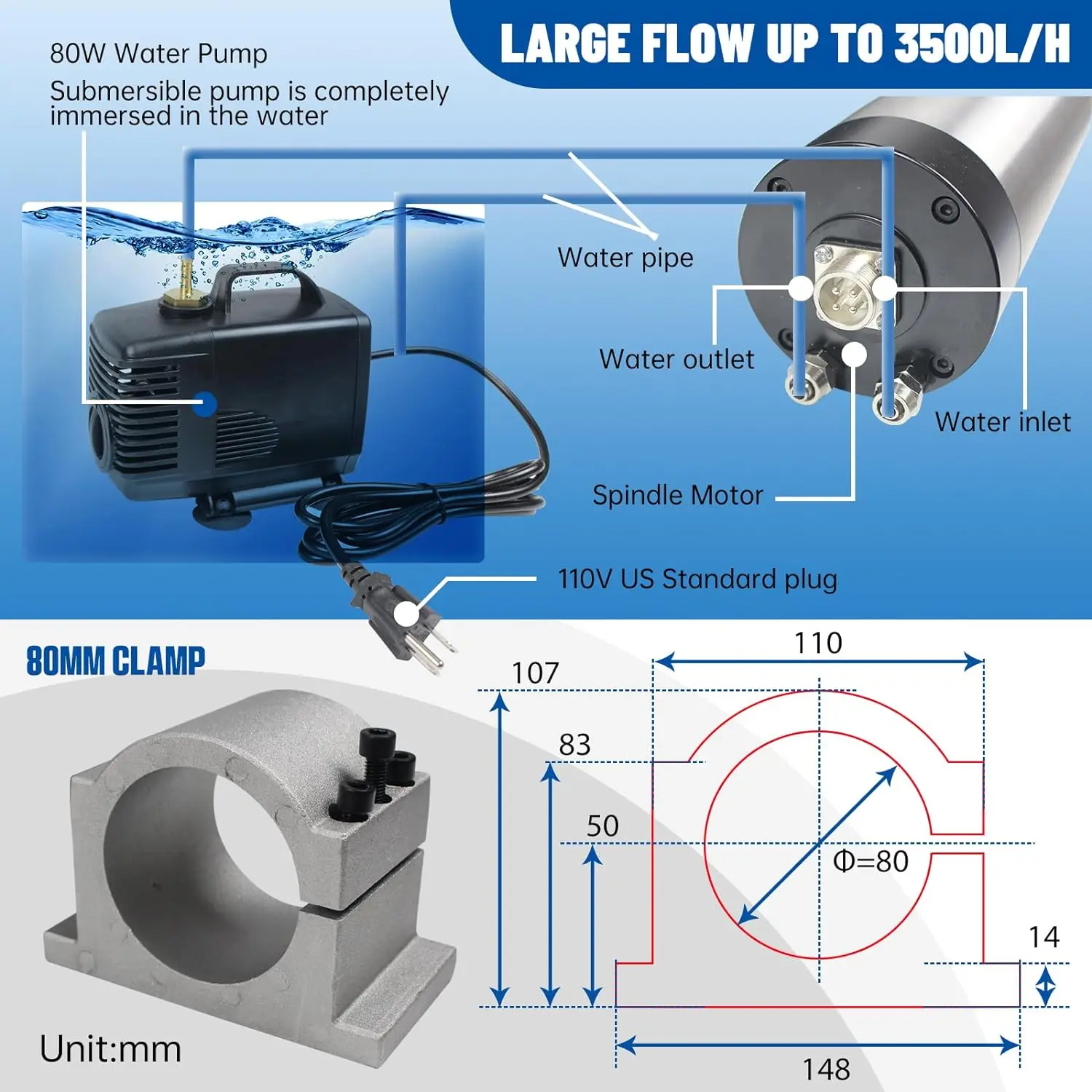

4. 75W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzlediameter:6mm

Application:fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

5.1 Set (1-13mm)14Pcs ER20 Collets
