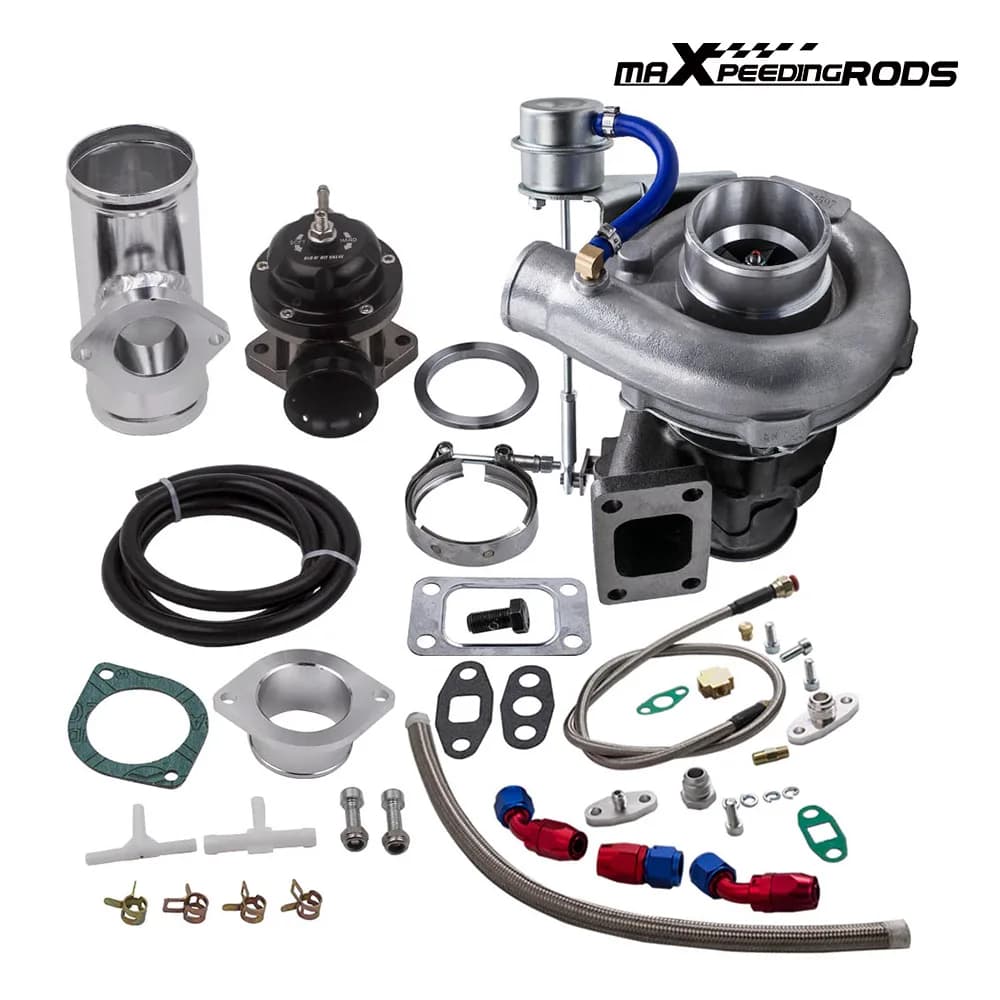

T3 T04E Turbo V-Band 400+HP Internal Wastegate+Oil Return+Feed Line Blow Off

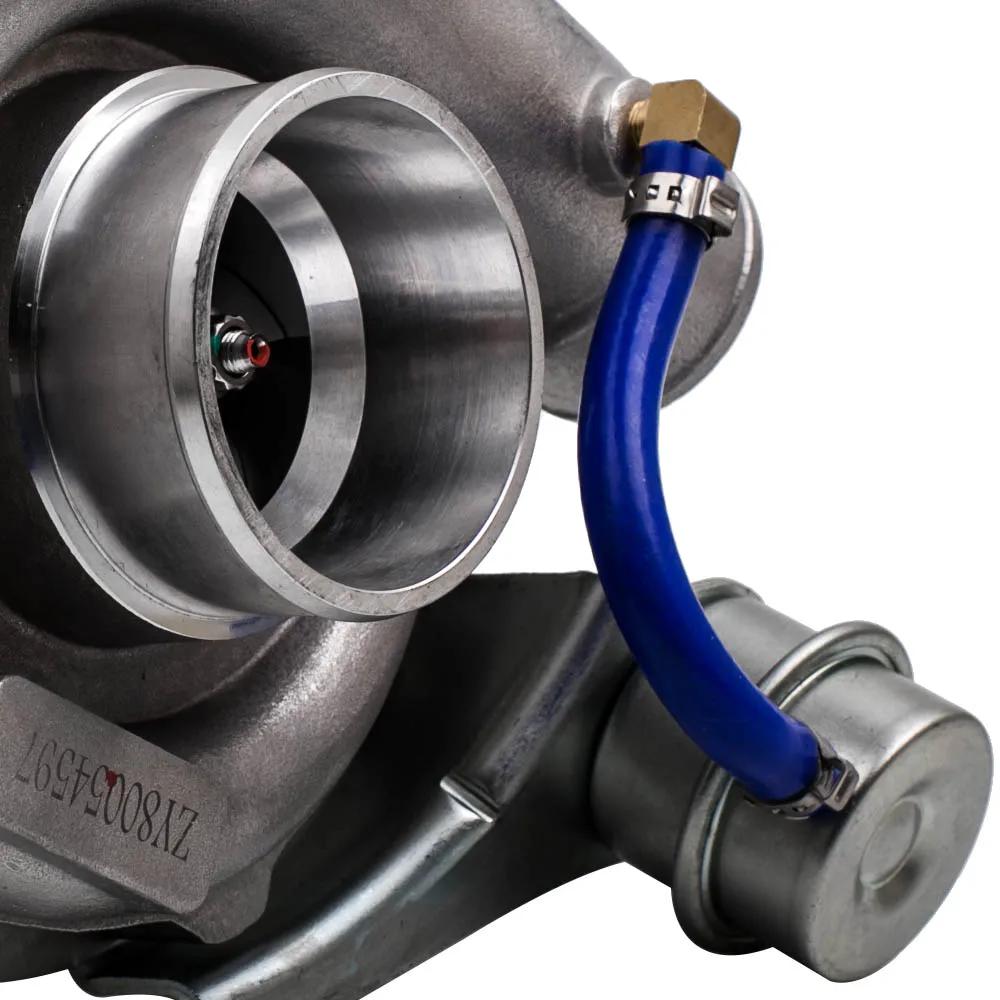

T04E Turbocharger

Application:

Perfect for all 4 or 6 CYL, 2.0L-3.5L Engines

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: V-Band Flange

Cooling Type: Oil Cooled

Wastegate: Internal Wastegate

Horse Power: Boost Horse Power up to 420HP

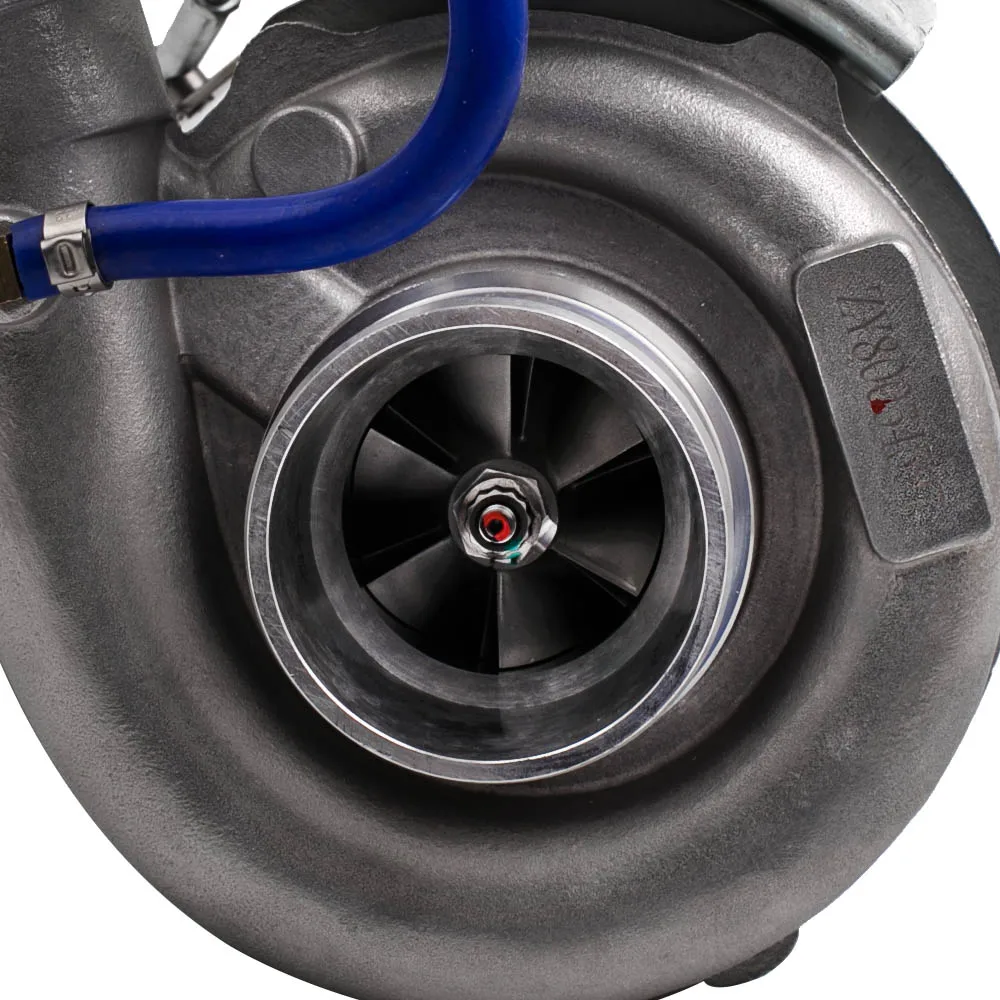

Compressor:

Trim: 44

Inducer Diameter:50.5 mm

Exducer Diameter:76 mm

A/R:0.5

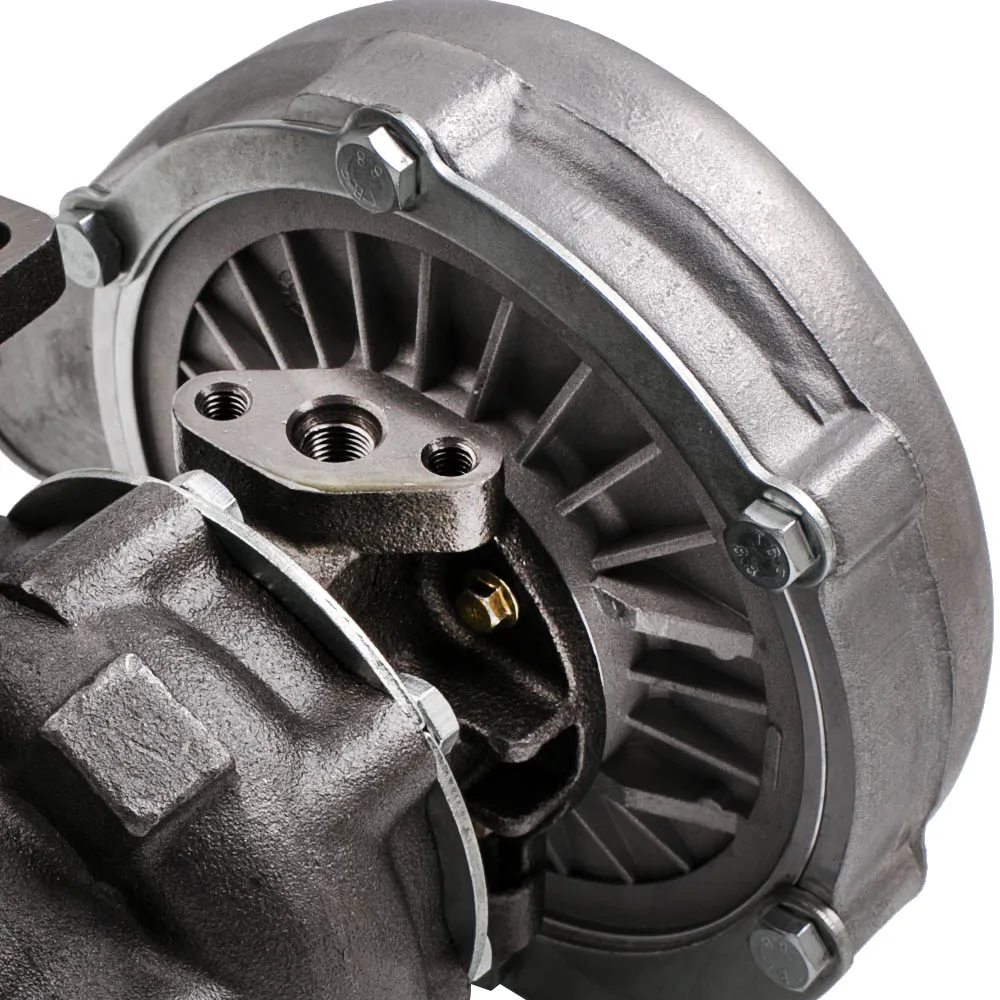

Turbine

Trim:73

Inducer Diameter:65.5 mm

Exducer Diameter:55.9 mm

A/R:0.63

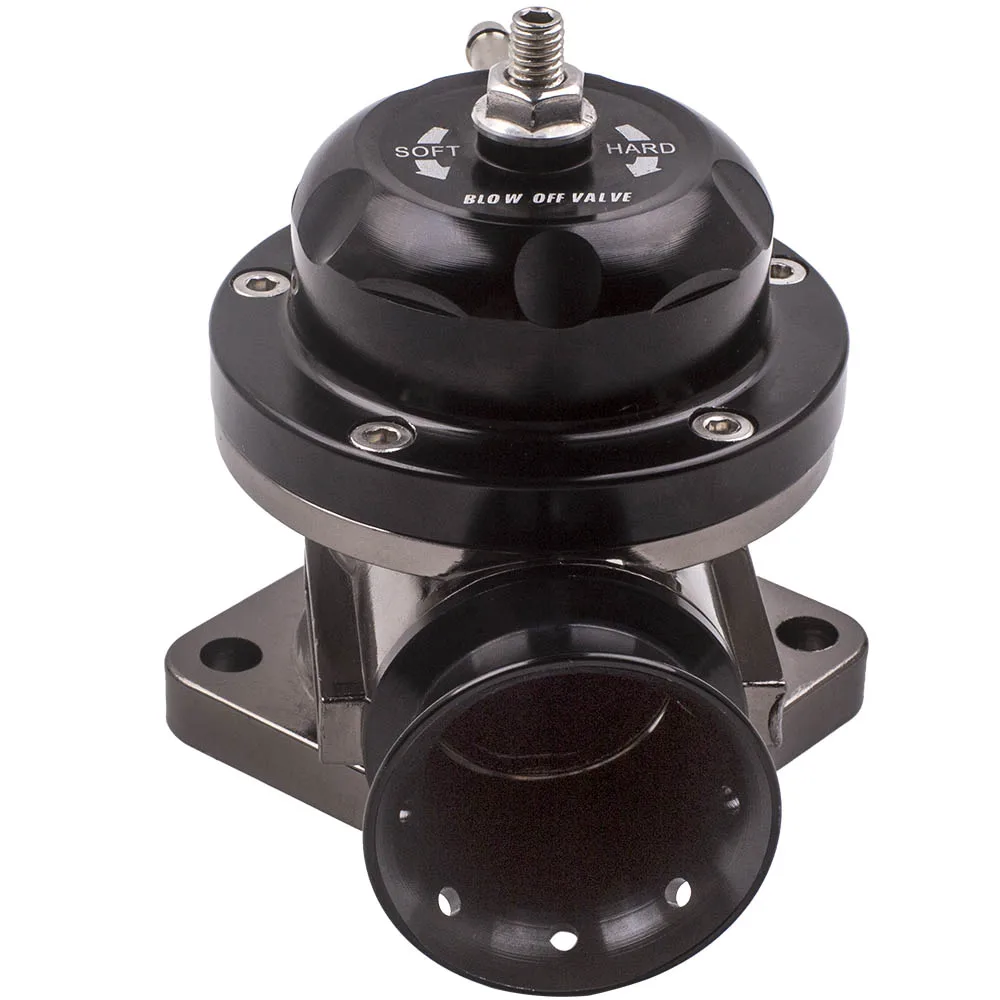

Aluminum Blow Off Valve

Blow Off Valve

Holds Up to 30PSI Boost Pressure

Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body

Dual Spring System Promoted Response & Allows for High Boost Pressures

Hard-Anodized Valve for Increased Air Flow

Powder-Coated Anodized and Polished Finish

2 Bolts Mounting Design

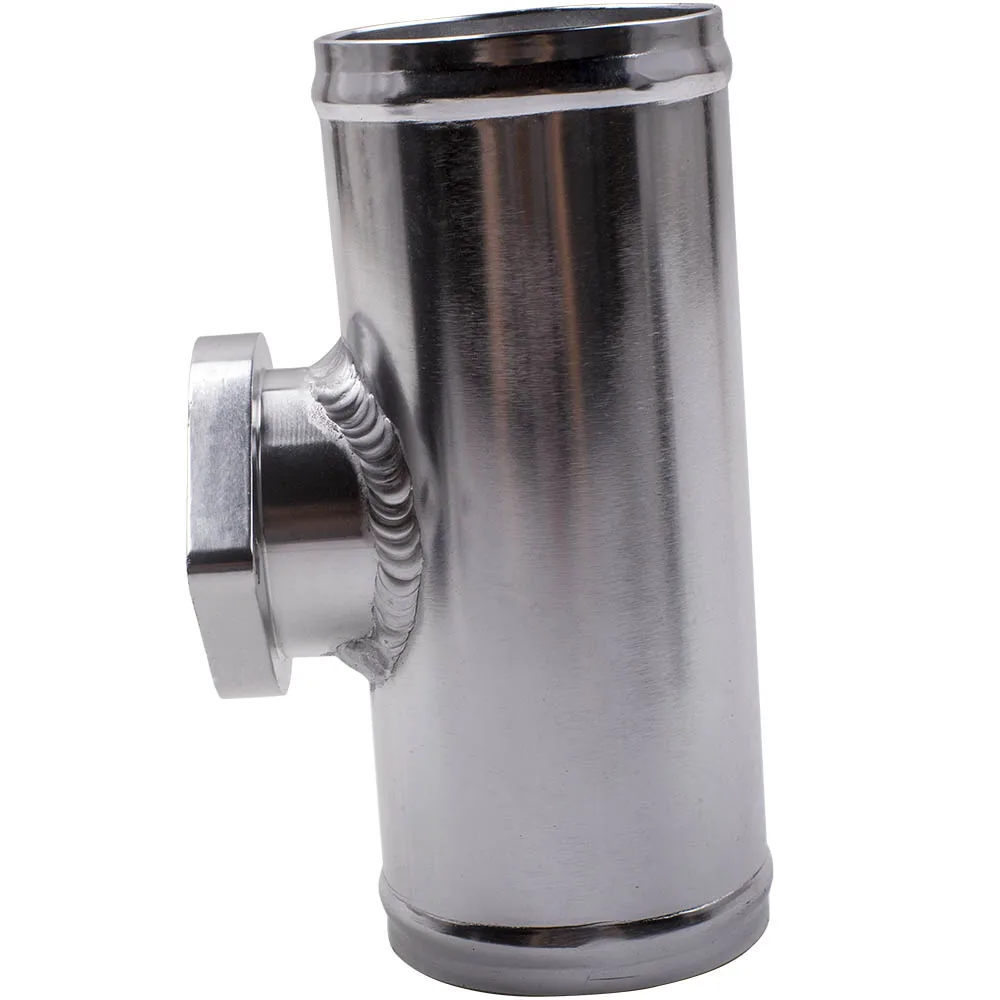

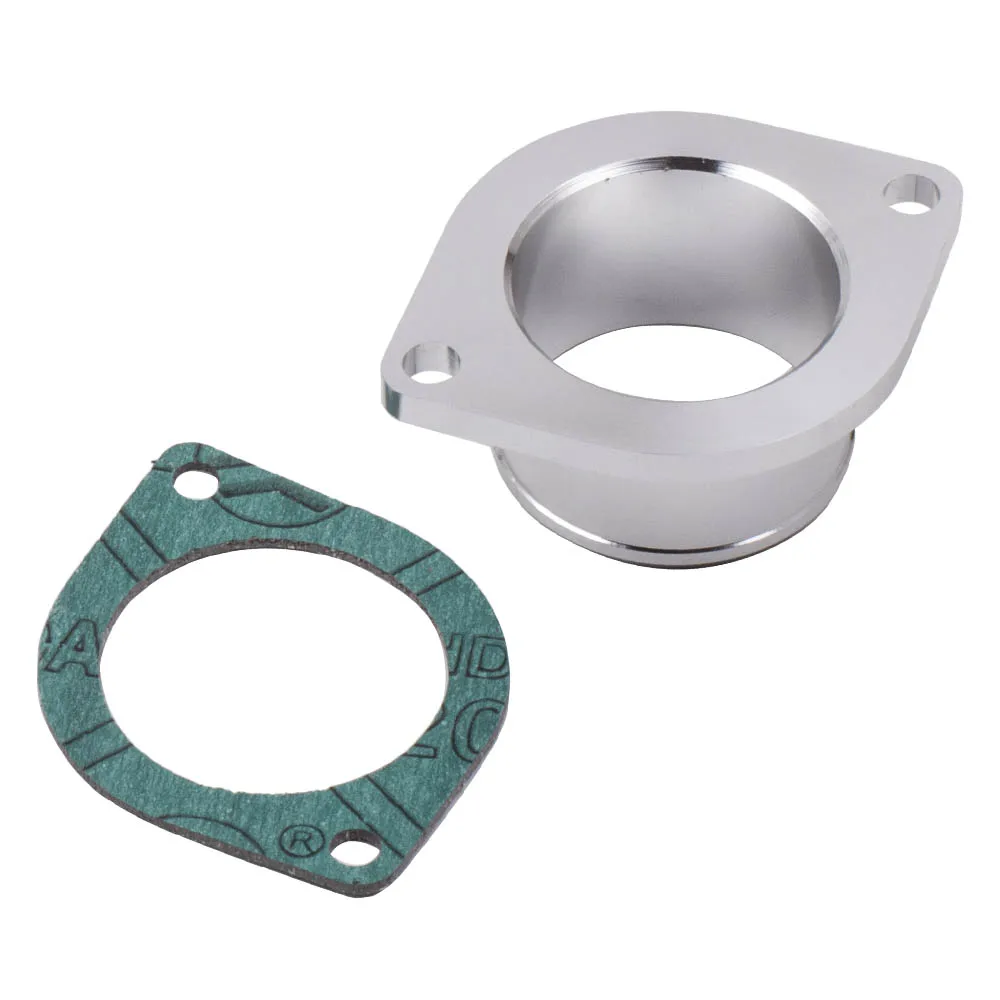

Flange Pipe Adapter

2.50" (63mm) Pipe Size

Fits Type-S or Type-RS Dump Pipe Flange

Oval / 2 Bolt Flange Design type

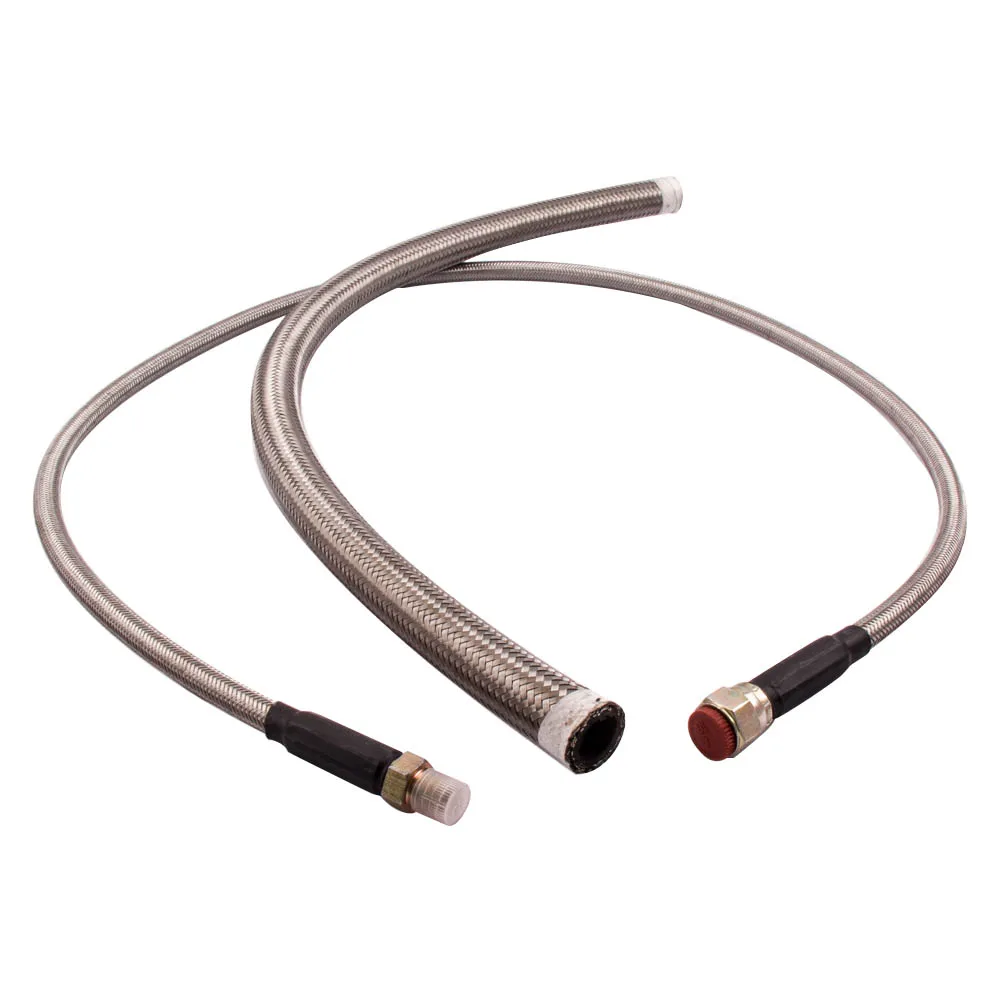

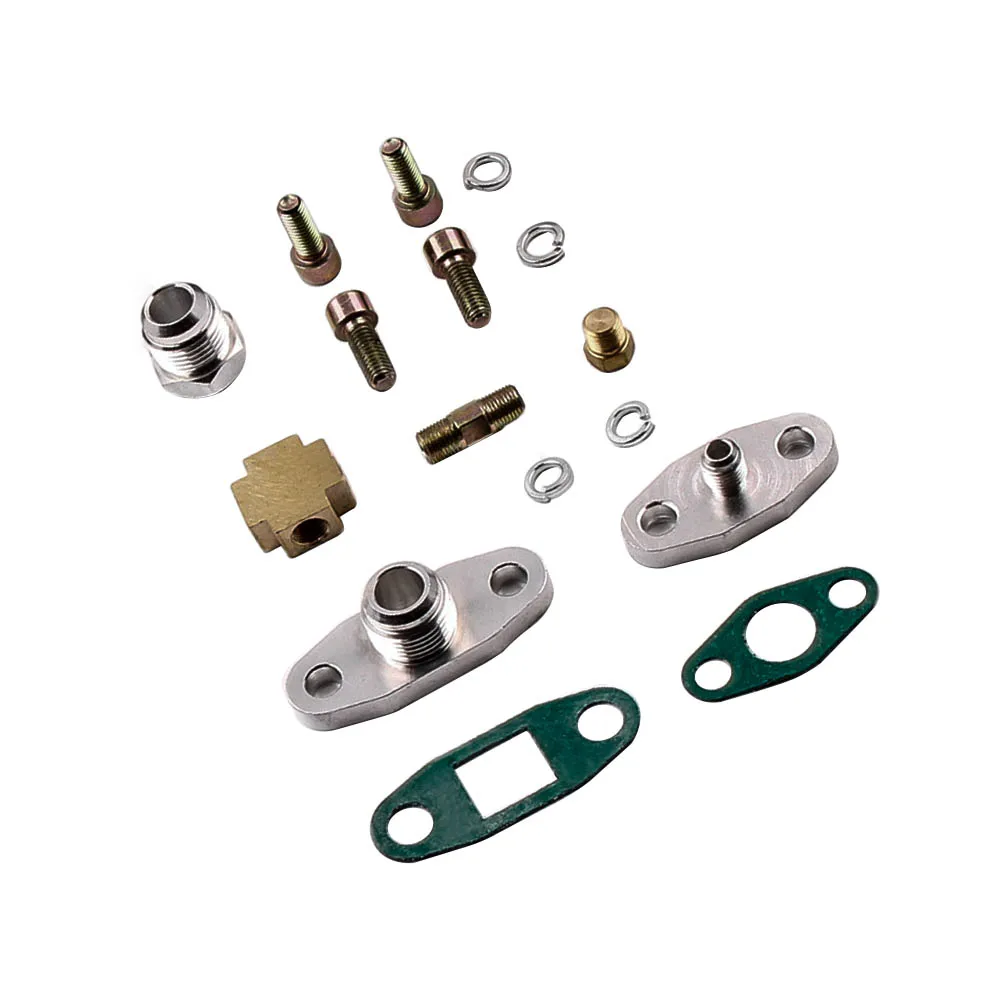

Oil Line

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
