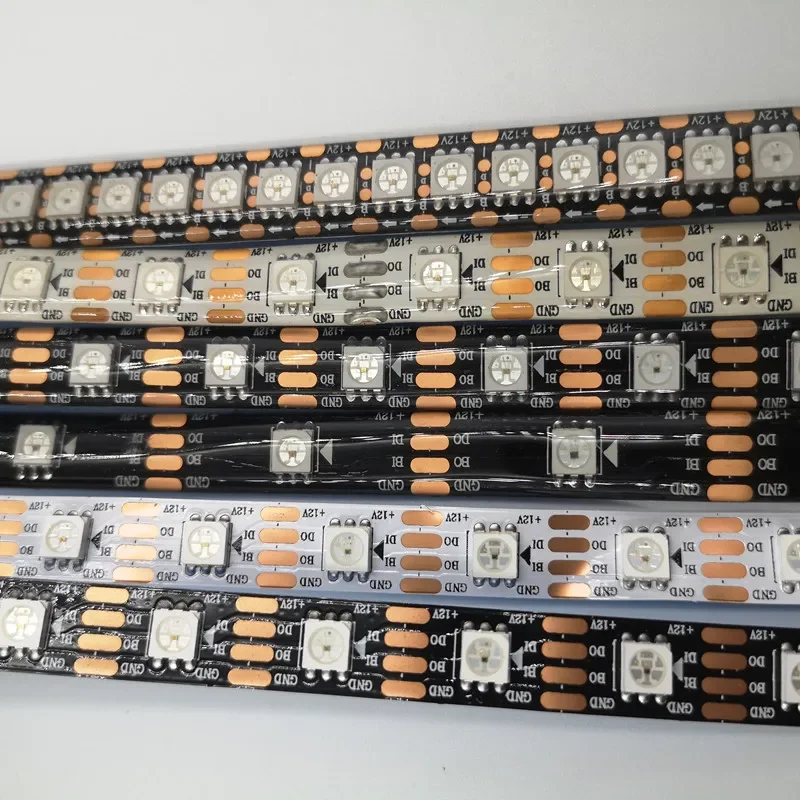

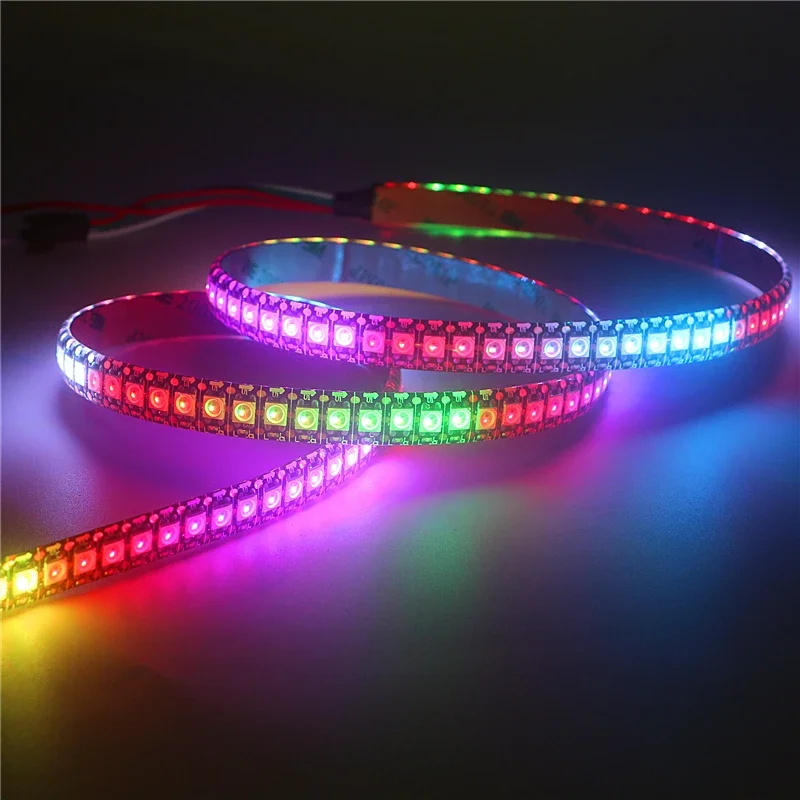

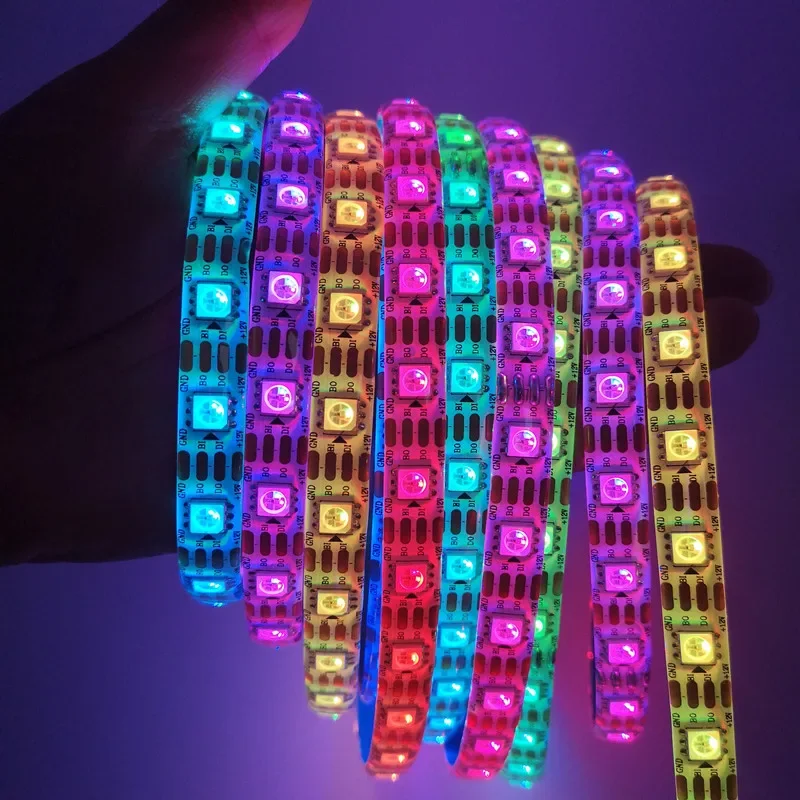

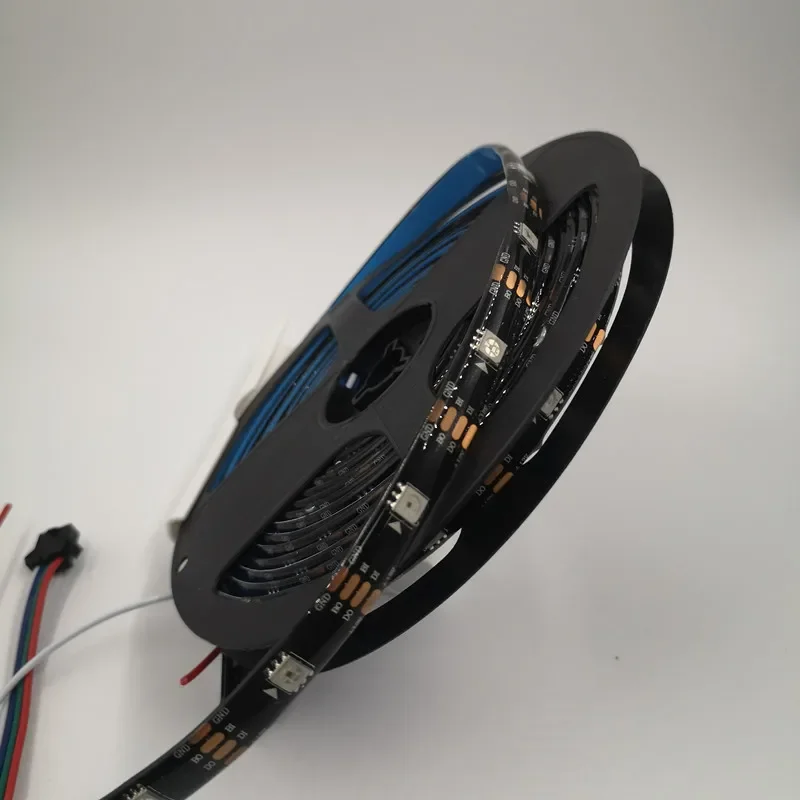

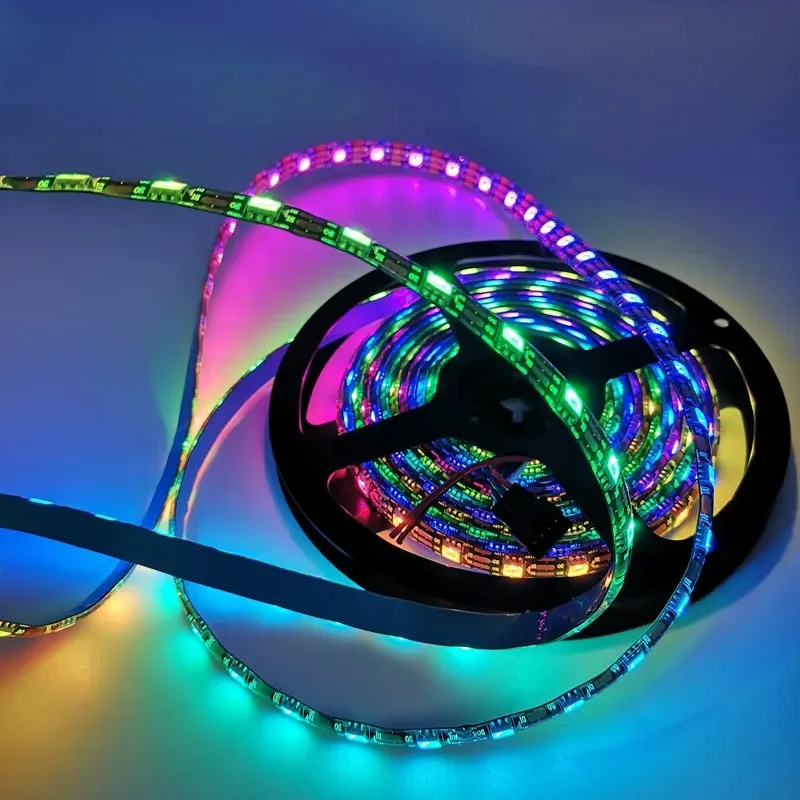

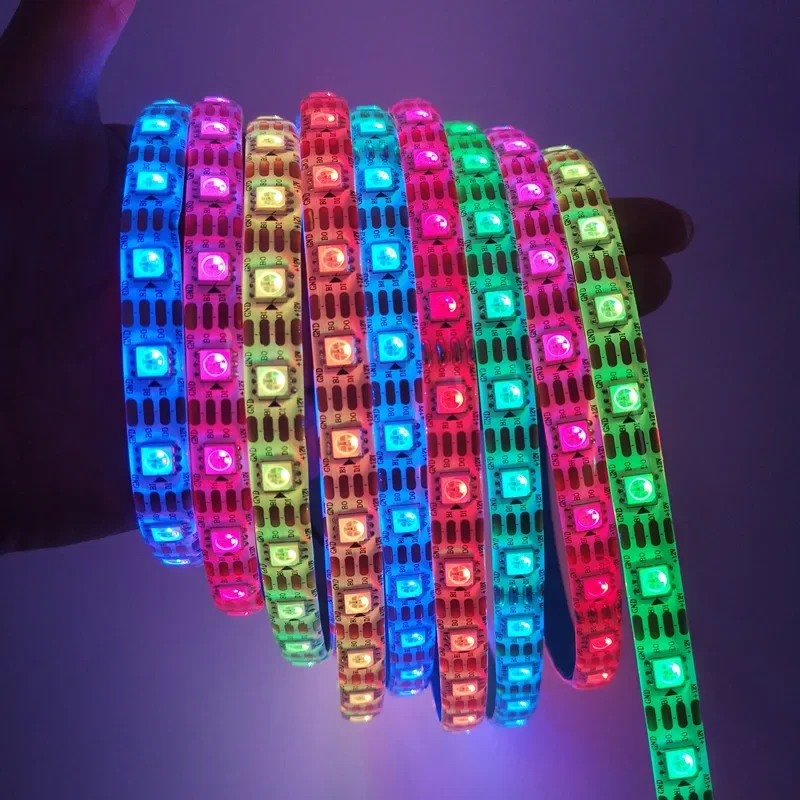

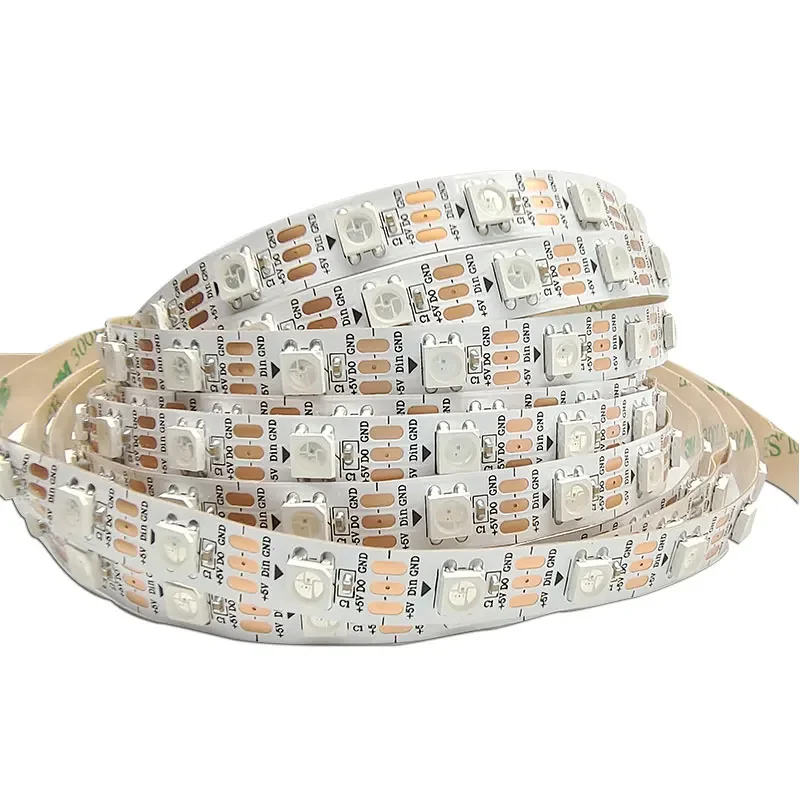

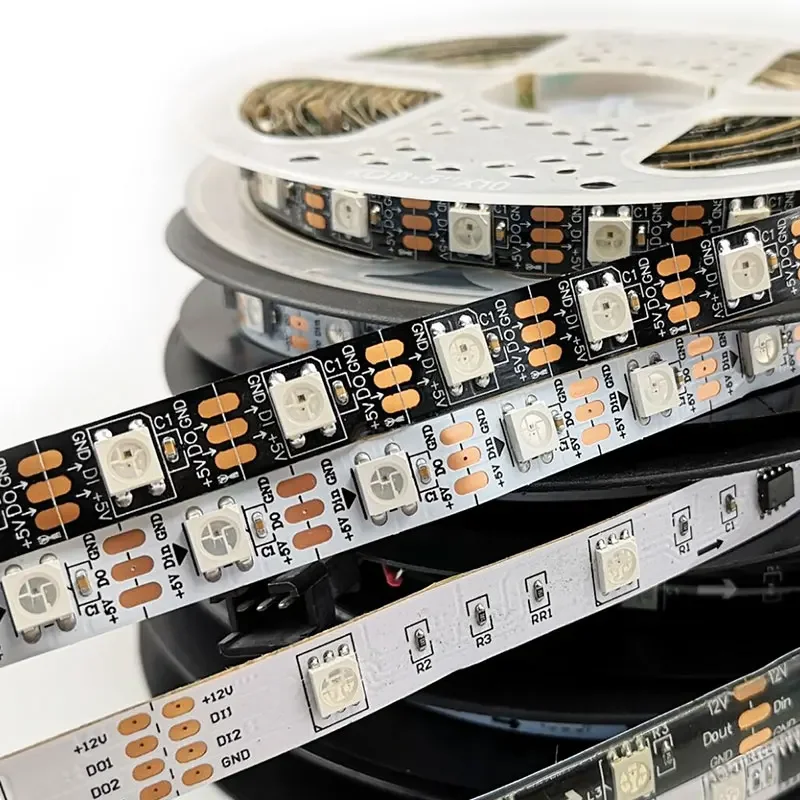

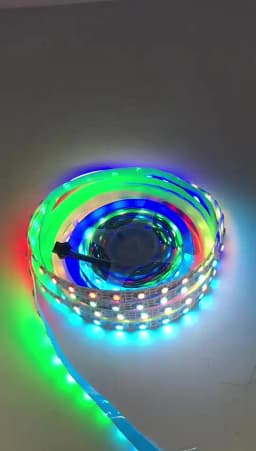

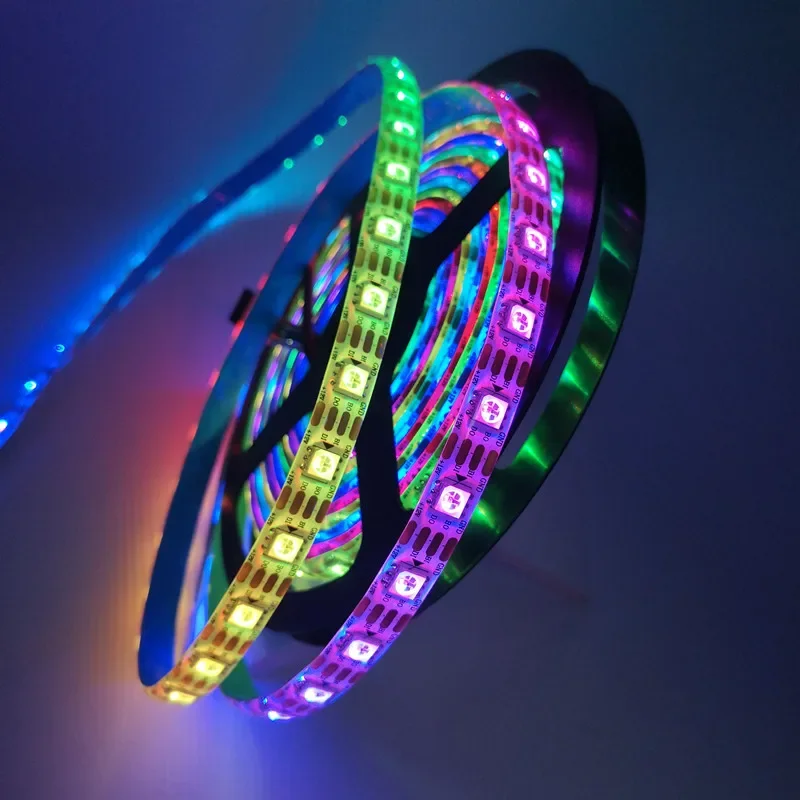

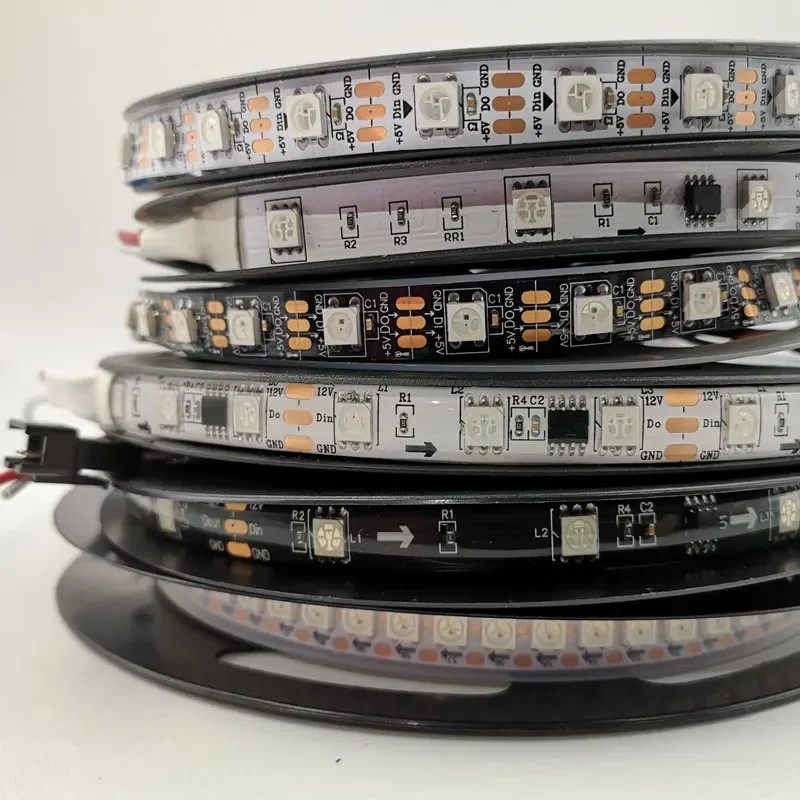

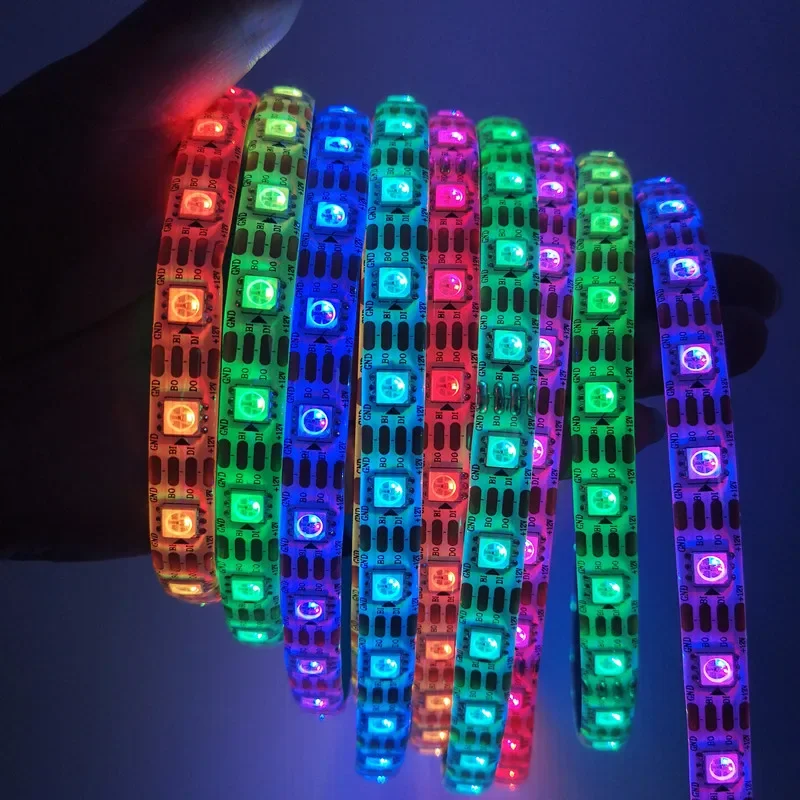

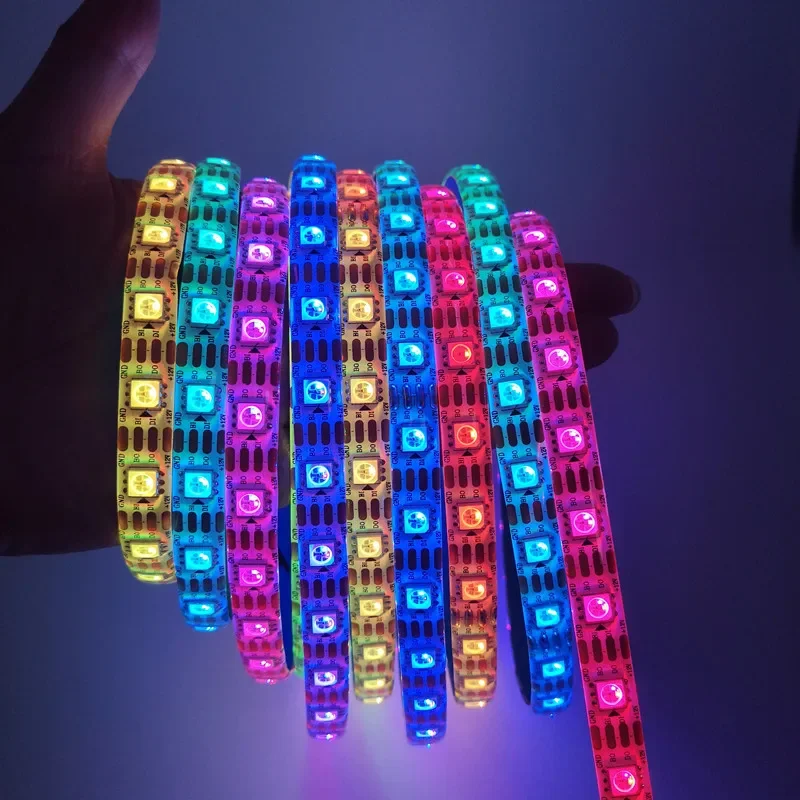

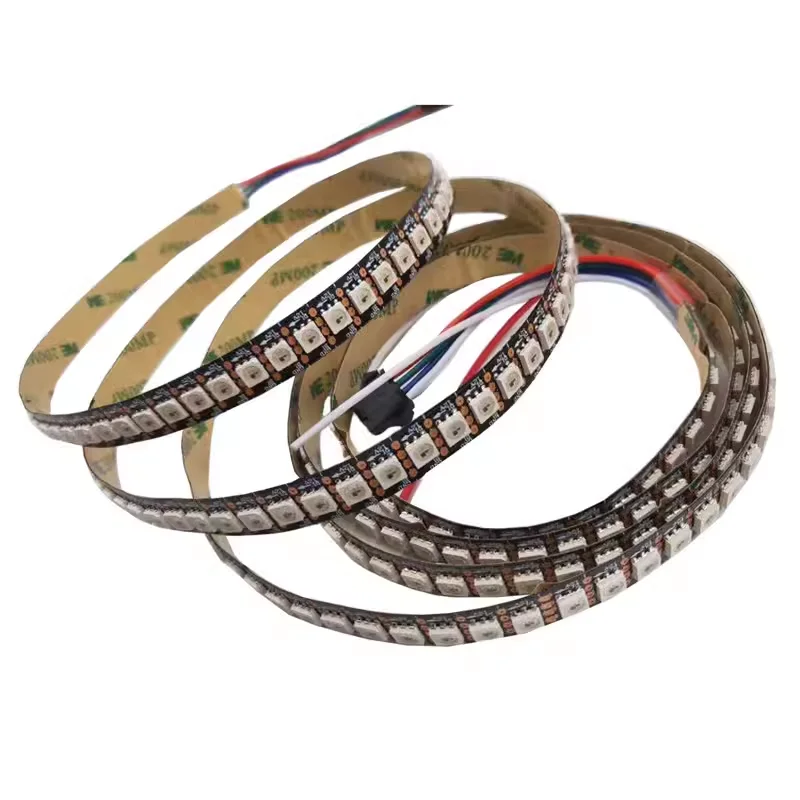

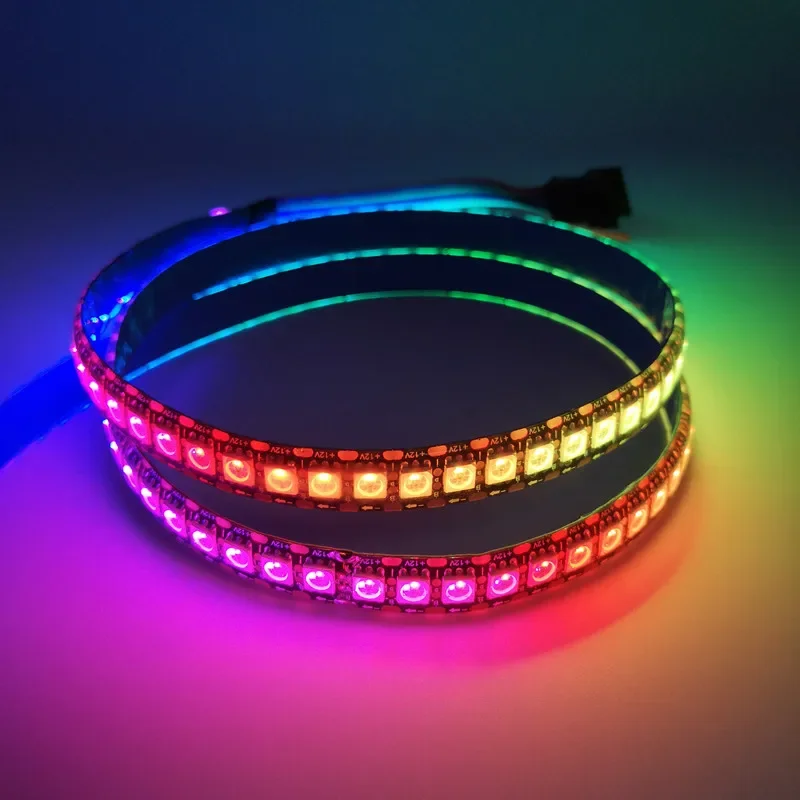

1/5m 5V WS2812 12V WS2815 LED Strip 30/60/74/96/144 LEDs/m Addressable IC Pixel 5050 RGB Lights Tape IP30/65/67 Magic Neon Bar

Light strip difference:

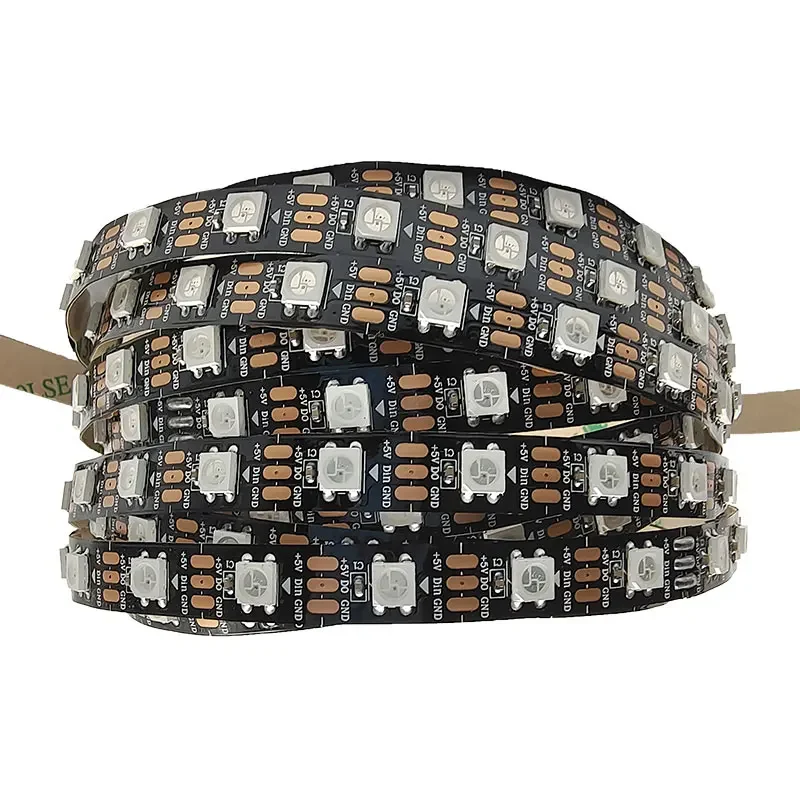

(1) DC 5V WS2812 is a built-in 2811IC,each lamp bead has an independent IC, which can be

controlled independently.

(2) DC 12V WS2815 built-in IC adopts upgraded version 2811IC and adopts parallel welding. The damage of some lamp beads will not affect the work of the next lamp bead. And the transmission speed is faster.

Note:

(1) The price is only Led Strip, excluding power supply or Led controller!

(2) The LED light bar must work with the power supply and controller!

(3) There are solder joints every 0.5 meters, please pay attention!

(4) WS2815, WS2812 are two different types of lamps, please pay attention when buying!

(5) WS2812 is 5V light bar. WS2815 is 12V LED strips!

(6) WS2812 uses a 3pin connector. WS2815 uses 4pin connector.

Features:

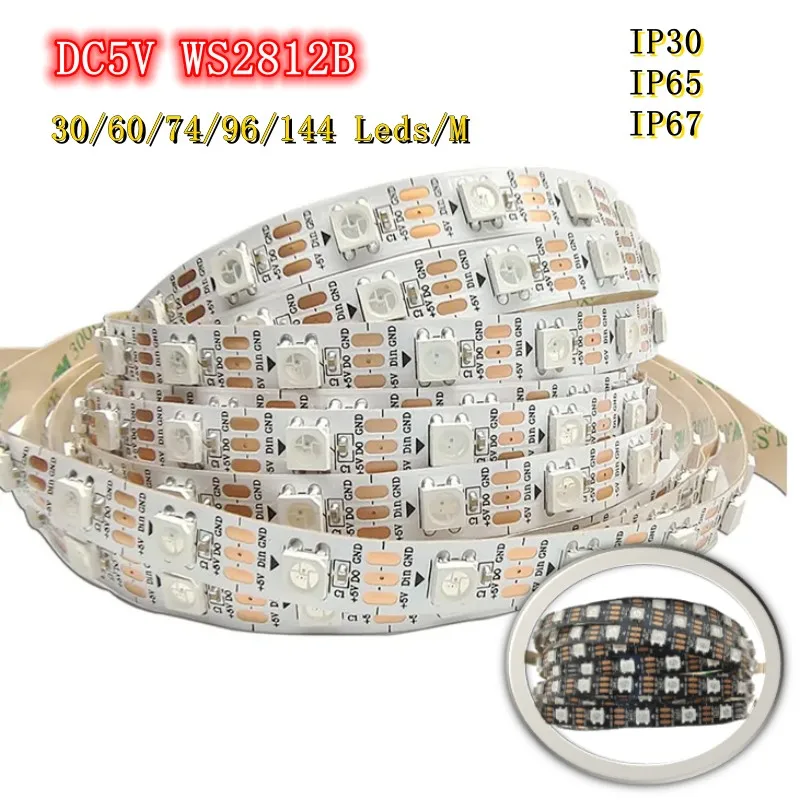

(1)Input voltage : DC5v;

(2)Power : 30leds/m----9watt/meter

60leds/m----18watt/meter

74leds/m----22.2watt/meter

96leds/m----28.8watt/meter

144leds/m----43.2watt/meter

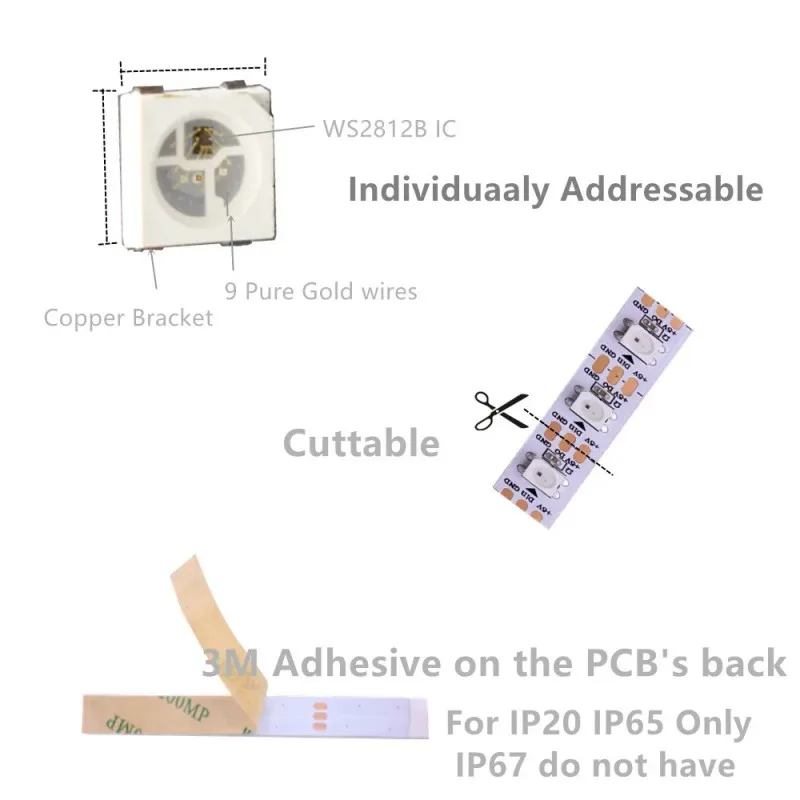

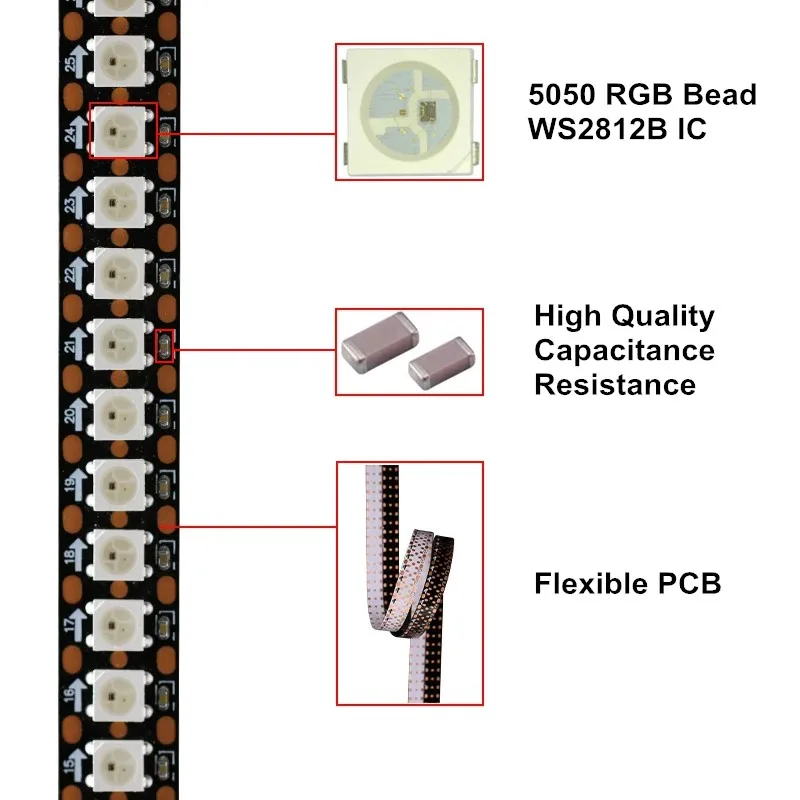

(3)LED resource : WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

(4)LED : each LED is separately controlled

(5)IC Type : improved version ws2812 IC(built inside the 5050 smd rgb led)

(6)of IC : (1 IC drives 1 led chip);

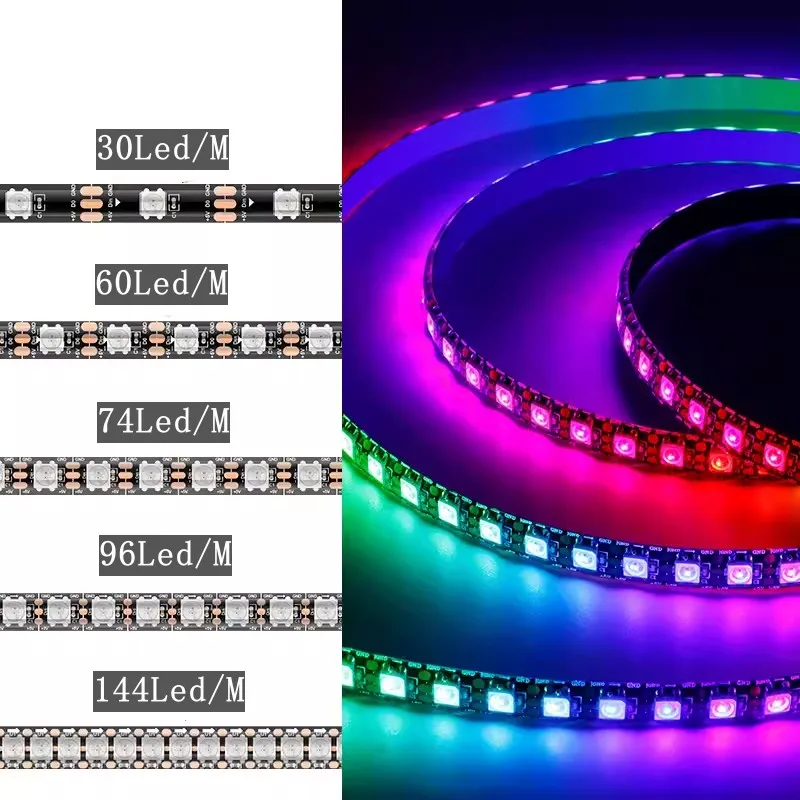

(7)Pixels : 30/60/74/96/144/meter;

(8)Grey scale : 256;

(9)Bits/color : 8-bits/color;

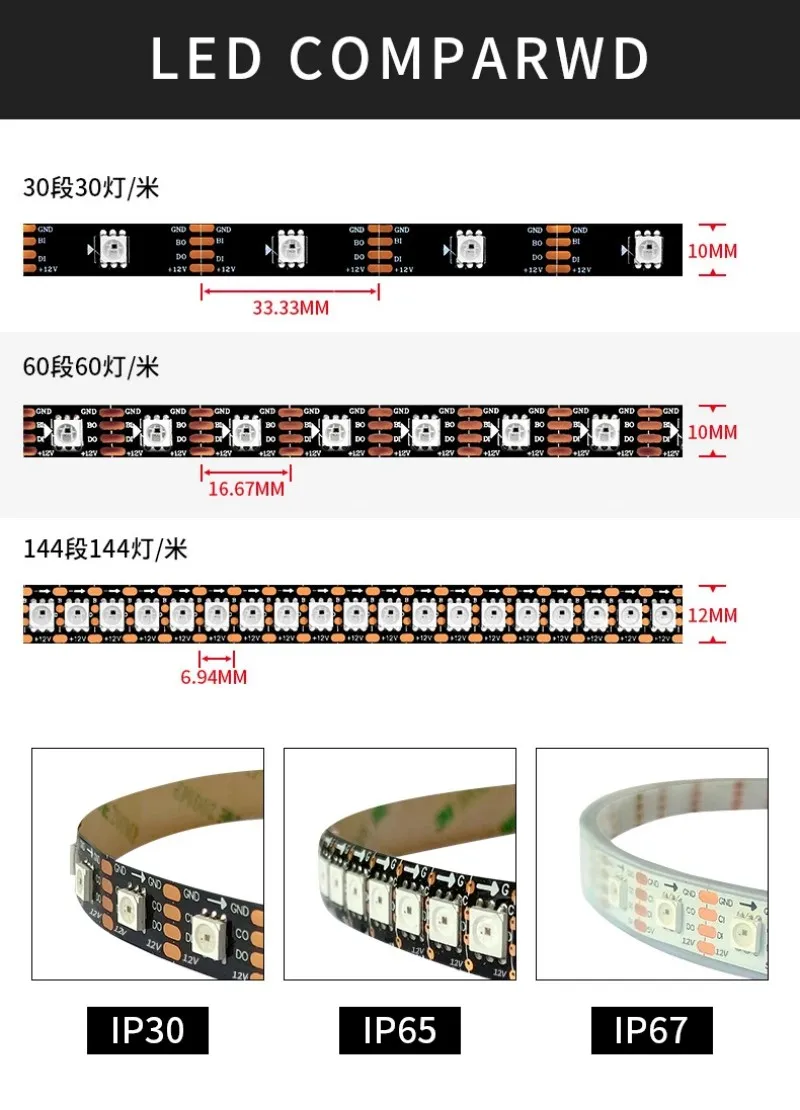

(10)FPCB Width : 30leds/m----10mm

60leds/m----10mm

74leds/m----10mm

96leds/m----10mm

144leds/m----12mm

(11)FPC color : BLACK/White

(12)Protection rate : IP30 Non-Waterproof

IP65 Waterproof in Silicon Coating

IP67 Waterproof in Silicone Tube

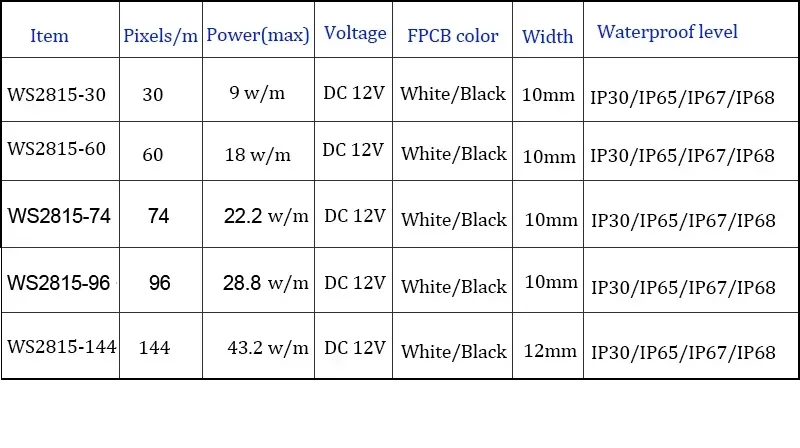

Product parameters:

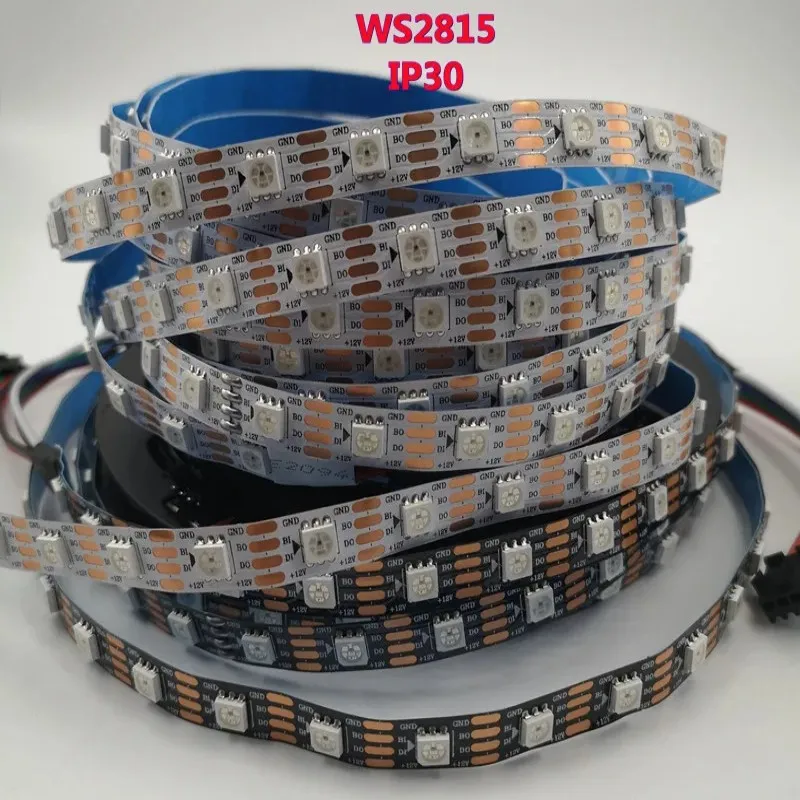

(1)LED light source : WS2815 LEDs

(2)same protocol as WS2813S with Dual-signal wires,so can be controlled by the same WS2811/ws2812 controllers

(3)Input voltage : DC12V;

(4)Power : 30leds/m----9watt/meter

60leds/m----18watt/meter

74leds/m----22.2watt/meter

96leds/m----28.8watt/meter

144leds/m----43.2watt/meter

(5)LED resource : WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

(6)LED : each LED is separately controlled

(7)IC Type : improved version ws2815 IC(built inside the 5050 smd rgb led)

(8) IC : 1 IC drives 1 led chip

(9)Pixels : 30/60/74/96/144/meter;

(10)Pitch : 16.6mm(1000/64);

(11)Grey scale : 256

(12)Bits/color : 8-bits/color;

(13)FPCB Width : 30leds/m----10mm

60leds/m----10mm

74leds/m----10mm

96leds/m----10mm

144leds/m----12mm

(14)FPC color : White PCB,blackPCB

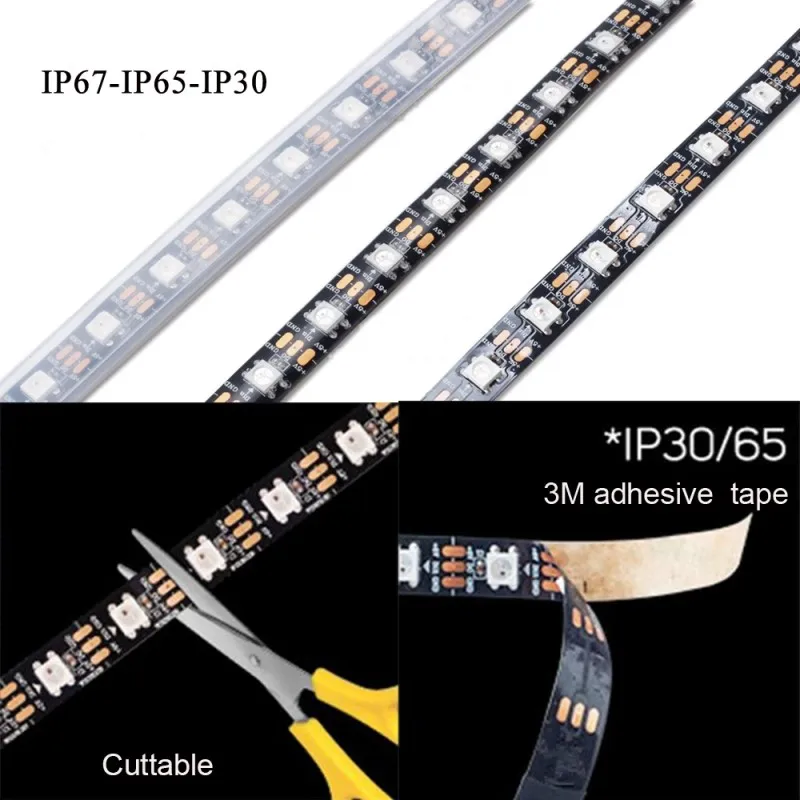

(15)Protection rate :IP30/ IP65 /IP67

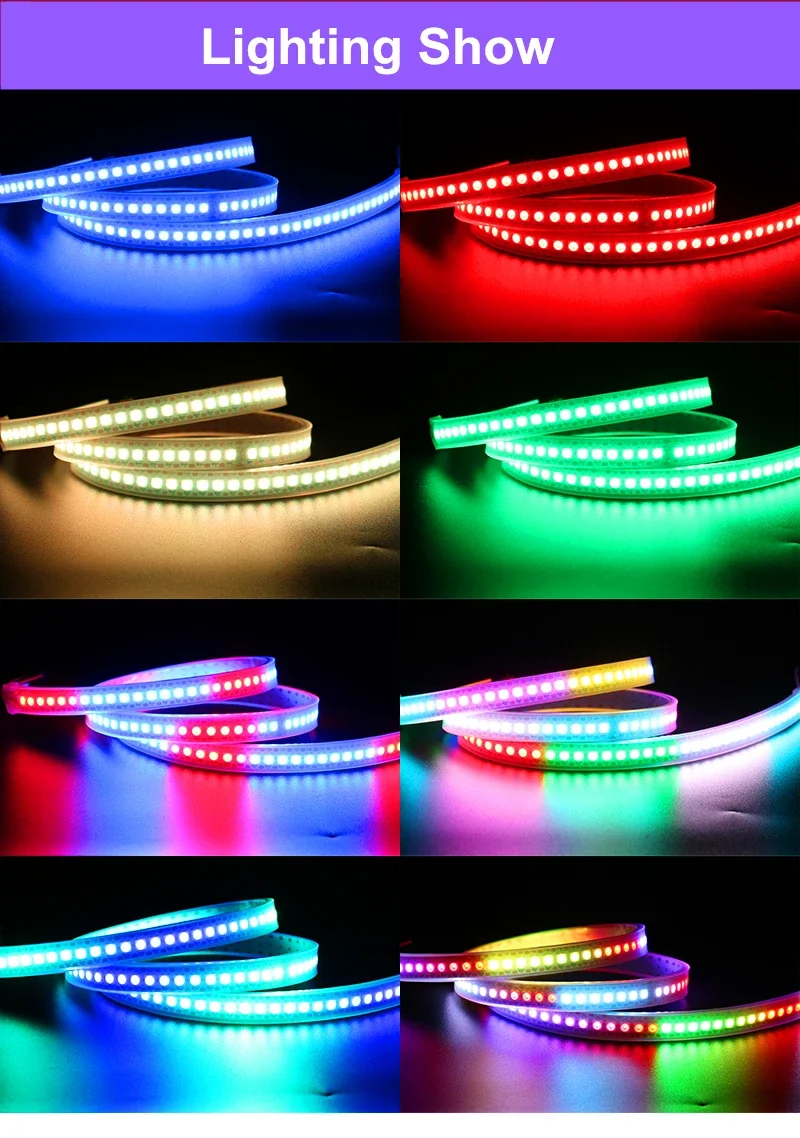

(16)Colors : Full color RGB, dream color changing;

(17)Cuttable : every LED is cuttable;

(18)Connector :4PIN connector terminal pair

Main feature:

(1)One pixel damaged will not affect the other LEDs working.

(2)The power protection,if +12V and GND reverse polarity,the LED will not be burned.

(3) Dual signal wires version, signal can jump to transfer.

(4)The original electronic devices integrated,it does not cause virtual welding in the installation process.
